EverDesk+ Max Frame Manuel utilisateur

assembly manual

Max Frame

Max Frame Assembly Information

Cable Clip 10

M6x12 Pan Head Screw

Cable Tray 1

M4x12 Phillips Head

Machine Screw

14 or

M5x16 Wood Screw 2

14 or

Tools and Parts List

Leg

Foot

Frame End-CB

3a1

Frame End

3b1

Center Rail

Side Bracket

Control Box

Handset

Power Cord

Cable Extender (1.3m) 1

M6x10mm Pan Head Screw

10 16

M6x14mm Pan Head Screw

11 12

M5x20mm Wood Screw

12 7

M6x12mm Pan Head Screw

14 4

13 Cable Clip 10

Cable Tray 1

M5x16mm Wood Screw* 2

M4x12mm Phillips Head

Machine Screw* 2

Parts Qty Parts Qty Parts Qty

Tools

*These parts can be found in the Health Coach Controller Kit.

*These parts can be found in the Health Coach Handset Kit.

Cable Clip

M6x12 Pan Head Screw

Cable Tray

M4x12 Phillips Head

Machine Screw

*These parts can be found in the Health Coach Handset Kit.

M5x16 Wood Screw

Cable Clip 10

M6x12 Pan Head Screw

Cable Tray 1

M4x12 Phillips Head

Machine Screw

*These parts can be found in the Health Coach Handset Kit.

M5x16 Wood Screw 2

• Place one Leg (1) to the Frame End (3a)

• Line up holes on Leg to holes on Frame End

• Use allen wrench provided to insert and tighten four Pan Head

Screws (M6X10mm) (10)

• Repeat for other side (Frame End 3b)

Attaching The Legs

2STEP TWO:

Center Rail & Frame

STEP ONE:

• Slide Frame Ends (3) apart to reveal Center Rail (4) • Slide the Side Bracket (5) into Frame End (3a)

• Insert and tighten two Pan Head Screws (M6X14mm) (11) on both

sides of the Side Bracket

• Repeat for other side (Frame End 3b)

Mounting Side Bracket

3STEP THREE:

• Place Foot (2) on top of Leg (1)

• Insert four Pan Head Screws (M6x14mm) (11) and tighten in a cross

pattern

• Repeat for the other side

Attaching The Foot

4STEP FOUR:

3a3b5

assembly

• Connect cable exiting Leg (1) (attached to Frame End 3b) to Control

Box (6) via Cable Extender (9)

• Connect other Leg cable directly to the other side of Control Box

• Connect Power Cord (8) to Control Box

Connecting Cables To Control Box

6STEP SIX:

assembly

For installation of Health Coach Controller, refer to step 7b and skip this step.

• Secure Memory Controller (7) to worktop with Screws provided

• Connect Memory Controller cable to Cable Box (6)

Attaching Memory Controller

STEP SEVEN(a):

For installation of Memory Controller Only

• Place frame on table top

• Adjust frame to align with pre-drilled holes on table top

• Repeat for other side

• Insert and tighten two Pan Head Screws (M6x12mm) (14) to

attach frame to table top

• Repeat for the other side

Attaching Frame To Table Top

5STEP FIVE:

A. For Pre-Drilled Table Tops:

B. For Table Tops without

Pre-Drilled Holes:

12 14

-or-

• Lock the position of the center

rails using 8 Pan Head screws

(M6X10mm) (10)

• Double-check the frame is

properly positioned on the

underside of the table top

• Attach frame to underside of

table top using seven Wood

Screws (M5x20mm) (12) provided

For installation of Memory Controller, refer to step 7a and skip this step.

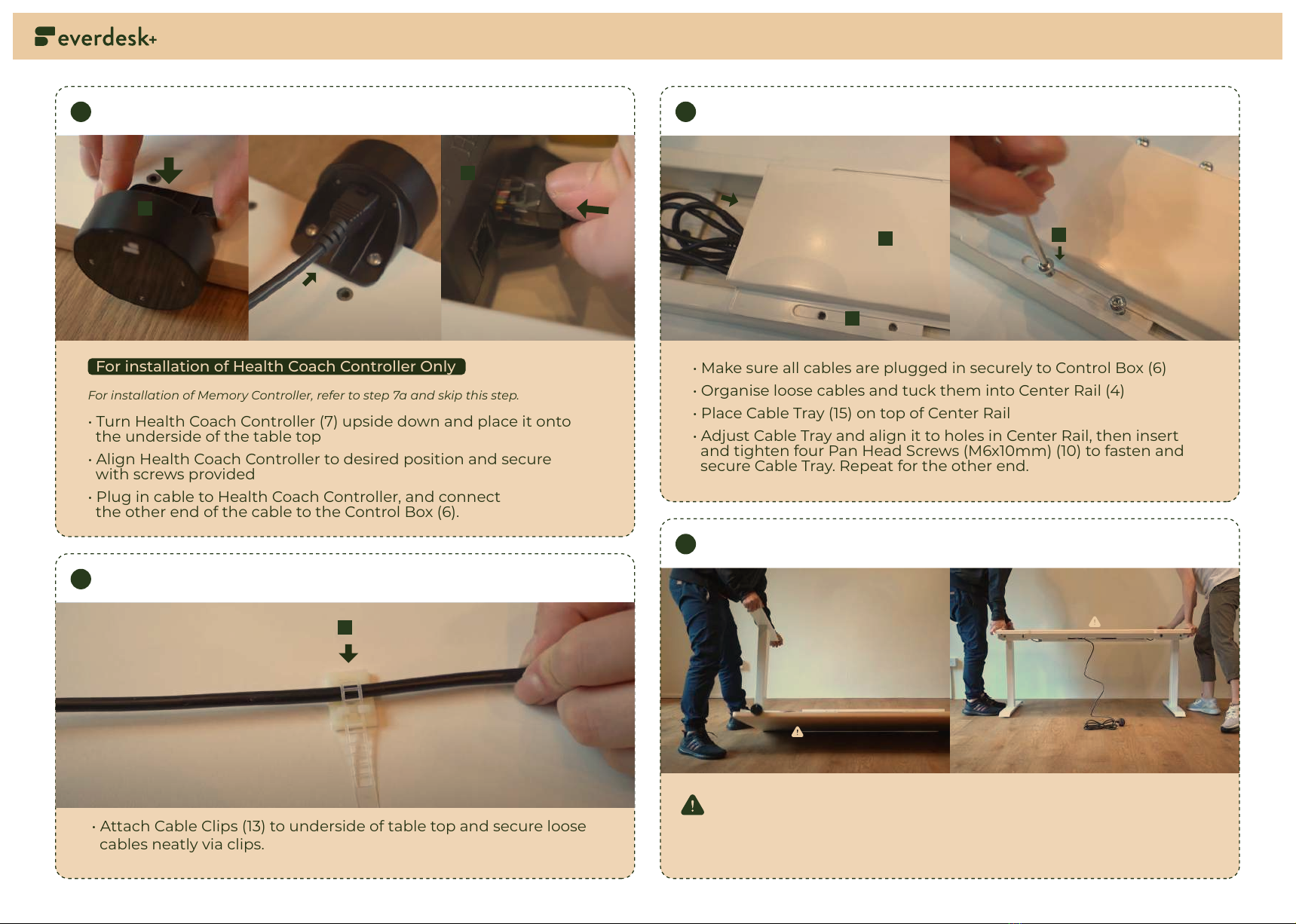

• Turn Health Coach Controller (7) upside down and place it onto

the underside of the table top

• Align Health Coach Controller to desired position and secure

with screws provided

• Plug in cable to Health Coach Controller, and connect

the other end of the cable to the Control Box (6).

Attaching Health Coach Controller

STEP SEVEN(b):

For installation of Health Coach Controller Only

• Attach Cable Clips (13) to underside of table top and secure loose

cables neatly via clips.

Loose Cable Management

STEP EIGHT:

• Make sure all cables are plugged in securely to Control Box (6)

• Organise loose cables and tuck them into Center Rail (4)

• Place Cable Tray (15) on top of Center Rail

• Adjust Cable Tray and align it to holes in Center Rail, then insert

and tighten four Pan Head Screws (M6x10mm) (10) to fasten and

secure Cable Tray. Repeat for the other end.

Attaching Cable Tray To Center Rail

9STEP NINE:

assembly

Flipping Everdesk+ Over

10 STEP TEN:

Make sure to turn the table on the side with the Notch - do not

turn the table on the side with the controller installed

• Grab desk base and ﬂip assembled table right side up

• Plug Power Cord (8) into 230v outlet to power the table

Technical Information

• Enter Reset Mode: Turn the controller anti-clockwise

(DOWN position) and hold until the display reads

“RESET”, then release the controller.

• Finish Reset: Turn and hold the DOWN position again

until the desk lowers itself to the minimum height,

slightly rises and stops.

• The desk is now reset.

Health Coach

User Guide

Please scan the QR code to view

all the features and

recommended uses of our

Health Coach Controller.

WARNING! Failure to follow

these instructions may result

in serious injury.

Make sure no obstacles are in the desk’s path.

Make sure the desktop is not touching any walls.

Make sure all cords are an appropriate length to

accommodate the changes in height.

This height adjustable desk has electric motors and is designed for

use in dry work areas only. The desk height is adjustable so that it can

be positioned at the most ergonomically suitable height. Any other

use is at the user’s risk. Under no circumstances does EverDesk+

accept warranty claims or liability claims for damages caused from

improper use or handling of the desk frame.

Keep Children away from electric height-adjustable

desks, control units and handsets. There is a risk of

injury and electric shock.

Do not sit or stand on the desk frame.

Do not crawl or lie under the desk frame.

Do not place any objects taller than 20”

underneath the desk.

Do not open or dismantle any of the components -

the Legs, Control Box, or Switch. There is a danger of

electric shock.

This product is designed with a duty cycle of 10%.

(2 minutes on, 18 minutes off.

In the event of a power outage or if the power cords

is unplugged, a manual reset may be necessary.

Reset Health Coach Controller

Ensure that the desk it at its lowest height before

attempting any reset functions.

troubleshooting information on next page

Technical Information

• Turn the controller anti-clockwise (DOWN position) and hold

until the display reads “RESET”, then release the controller.

• Press and hold the “1” button while the display ﬂashes

“RESET” and then switches to either:

10.1 ( = One Touch)

10.2 ( = Constant touch)

• Press the “1” button again until desired setting is reached.

Once the chosen setting is displayed, release the button and

wait about 5 seconds for the display to return to “RESET”.

• Finish the reset process by turning the controller

anti-clockwise and holding it until the desk lowers further,

slightly rises and stops.

The new touch settings are saved and the desk is ready to use.

Touch Settings

• Turn the controller anti-clockwise (DOWN position) and hold

until the display reads “RESET”, then release the controller.

• Press and hold the EverDesk+ Logo for about 5 seconds until

the minimum height is displayed.

• Turn the controller anti-clockwise or clockwise to decrease or

increase the height value respectively.

• Finish the reset process by turning the controller

anti-clockwise and holding it until the desk lowers further,

slightly rises and stops.

The new height value is saved and the desk is ready to use.

Manually Change Height Value

Troubleshooting / Health Coach Settings

Ensure that the desk it at its lowest height before attempting

any reset functions.

• Turn the controller anti-clockwise (DOWN position) and hold

until the display reads “RESET”, then release the controller.

• Press and hold the “2” button while the display ﬂashes

“RESET” and then switches to either:

10.3 ( = CM)

10.4 ( = Inches)

• Press the “2” button again until desired setting is reached.

Once the chosen setting is displayed, release the button and

wait about 5 seconds for the display to return to “RESET”.

• Finish the reset process by turning the controller

anti-clockwise and holding it until the desk lowers further,

slightly rises and stops.

The new unit settings are saved and the desk is ready to use.

Changing Measurement Units (CM/Inch)
