Event Lighting M1H200W Manuel utilisateur

M1H200W

Hybrid Moving Head with CMY, CTO and Zoom

USER MANUAL

For safety, please read this user manual carefully before initial use.

Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to

change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting

for any clarification or information regarding this item.

www.event-lighting.com.au

V1.0

www.event-lighting.com.au

Safety Instructions

WARNING

• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.

• Do not look at the light source when the device is on.

•CAUTION: This unit's housing may be hot during and after operation.

• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.

• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.

• Use a safety chain when mounting this device overhead.

• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.

• Do not operate this device if the housing, lenses, or cables appear damaged.

• Do not connect this device to a dimmer or rheostat.

• ONLY connect this device to a grounded and protected circuit.

• ONLY use the hanging bracket to carry this device.

• In case of a serious operating problem, stop using immediately.

• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.

Power Input & Power Linking

This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.

Link up to the maximum 8A. DO NOT exceed this.

Fuse Replacement

If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.

Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing and fix it.

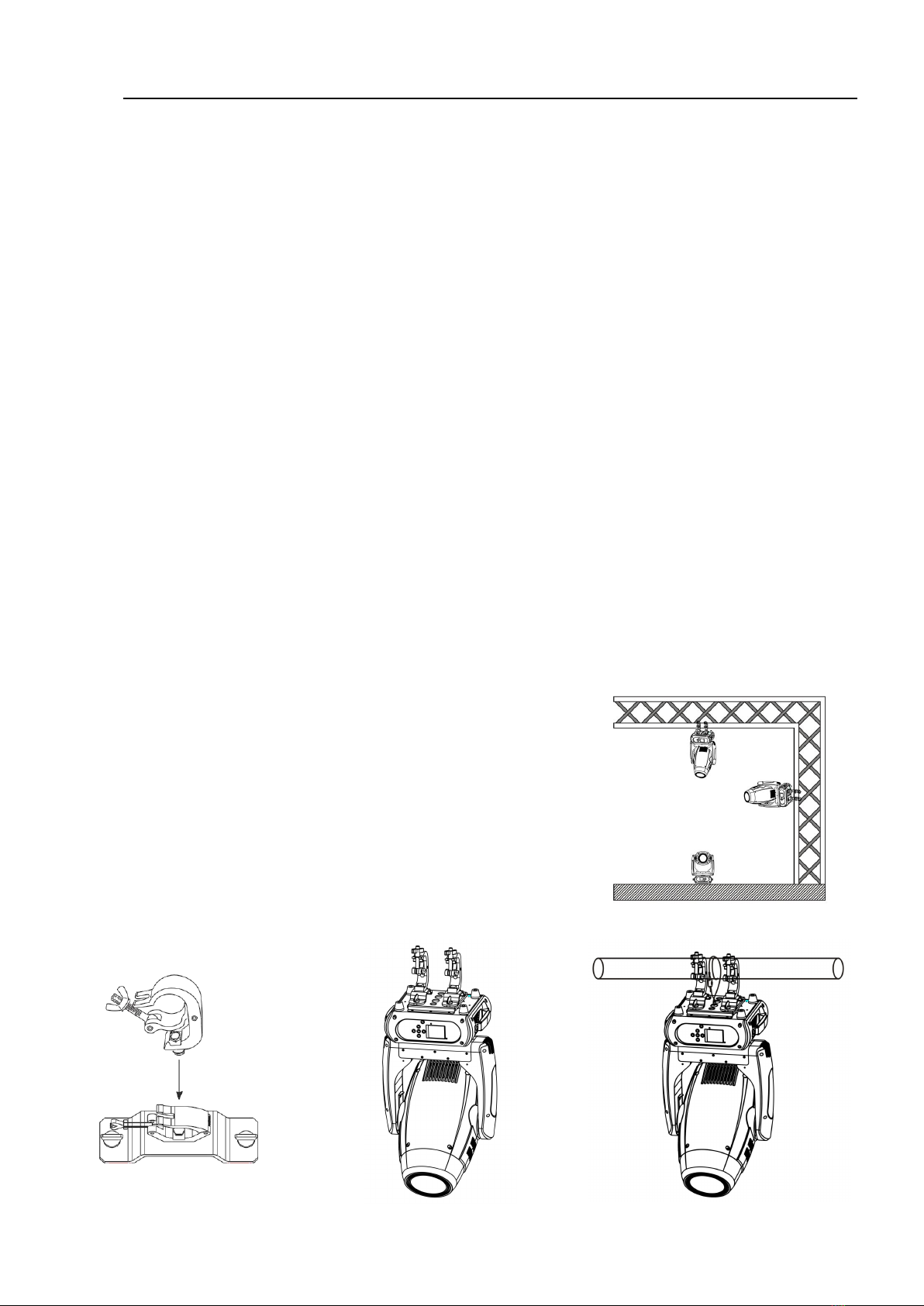

Product Installation

This device can be mounted in many orientations provided each

individual device is secured by the use of correct mounting bracket.

Use a safety chain when mounting this device overhead.

www.event-lighting.com.au

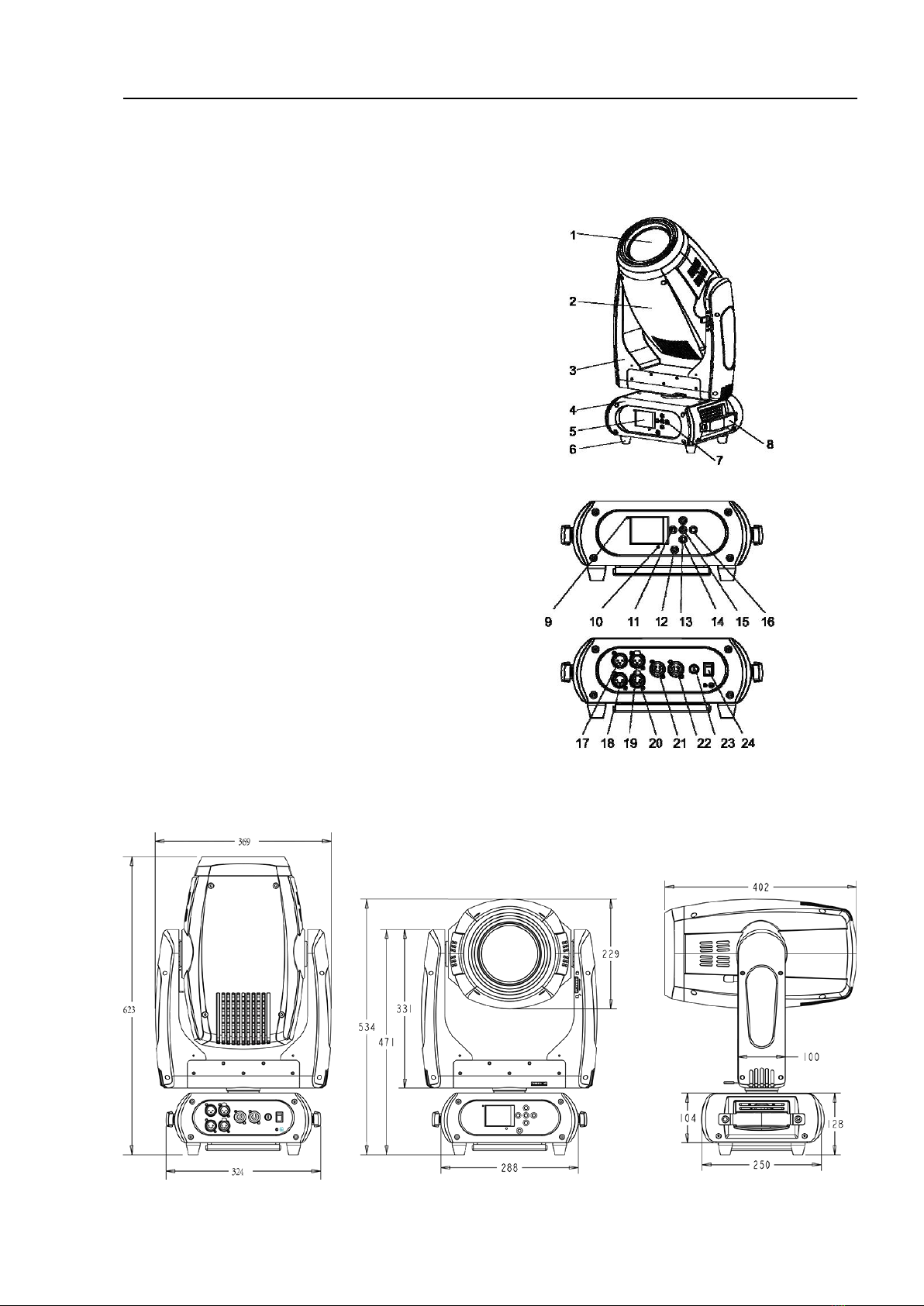

Product appearance, LUX chart, Dimensions

1. Project lens

2. Head

3. Arm

4. Base

5. Display

6. Foot stand

7. Operation button

8. Handle

9. Wireless indicator

10. Mic

11. Left button

12. Battery indicator

13. Up button

14. Down button

15. Enter button

16. Right button

17. 3-pin DMX in

18. 5-pin DMX in

19. 3-pin DMX out

20. 5-pin DMX out

21. Powercon in

22. Powercon out

23. Fuse

24. Power switch

www.event-lighting.com.au

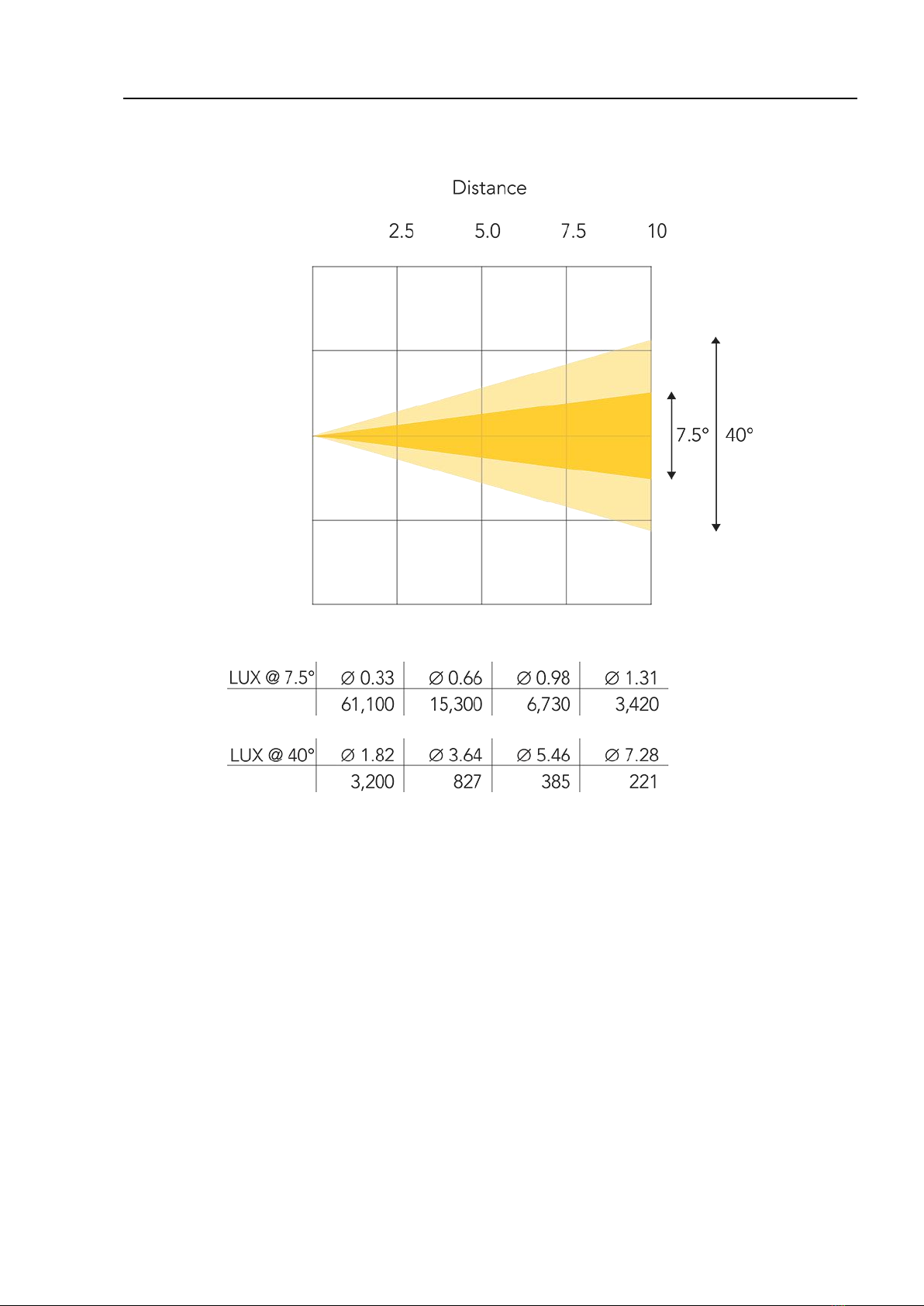

Lux Chart

www.event-lighting.com.au

Colour wheel

Open

Magenta

Orange

Sky blue

Pink

Yellow

Green

Blue

Red

www.event-lighting.com.au

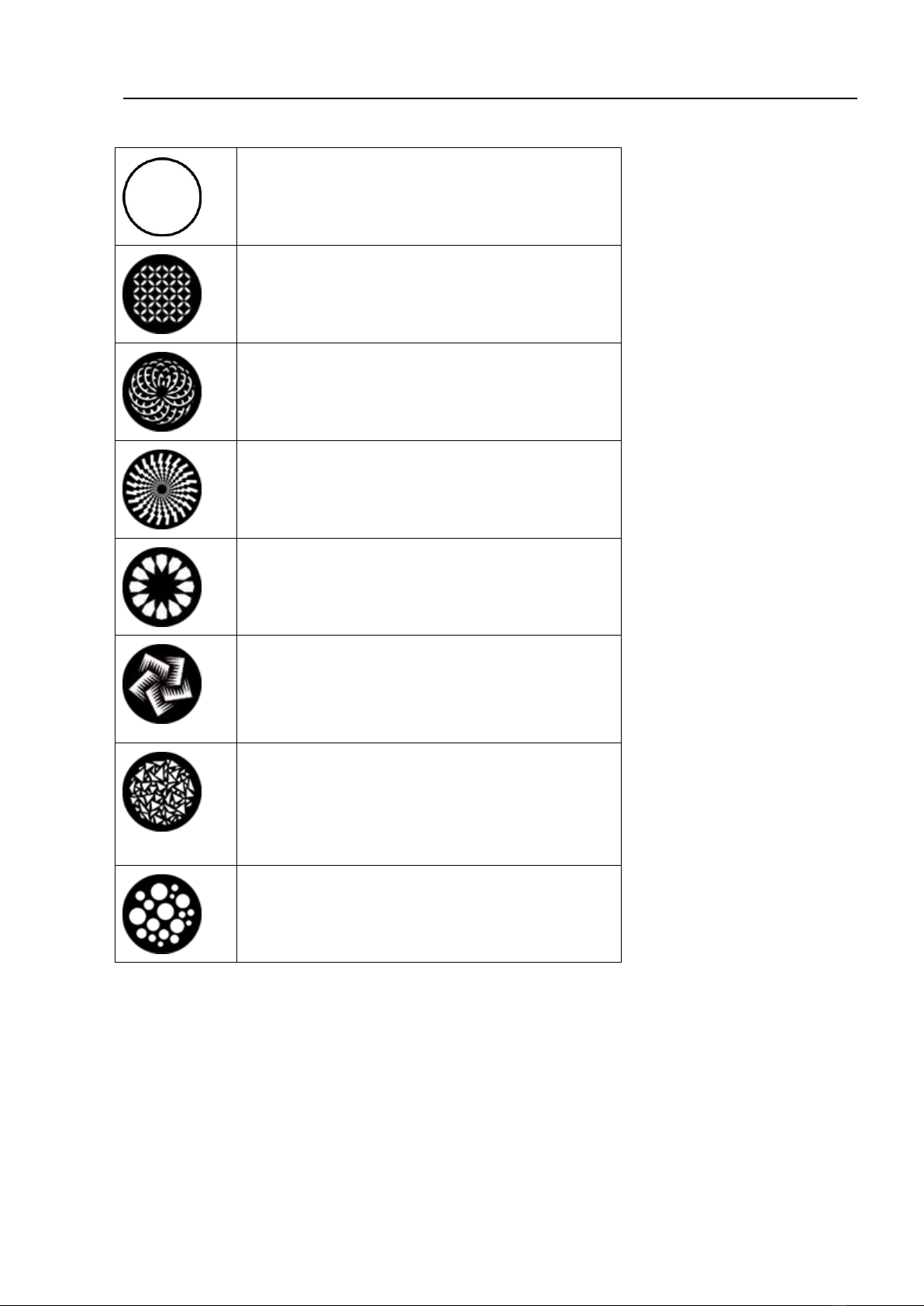

Rotating gobo wheel

Position 1

Position 2

Position 3

Position 4

Position 5

Position 6

Position 7

Position 8

www.event-lighting.com.au

Static gobo wheel

Position 1

Position 2

Position 3

Position 4

Position 5

Position 6

Position 7

Position 8

www.event-lighting.com.au

Menu operation

Description of icons in the menu

CONNECT

LIGHT

INFOMATION

SET

PROGRAM

Default setting shadowed. Mark with ①can be basic reloaded, ②be program reloaded, ③can be private reloaded.

Con

nect

DMX Address①

XXX

DMX address setting

Wireless①

Wireless Enabled

Light

Turn On / Off

ON/OFF

Turn On the lamp

Automatic

ON/OFF

Lamp On/Off when power on

DMX Control

ON/OFF

DMX Control or not

Max Temperature

①

80~139℃90℃/176~282℉194℉

Lamp off if temperature

continuously over for 5 minutes

Lamp Adjust①

PAN……

Adjust value of channel

Information

Time Info.

Current XXXX(Hours)

Fixture Life XXXX(Hours)

Lamp Life XXXX(Hours)

Fixture boot time

Fixture total run time

Lamp total run time

Temperature

Near Lamp Temp (depends on fixture)

Temperature Sensors

Fans Speed

Near Lamp Fan (depends on fixture)

Fan speed Sensors

Channel Value

PAN……

Display value of channel

Error Message

Pan,Tilt……

Error channels

Fixture Model

xxxxxxxxxxxx

Display model brand and model

Software Ver

1U01 V1.0.00………

Version of each IC

Set

Reset

All

Pan&Tilt

Colors

Gobos

Others

Reset all

Reset Pan&Tilt

Reset Colors

Reset Gobos

Reset Others

Movment

Pan Reverse①

Tilt Reverse①

Pan Degree①

Encoders①

Pan/Tilt Mode①

ON/OFF

630/540

ON/OFF

Stand/Smooth

Pan Reverse

Tilt Reverse

Choose Pan Degree

Encoder wheel on/off

Choose pan/tilt mode

UI Set

Mic Sens. ③

No Signal①

Temperature. C/F①

Fans Mode①

Hibernation①

Backlight①

Flip Display①

Display Bright③

0~99%,60%

Close/Hold/Auto/Music

Fahrenheit /Celsius

Auto Speed /High Speed

OFF, 01M~99M，15M

02~60m 02m

ON/OFF

00~31 10

Sensitivity of Mic

Mode when no signal

Temperature at ℃/℉

Fans mode

Sleeping mode

Show backlight time

Display 180°reverse

Display Brightness

www.event-lighting.com.au

Brand Show①

Key Lock①

Language③

ON/OFF

En/简/繁/Fr/Sp

Show brand or not

Key lock on/off

Language Select

Users

User Mode①

Standard

Extended

Basic-8bit

Basic-16bit

User

Standard mode

Extended mode

Basic-8bit mode

Basic-16bit mode

User program mode

Edit User③

Max Channel = XX

PAN = CH01

Edit users mode

Calibration③

-Password-

Color

=XXX

Password: 050

Calibrate channel value

Fixture ID③

Name

-Password-

PID Code

Name

Password: 050

Set PID of RDM

Wireless Set①

DMX On Cable

Reset Connect

ON/OFF

DMX Send Out

Reset Connect

Reload Default

Basic Reload(①)

Program Reload(②)

---Password---

Private Reload(③)

All Reload

ON/OFF

XXX

ON/OFF

Basic Reload

Program Reload

Password: 050

Private Reload

All Reload

Program

Play①

DMX Receive

Slave Receive

Sequence

Music

Slave Receive 1,2,3

Master / Alone

DMX Receive

Choose slave position

Run Sequence

Music mode

Select Chase②

Chase Part 1

Chase Part 2

Chase Part 3

Chase 1 ~ 8 Chase 1

Chase 1 ~ 8 Chase 2

Chase 1 ~ 8 Chase 3

Select and run auto program

Edit Chase②

Chase 1

Chase 8

Chase Test

Step 01

Step 64

=SCxxx

Test

Beginning scene

Ending scene

Edit Scenes②

Edit Scene 001

~ Edit Scene 250

Pan,Tilt,……

--Fade Time--

--Secne Time--

DMX Input

=xxx

Input manual scene

Modify manually fading time

Modify manually scene time

Input scene from exterior

controller

Scenes Record

ScXX=>ScXX

Auto Input scenes

www.event-lighting.com.au

DMX Chart

Channel

name

function

Min DMX

Max DMX

Ba1

Ba2

Pan

Pan Coarse

255

Pan fine

Pan Fine

255

Tilt

Tilt Coarse

255

Tilt fine

Tilt Fine

255

Movment

Speed

fastest to Slowest

255

Movment

Function

Normal

Movement With Backout

TBD

255

Shutter

Function

Normal Shutter Functions

Pulse-effect Forward

Pulse-effect Reverse

Random Strobe

TBD

255

Shutter

Normal Shutter Functions

Strobe Rate (slow to fast)

223

Open

224

255

Pulse-effect Forward

Strobe Rate (slow to fast)

223

Open

224

255

Pulse-effect Reverse

Strobe Rate (slow to fast)

223

Open

224

255

Random Strobe

Strobe Rate (slow to fast)

223

Open

224

255

Shutter

Shutter closed

No function (shutter open)

Strobe effect slow to fast

No function (shutter open)

127

Pulse-effect in sequences

128

159

No function (shutter open)

160

191
