Event Lighting NITROBALL2 Manuel utilisateur

NITROBALL2

LED Rotating Ball with 5 x 15w HEX (6-in-1) LEDs.

USER MANUAL

This manual contains important information about the safe installation and use of this product

Please read this instruction manual carefully before installing or operating

Please keep these instructions in a safe place for future reference

V1.02

Contents

1. Safety Instructions 2

2. Installation 3

3. Features 3

4. Product Overview 4

5. Menu Operation 5

6. DMX Table 5

7. DMX Address Setting 7

8. Error Messages 8

9. Rigging 8

10. Cleaning and Maintenance 8

11. Technical Data 9

12. Warranty 9

Introduction

Thank you for the purchase of your NITROBALL2 rotating LED Ball by Event Lighting Lite.

Please read these instructions carefully to ensure the product is well look after and used

correctly to avoid any potential problems.

Please note that as part of our ongoing commitment to continuous improvement and product

development, the specifications in this manual are subject to change without notice. Whilst

every care has been taken in the preparation of this manual we reserve the right to change

specifications in the course of product improvement.

What is in the box:

- 1 x NITROBALL2 Lighting Effect

- 1 x Quick lock handle

- 1 x Power Cable

1. Safety Instructions:

Please read these instructions carefully. It includes important information about the installation

usage and maintenance of this product.

- Please keep this User Manual for future consultation. If you sell the unit to another user, be

sure that they also receive this instruction booklet.

- Always make sure that you are connecting to the proper voltage and that the line voltage you

are connecting to is not higher than that stated on the sticker of the fixture.

- This product is intended for indoor use only. To prevent risk of fire or shock, do not expose

fixture to rain or moisture.

- Make sure there are no flammable materials close to the unit while operating.

- The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surface. Be sure that no ventilation slots are blocked.

- Always disconnect from power source before servicing.

- Secure fixture to stands, trussing and the like using a safety chain.

- Maximum ambient temperature is 40˚C. Do not operate fixture at temperatures higher than

this.

- In the event of serious operating problem, stop using the unit immediately. Never try to repair

the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.

Please contact the nearest authorized technical assistance center.

- Make sure power cord is never crimped or damaged.

- Never disconnect power cord by pulling or tugging on the cord.

- Never carry the fixture directly from the cord. Carry by holding the base of the unit, and only

move when unit is upright.

- Avoid direct eye exposure to the light source while it is on.

2. Installation:

Caution: For safe mounting of this product, please read the following carefully.

- Use the included rapid lock clamp to attach to lighting stand, trussing or bar, together with

safety chain. See section 9 for detailed instructions regarding rigging.

- When mounting the product, do not stand directly underneath the product

- Always use a safety chain when mounting the product on stands, trussing or bars. Make sure

the breaking strain rating of the chain is at least 10 times the weight of the product.

- Make sure there is adequate ventilation around the product.

- This product is designed to be mounted either upright or upside down. It cannot be used in a

side orientation – for example: the product cannot be used with the base mounted on the wall

in a perpendicular orientation. This will cause severe damage to the motor and drive shaft and

could cause the ball to distort and even fall off.

- Never look directly into the LED light sources of the product.

- For indoor use only – do not use outdoors.

- To avoid electrical shock, keep away from rain and moisture.

- Keep out of reach of children.

3. Features

This product is designed as an LED lighting effect and is only intended to be used as an LED

lighting effect for entertainment and display applications. Due to our ongoing commitment to

constantly reviewing and improving products, features and specifications are subject to change

without prior notice.

- LEDs: 5 x 15W RGBWYUV HEX 6-in-1 LEDs with average 50000 hours lifespan

- Beam angle

：

1º

- Beam spot angle

：

1º

- Lenses: 98

- Pan: Infinite (endless rotation)

- Control: DMX, Sound Activation, Stand Alone, Master/Slave

- DMX Channels: 13

- Functions: Continuous rotation, strobing, variable speed rotation, individual colour control

- Electronic strobe rate: 1-25Hz

- Built in colour macros and programs

- IEC input/output, can link 20 units together.

- Weight: 3.65kg

- Packed Dimensions 355x355x485mm

LED Display

MODE/ESC button

UP button (UP）

DOWN button

(DOWN）

Enter button (ENTER）

Signal input

Signal output

ON/OFF switch

Fuse 2A

Power In

Power Out

4. Product Overview

5. Menu operation

Notes:

1. The display flickering slowly indicates the current MENU option. If the display is flickering

quickly, the data shown on the display will become current once entered.

2. During changing the MENU settings, if no input has been received after 10 seconds, the

MENU will return to A001 display and be locked (the last 3 numbers show the DMX address).

The unit will continue to operate in the last program it was set to. To UNLOCK the menu

display, hold down enter for 3 seconds, then press up or down. Again, after no input or change

for 10 seconds or more, the display will lock and revert to A001 display.

6. DMX Channel Allocation and functions table

CH Value

Function

1 0-255

Pan continuous rotation

2 0-255

0-30 no function

31-140 Pan continuous clockwise rotation (from fast to slow)

141-145 Stop rotation

146-255 Pan continuous anti-clockwise rotation (from slow to fast)

REST

rdoF

A001

rdon

rdoF

SOND

AuTo

Au0F

AuTo

dFon

dFoF

ASTE

REST

rdoF

001

512

RESET

DEFAULT

OFF

DISPLAY REVERSE ON

DISPLAY

REVERSE OFF

Slave unit

Master unit

Sound sensitivity

SOUND

mode

AUTO

mode

AUTO

mode

OFF

DMX

mode

3 0-255

Pan speed（ invalid during endless rotation, 226-235. Light OFF when

scanning

，

236-255

：

max speed

）

4 0-255

Red dimming

5 0-255

Green dimming

6 0-255

Blue dimming

7 0-255

White dimming

8 0-255

Yellow dimming

9 0-255

UV dimming

10 0-255

0-15 No function

16-95 Synchronous strobe – strobe speed

96-175 Strobe Flash once per second. Flash Duration from short to long.

176 – 255 Asynchronous strobe: Strobe flash probability from high to low

11 0-255

Master dimming

12 0-255

0-25 No function

26-205 Fixed Colours - each 20 value mean 1 colour (eg 26-45 red)

206-255 Colour changing (changing speed from fast to slow)

13 0-255

Macros (built in programs as below)

0-55 No function

56-75 Sound control，each sound will switch to next Marcos as below, sound

sensitivity from low to high 40-80%

NOTE: this is not controlled by the sound sensitivity in MENU. The sound

sensitivity setting in MENU is valid for sound function in Auto only

76-105 Red，clockwise rotation

106-135 Blue, anti-clockwise rotation

136-165 7 colours changing, clockwise rotation

166-195 7 colours changing, anti-clockwise rotation

196-225 7 colours changing, with strobe (strobe 3 seconds，light on 7

seconds)，clockwise rotation

226-255 7 colours changing，with strobe (strobe 3 seconds，light on 7

seconds)，anti-clockwise rotation

DMX-512 Control Connection

Using a 3 pin XLR cable, you can connect the product to a DMX controller and then to

other fixtures with 3 pin XLR inputs and outputs. When not using DMX, multiple

fixtures can be connected together and operate under master/slave control. The signal

cable should have two core with shielded cable, the signal connectors are XLR input

and output connectors. Please refer to the below diagram:

7. DMX Address Setting

When being used in conjunction with a DMX controller, each fixture must be set a specific

starting address. When receiving signal, fixture will receive channel control signals of this

address from the DMX controller.

For simplicity, the user can use the same address for multiple fixtures but this will result in

each fixture providing exactly the same output and fixtures with the same DMX address cannot

be individually controlled.

To control each fixture individually via DMX, each fixture must have its own unique DMX

address. As this fixture uses 13 DMX channels, each address must be at least 13 apart.

So for example – assuming the first fixture is DMX channel 1, the second fixture would need

to be on channel 14, then the 3rd channel 27 and so on. Some DMX controllers may group

fixtures in lots of 16 channels – so in that case, fixture 1 on channel 1, fixture 2 on channel 17,

3 on 33, and so on. Refer to your DMX controllers’ instruction manual on how best to manage

your DMX channel allocation.

Address: 27 Address: 14 Address: 01

Safety-rope

Rapid locking hook

DMX-512 connection with DMX terminator

A DMX terminator helps to reduce ‘noise’ on the DMX chain, and makes the light respond to

control more accurately. It should be plugged in to the last fixture in any chain. For Terminator

connections please see below:

8. Error Messages

In the event of an error or problem within the fixture, the display will show an error message

such as “PAN-ERR”. A pan error could be caused by an obstruction to the rotation of the ball.

If this is the case, power off the unit and clear the obstruction.

With any error message, the unit should be powered off, then turned on again after a few

seconds. If the error message persists, please contact your local dealer for advice or repairs.

There are no user-serviceable parts within this product – do not attempt to open and repair

yourself. Doing so will result in any warranty being voided.

9. Rigging:

Insert the quick-lock fasteners of the first holder into the respective holes on the base of the

product. Tighten the quick-lock fasteners fully clockwise. The mounting bracket can then be

attached to a stand, trussing or lighting bar securely. Be sure to use a safety chain which

connects through the lug with the hole in it on the base and around the trussing or bar on which

the product is being mounted.

10. Cleaning and maintenance

From time to time it is recommended the product is cleaned to ensure maximum light output

and performance. Use a wet cloth to clean the housing as well as the lenses and base. Glass

cleaner is also suitable but alcohol based cleaners and solvents cannot be used as they will

cause damage to the product.

When used in a fixed long term installation such as a venue or club, the unit should be

periodically taken down from the installation and professionally cleaned. Dust build-up within

the unit can cause damage and ultimately failure of components.

11. Technical Data

Input Voltage: AC100-240V 50/60Hz

LED: TX-BGRWIY10B120-001, 15W/LED

Power Consumption: 55w

SPFC power factor correction power supply, PF>0.99, efficiency > 90%

Net Weight: 3.65Kg

12. Warranty

Please refer to your local dealer or contact Event Lighting

Table des matières

Autres manuels Event Lighting Matériel de DJ

Event Lighting

Event Lighting PARP12x8 Manuel utilisateur

Event Lighting

Event Lighting BM7W10RGBW Manuel utilisateur

Event Lighting

Event Lighting DARKSTAR Manuel utilisateur

Event Lighting

Event Lighting DARKSTAR2 Manuel utilisateur

Event Lighting

Event Lighting STROBEXRGB Manuel utilisateur

Event Lighting

Event Lighting F100WWMZ Manuel utilisateur

Event Lighting

Event Lighting SToRM Manuel utilisateur

Event Lighting

Event Lighting BLINDER Series Manuel utilisateur

Event Lighting

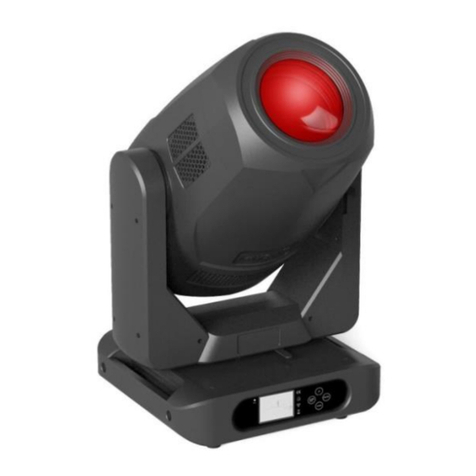

Event Lighting ENFORCER580 Manuel utilisateur

Event Lighting

Event Lighting PRO PAR PAR6X12OB Manuel utilisateur

Event Lighting

Event Lighting PANBEAM4x4x10 Manuel utilisateur

Event Lighting

Event Lighting PS200LECW Manuel utilisateur

Event Lighting

Event Lighting PRO PAR PAR12X8L Manuel utilisateur

Event Lighting

Event Lighting LM75 Manuel utilisateur

Event Lighting

Event Lighting BM1S50W Manuel utilisateur

Event Lighting

Event Lighting PIXBAR6x12 Manuel utilisateur

Event Lighting

Event Lighting PRO PAR PAR6X12OB Manuel utilisateur

Event Lighting

Event Lighting LM60S Manuel utilisateur

Event Lighting

Event Lighting Fresnel Manuel utilisateur

Event Lighting

Event Lighting CO2RGB Manuel utilisateur

Event Lighting

Event Lighting SURF640 Manuel utilisateur

Event Lighting

Event Lighting DASDI1000RGB Manuel utilisateur

Event Lighting

Event Lighting M1S190W Manuel utilisateur

Event Lighting

Event Lighting F100WWMZ Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
