Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 1of 17
Your Studio Pro 24 has been shipped in 3 sections for easy placement. Narrow doorways and halls are possible to navigate with each of the 3, individual
sections. This allows you to place the kiln where it would be otherwise impossible or impractical to do with a kiln of this size.
SAFETY
Read and understand these installation instructions for safe and proper installation. Installation requires the lifting and moving of individual kiln sections.
Personnel capable of lifting and managing the moving process must be used. If you have any questions please contact Evenheat Kiln at 989-856-2281 or at
evenheat-kiln.com.
Kilns are as safe as any other electrical appliance when used under normal and proper operating conditions. To create and maintain this safe environment
observe all installation and safety precautions.
Warning Symbol Descriptions
Warning symbols are used throughout these installation instructions. These symbols alert the installation personnel to certain hazards and important
information. Pictured below are symbols used along with a description of each.
The Exclamation Point alerts you to particular cautions, hazards and information.
The Lightning Bolt alerts you to specific information regarding the risk of electric shock.
Electric shock may result in injury or death.
Emergency Shut Off Provision
The kilns power supply connection (plug/receptacle, breaker or disconnect) acts as the emergency electrical power shut off. Access to these
devises should be unobstructed and safe at all times.
All electrical installations for direct wired models (those without a plug/receptacle connection) must include a power disconnect near the kiln and that
is easily accessible and safe for emergency power shutoff.
Electrical Safety
A licensed electrician should be used for all electrical installation and service. All applicable local, state and federal electrical codes must be
followed.
Use correct voltage, wire size and fuse or breakers. Kiln electrical requirements are located on the kiln nameplate. Make sure all electrical connections
are tight. Avoid using aluminum wire.
Always use the proper electrical receptacle. Never alter the kiln cordset or cordset plug. Alterations can be dangerous. Alterations will void any
warranties along with nullifying any Listing Agency markings.
Evenheat recommends that a voltage check be performed before placing the kiln into service, ideally before actual purchase. Operating
voltage varies, with common operating voltages being 208V and 240V. The kilns operating voltage (printed on the kilns nameplate) must
match the applied voltage (actual electrical service voltage). If it does not, do not install or operate the kiln as potential electrical and fire
hazards exist. Contact Evenheat for guidance in such cases.
The kiln must be properly grounded.
Unplug or disconnect the kiln from the electrical service before accessing the chamber for servicing or vacuuming. Do not attempt to touch
or replace the heating elements while the kiln is plugged in or connected to the electrical service. Electric shock may result in serious injury
or death.
Never, ever use an extension cord to operate a kiln.
Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 2of 17
Kiln Location Safety
The best location for the kiln is a concrete floor. If not available, the kiln must be placed on a minimum of 2” of masonry extending at least 12” beyond
the outside perimeter of the kiln.
Do not place or use kiln on combustible surface.
Place only on the metal stand provided by Evenheat Kiln, Inc.
The surface on which the kiln is placed shall be capable of safely supporting the combined weight of the kiln, kiln load and any operating personnel.
Observe all building, fire and safety codes when installing the kiln.
Do not install the kiln closer than 12” (31cm) from combustible wall surface or object or 36” from any ceiling surface in all opened and closed
positions.
Install in a covered, well ventilated area.
Never place the kiln in a small, enclosed area such as a closet, cabinet or very small room. The room in which the kiln is placed into service shall be
capable of safely dissipating all heat produced by the kiln.
Do not place the kiln in any structure resembling a carport or screened in porch. Avoid areas that are subject to outdoors weather.
Never install a kiln outside. Avoid moisture.
It is the user’s responsibility to be knowledgeable regarding any and all contaminants, produced by the ware during firing, and take steps to properly
and legally contain and dispose of these contaminants.
It is the user’s responsibility to provide ventilation capable of removing all gases, fumes and other airborne contaminants produced by the ware
during firing safely from work the area and building structure.
Do not store flammable or combustible products near or in the same room the kiln such as gasoline, paint, aerosol cans, paper, curtains,
plastics, etc. Better yet, store these items in another separate structure designed for this purpose.
Position the power supply cables, power supply conduit, controller cables, pyrometer thermocouple leads and other materials in such a way as not to
create a tripping hazard around the kiln.
The area around the kiln should be free of obstructions that interfere with the proper and safe operation of the kiln.
Never place anything under or above the kiln for storage. Absolutely nothing should be propped against the kiln.
Kiln Use Safety
The surface of the kiln is hot and burn injuries are possible. Keep all children and unsupervised personnel away. Always wear protective
clothing, gloves and eyewear when operating and handling a hot kiln.
Use extreme care when accessing a functioning and/or hot kiln. Your kiln is equipped with a power interrupt switch assembly that is
designed to remove electrical power from all heating elements when either the lid or chamber is opened. This power interrupt switch
assembly is a mechanical devise and it can fail. Under no circumstances should you touch the heating elements with your body or any other devises
like tools. Electrical shock may result in serious injury or death.
Use care when accessing or looking into a hot kiln, this includes looking through a cracked lid or peepholes. High heat escapes quickly and
burn injury may result. When accessing or looking into a hot kiln, approach slowly and wear protective clothing and gloves designed to
withstand high heat and eyewear capable of filtering Infrared and Ultraviolet light.
Protective clothing should be worn when operating the kiln and includes, but is not limited to, cotton clothing, heat resistant gloves and eyewear
capable of filtering Infrared and Ultraviolet light.
Do not operate the kiln over the maximum temperature rating printed on the nameplate.
Never fire a kiln unattended beyond its anticipated firing time.
Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 3of 17
Never allow the power cord to touch the kiln. If the cord, plug or receptacle become damaged discontinue use and replace immediately.
Do not remove the heat resistant, fiberglass sleeve affixed to the power cable. This sleeve protects the power cable from heat directed from the firing
chamber.
Do not open the chamber with the lid in the open position.
Do not open the lid with the chamber in the open position.
Be sure that kilns Lid Security Bar and Chamber Security Bar are secured within the wireform catch before releasing the lid or chamber. The hardware
used for these safety bars should be inspected periodically for damage and wear. If these devises are not operating properly discontinue kiln use until
repair or adjustment is made.
It is recommended that a fire extinguisher, capable of dousing an electrical fire, be accessible in the event of fire. Smoke detectors within the kiln
room are also recommended.
Keep the kiln lid and chamber closed when not in use.
It is the user’s responsibility to have knowledge of the material intended to be fired. If you are unsure as to the safety of firing a particular
material contact your materials supplier for guidance. If you remain unsure as to the safety of firing a particular material do not do it. Firing
hazards include materials that explode or produce toxic gases. Finished ware hazards include materials containing lead. Materials containing
lead should not be used for articles intended for food use.
Fire all ware according to the material manufacturer’s instructions. Improper firing may result in damage to the kiln or ware.
Do not use the kiln to prepare food, heat a living space, dry clothes or ice laden articles or use as a storage devise. The kiln is designed for one purpose
and one purpose only: the firing of glass materials.
All kiln models not equipped with an automatic shutoff devise (electronic control or kiln sitter) must not be allowed to exceed the rated operating
temperature indicated on the kiln nametag. To prevent kiln from exceeding this maximum temperature disconnect it from the electrical power supply.
A kiln will remain very hot long after the firing is complete. All safety recommendations should be followed, even with the kiln unpowered, to avoid
any burn injuries. Keep children and other unauthorized personnel away.
When firing is complete, and during periods of non-use, remove power from the kiln by unplugging or by throwing the disconnect or breakers to the
OFF position.
Kiln Maintenance Safety
Disconnect electrical power from the kiln before performing any kiln maintenance. Failure to disconnect the electrical power supply may
result in electrical shock which can cause serious injury or death.
Replace any worn, damaged or defective parts immediately with Evenheat Kiln replacement parts only. Discontinue use until parts are replaced.
When vacuuming the kiln use only HEPA filters on the vacuum. Prolonged expose to brick dust and other refractory materials can cause lung
injury.
Inspect all electrical service connections periodically for wear.
Periodically check chamber jacket clamps for tightness. Tighten as necessary.
Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 4of 17
Assembly & Installation
Tools needed for installation:
Phillips Screwdriver
7/16” Wrench
1/4” Nutdriver (included)
Remove Shipping Container and Top Styrofoam
Cut the plastic shipping bands and remove the shipping container lid.
Remove the Styrofoam sheets. You will note that 4 pieces of angled metal
(used for the stand) are held within the Styrofoam. Set the Styrofoam aside
and stack - do not dispose of just yet.
Stand Assembly and Placement
Locate the “stand box” and remove from the shipping container. This box contains the various hardware items needed to complete installation.
Remove the contents from stand box and locate the 4 stand legs and stand
hardware (16 nuts and bolts).
Locate the 2 long metal piece and 2 short metal pieces removed from the
container previously. Along with the 4 angled top stand legs these will form
the kiln stand.
Place one long and one short frame metal angle, along with one stand leg
to form a corner as shown. Secure corner with stand hardware nuts and
bolts.
Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 5of 17

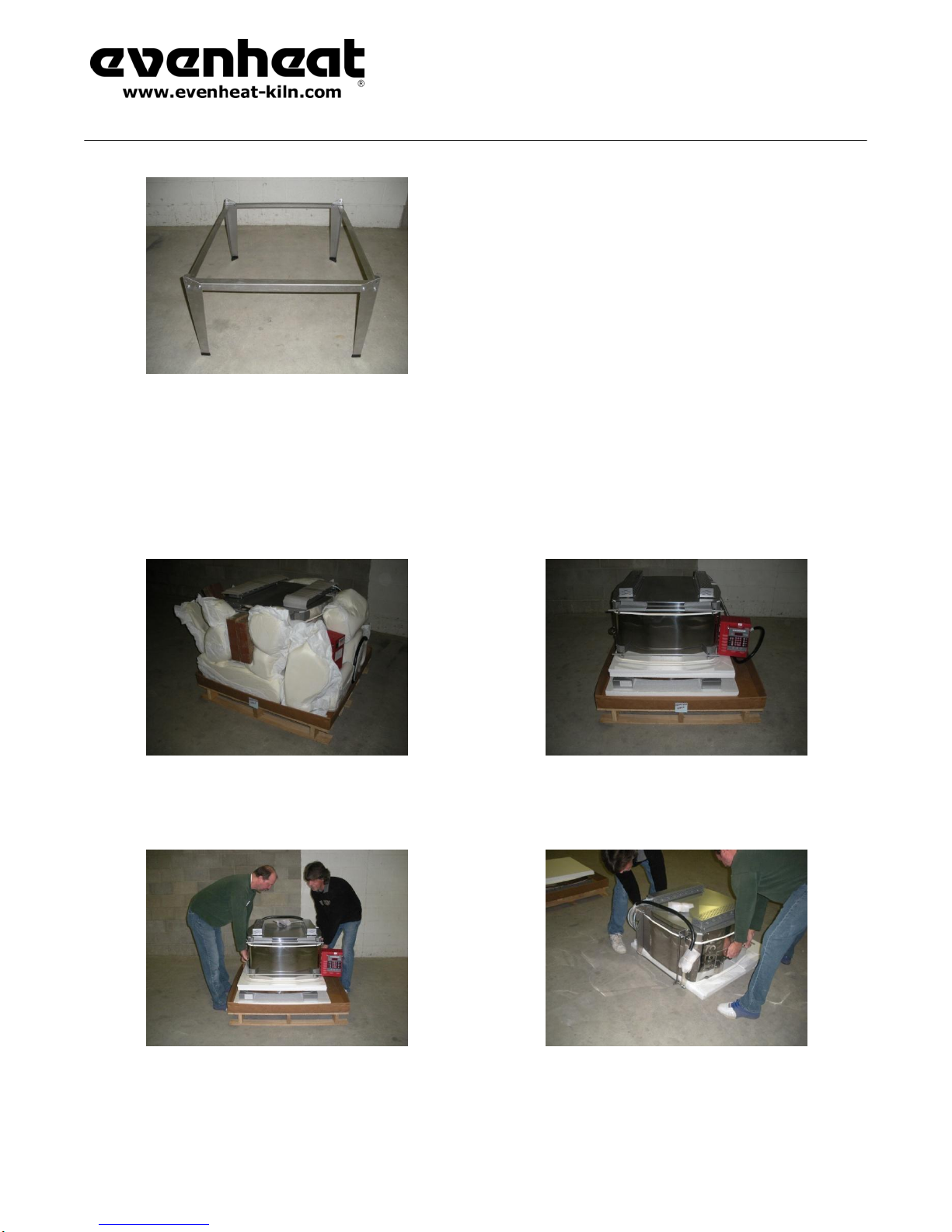

Repeat with the remaining 3 stand corners to complete the stand
perimeter. Install the 4 plastic stand feet on the stand.
The kiln stand is now completely assembled and may be moved to the
desired kiln location. Please refer to the “Kiln Location Safety” checklist
located at the beginning of these instructions for safe and proper kiln
placement.
Remove Shipping Tube and Packing
Remove the shipping container cardboard outer “tube” and packing material from around the kiln.
Setting Aside Chamber
Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 6of 17
Move and Place the Kiln Floor on the Kiln Stand
Move the floor to the kiln stand and place it into the stand. The kiln floor chamber weighs approximately 55 pounds. Two people are needed for
moving. Use personnel capable of safely lifting and moving this amount of weight.
Move the Kiln Chamber to Kiln Floor
You must now move the kiln chamber and place it on the kiln floor. The kiln chamber weighs approximately 125 pounds. Two people are needed
for moving. Use personnel capable of safely lifting and moving this amount of weight.
Important Notes and Cautions for kiln chamber moving:
When moving the chamber it’s possible to rotate the chamber to move through narrow doors and hallways. When rotating you must
rotate in such a way as to place the rear lid hinges at the top. This prevents the lid from opening as the chamber is rotated.
If chamber rotation is necessary please note that as the chamber is rotated it becomes heavier on the lid side. When rotating, rotate
slowly and be ready to feel and react to the heavier lid side. Failure to keep this effect in mind may cause the chamber to rotate
unexpectedly and control may be lost. Damage to the kiln, other property or injury may result. Go slowly and be mindful and ready.
Grasp the kiln chamber as shown: hands towards the rear of kiln should be facing up and hands towards the front of kiln should face down. This hand
orientation will make rotating and controlling the kiln chamber easier if the chamber needs to be rotated to navigate narrow doors or hallways.
Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 7of 17
Proper lifting and chamber rotation. Please note from images that the back lid hinges are located at the top as the chamber is rotated. Also
note that the lid side of the chamber, as it rotates and once rotated, becomes heavier than the non-lid side. The men in this image slowly
rotated the chamber and felt, and reacted to, this weight shift. Take your time and be aware of this. Failure to consider these points may result
in damaged property or personal injury.
Place the chamber hinge ears in between each of the floor base hinge ears as shown. The floor base hinge ears are angled and slotted which allows for an
automatically alignment and fit. The kiln chamber is now properly placed.
Power Interrupt Switch Installation
Locate the power interrupt switch attached to the kiln control panel. Route the conduit over the stand as shown.
Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 8of 17
Attach the power interrupt switch bracket to the inside, back left floor base
with the included screws as shown.
Secure the power interrupt switch conduit in the conduit clamp on the floor
base as shown.
Installing the Lift Assist Springs
Installation of the Lift Assist Springs is a 2 person job.
Locate the 2 lift assist springs.
Locate the hole in the back right chamber hinge.
Insert the end of one spring, from the outside of the hole as shown.
Locate the 2 holes in the right rear floor base. Of these 2 holes, you will be
placing the other end of the spring into the inner most as indicated.
Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 9of 17
Have one person rotate the chamber up from the front chamber handle.
(The chamber should be held there until all 2 lift assist springs are
attached).
Insert the spring end as shown.
Locate the hole in the back left chamber hinge.
Insert the end of one spring, from the inside of the hole as shown.
Locate the 2 holes in the right left floor base. Of these 2 holes, you will be
placing the other end of the spring into the inner most as indicated.
Insert the spring end as shown.
Properly placed lift assist springs, back right. When installed the right side
assist spring will look as shown.
Studio Pro 24
Installation and Operating Instructions
North American Model
Jan 2019
Page 10 of 17
Properly placed lift assist springs, back left. When installed the right side
assist spring will look as shown.
The kiln chamber may now be lowered to the closed position.
Removal of Chamber Handle
The handle located on the back right of the kiln chamber must be removed
for proper operation of the lid support bar. We do recommend that the
screws be placed back into the holes to cover any sharp edges.
Autres manuels pour Studio Pro 24
1
Autres manuels Evenheat Autre
