Evenflo PIVOT XPAND 13812459 Manuel utilisateur

Stroller/Travel System

Carriola/Sistema de viaje

Read all instructions before assembly and use of product.

KEEP INSTRUCTIONS FOR FUTURE USE.

Lea todas las instrucciones antes de ensamblar y usar el producto.

GUARDE LAS INSTRUCCIONES PARA USO FUTURO.

STROLLER

Up to 55 lbs (25 kg)

Up to 43 in (109 cm)

CARRIOLA

Hasta 25 kg (55 lb)

Hasta 109 cm (43 in)

ENGLISHESPAÑOL

Warnings.................................................................................................. 4

Important Information ............................................................................. 7

Identification of Parts.............................................................................. 8

Choosing Mode of Use ........................................................................... 9

Assembling Your Stroller...................................................................... 10

Using Your Stroller ............................................................................... 14

Using your Stroller with the Recommended Infant Car Seats ........... 21

Using your Stroller as a Double Stroller.............................................. 23

Pivot Xpand Use Configurations .......................................................... 26

Care and Maintenance......................................................................... 28

Limited Warranty .................................................................................. 28

• www.evenflo.com • USA: 1-800-233-5921 8 AM – 5 PM E.T.

• Canada: 1-937-773-3971 •México: 800-706-1200

Table of Contents

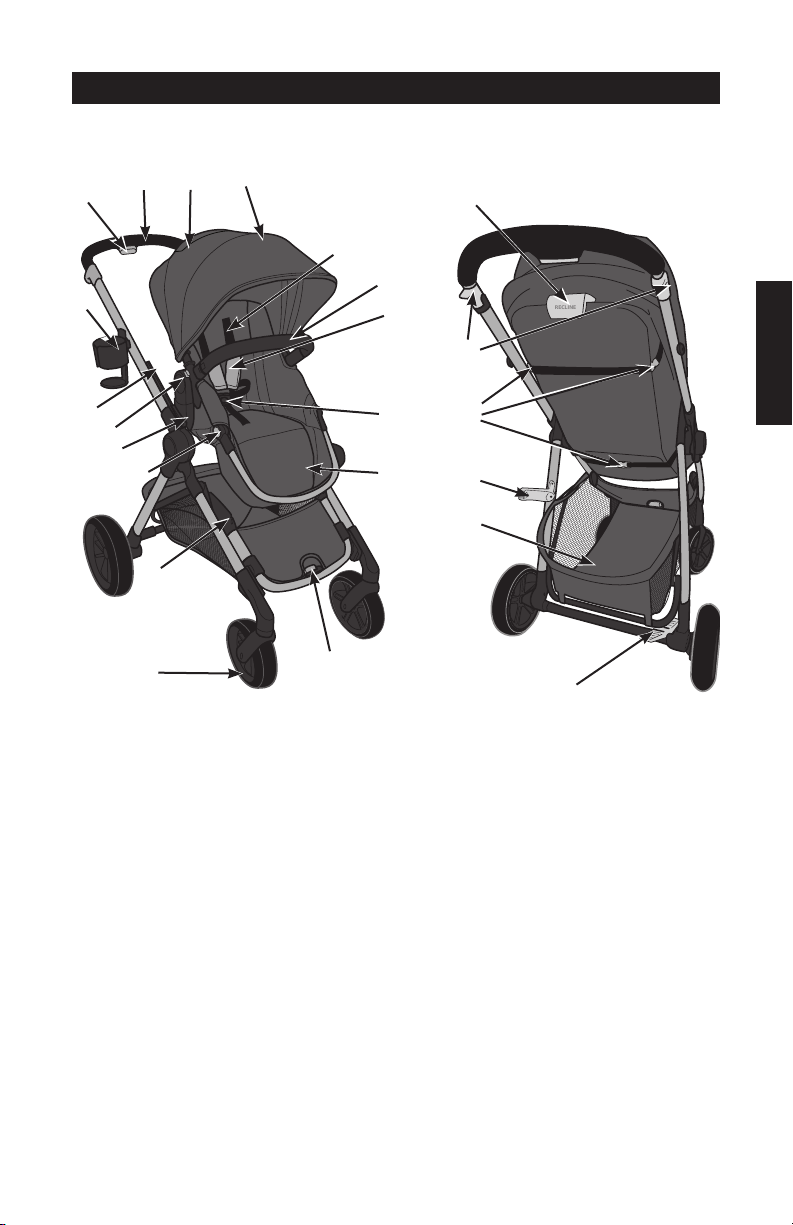

RECLINE

ENGLISH

Canopy

Canopy Window

Parent Handle

Adjustable

Handle Button

Cupholder

Slide Mount

Track (Upper

and Single Seat

Positions)

Toddler Seat

Release Button

Single Seat

Mount

19.

Fold Release

Levers

20. Carriage Mode

Buckles

21.

Side Frame Lock

22.

Storage Basket

23.

Brakes

Footrest

Adjustment Button

10.

Lower Seat Mount

11.

Swivel Wheel

12.

Lower Seat Mount

Release Button

13.

Footrest

14. Harness

Buckle

15.

Harness Cover

16.

Bumper Bar

17. Shoulder Straps

18.

Multi-Position

Recline Lever

Holds Evenflo SafeMax™ or LiteMax™ Infant Car Seats Only

Features

WARNING! DEATH or SERIOUS

INJURY can occur.

• Only use Evenflo SafeMax™ and LiteMax™ infant car seats

with this stroller.

Other infant car seats or carriers are not designed to fit the

stroller frame unless specified in the instructions. Any car seats

used with this stroller that are not specified in the instructions may

result in serious injury to your child.

• NEVER leave child unattended. ALWAYS keep child in view

while in the stroller.

• Adult assembly required. Take care when unpacking and

assembling; contains small parts and some items with sharp

edges.

• To prevent a possible choking hazard, remove and discard

packing material before using this product.

•To avoid serious injury from child falling or slipping out of stroller,

ALWAYS use the internal harness system in Toddler Seat Mode

and Carriage Mode.

• DO NOT carry or roll stroller on stairs or escalators with child in it.

• DO NOT hang items on handle bar or place them on the canopy

as they can tip stroller over and injure child.

•Be sure stroller is fully assembled and locked in unfolded position

before using.

• ALWAYS exercise care when going over curbs or steps, and

never use stroller for anything other than transporting your child.

Push stroller at a normal walking pace only; faster strolling can

cause a loss of control and injury to the child.

• DO NOT place hot liquids in cup holder. Spills can burn you or

your child.

• To avoid serious injury from child falling out of stroller, DO NOT

raise or recline seat with child in stroller.

• DO NOT use stroller if any parts are missing or broken.

• DO NOT allow child to climb on, into, out of, or around stroller.

• DO NOT allow child to stand on the footrest. Stroller may tip over

and injure child.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!

FAILURE TO DO SO COULD RESULT IN

SERIOUS INJURY OR DEATH!

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!

FAILURE TO DO SO COULD RESULT IN

SERIOUS INJURY OR DEATH!

• DO NOT carry additional children, goods, or accessories in or on

this stroller except as advised in these instructions. The stroller is

intended for use with two children and to accommodate only the

additional weights in storage as listed in these instructions.

• Care must be taken when folding or unfolding stroller to prevent

finger injury to you or your child in hinge areas. Make sure child is

not in the seat or near the stroller when folding or unfolding.

• NEVER leave stroller on a hill or incline, even with brakes set.

Stroller may tip, injuring the child.

• To avoid accidental rolling, ALWAYS set brakes when stroller is

not being pushed.

• AVOID STRANGULATION:

–DO NOT suspend strings or toys from the canopy.

–DO NOT place stroller anywhere near cords from window

blinds, draperies, phone, etc.

– DO NOT place items with a string around your child’s neck

such as hood strings or pacifier cords.

– If not properly secured, the child may slip into leg openings

and strangle.

•When making adjustments to the stroller, ALWAYS ensure that

all parts of the child’s body are clear of any moving parts of the

stroller.

• The canopy is not intended to provide UV protection.

• Sharp or heavy objects placed in pockets may cause damage to

the stroller, or injury to the child.

• To ensure safety for your baby, please refer to the manufacturer’s

instructions for the use of your recommended infant car seats and

keep all instructions available for reference.

• DO NOT lift stroller by using the infant car seat handle when

installed on stroller.

• If unable to securely attach the infant car seat to this stroller,

remove the car seat and contact Evenflo ParentLink at

1-800-233-5921 (USA), 1-937-773-3971 (Canada),

or 800-706-1200 (México).

ENGLISH

WARNING! DEATH or SERIOUS

INJURY can occur.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!

FAILURE TO DO SO COULD RESULT IN

SERIOUS INJURY OR DEATH!

• To avoid stroller instability and tip-overs, DO NOT load cup holder

with over 1 lb (0.45 kg) , and the main cargo basket with over 10

lbs (4.5 kg).

• NEVER use the toddler seat without the canopy attached.

• NEVER lift or carry the toddler seat by the bumper bar.

• NEVER use the stroller frame without the toddler seat or car seat

attached.

• NEVER use toddler seat in a motor vehicle or use it as a booster

seat.

• To avoid falls, never remove toddler seat from the stroller with

child in it.

• To avoid falls, always make sure the toddler seat or car seat

is securely attached into the seat mounts on both sides of the

stroller before placing child in the seat.

• When stroller is in carriage mode, it is intended for a child from

birth up to 6 months of age OR who is incapable of sitting upright

unassisted. ONLY use the stroller in the upright position with a

child who is capable of sitting upright unassisted.

• NEVER use seat in the carriage mode position unless the straps

under the seat are unbuckled and the seat is set up in Carriage

Mode as per the instructions.

• To avoid tipping, always remove heavier weight child before

removing the lighter weight child.

• To avoid serious injury, NEVER use the stroller in any other

configuration other than what is shown in the instruction manual.

This stroller can be used in multiple configurations both as a

single and double stroller (see page 26-27).

• DO NOT exceed the maximum weight limits defined in the infant

car seat or accessory manuals.

• For additional use configurations with optional accessories, you

can refer to the manuals that are provided with the Pivot Xpand

Accessories (sold separately). These include but are not limited

to: infant car seat adapters for other manufacturer’s carseats, a

Rider Board and a Second Toddler Seat option.

WARNING! DEATH or SERIOUS

INJURY can occur.

Child Requirements - When stroller is in carriage mode, it is

intended for a child up to 6 months of age

OR who is incapable of

sitting upright unassisted

. Only use the stroller in the upright position

with a child who is capable of sitting upright unassisted.

• Maximum weight:

- 55 lbs (25 kg) in toddler seat

• Maximum height:

- 43 inches (109 cm) in toddler seat

IMPORTANT:Read instructions carefully before use. Save these

instructions for future reference. It is very important to assemble the

stroller according to these instructions. If you are missing parts, do

not use stroller and call

Evenflo ParentLink at 1-800-233-5921

(U.S.A.)

, 1-937-773-3971 (Canada), or 800-706-1200 (México) to

order replacement parts.

For future reference, record the Model Number and Date of

Manufacture below. You can find this information on one of

the rear stroller legs.

Model Number: _____________________________

Date of Manufacture: ________________________

Registration Information

Please register this product so we can reach you if there is a safety

alert or recall. We will not sell, rent, or share your personal

information. To register your product, please complete and mail the

card that came with it or visit our online registration at

www.evenflo.com/registerproduct.

ENGLISH

Important Information

Cupholder (1)

Front Wheel Assembly (2)

Rear Wheel (2)

Frame

Toddler Seat

Bumper Bar Basket Assembly

Bar

Identication of Parts

YOUR STROLLER SEAT CAN BE USED IN TWO DIFFERENT

MODES:

TODDLER SEAT MODE OR CARRIAGE MODE.

Your stroller seat is shipped in carriage mode with the buckles

unfastened under the footrest and on the sides of the toddler seat.

You will need to follow the instructions completely to make sure

you set up your stroller in your preferred mode of use.

After the frame and the wheels have been assembled, you can

choose to set the stroller up in Carriage Mode or Toddler Seat

Mode by following instructions on pages 12 - 15.

Toddler Seat Mode Carriage Mode

ENGLISH

Choosing Mode of Use

Grab the parent’s handle and

pull upward until the stroller

opens fully with an audible

click.

Make sure the stroller is

locked in the open position by

pushing down on the parent’s

handle.

1To protect ooring, place a

protective covering (carton)

beneath the stroller during

assembly.

Unlatch side frame lock.

Continue holding the lock

open while unfolding the

stroller.

CLICK!

Side Frame Lock

Care must be taken when folding or unfolding stroller

to prevent finger injury in hinge areas.

WARNING! DEATH or SERIOUS

INJURY can occur.

Assembling Your Stroller - Frame

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Evenflo Poussette

Evenflo

Evenflo CLOVER Manuel utilisateur

Evenflo

Evenflo Loft 245404225 Manuel utilisateur

Evenflo

Evenflo Omni Plus Manuel utilisateur

Evenflo

Evenflo JOURNEY Manuel utilisateur

Evenflo

Evenflo journey 100 Manuel utilisateur

Evenflo

Evenflo Pivot Troop Manuel utilisateur

Evenflo

Evenflo Pivot Vizor Manuel utilisateur

Evenflo

Evenflo EPIC Manuel utilisateur

Evenflo

Evenflo Advanced Epic 4 Manuel utilisateur

Evenflo

Evenflo Folio3 Stroll & Jog Manuel utilisateur

Evenflo

Evenflo PIVOT XPLORE All-Terrain Stroller Wagon Manuel utilisateur

Evenflo

Evenflo Snugli Manuel utilisateur

Evenflo

Evenflo PIVOT Manuel utilisateur

Evenflo

Evenflo Pivot Xplore Dreamz Manuel utilisateur

Evenflo

Evenflo Pivot Xpand Manuel utilisateur

Evenflo

Evenflo FlexLite Manuel utilisateur

Evenflo

Evenflo Parallel Manuel utilisateur

Evenflo

Evenflo INVIGOR8 Manuel utilisateur

Evenflo

Evenflo SIBBY Manuel utilisateur

Evenflo

Evenflo INVIGOR8 Manuel utilisateur

Evenflo

Evenflo Flip Side Manuel utilisateur

Evenflo

Evenflo JourneyLite Manuel utilisateur

Evenflo

Evenflo Princeton Manuel utilisateur

Evenflo

Evenflo LiteMax Sport Manuel utilisateur

Manuels Poussette populaires d'autres marques

Hauck

Hauck Priya Trioset Manuel utilisateur

CHILDHOME

CHILDHOME CWQDN Manuel utilisateur

Dreamer Design

Dreamer Design Rebound GST Manuel utilisateur

Britax

Britax STEELCRAFT AGILE Manuel utilisateur

Graco

Graco 7427 Manuel utilisateur

Comfort

Comfort COMPASS Manuel utilisateur

OBaby

OBaby Aura Manuel utilisateur

Tutek

Tutek Tirso Manuel utilisateur

Babify

Babify Dual Plus Manuel utilisateur

Graco

Graco Stroller Manuel utilisateur

Special Tomato

Special Tomato Jogger Manuel utilisateur

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manuel utilisateur

Otto Bock

Otto Bock Kimba neo Manuel utilisateur

Milly Mally

Milly Mally ROYAL Guide de démarrage rapide

Hauck

Hauck DUETT 3 PRAM Manuel utilisateur

BOB

BOB DUALLIE Manuel utilisateur

Nuna

Nuna Pepp Manuel utilisateur

Britax

Britax B2 Manuel utilisateur
