ES-K1A

Wireless Keypad

Foreword

Thank you for purchasing the ES-K1A. The ES-K1A is a keypad that enables you to

arm and disarm your alarm system, or arm it in Home Mode.

Before entering your home, all you need to do is to type your passcode and

press the Disarm button [ ], or swipe the RFID tag (sold separately) in front of

the RFID reader to disarm the system.

Box Content

Keypad x 1

AAA 1.5V batteries x 3

Screws x 4

Documentation

4 5

Appearance

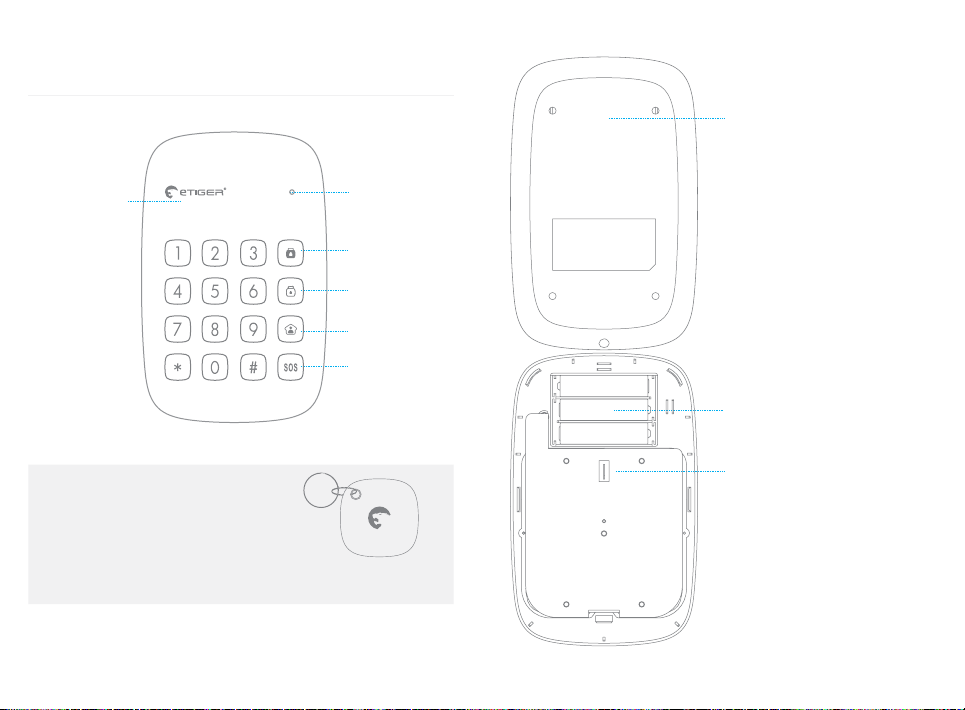

RFID reader1LED indicator

Arm / Unlock

Disarm

Home Mode /

Unlock

SOS Key

1RFID tag (125 KHz) sold separately.

The keypad supports up to 50 RFID tags.

Refer to the instructions on page 9 of this

manual to learn how to register an RFID tag

in the keypad. RFID Tag

Rear cover

Battery compartment

Tamper switch

6 7

Preparation Before Use

How to turn the ES-K1A on

The ES-K1A is powered by 3 AAA batteries. Before using for the rst time, remove the

battery strip.

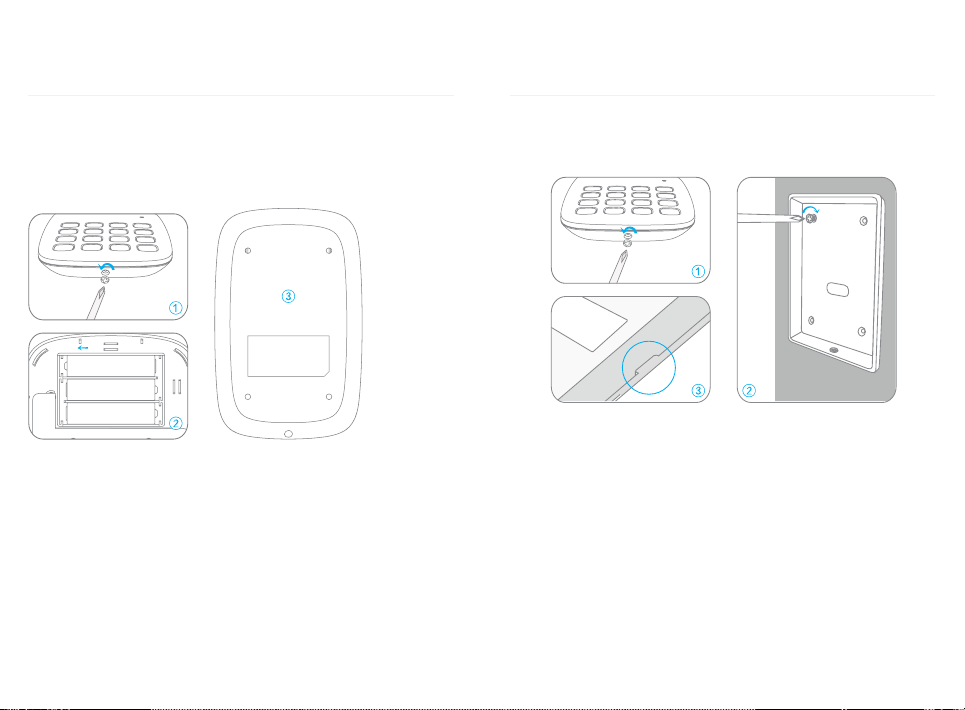

1. Unscrew and open the case.

2. Insert the batteries according to the positive and negative signs.

3. Close the case and screw it back.

Remark

Because of the tamper switch, opening the rear cover of the keypad when the

latter is on triggers the alarm. In such case, stop the alarm by disarming the

system, as explained in page 11 of this manual.

Installation

1. Unscrew the case and open it.

2. Screw the rear cover to a door frame or to a wall.

3. Fasten the front cover of the keypad to the rear cover and screw them together.

Remark

Because of the tamper switch, opening the rear cover of the keypad when the

latter is on triggers the alarm. In such case, stop the alarm by disarming the

system, as explained in page 11 of this manual.

8 9

Setup

The ES-K1A operates under 4 modes.

Normal mode

The LED indicator blinks once every 5 seconds.

Sleep mode

Under Normal mode, the keypad switches to Sleep mode if no operation is

made for 35 seconds. Press the Arm [ ] or Home Mode [ ] keys to exit Sleep

mode. When the keypad is in Sleep mode, the LED indicator is o.

RFID Reader mode

Under Normal mode, press [*] on the keypad to activate the RFID reader for 10

seconds: the LED indicator turns on. After 10 seconds, the LED light turns o as

the RFID reader turns o automatically.

Setup mode

To enter Setup mode, switch to Normal mode and then enter [your admin code

+ #] on the keypad. The LED indicator blinks once every second. Press [*] to exit

the Setup mode and switch to the Normal mode.

After 30 seconds without operation, the keypad goes back to the Normal mode.

Default admin code : 123456

Remark

Correct operation: 1 beep and the LED light blinks once.

Wrong operation: 2 beeps and LED light blinks twice.

Make sure the control panel is in Connection mode (refer to the user manual of your

eTIGER alarm system).

Press Arm [ ] or Home Mode [ ] on the

keypad to unlock it.

Type your user code or admin code on

the keypad, and then press any of the

Arm [ ], Disarm [ ] or Home Mode

[] keys. Your hear short beeps: the

registration has succeeded.

Default admin code : 123456. Default user code : 1234

The control panel of your alarm system can be controlled from distance on the

keypad once the latter has been registered in the control panel.

Connect the ES-K1A to an eTIGER siren

The ES-K1A can be connected to an eTIGER indoor or outdoor siren, which

enables you to trigger the siren by pressing the [SOS] key on your keypad.

To connect the keypad to an eTIGER siren, set the wireless siren to Connection

Mode (refer to the manual of your eTIGER siren if necessary). Press the Arm [ ]

or Home Mode [ ] key on the keypad to switch to Normal Mode.Then type [your

admin code or user code] and press any of the Arm [ ], Disarm [ ] or Home

Mode [ ] keys on the keypad.

For more information on sirens and accessories compatible with eTIGER security

systems, visit our website etiger.com

10 11

1. Press Arm [ ] or Home Mode [ ]

on the keypad to unlock it.

Then type [admin code + #] to enter

Setup mode.

Default admin code: 123456

If you hear 2 beeps, the code you have typed is wrong.

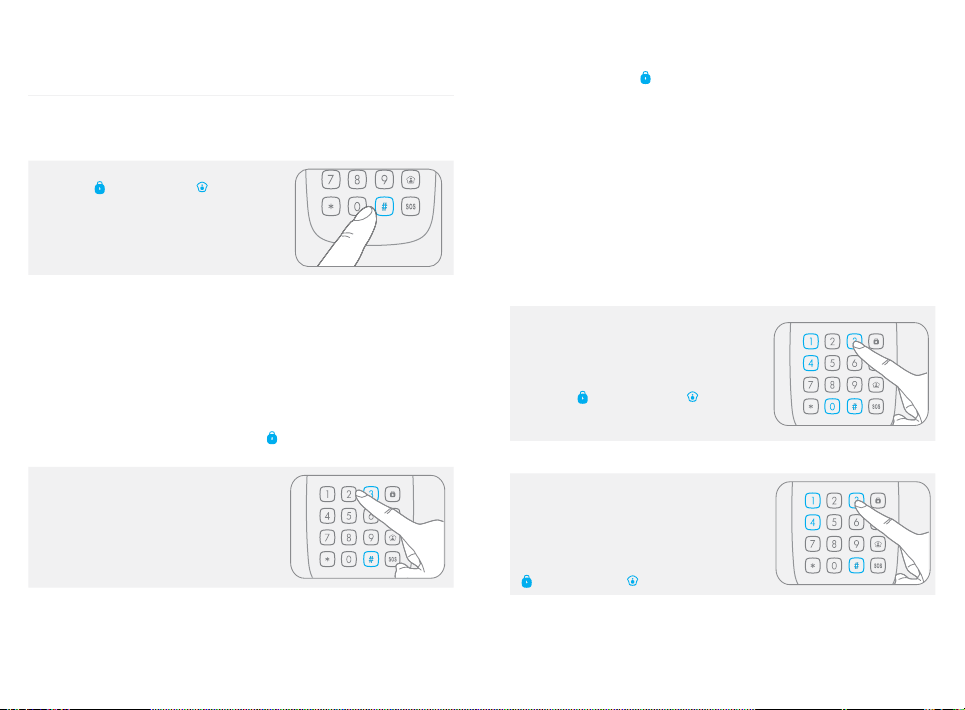

2. Type [41#]. You hear one beep

and the LED indicator lights up: the

keypad switches to Connection

mode.

3. Swipe the RFID tag in front of the

RFID reader. You hear one beep: the

connection is successful.

If you hear two beeps, the RFID tag has

already been connected.

Press [*] to exit Setup Mode.

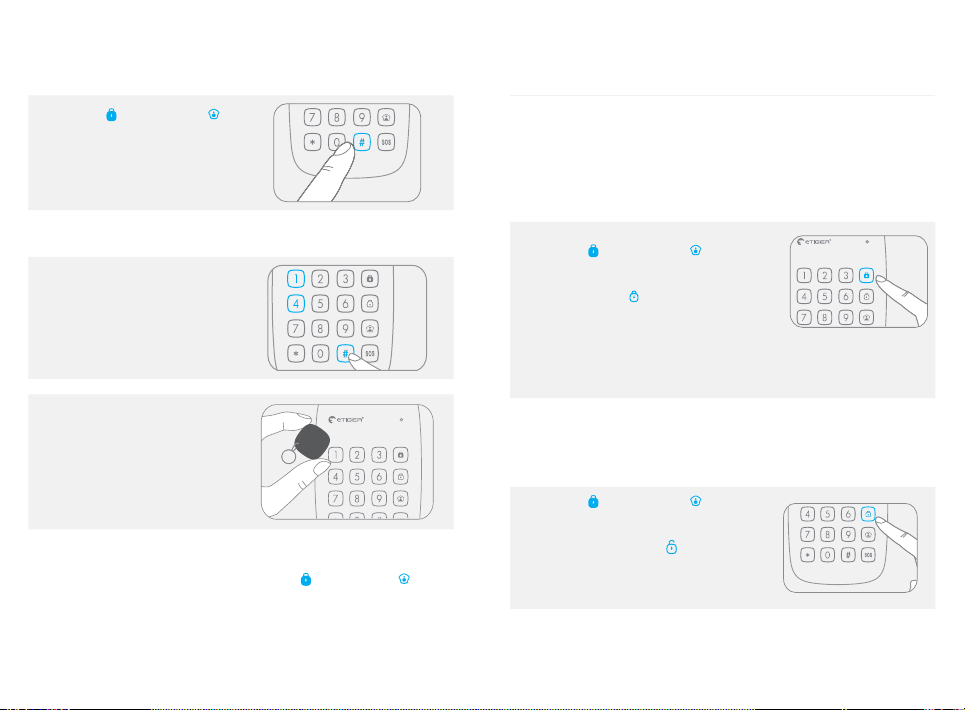

To clear all registered RFID tags, press any of the Arm [ ] or Home Mode [ ] keys on

the keypad to unlock it, and then type [admin code+#42#]. You hear one beep: the

RFID tags have been deleted from the keypad.

Usage

The keypad can be used as a remote control. Your user code or your admin code

will be required before arming or disarming the system, or switching to Home

Mode or Mute Mode.

Arm the system

1. Press Arm [ ] or Home Mode [ ] on the

keypad to unlock it.

2. Type your user code or admin code.

3. Press the Arm key [ ]. The LED indicator blinks

once, the keypad beeps once and sends to the

control panel the signal to arm the system.

When the alarm panel receives the signal, the siren beeps once and the Arm

indicator on the control panel lights up. The alarm system is now armed.

Default admin code : 123456, default user code : 1234

Disarming the system with the keypad

1. Press Arm [ ] or Home Mode [ ] on the

keypad to unlock it.

2. Type your user code or admin code.

3. Press the Disarm button [ ]: the LED

indicator blinks once, the keypad beeps

once and sends to the control panel the

signal to disarm the system.

When the control panel receives the signal, the siren beeps twice and the Disarm

indicator lights up: the alarm system is now disarmed.

12 13

Disarming by RFID tag

1. Press Arm [ ] or Home Mode [ ] on the

keypad to unlock it.

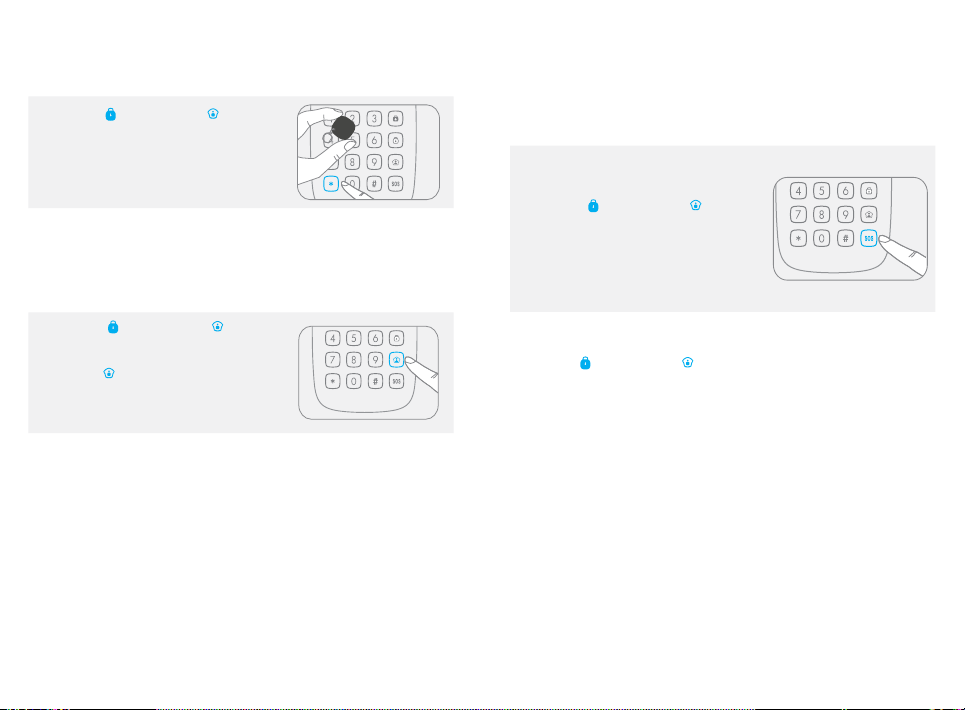

2. Press [*] to activate the RFID reader for 10

seconds.

3. Within the next 10 seconds, swipe the RFID

tag in front of the reader to disarm the system.

The RFID reader turns o when a RFID tag is swiped in front of it, when the key [*] is

pressed again on the keypad, or after 10 seconds without operation.

Home Mode

1. Press Arm [ ] or Home Mode [ ] on the

keypad to unlock it.

2. Type your user code or admin code.

3. Press the [ ] key: the LED indicator blinks

once, the keypad beeps once and sends

the signal to the control panel to switch to

Home Mode.

When the alarm panel receives the signal, the siren beeps once and the Home

Mode indicator lights up: the alarm system is now in Home Mode.

All the sensors in regular zones are armed except those in the Home Mode zone.

The sensors in the Home Mode zone are disarmed so that users can move inside

their home.

For more information on the setup of zones, please refer to the user manual of

your eTIGER alarm system.

Emergency call

Refer to the instructions page 15 of this manual for more information on how to

lock/unlock the SOS button.

With SOS button unlocked

1. Press Arm [ ] or Home Mode [ ] on the

keypad to unlock it.

2. Press [SOS].

3. The LED indicator blinks once, the keypad

beeps once, and the alarm is triggered

immediately.

With SOS button locked

1. Press Arm [ ] or Home Mode [ ] on the keypad to unlock it.

2. Type your user code or admin code.

3. Press [SOS] to trigger the alarm immediately.

Low battery indication

When the battery level is low, the LED indicator blinks 3 times every 5 seconds. In

such case, please change the batteries.

14 15

Settings

Enter Setup mode

Press Arm [ ] or Home Mode [ ] on the

keypad to unlock it.

Type [admin code+#] to enter Setup mode.

Default admin code : 123456

Under setup mode, if no operation is made for 30 seconds the keypad will exit the

setup mode automatically. The setup mode can also be exited by pressing [*].

Exit delay

Detectors start detecting potential intrusions immediately after the system has

been armed. To prevent alarms when you leave your house, an exit delay can be

set up. If you have set up an exit delay, the control panel will receive the signal to

arm the system when you press the Arm key [ ] on the keypad after the time set.

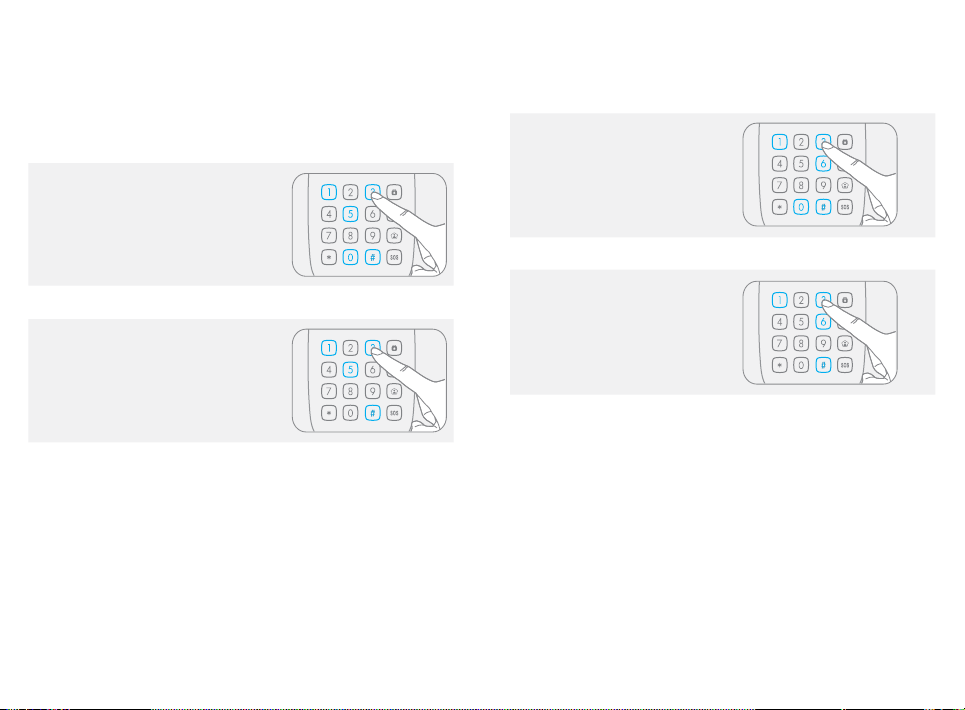

1. Enter Setup mode.

2. Type [33+delay time in seconds+#].

3. You hear one beep: the setup is successful.

To deactivate the Exit delay, set 0 as delay

time.

Remark

The time is set in seconds, it can be set from 0 to 255. Default setting: 0.

If the exit delay has been set, the control panel will beep once every second after

having pressed the Arm [ ] key. The rhythm of the beeps will speed up during the

last 15 seconds. After the exit delay time has elapsed, the control panel is armed.

If an exit delay has been set up for both the control panel and the keypad, the

actual delay time will be the combination of both exit delays.

This setting does not apply to the Home Mode.

Remark

Only the Exit delay can be set on the keypad. The Entry delay can be set on the

control panel (refer to the user manual of your eTIGER alarm system).

Lock / Unlock the SOS button

Lock the SOS button

1. Enter Setup mode.

2. Type [3410#].

3. You hear one beep: the setup is successful.

If the SOS button is locked, you will need to

press Arm [ ] (or Home Mode [ ]) to unlock

the keypad, to type your admin or user code,

then to press [SOS] to trigger the alarm.

Unlock the SOS button

1. Enter Setup mode.

2. Type [3411#].

3. You hear one beep: the setup is successful.

If the SOS button is unlocked, the control panel

will ring out immediately when you press Arm

[] (or Home Mode [ ]) and then [SOS].

Remark

Default setting: SOS button is locked.

16 17

Keyboard clicks

Keyboard clicks can be turned on or o. If keyboard clicks are o, the successful

setup notication sound will be o too.

Turn keyboard clicks on

1. Enter Setup mode.

2. Type [3510#].

3. You hear one beep: the setup is successful.

Turn keyboard clicks o

1. Enter Setup mode.

2. Type [3511#].

Remark

Default setting: keyboard clicks are on.

Enable / Disable deactivation by RFID tag

Enable deactivation of the system by RFID tag

1. Enter Setup mode.

2. Type [3610#].

3. You hear one beep: the setup is

successful.

Disable deactivation of the system by RFID tag

1. Enter Setup mode.

2. Type [3611#].

3. You hear one beep: the setup is

successful.

Remark

Default setting: deactivation of the system by RFID tag is enabled.

18 19

Change user code

The user code may be required to interact with the control panel (arm or disarm

the system, or switch to Home Mode). We recommend you to change the user

code before using the keypad for the rst time.

1. Enter Setup mode.

2. Type [38+new user code+#].

3. You hear one beep: the setup is

successful.

Remark

The user code must consist of 4 digits. Default user code is“1234” .

Change admin code

The admin code may be required to change the settings and interact with

the control panel (arm or disarm the system or switch to Home Mode). We

recommend you to change the admin code before using the keypad for the rst

time.

1. Enter Setup mode.

2. Type [39+new user code+#].

3. You hear one beep: the setup is

successful.

Remark

The admin code must consist of 6 digits. Default admin code is“123456”.

Reset

After having reset the keypad, the user code, the admin code, and other settings

will be restored to default settings. The RFID tags that have been registered will

not be deleted from the keypad.

1. Enter Setup mode.

2. Type [987654321#].

3. You hear one beep: the setup is

successful.

FAQ

Problem Cause Solution

No response from

the keypad

Low battery Change the battery.

The batteries’positive

and negative terminals

are reversed.

Remove and insert the

batteries again according to the

instructions in this manual.

The keypad is locked Press Arm or Home Mode on

the keypad to unlock it.

The keypad cannot

be registered to

the control panel

No response from the

alarm panel

Make sure the alarm panel

is on.

Make sure the alarm panel is in

Connection mode.

Autres manuels pour ES-K1A

Table des matières

Autres manuels eTIGER Clavier

eTIGER

eTIGER ES-K1A Manuel utilisateur

Manuels Clavier populaires d'autres marques

BFT

BFT SELETTO Manuel utilisateur

Micro Id

Micro Id MP7G3BL Manuel d'instructions

WindowMaster

WindowMaster WLI 130 Manuel utilisateur

ACT

ACT ACT PRO 1030 Manuel utilisateur

Cardin

Cardin SSB Series Manuel utilisateur

Harman Kardon

Harman Kardon KP 1 Manuel utilisateur

Chamberlain

Chamberlain KPR2000 Guide de l'utilisateur

CYP

CYP CR-KP1 Manuel utilisateur

Aeware

Aeware k-35 Series Guide de référence

Aritech

Aritech CS-175 Series Manuel utilisateur

GE NetworX NX-1600E Series Manuel utilisateur

Lenze AC Tech

Lenze AC Tech MC SERIES Manuel utilisateur

Burg Wächter

Burg Wächter secuENTRY 7711 Manuel utilisateur

Aeware

Aeware in.k450 Manuel utilisateur

Lenze

Lenze EPM-H410 Manuel utilisateur

Toshiba

Toshiba RKP007Z Manuel utilisateur

Gemini

Gemini GEM-DXK1 KEYPAD Manuel utilisateur

Russound

Russound MDK-C5 Manuel d'utilisation
