Overview

The ColorSource Linear is an affordable LED fixture that uses the RGB-L (red,

green, blue, and lime) color system to provide a rich, bright light.

The fixture is available in three lengths:

•

ColorSource Linear 1 (0.5 meter)

•

ColorSource Linear 2 (1 meter)

•

ColorSource Linear 4 (2 meter)

The ColorSource Linear is available in both original and Deep Blue variants.

The Deep Blue uses an array that offers richer, more saturated blues and

stronger magentas in exchange for the more jewel-toned blues like sky or

turquoise. For more information, see the ETC website at etcconnect.com.

Note:

Features described in this document require the latest version

of software. For information on updating fixture software, see Update

the Fixture Software on page14.

ETC Installation Guide

ColorSource Linear v1.7

Safety

For professional use only. Read the entire manual before using this

equipment.

CAUTION:

•

Risk of eye injury. Do not stare directly into the light.

•

Do not operate in proximity to flammable materials.

WARNING: Disconnect the fixture from power and DMX and

allow it to cool before performing any cleaning and maintenance.

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be

followed including the following:

READ AND FOLLOW ALL SAFETY

INSTRUCTIONS

•

Do not use outdoors.

•

Do not let power supply cords touch hot surfaces.

•

Do not mount near gas or electric heaters.

•

Equipment should be mounted in locations and at heights where it

will not readily be subjected to tampering by unauthorized

personnel.

•

The use of accessory equipment not recommended by the

manufacturer may cause an unsafe condition.

•

Do not use this equipment for other than intended use.

SAVE THESE INSTRUCTIONS

Note:

The light source in this luminaire is not user-replaceable, and

must be replaced only by a qualified technician. Contact ETC

Customer Support for assistance.

ColorSource Linear Page 2 of 20 ETC

ETC Installation Guide

ColorSource Linear v1.7

Environment

The ColorSource Linear operates in ambient temperatures of 0°C–40°C and

comes with a variable-speed fan. The ColorSourceLinear is for indoor use

only.

•

Maximum recommended ambient operating temperature: Ta=40°C

(104°F)

•

Maximum anticipated external surface temperature at 40°C ambient:

Tmax = 80°C (176°F)

•

External temperatures after 5 minutes of full-brightness operation at

25°C (77°F) ambient: 36°C (97°F)

•

External Temperature (steady state achieved) at 25°C (77°F): 48°C

(118°F)

Electrical

•

Operates between 100V and 240VAC at a frequency of 50/60Hz.

•

Maximum power consumption:

Linear 1: 120 W

Linear 2: 240 W

Linear 4: 480 W

•

Up to 9 cells (0.5 m segments) may be linked via power thru connector.

•

Up to 10 cells (0.5 m segments) total per circuit when used with an

R20Relay Module or Unison Echo Relay Panel. Consult breaker trip

curves when used with other equipment. Requires power from a non-

dimmable source.

•

Inrush (Linear 1/Linear 2/Linear 4):

120 V: 35 A/35.6 A/67.5 A (first half-cycle)

240 V: 49 A/85.6 A/153 A (first half-cycle)

ColorSource Linear Page 3 of 20 ETC

ETC Installation Guide

ColorSource Linear v1.7

Typical Power Consumption

Linear 1

100 V 120 V 230 V

Power Current Power Current Power Current

Idle 1.63 W 0.03 A 1.55 W 0.03 A 1.43 W 0.03 A

Direct at Full 107 W 1.07 A 105 W 0.88 A 104 W 0.46 A

Linear 2

100 V 120 V 230 V

Power Current Power Current Power Current

Idle 2.86 W 0.06 A 2.98 W 0.06 A 2.56 W 0.06 A

Direct at Full 210.83 W 2.12 A 208.67 W 1.75 A 204.5 W 0.91 A

Linear 4

100 V 120 V 230 V

Power Current Power Current Power Current

Idle 5.28 W 0.11 A 5.24 W 0.11 A 4.65 W 0.12 A

Direct at Full 424.17 W 4.27 A 419.33 W 3.52 A 409.17 W 1.82 A

Accessories

You can use several half-meter optional accessories with ColorSource

Linearfixtures, including:

•

Secondary lenses (horizontal, vertical, and round)

•

Barn doors (7414K1020)

•

Louver (7414K1019)

For information on installing secondary lenses, see

Install Secondary Lenses

on page15

Accessories for Linear 2 and Linear 4

For the Linear 2 and Linear 4 fixtures, order one accessory for each 0.5meter

segment (cell) of the fixture. For example, for a Linear 2 fixture, order two barn

door accessory kits to fit the full length of the fixture.

Spacers for secondary lenses are included with the fixture. Use these spacers

to hold the accessories in position when multiple lenses are used in the Linear

2 and Linear 4 fixtures. The spacers are positioned between the 0.5 meter

lenses.

Contact your local dealer for more information.

ColorSource Linear Page 4 of 20 ETC

ETC Installation Guide

ColorSource Linear v1.7

Installation

Mounting

The ColorSource Linear ships with a pair of floor trunnions for mounting.

Note:

Ensure that the trunnions are installed with the feet inward so

that fixtures can be lined up end-to-end, if needed.

You also have the option of using clamps with the trunnions to hang the

fixture. Attach the clamps to the holes in the trunnion feet (see figure on

page5

The ColorSource Linear 1 has two additional mounting options. Contact your

local dealer for more information.

•

Yoke with C-clamp (7414K1017)

•

Double yoke with C-clamp for mounting two fixtures (7414K1018)

C-clamp

attachment

point

Safety cable

anchor point

Cutout for

cable strain relief

Safety Cable

Two safety cable anchor points are

provided on the fixture housing.

The anchor points also include two

cutouts that can be used for cable strain

relief.

Connectors

•

Power: Two powerCON®

connectors for power in and thru

•

Data (DMX512/RDM): Two five-

pin XLR connectors OR two

RJ45connectors for data in and

thru

Conversion cables are available from ETC. Please contact your ETC customer

service representative and request part number W6538 for RJ45 to female

XLR or part number W6539 for RJ45 to male XLR.

Connector locations

•

Linear 1: Power connectors on one side of the fixture and data

connectors on the other

•

Linear 2 and Linear 4: Power and data connectors on each end (to

facilitate daisy-chaining)

Note:

This fixture is not Ethernet/data network compatible.

ColorSource Linear Page 5 of 20 ETC

ETC Installation Guide

ColorSource Linear v1.7

Note:

The ColorSource Linear is not self terminating. You must

terminate the last fixture in line with a 120 Ohm resistor.

XLRterminators are not available from ETC.

To purchase an RJ45 terminator, please contact ETC customer service

and request part number N4086.

Set Up the Fixture

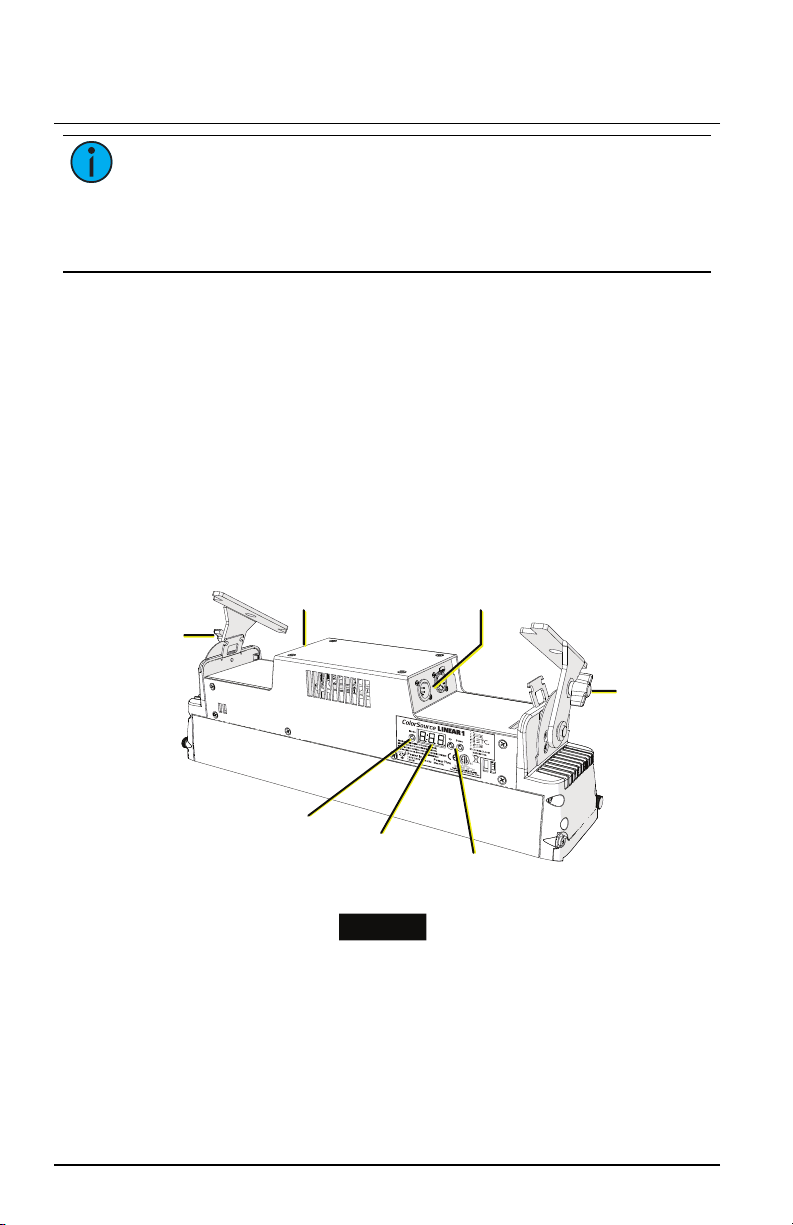

See the fixture illustrations below and on the following page for reference.

1. Plug the power cord into the powerCON In connector on the rear of

the fixture.

2. Make any power-thru cable connections prior to applying a power

source.

3. Make any DMX connections, and if the fixture is the last in a DMX line,

terminate the fixture. See

Connectors on the previous page

4. Plug the power cord into the power source.

Trunnion

locking knob

Trunnion

locking

knob

Power in

and thru

connectors

Data in

and thru

connectors

Up and

Down buttons

User

interface

(display)

Mode

button

Linear 1

ColorSource Linear Page 6 of 20 ETC

ETC Installation Guide

ColorSource Linear v1.7

Grouping button

and LED indicators

Power and data

connectors are

paired on each

side to facilitate

daisy-chaining

Mode button

Up and Down

buttons

User interface

(display)

Linear 2 and Linear 4

Power Up

Press any button to wake the display. The display shows the DMX address.

See

Set the DMXAddress below

You can press the Mode button to access the Presets/Sequences menu. See

Play Presets and Sequences on page12

Adjust the Tilt

The fixture can be tilted up and down as needed.

1. Loosen, but do not remove the two trunnion locking knobs.

2. Tilt the fixture to the desired angle.

3. Tighten the trunnion locking knobs.

Set the DMXAddress

1. Press any button to wake the display. The display shows the DMX

address.

2. Use the Up and Down buttons to select the DMX address for the

fixture.

You can also use RDM for DMX addressing. See

Use RDM

ColorSource Linear Page 7 of 20 ETC

ETC Installation Guide

ColorSource Linear v1.7

Change the DMXControl Mode

You can set the DMX control mode for the fixture to one of four available

mode options.

1. Press any button to wake the display. The display shows the DMX

address.

2. Press and hold the Mode button for 3 seconds. The display shows the

current DMX control mode.

3. Press the Up button or Down button to change the DMX control

mode:

•

5ch: 5-channel mode (intensity, red, green, blue, and strobe). This

is the default mode.

•

dir: Direct emitter control (intensity, red, green, blue, indigo,

lime, and strobe).

•

1ch: 1-channel mode controls the intensity of preset 1 (defaults

to 3200K White).

•

rgb: RGB mode (red, green, and blue).

4. Press the Mode button to confirm your selection.

The display will automatically return to the DMX address after 10 seconds of

inactivity, and edits to the DMX control mode will not be saved. This cancels

unsaved changes.

ColorSource Linear Page 8 of 20 ETC

ETC Installation Guide

ColorSource Linear v1.7

Set the Grouping Mode

Grouping

button

Group and Cell

LED indicators

The ColorSource Linear 2 and the

ColorSource Linear 4 fixtures have two

Grouping modes:

•

Group: Entire array functions as a

single fixture.

•

Cell: Each 0.5 m segment (or

“cell”) of the array functions as a

distinct fixture with a separate DMX

start address.

To set the Grouping mode, press the

Grouping button until the LED indicator

for the chosen mode illuminates.

In Cell mode, each cell is assigned a DMX address based on the DMX address

of the fixture (see

Set the DMXAddress on page7

) and the current DMX

control mode (see

Change the DMXControl Mode on the previous page

). For

example, if you set the DMX address on the fixture to 100, set the DMX mode

to 5-channel, and set the Grouping mode to Cell, the starting DMX address

of the first cell will be 100 and the starting DMX address of the second cell

will be 105.

DMXControl Channels

Linear 1 and Linear 2/Linear 4 in Group Mode

DMX

Channel

5ch

(5 channel)

dir

(Direct)

1ch

(1 Channel)

rgb

(RGB)

1 Intensity Intensity Intensity Red

2 Red Red Green

3 Green Green Blue

4 Blue Blue/Indigo*

5 Strobe** Lime

6 Strobe**

*Original ColorSource Linear fixture uses blue in channel 4; Deep Blue fixture uses indigo in

channel 4.

**Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate

from 1 per second up to 33 per second.

ColorSource Linear Page 9 of 20 ETC

ETC Installation Guide

ColorSource Linear v1.7

Linear 2 in CellMode

DMX

Channel

5ch

(5 Channel

dir

(Direct)

1ch

(1 Channel)

rgb

(RGB)

Cell 1

Intensity

Cell 1

Intensity Cell 1 Intensity

Cell 1

Red

2 Red Red Cell 2 Intensity Green

3 Green Green Blue

4 Blue Blue/Indigo*

Cell 2

Red

5 Strobe** Lime Green

Cell 2

Intensity Strobe** Blue

7 Red

Cell 2

Intensity

8 Green Red

9 Blue Green

10 Strobe** Blue/Indigo*

11 Lime

12 Strobe**

*Original ColorSource Linear fixture uses blue in channel 4; Deep Blue fixture uses indigo in

channel 4.

**Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate

from 1 per second up to 33 per second.

ColorSource Linear Page 10 of 20 ETC

Autres manuels pour ColorSource Linear

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ETC Luminaire

ETC

ETC Desire D40 Manuel utilisateur

ETC

ETC DataTrack Manuel technique

ETC

ETC HIGH END SYSTEMS SolaFrame Theatre Manuel utilisateur

ETC

ETC ColorSource PAR Pearl Manuel utilisateur

ETC

ETC Source Four Revolution Manuel utilisateur

ETC

ETC Desire D22 Manuel utilisateur

ETC

ETC Source Four Zoom Manuel utilisateur

ETC

ETC High End Systems SolaPix 7 Manuel utilisateur

ETC

ETC ColorSource CYC v1.7 Manuel utilisateur

ETC

ETC Desire D22 Manuel utilisateur

ETC

ETC HIGH END SYSTEMS SolaPix 37 Manuel utilisateur

ETC

ETC Source Four Revolution Manuel utilisateur

ETC

ETC Desire series Manuel utilisateur

ETC

ETC Source 4WRD Manuel utilisateur

ETC

ETC Irideon FPZ Manuel utilisateur

Manuels Luminaire populaires d'autres marques

Emos

Emos CLASSIC ZY1431T Manuel utilisateur

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuel utilisateur

Hedler

Hedler C 12 silent Manuel utilisateur

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuel utilisateur

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuel utilisateur

Lightmaxx

Lightmaxx Shaft 5R Manuel utilisateur

Triarch

Triarch 31083 Manuel utilisateur

Philips

Philips 32614 Series Manuel utilisateur

IKEA

IKEA TIVED Manuel utilisateur

Lightolier

Lightolier LP200 Manuel utilisateur

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Cooper Lighting

Cooper Lighting Halo L3232E Manuel utilisateur

Stageline

Stageline ODW-2410RGBW Manuel utilisateur

Light Sky

Light Sky Tornado Series Manuel utilisateur

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manuel utilisateur

Lightolier

Lightolier Lytespan 83ED17S Manuel utilisateur

Lightolier

Lightolier Calculite CS8226 Manuel utilisateur
