ETC Source 4WRD Manuel utilisateur

LED fixtures are intended for professional use only.

Read this entire document before using this product.

Part Number: 7067M1200-1.0.0

Released: March 2016

HPL to LED Retrofit

Installation and User Manual

revision D

v 1.0

ETC

, Eos

, Source Four

, Source 4

WRD

™

and Unison

are either registered

trademarks or trademarks of Electronic Theatre Controls, Inc. in the United States

and other countries.

All other trademarks, both marked and not marked, are the property of their

respective owners.

This product is protected by one or more of the following U.S. Patents:

US 9,261,241 and 9,273,831

ETC intends this document, whether printed or electronic, to be provided in its

entirety.

Table of Contents

Safety . . . . . . . . . . . . . . . . . . . . . . .2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Sensor dimmer settings . . . . . . . . . . . . . . . . . . . . . . 3

Color rendering and quality . . . . . . . . . . . . . . . . . . 5

Contacting ETC . . . . . . . . . . . . . . .5

Retrofit Kit Installation . . . . . . . . .6

Remove Incandescent Lamp Housing . . . . . . . . . . . 6

Install Source 4WRD . . . . . . . . . . . . . . . . . . . . . . . . . 7

Fixture Installation . . . . . . . . . . . .8

C-clamp and safety cable . . . . . . . . . . . . . . . . . . . . . 8

Connect cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

DMX pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

User Interface . . . . . . . . . . . . . . . .10

Error codes:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Focus the fixture . . . . . . . . . . . . . .11

Z-adjustment Knob . . . . . . . . . . . . . . . . . . . . . . . . . 11

Adjust the yoke position . . . . . . . . . . . . . . . . . . . . . 11

Shape the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Color Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Pattern Projection . . . . . . . . . . . . . . . . . . . . . . . 13

Cleaning and Maintenance . . . . .13

Cleaning Source 4WRD . . . . . . . . . . . . . . . . . . . . . . 13

Cleaning Lenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning Reflector . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning 5° and 10° polymer lenses . . . . . . . . . . . . 15

Source 4

WRD

Page 1 User Manual

Introduction

Congratulations on your purchase of the ETC Source 4WRD. Replacing your

existing incandescent burner assembly with the Source 4WRD LED retrofit

brings a new tool to your lighting inventory. Source 4WRD expands the options

for existing Source Four fixtures and adds a new white LED fixture to the ETC

family.

The following Source 4WRD options are available as 80CRI and 90

CRI (Gallery) variants:

•Source 4WRD Retrofit Kit: Used to modify an existing Source Four HPL

incandescent fixture to a white LED fixture.

•Source 4WRD Light Engine: Combines the Source Four incandescent

fixture body with the Source 4WRD white LED Retrofit Kit.

Note:

Source 4WRD Retrofit Kit is not compatible with Source

Four LED, Fresnel, PAR, or jr fixtures.

WARNING:

Source 4

WRD

is not user serviceable. Field

modification of the Source 4

WRD

will void your ETC

warranty.

Source 4WRD

shown

installed on a

Source Four

fixture

ETC User Manual

Source 4

WRD

Page 2 Electronic Theatre Controls, Inc.

Safety

The Source 4WRD fixture is intended for professional use only. Read the entire

manual before using this equipment.

WARNING:

Note the following safety warnings before use:

• Do not mount the Source 4WRD fixture on or near a

flammable surface.

• Do not use the Source 4WRD below 5°C (41°F). When the

fixture has been stored or transported in freezing

temperatures, allow it to warm to room temperature for

a minimum of 1 hour prior to applying power. Applying

power to a frozen fixture will cause damage to the fixture

and void ETC warranty.

• Do not use this fixture with a damaged power lead. If the

power lead (cord set) is damaged, it must be replaced.

• Do not use this fixture if glass lens is deeply scratched or

cracked. Damaged lenses must be replaced.

• To prevent wiring damage, or abrasion, do not expose

wiring to edges of sheet metal or other sharp objects.

• Use the Source 4WRD fixture in dry locations only, where

humidity does not exceed 90 percent (non-condensing).

These fixtures are not intended for outdoor use.

• Mount and support the fixture only by the primary

suspension holes in the yoke.

• Suspend the fixture from a suitable structure using only

the hardware rated for the weight of the fixture.

• In addition to primary suspension, attach a safety cable

(ETC Model 400SC or other approved safety cable or

device) to the fixture housing. Appropriate attachment

point (hole) is provided in the protruding tab on the

fixture housing.

• Disconnect the unit from power and DMX and allow the

fixture to cool before removing or installing the shutter

barrel or other adapters, and for performing all cleaning

and maintenance.

Note:

• Maximum recommended ambient operating

temperature: Ta=40°C (104°F)

• Maximum anticipated external surface temperature:

Tmax=65°C (149°F) at Ta=40°C (104°F)

• External Temperature (steady state achieved) at 25°C

(77°F) ambient: 32°C (90°F)

Source 4

WRD

Page 3 User Manual

Specifications

Sensor dimmer settings

The Source 4WRD can be controlled from either a DMX source or from an

existing dimmer for level control.

When powering a fixture from a CEM classic, CEM+, or CEM3 for DMX

dimming or AC level setting, change max scale settings to guarantee the

dimmer is out of regulated mode.

Typical Power Consumption

Idle Power / Current DMX Mode: 1.2W/.046A

AC Mode: 0W

Full Intensity Power / Current 155.7W/1.35A

Physical

• Rugged die-cast aluminum construction

• Advanced thermal management systems for long LED life

• Ambient operating temperature

5 to 40 °C (41 to 104°F)

• Weight

S4WRD retrofit kit only: 3.65 lbs

S4WRD installed on 26° fixture with yoke and c-clamp:14 lbs.

Electrical

• 114-125VAC 60Hz power input

• 155 watt draw at full (182 watt theoretical max. draw)

• Recommended two (2) Source 4WRD fixtures per dimmed circuit (D20

module)

• Max of 14 fixtures per non-dimmed circuit (R20 module)

• If using in DMX mode, connect fixture to relay, constant power, or

dimmer with regulation off and parked at full

LEDs

• 4 CREE LED modules

• 30,000 hour estimated L70 rating. Life-test in progress, results pending.

Optical

• Compatible with all ETC Source Four lens tubes.

Control

• DMX512-A compliant

• DMX in and thru via two RJ45 connectors

• Simple seven segment display, two button user interface

• AC power for line-dimmed operation

Note:

Dimmer settings may need to be adjusted for optimal

fixture control.

ETC User Manual

Source 4

WRD

Page 4 Electronic Theatre Controls, Inc.

The following table applies to all ETC Sensor control modules

including CEM, CEM+, and CEM3.

The SCR Off Time may need to be increased from the default setting. Contact

ETC for assistance in changing the SCR off time, or any other CEM classic,

CEM+, or CEM3 settings.

For the most current information on additional dimmer

performance testing for both ETC and non-ETC dimmers, please

reference our website at: http://www.etcconnect.com/Support/

Articles/Dimmer‐Settings‐for‐Use‐with‐Source‐4wrd.aspx

Note:

In CEM+ Max Scale must be set to 140V to guarantee

that regulation is off.

Parameter Value

Curve Mod Square

Threshold 1%

Min Scale 6V

Max Scale 140V

Regulation OFF

Preheat Disabled

DC Prevent OFF

Inrush Protect OFF

Scale Load 100

Note:

With AC dimming (line-dimmed) mode, performance

may vary based on the control settings of the dimmer

used. For this reason, ETC recommends using AC dimming

for level-setting or for architectural quality dimming

situations. ETC recommends testing Source 4WRD on all

existing dimmers you wish to use.

Use DMX mode when high-performance, live, dynamic

dimming is required.

Source 4

WRD

Page 5 User Manual

Color rendering and quality

Source 4WRD fixtures are evaluated for Color Rendering Index (CRI) and Color

Quality Scale (CQS) performance using measured output spectrum. These

numbers may fluctuate slightly from fixture to fixture. This is a normal

characteristic of white LEDs, and this kind of variation is highly unlikely to be

apparent in most applications.

Contacting ETC

If you are having difficulties, your most convenient resources are the

references given in this user manual. To search more widely, try the ETC Web

site at www.etcconnect.com. If none of these resources is sufficient, contact

ETC Technical Services directly at one of the offices identified below.

Emergency service is available from all ETC offices outside of normal business

hours.

When calling for help, please have the following information handy:

• Product model

• Dimmer manufacturer and installation type

• Other components in your system (Unison, other consoles, etc.)

Fixture CRI CQS Color Fidelity Duv

Source 4WRD

(80CRI) at 3000K 80 80 80 0.001

Source 4WRD Gallery

(90CRI) at 3000K 90 90 90 0.001

Americas United Kingdom

Electronic Theatre Controls Inc. Electronic Theatre Controls Ltd.

Technical Services Department Technical Services Department

3031 Pleasant View Road 26-28 Victoria Industrial Estate

Middleton, WI 53562 Victoria Road,

800-775-4382 (USA, toll-free) London W3 6UU England

+1-608 831-4116 +44 (0)20 8896 1000

[email protected] [email protected]

Asia Germany

Electronic Theatre Controls Asia, Ltd. Electronic Theatre Controls GmbH

Technical Services Department Technical Services Department

Room 1801, 18/F Ohmstrasse 3

Tower 1, Phase 1 Enterprise Square 83607 Holzkirchen, Germany

9 Sheung Yuet Road +49 (80 24) 47 00-0

Kowloon Bay, Kowloon, Hong Kong techserv-hoki@etcconnect.com

+852 2799 1220

service@etcasia.com

ETC User Manual

Source 4

WRD

Page 6 Electronic Theatre Controls, Inc.

Retrofit Kit Installation

Remove Incandescent Lamp Housing

Step 1: Unplug the Source

Four incandescent

fixture and place it on

a flat, stable surface.

Step 2: Loosen the brass

thumb screw located

above the beam

adjustment knob.

The lamp housing is

now loose and can

be removed.

WARNING:

RISK OF FIRE OR ELECTRIC SHOCK:

LED Retrofit Kit

installation requires knowledge of luminaires

electrical systems. If not qualified, do not attempt

installation. Contact a qualified electrician.

Note:

THE RETROFIT KIT IS ACCEPTABLE AS A COMPONENT OF

A LUMINAIRE WHERE THE SUITABILITY OF THE

COMBINATION SHALL BE DETERMINED BY AUTHORITIES

HAVING JURISDICTION.

Note:

The burner assembly is no longer needed. If you would

like ETC to recycle the burner assembly, contact ETC

Technical Services for more information. See “Contacting

ETC” on page 5.

LEDs

Up and

down

navigation

RJ45 Data

in and

through

User interface

Source 4WRD

Retrofit Kit

A #2 Phillips

screwdriver is

needed for kit

installation

Autres manuels pour Source 4WRD

Table des matières

Autres manuels ETC Matériel de DJ

ETC

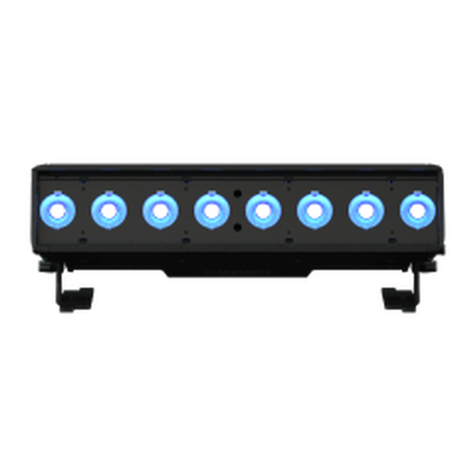

ETC ColorSource Linear Manuel utilisateur

ETC

ETC Source Four Mini LED Manuel utilisateur

ETC

ETC Source 4WRD Manuel utilisateur

ETC

ETC Source Four jr Manuel utilisateur

ETC

ETC Element Manuel utilisateur

ETC

ETC ColorSource Spot V 1.0 Manuel utilisateur

ETC

ETC Desire series Manuel utilisateur

ETC

ETC Source Four PARNel Manuel utilisateur

ETC

ETC Source Four PAR EA Manuel utilisateur

ETC

ETC ColorSource Spot jr v2.0 Manuel utilisateur

ETC

ETC Source Four jr Manuel utilisateur

ETC

ETC ColorSource PAR v1.7 Manuel utilisateur

ETC

ETC High End Systems SolaPix 19 Manuel utilisateur

ETC

ETC Desire series Manuel utilisateur

ETC

ETC Source 4WRD II Manuel utilisateur

ETC

ETC High End Systems SHOWGUN Manuel

ETC

ETC Source 4WRD Manuel utilisateur

ETC

ETC ColorSource Manuel utilisateur

ETC

ETC Prodigy FlyPipe Studio Manuel utilisateur

ETC

ETC RoadHog 4 Manuel utilisateur

ETC

ETC Irideon FPZ Manuel utilisateur

ETC

ETC fos/4 Series Manuel utilisateur

ETC

ETC Source Four Mini LED Manuel utilisateur

ETC

ETC Source Four Mini LED Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
