ETC Source 4WRD Manuel utilisateur

Source 4WRD Color II

Retrofit (CE)

Installation and User Manual

Version 3.0

Part Number: 7068M1230-3.0 Rev A

Released: 2023-01

To view a list of ETCtrademarks and patents, go to

etcconnect.com/ip. All other trademarks, both marked and not

marked, are the property of their respective owners.

ETC intends this document, whether printed or electronic, to be

provided in its entirety.

Table of Contents

Source 4WRD Color II Installation and User Manual i

Introduction 1

Help from ETC Technical Services 2

Safety 3

Retrofit the Fixture 5

Wire the Power Connector 5

Remove Incandescent Lamp Housing 6

Install the Reflector Insert 7

Install the Source 4WRD Color II Retrofit 9

Install the Fixture 10

Attach Hanging Clamp and Safety Cable 10

Connect Cables 11

Configure the Fixture 13

Set the DMXAddress 13

Play Presets and Sequences 13

Data Loss Behavior 15

Focus the Fixture 16

Set the Z-adjustment 16

Adjust the Yoke Position 16

Shape the Beam 17

Troubleshoot the Fixture 18

Restore Factory Defaults 19

Update the Fixture Software 20

RDMValues 21

Clean and Maintain the Fixture 21

Clean the Fixture 21

Store the Retrofit 21

Clean the Lenses 22

Clean the Reflector Insert 23

Clean 5° and 10° Polymer Lenses 24

Specifications 25

Electrical 25

Environment 25

Weight 25

Optical 25

FCC Compliance 26

ii Source 4WRD Color II Installation and User Manual

Source 4WRD Color II Installation and User Manual 1

Introduction

The Source 4WRD Color II is a replacement for a standard Source Four

burner assembly. It converts the HPL source to an RGBA (red, green, blue,

and amber) LED and provides a significant reduction in power consumption.

The Source 4WRD Color II uses DMX dimming and requires power from a

non-dimmable source. When not using DMX, you can use any of the

12presets or 5sequences on the Source 4WRD Color II.

The Source 4WRD Color II can also be used with the Source 4WRD PAR or

PARNel Fixture Body to create a Source 4WRD Color II PAR or PARNel

fixture. For best results, we recommend that you use the included diffusion

on the Source 4WRD PAR or PARNel Fixture Body when paired with the

Source 4WRD Color. For more information, see the Source 4WRD Color II

PAR and PARNel datasheet at etcconnect.com.

Retrofit kit,

shown installed

on a Source Four

fixture body

Note:

The Source 4WRD Color II retrofit kit is not compatible with

Source Four LED, Fresnel, PAR, PARNel, or jr fixtures.

2 Source 4WRD Color II Installation and User Manual

Help from ETC Technical Services

If you are having difficulties and your problem is not addressed by this

document, try the ETC support website at support.etcconnect.com or the

main ETC website at etcconnect.com. If none of these resources are

sufficient, contact ETC Technical Services directly at one of the offices

identified below. Emergency service is available from all ETC offices outside

of normal business hours.

When calling for help, take these steps first:

• Prepare a detailed description of the problem

• Go near the equipment for troubleshooting

• Find your notification number if you have called in previously

ETC, Inc.

Americas

Technical Services Department

3031 Pleasant View Road

Middleton, WI 53562

800-775-4382 (USA, toll-free)

+1-608 831-4116

service@etcconnect.com

ETC GmbH

Germany, Austria, Switzerland,

Eastern Europe, and Russia

Technical Services Department

Ohmstrasse 3

83607 Holzkirchen, Germany

+49 (80 24) 47 00-0

techserv-germany@etcconnect.com

ETC Austin

High End Systems Products

Technical Services Department

2105 Gracy Farms Lane

Austin, TX 78758 USA

800-890-8989 (USA, toll-free)

+1-512 836-2242

hesservice@etcconnect.com

ETC France

France

Zone Urbaparc -

Bâtiment E

6 Boulevard de la Libération

Saint-Denis, 93200

+33 1 4243 3535

techservfrance@etcconnect.com

ETC Ltd

Europe, Middle East, and Africa

Technical Services Department

26-28 Victoria Industrial Estate

Victoria Road,

London W3 6UU England

+44 (0)20 8896 1000

techservltd@etcconnect.com

ETCAsia

Asia

Technical Services Department

Room 1801, 18/F

Tower 1, Phase 1 Enterprise Square

9 Sheung Yuet Road

Kowloon Bay, Kowloon, Hong Kong

+852 2799 1220

techserv-asia@etcconnect.com

Source 4WRD Color II Installation and User Manual 3

Safety

The Source 4WRD Color II fixture is intended for professional use only. Read

the entire manual before using this equipment.

WARNING: Note the following warnings before use:

• The Source 4WRD Color II is not user serviceable. Field

modification of the Source 4WRD Color II will void your

ETC warranty.

• Do not use the fixture below 5°C (41°F).

• Minimum storage temperature is 5°C (41°F). When the

fixture has been stored or transported in cold

temperatures, allow it to warm to room temperature for

a minimum of 1hour before applying power. Applying

power to a cold fixture will cause damage to the fixture

and void the ETCwarranty.

• Do not use this fixture if a glass lens is deeply scratched

or cracked. Damaged lenses must be replaced.

• To prevent wiring damage, or abrasion, do not expose

wiring to edges of sheet metal or other sharp objects.

• Use the fixture in dry locations only, where humidity

does not exceed 90 percent (non-condensing). These

fixtures are not intended for outdoor use.

WARNING: Note the following safety warnings before use:

• Do not mount the fixture on or near a flammable surface.

• Do not use this fixture with a damaged power lead. If the

power lead (cord set) is damaged, it must be replaced.

• Mount and support the fixture only by the primary

suspension holes in the yoke.

• When the fixture is mounted, the axis between the yoke

attachment points must be parallel to the ground.

Mounting the fixture in a non-parallel orientation risks

property damage or bodily injury.

• Suspend the fixture from a suitable structure using only

hardware rated for the weight of the fixture.

• In addition to primary suspension, attach a safety cable to

the fixture housing. An appropriate attachment point

(hole) is provided in the protruding tab on the fixture

housing.

• Disconnect the unit from power and DMX and allow the

fixture to cool before removing or installing accessories,

and before all cleaning and maintenance.

4 Source 4WRD Color II Installation and User Manual

The following symbols may appear on product labeling.

The luminaire must be installed at

least 0.1m (4.0in) away from all

lighted objects.

Le luminaire doit être installé à au

moins 0,1m (4,0po) de tout objet

éclairé.

Risk of electric shock Risque de décharge éléctrique

General warning Avertissement général

This product should not be

discarded as unsorted waste but

must be sent to separate collection

facilities for recovery and recycling.

Ce produit ne doit pas être jeté avec

les déchets ménagers mais doit être

déposé dans une collecte de déchets

électroniques ou dans un point de

collecte.

This product meets the safety

requirements specified for Class II

equipment according to IEC 61140

or IEC60536.

Ce produit à Protection Classe II

Double isolation est conforme aux

normes IEC 61140 ou IEC 60536.

This product meets the safety

requirements specified for Class III

according to IEC 60536.

Produit à Protection Classe III Très

basse tension conforme à la norme

IEC 60536.

The product input or output is

suitable for direct current only.

L’entrée et la sortie de ce produit

convient uniquement au courant

continu.

Source 4WRD Color II Installation and User Manual 5

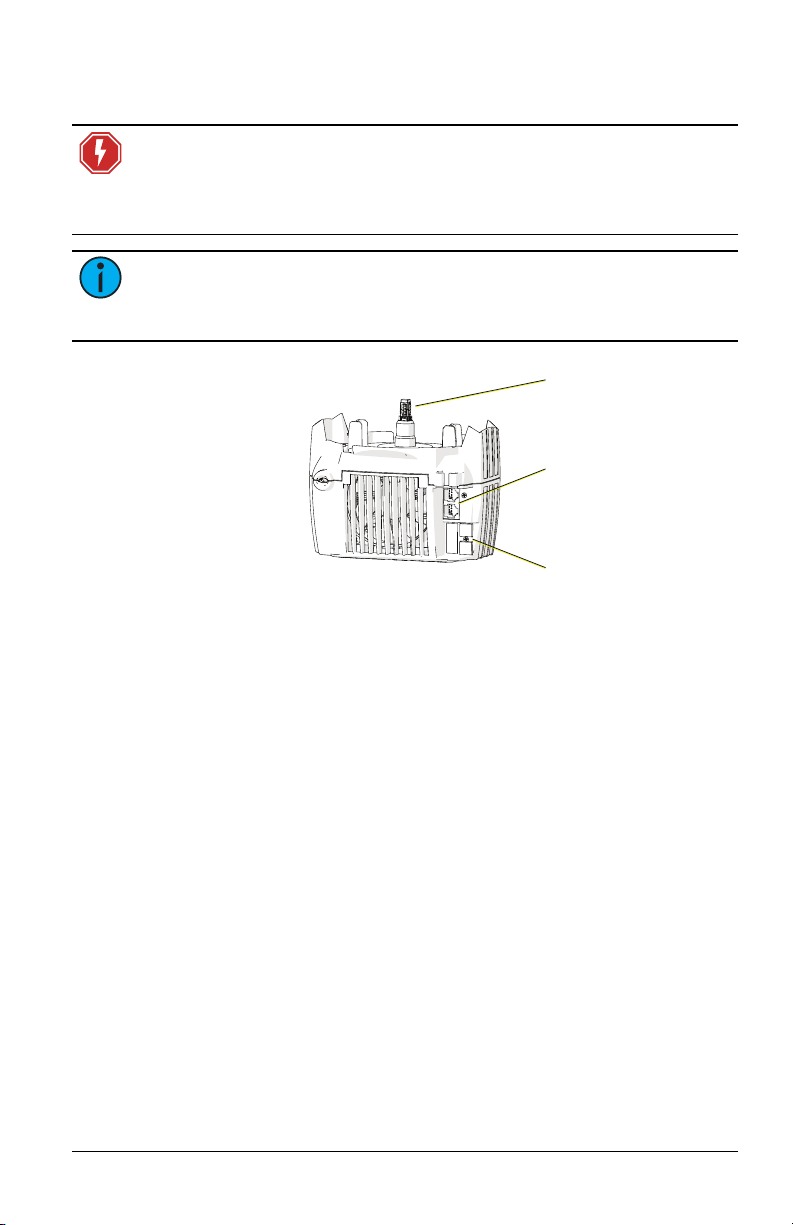

Retrofit the Fixture

WARNING: RISK OF FIRE OR ELECTRIC SHOCK! Installing the

Source 4WRD Color II retrofit kit requires knowledge of

luminaire electrical systems. If you are not qualified, do not

attempt installation. Contact a qualified electrician.

Note:

THE RETROFIT KIT IS ACCEPTABLE AS A COMPONENT OF A

LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL

BE DETERMINED BY AUTHORITIES HAVING JURISDICTION.

Retrofit kit

LEDs

RJ45 data in

and data thru

User interface and

navigation buttons

Wire the Power Connector

If you ordered a Source 4WRD Color II retrofit without a power connector,

wire the connector in accordance with all national and local electrical

codes:

• Brown = Live

• Blue = Neutral

• Green/Yellow + Drain = Protective Earth

6 Source 4WRD Color II Installation and User Manual

Remove Incandescent Lamp Housing

1. Unplug the Source Four incandescent fixture and place it on a flat,

stable surface.

2. Loosen the brass thumb screw located above the beam adjustment

knob. The lamp housing is now loose.

3. Slide the lamp housing away from the fixture body and locate the

screw that secures the earth bond wire to the fixture body. Loosen

and remove the screw and accompanying washer to free the earth

bond wire.

4. Remove the lamp housing from the fixture body.

Note:

The burner assembly is no longer needed. If you would like

ETC to recycle the burner assembly, contact ETC Technical Services

for more information. See Help from ETC Technical Services on

page2.
