ESP Aperta APWIFIDS Manuel utilisateur
APWIFIDS │WI-FI DOOR STATION
www.espuk.com
J2474 ESP Instruction Manual APWIFIDS.indd 1 15/03/2017 11:20:14

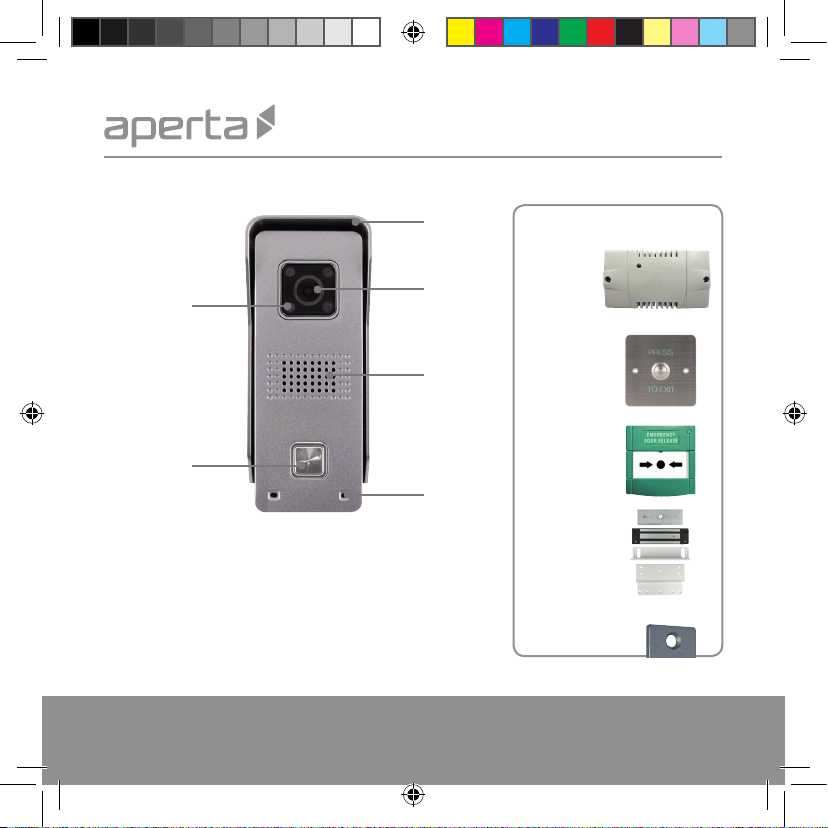

System Overview
Kit contains:
■Wifi door station
■12vDC (500mA) power supply
■10DB Wifi Antenna
■Micro SD card (pre-installed)
■Hex key
■Reset pin tool
■LAN terminal
■Wire connectors
■Screws and rawl plugs
Sunshield
Speaker
Microphone
Camera lens
IR LED
Call button
Page 2
Optional accessories:
EVBPSBB
Lock power
supply
EV-EXIT
Push to release
EV-EBG
Emergency release
EV-ML-250/500XT
Electro-magnetic lock
ENTERD
Electric lock
J2474 ESP Instruction Manual APWIFIDS.indd 2 15/03/2017 11:20:15
Connections
It is recommended the door station is programmed prior to installation.
Rear of door
station
Output for lock
(Volt-free)
Output for
doorbell
(Volt-free)
LAN
connection
(Not required
for Wifi use)
*See advanced
settings
Input 12vDC 500mA
Red
Black
Purple
Yellow
N.O
COM
+
-
White
Grey
N.O
COM
Orange
Orange & White
Green
Green & White
Antenna
Page 3
J2474 ESP Instruction Manual APWIFIDS.indd 3 15/03/2017 11:20:15
Page 4

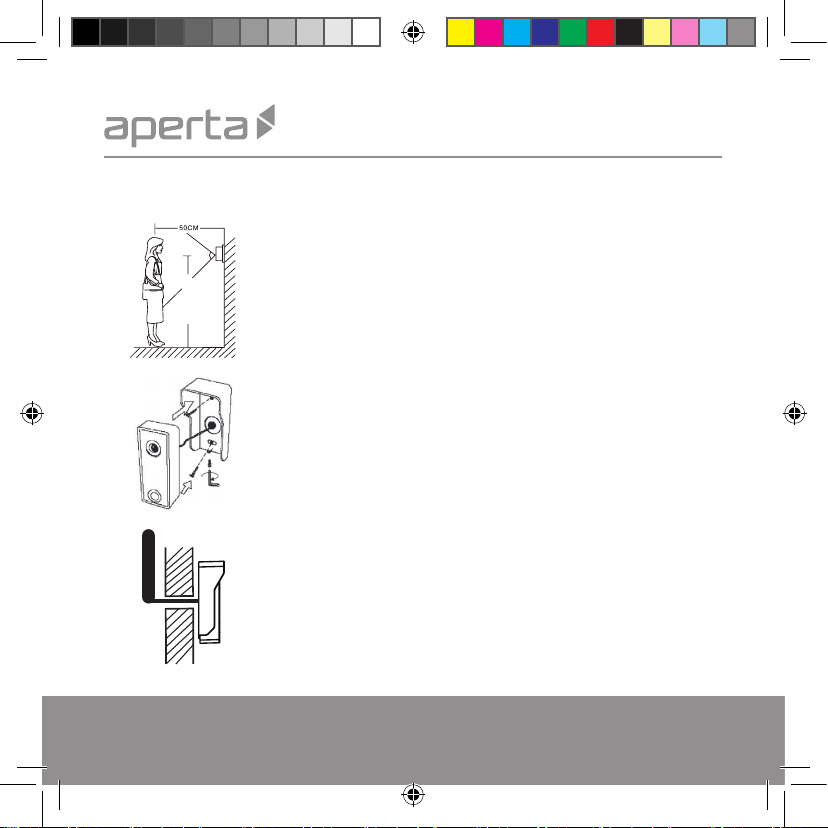

Installation
90。
1.2 m1 .5 m～
Site the door station 1.5 meters from the ground,
or to suit application.
Position camera in the direction of where a visitor
will stand during operation.
Avoid areas of high sunlight and noise levels.
Surface mount the sunshield of the door station and
connect the system cabling.
Mount the camera to the sunsheild by fixing with
the supplied hex screw.
All system connections are to be made inside the building,
this includes the siting of the antenna.
J2474 ESP Instruction Manual APWIFIDS.indd 4 15/03/2017 11:20:15
Page 5
System set up
Whilst the door station is powered, the rear
tamper switch will be active. Ensure the tamper
switch is surpressed during setup.
If the tamper alert is activated the alarm will
sound for 60 seconds, or bypassed by powering
down for 10 seconds
Please ensure the following;
1. The user’s smart-phone is connected to the Wi-Fi network.
2. The Door Station is within the network’s Wi-Fi range.
3. The network’s key/password is avaliable.
Tamper switch
Rear of door
station
J2474 ESP Instruction Manual APWIFIDS.indd 5 15/03/2017 11:20:15
Page 6
Step One:
Connect the Antenna and power supply to the door station. Apply power.
The Micro SD card is pre-installed and is not accessible.
Antenna
Power supply
J2474 ESP Instruction Manual APWIFIDS.indd 6 15/03/2017 11:20:15
Page 7
Step Two:
After 60 seconds of the power applied. The door station will sound a registration tone every 5 seconds.
If the registration tone is not heard;
Press and hold the Reset button on the rear of
the door station for 5 seconds using the supplied
reset pin tool.
A ‘ching’ tone alerts the reset has been
successful.
After 60 seconds the registration tone will sound
every 5 seconds.
Tamper switch
Reset
J2474 ESP Instruction Manual APWIFIDS.indd 7 15/03/2017 11:20:15
Page 8

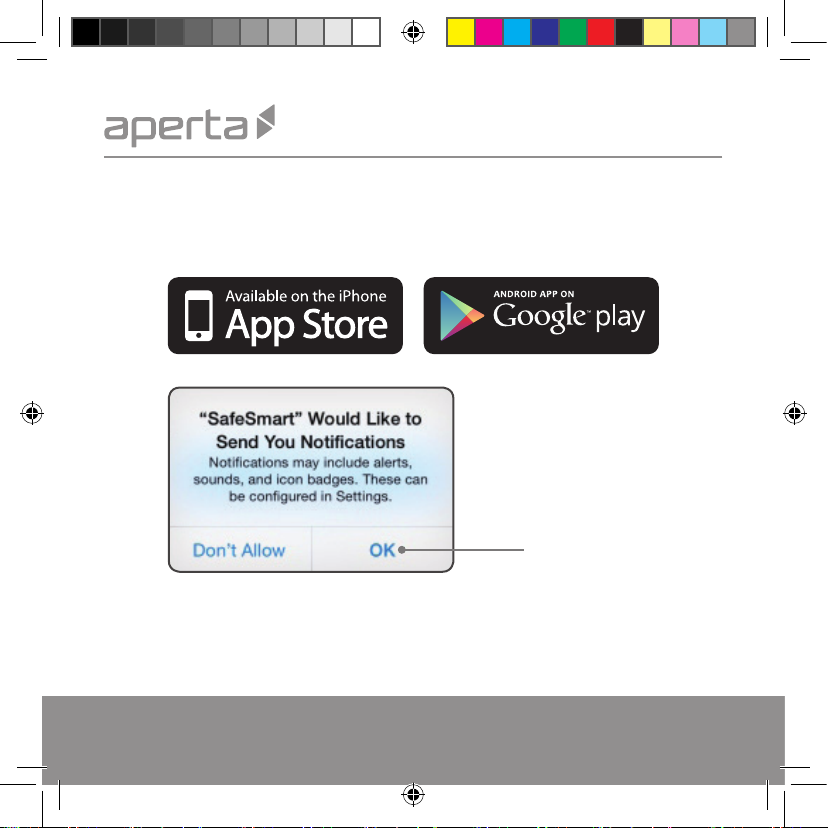

Step Three:
Download the required APP by searching for ESP Aperta on the APP market.
Once installed open the APP
and allow any notifications to
be enabled;
J2474 ESP Instruction Manual APWIFIDS.indd 8 15/03/2017 11:20:16
Page 9
Step Four:
Follow the on screen instructions to register an account;
1. Input your email
2. Input your ID password Please remember your ID
J2474 ESP Instruction Manual APWIFIDS.indd 9 15/03/2017 11:20:16
Page 10
Step Five:
Login to the APP
In the Device list
Select the ‘Tool’ symbol
Select
‘Set Wi-Fi By QR code’
Check the network selected
is correct
Network’s Name
Input your wifi password, then
tap ‘Next’.
J2474 ESP Instruction Manual APWIFIDS.indd 10 15/03/2017 11:20:16
