Ericss DUAL FORMAT MDR Manuel utilisateur

LBI-38838A

Mobile Communications

DUAL FORMAT MDRTM

MOBILE RADIO

Operator's Manual

TABLE OF CONTENTS

Page

SAFETY INFORMATION.................................................................. 5

SAFE DRIVING RECOMMENDATIONS FOR USERS OF MOBILE

RADIOS.................................................................................... 6

OPERATING PROCEDURES............................................................. 6

INTRODUCTION ............................................................................... 7

USER INTERFACE............................................................................. 8

BUTTONS ................................................................................ 9

KEYPAD .................................................................................. 11

Function Portion.......................................................... 11

Numeric Portion........................................................... 11

Extended Features........................................................ 12

DISPLAY.................................................................................. 13

Messages...................................................................... 14

Status Indicators .......................................................... 14

ALERT TONES................................................................................... 15

EDACS APPLICATIONS ......................................................... 15

GE-MARC APPLICATIONS .................................................... 16

OPERATION....................................................................................... 17

GENERAL................................................................................ 17

Removing and Replacing Handset................................ 17

Turning The Radio ON/OFF........................................ 17

Volume Adjust............................................................. 17

EDACS OPERATION............................................................... 17

System/Area Selection-Ramping Names*..................... 18

System/Area Selection-Direct Number Entry*.............. 18

Group Selection-Ramping Names*............................... 18

Group Selection-Direct Number Entry*........................ 18

Unlocking The Radio*................................................. 19

Locking The Radio*..................................................... 19

Backlight* ................................................................... 19

Programmable Flex Keys* ........................................... 19

*Indicates EDACS And GEMARC Applications

TABLE OF CONTENTS (CONTINUED)

Page

Interconnect Dialing .................................................... 19

REDIAL Key* ............................................................. 19

Individual Call Dialing................................................ 19

Individual Call Notification.......................................... 20

Storing An Individual Call ID...................................... 20

Using Special Call Lists*............................................. 20

Storing A Telephone Number To The Call List*.......... 21

Recalling calls from the call list* ................................. 21

Simplex Operation*..................................................... 21

*/System Key usage ..................................................... 21

END key Usage............................................................ 21

Last Digit Clear And Display Clear*............................ 22

1/HORN Key*.............................................................. 22

4/EXT SPK*................................................................ 22

5/SIMPLX ................................................................... 22

6/MUTE*..................................................................... 23

8/SCAN....................................................................... 23

9/SCAN ADD.............................................................. 23

0/SPC .......................................................................... 23

A/Testmode ................................................................. 23

B/Pause........................................................................ 23

C/Call Timer*.............................................................. 24

PROGRAMMABLE OPTIONS................................................. 24

Call Time-outs............................................................. 24

Emergency................................................................... 24

Automatic Login.......................................................... 25

Wide Area System Scan............................................... 25

Supervisory Mode........................................................ 25

Programmable Audio/Display ...................................... 25

Priority System Scan.................................................... 25

Group Options ............................................................. 25

TX Disable-Group Option............................................ 25

Rx Disable-Group Option............................................. 26

Control Channel Limits ............................................... 26

Conventional Failsoft Channel..................................... 26

GE-MARC OPERATION............................................ 26

Placing A Dispatch Call............................................... 26

Placing An Interconnect Or Dispatch Overdial Call..... 27

Storing A Dispatch Overdial Call................................. 27

3/OVERDIAL.............................................................. 27

TABLE OF CONTENTS (CONTINUED)

Page

8/CNF CALL............................................................... 28

Ending A Call.............................................................. 28

Receiving A Call.......................................................... 28

CONVENTIONAL MODE OPERATION................................. 29

Direct Mode Operation (Optional)................................ 29

MAINTENANCE AND BASIC CARE................................................ 30

ANTENNA REMOVAL............................................................ 30

FUSE REPLACEMENT............................................................ 30

JUMP STARTING THE VEHICLE........................................... 30

CLEANING INSTRUCTIONS............................................................ 30

AVAILABLE OPTIONS ..................................................................... 31

FREQUENTLY CALLED NUMBERS................................................ 32

SAFETY INFORMATION

The operator of any mobile radio should be aware of certain hazards

common to the operation of vehicular radio transmissions.

A list of possible hazards follows:

1. Explosive Atmospheres

Just as it is dangerous to fuel a vehicle with the motor running, be sure to

turn the radio off while fueling the vehicle. Do not carry containers of

fuel in the trunk of the vehicle when the radio is mounted in the trunk.

2. Interference to Vehicular Electronics Systems

Electronic fuel injection systems, electronic anti-skid braking systems,

etc., are typical of the type of electronic devices that may malfunction due

to the lack of protection from radio frequency energy present when

transmitting. If the vehicle contains such equipment, consult the dealer of

your vehicle and enlist his aid in determining if such electronic circuits

perform normally when the radio is transmitting.

3. Dynamite Blasting Caps

Dynamite blasting caps may be caused to explode by operating a radio

within 500 feet of the blasting caps. Always obey the "Turn Off Two

Way Radios" signs posted where dynamite is being used. When

transporting blasting caps in your vehicle:

a. Carry the blasting caps in a closed metal box with a soft lining.

b. Leave the radio OFF whenever the blasting caps are being put into

or removed from the vehicle.

4. Radio Frequency Energy

To prevent burns or related physical injury from radio frequency energy,

do not operate the transmitter when anyone outside of the vehicle is

within two feet of the antenna.

5. Liquefied (LP) Gas Powered Vehicles

Mobile radio installations in vehicles powered by liquefied petroleum gas

with the LP gas container in the trunk or other sealed-off space within the

interior of the vehicle must conform to the National Fire Protection

Association standard (NFPA) 58 requiring that:

a. The space containing the radio equipment shall be isolated by a seal

from the space containing the LP gas container and its fittings.

b. Outside filling connections shall be used for the LP gas container.

c. The LP gas container shall be vented to the outside of the vehicle.

SAFE DRIVING RECOMMENDATIONS FOR USERS OF MOBILE

RADIOS*

Read the literature on the safe operation of the radio.

Keep both hands on the steering wheel and the handset in its cradle

whenever the vehicle is in motion.

Place calls only when vehicle is stopped. Use on-hook dialing and

recall dialing to speed the time it takes to call.

When talking from a moving vehicle is unavoidable, drive in the

slower lane. Keep conversations brief.

If conversation requires taking notes or complex thought, stop the

vehicle in a safe place and continue the call.

Whenever using a mobile radio exercise caution.

*As recommended by the AAA.

OPERATING PROCEDURES

Two-way FM radio systems must be operated in accordance with the rules

and regulations of the Federal Communications Commission (FCC). Operators

of two-way radio equipment must be thoroughly familiar with the rules that

apply to the intended type of radio operation. Following these rules helps to

eliminate confusion, assures the most efficient use of existing radio channels,

and results in a smoothly functioning radio network. When using this two-way

radio remember these rules:

1. It is a violation of FCC rules to interrupt any distress or emergency

message. As the radio operates in much the same way as a telephone

"party line", always listen to make sure that the line is clear - that no one

else is on the air - before sending messages. If someone is sending an

emergency message - such as reporting a fire, or asking for help in an

accident - KEEP OFF THE AIR! Emergency calls have priority over all

other messages.

2. Use of profane or obscene language is prohibited by Federal law.

3. It is against the law to send false call letters, or a false distress or

emergency message.

4. The FCC requires that conversations be kept brief and confined to

business. To save time, use coded messages whenever possible.

5. Using a radio to send personal messages (except in an emergency) is a

violation of the FCC rules. Send only those messages that are essential for

business operation.

6. It is against Federal law to repeat or otherwise make known anything

overheard on the radio. Conversations between others sharing a channel

must be regarded as confidential.

7. The FCC requires the operator to transmit station identification at certain

times by means of call letters. Refer to the FCC rules for your station's

particular type of operation for the proper procedure.

NOTE

The GE-MARC and EDACS trunking environments have automatic

identification features built in and do not require the user to identify by

means of call letters.

8. No changes or adjustments shall be made to the equipment except by an

authorized or certified electronics technician.

INTRODUCTION

This manual describes how to use the Ericsson GE Dual Format MDR

Mobile Radio. The Dual Format MDR is a synthesized, microprocessor-based,

high performance duplex mobile FM radio providing reliable two-way

communications in both the GE-MARC and Enhanced Digital Access

Communications System (EDACS) trunking environments. The radio also

provides non-trunked operation for use with conventional communications

systems. An optional talk-around kit provides direct mobile to mobile

communication when out of repeater range.

Duplex operation is provided in EDACS and GE-MARC systems while

operating in the Telephone Interconnect Mode. At all other times, the radio

provides simplex communications, i.e. when placing group calls in either the

EDACS or GE-MARC environments or when operating in the conventional

mode.

In an EDACS trunked environment the user selects a communications

system and group. In this mode, channel selection is transparent to the user and

is controlled via digital communication with the system controller. This

provides advanced programmable features and fast access to communication

channels.

In a GE-MARC trunked environment the user selects a communications

area and group. In this mode, channel selection is automatic and is controlled

via tone signalling.

In the conventional mode, the user selects a channel and directly

communicates on that channel. In this mode, a system refers to a set of

channels and a channel is a transmit/receive radio frequency pair.

The exact operation of the radio depends on the operating mode, the

radio's programming, and the particular radio system. Most features described

in this manual may be enabled or disabled through programming. Consult the

system administrator for the required features to be programmed into the radio.

USER INTERFACE

All of the Dual Format MDR operating controls are located on the radio's

handset. A 22-button keypad, an internal speaker and a liquid crystal display

(LCD) for radio status information are located on the top side of the handset for

convenience while the handset is secured in its holder. An earpiece and

microphone are positioned on the handset's bottom side as found on a basic

telephone. Viewed from the handset's top side, a VOLUME UP button,

VOLUME DOWN button and the Push-To-Talk (PTT) button are located on

the left side.

The keypad is used for manual number entry for individual calls, access to

a telephone interconnect system and activation of various EDACS, GE-MARC

or conventional features. The keypad is divided into both a function portion and

a numeric portion as is found on a basic push-button telephone.

The display has an eight alphanumeric character line used to show the

operational mode of the radio. Eight status indicators, used to indicate various

operating conditions, such as; function key pressed, transmitter on, service not

available, radio in use, horn alert active, radio locked or transmit muted, are

located above and below the character line within the display. A back light

function illuminates the display and keypad for nighttime use.

BUTTONS

This section describes the function of the three buttons on the side of the

handset.

VOLUME UP Increases the volume level. 15 is the maximum

BUTTON level.

VOLUME DOWN Decreases the volume level. 00 is the minimum

BUTTON level unless programmed otherwise.

NOTE

When the VOLUME UP or VOLUME DOWN button is pressed,

the volume setting can be momemtarily displayed on the handset LCD

(e.g., VOL=15) if the radio is not actively receiving a call and the function

is enabled through programming. If not programmed with a power up

volume level, the radio retains the last setting used when the radio was

powered off.

PUSH-TO-TALK Enables the radio's transmitter. PTT must be

(PTT) BUTTON held down to transmit during simplex operation.

VOLUME UP

Button

VOLUME DOWN

Button

TUV

RCL

SEND

END

WXY

PRS

LOCK

ABC

BACKLIGHT

DEF

OVERDIAL

HORN

OPER

SPC

TALK TIME

✱

SYSTEM

JKL

SIMPLEX

MNO

MUTE

GHI

EXT SPK

B CA

GROUP

CLR

POWER

FCNSTO

Push-To-Talk

(PTT) Button

POWER

ON-OFF Key

Display

Keypad

Internal

Speaker

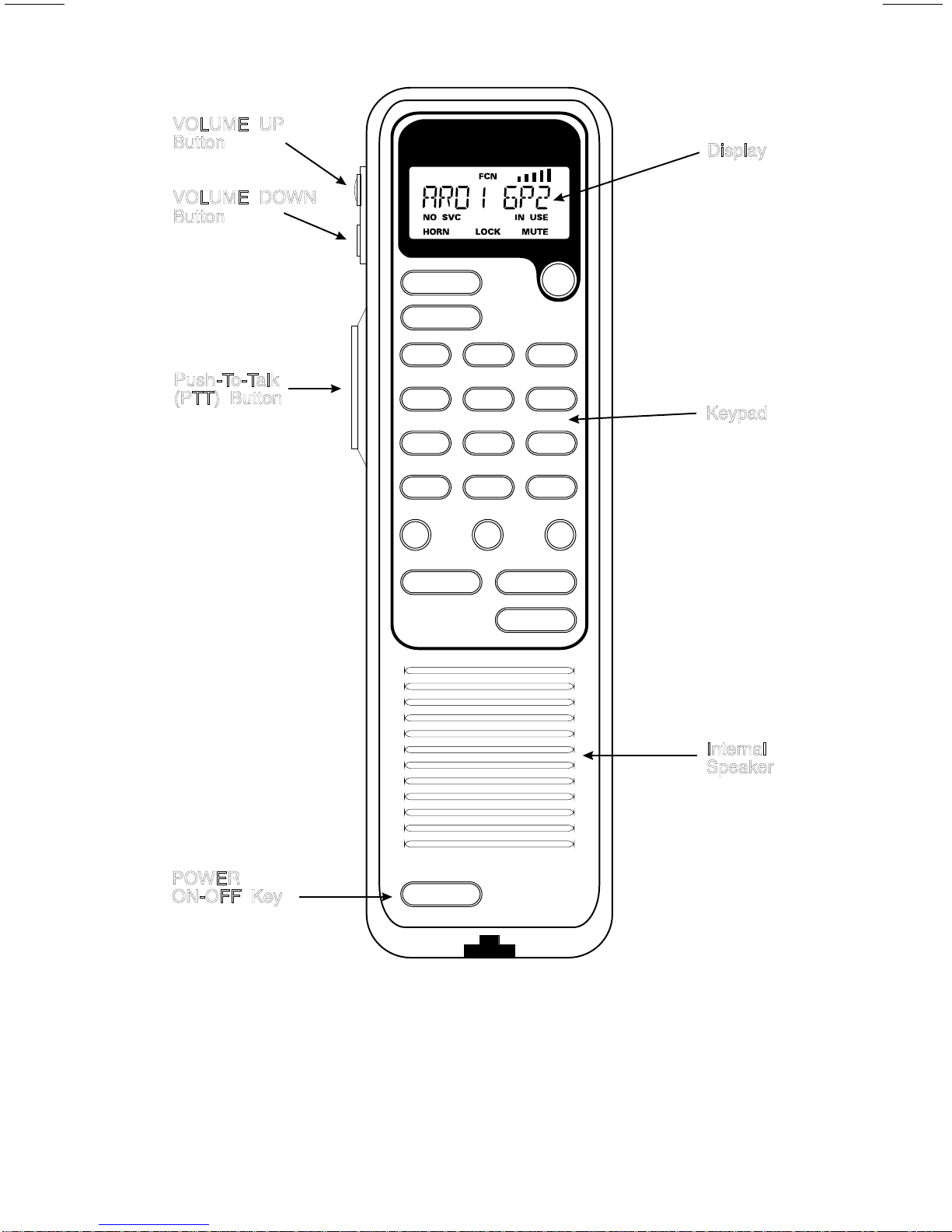

Figure 1 - Dual Format MDR Handset

Table des matières

Manuels Radio portable populaires d'autres marques

Telefunken

Telefunken P5 Manuel utilisateur

Tait

Tait TP9300 Manuel utilisateur

Lafayette

Lafayette Guardian 5500 Manuel utilisateur

Sailor

Sailor SP3300 Manuel utilisateur

Matra Nortel

Matra Nortel MC 6500 Manuel utilisateur

Hytera

Hytera PD362i Manuel utilisateur

Vertex Standard

Vertex Standard VX-P920 Series Manuel utilisateur

Roberts

Roberts Ecologic 3 Manuel utilisateur

LENCO

LENCO IPD-5100 Manuel utilisateur

Baofeng

Baofeng BF-82 Manuel utilisateur

Philips

Philips AE2110/04 Manuel utilisateur

Trevi

Trevi RA 764 Manuel utilisateur

TerraTec

TerraTec NOXONiRadio Manuel d'utilisation et d'entretien

M/A-Com

M/A-Com P5100 Series Manuel utilisateur

Elta

Elta 6699 Manuel utilisateur

PURE

PURE ONE classic Series II Manuel utilisateur

Teac

Teac PR130 Manuel utilisateur

Philips

Philips AE6370 Manuel utilisateur

ericss DUAL FORMAT MDR Manuel utilisateur

Manuels Radio portable populaires d'autres marques
