Ergotron LX Desk Mount LCD Arm Manuel utilisateur

1 of 12

888-45-047-W-05 rev.U • 12/18

LX Wall Mount Keyboard Arm

www.ergotron.com | USA: 1-800-888-8458 | Europe: +31 (0)33-45 45 600 | China: 400-120-3051 | Japan: [email protected]

English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语

English

For the latest User Installation Guide please visit: www.ergotron.com

2 of 12

888-45-047-W-05 rev.U • 12/18

AB CD

0 - 5 lbs

(0 - 2.3 kg)

4mm

180° 360°

180°

13" (330 mm)

1x 1/8"

10-24 x 1/2"

1x 2.5mm

M8 x 80mm

13mm

7mm

M4 x 8mm

1x 1x

90°

5°

3°3°

M4 x 14mm

Ø 3/8” (10mm)

Ø 3/16" (5mm)

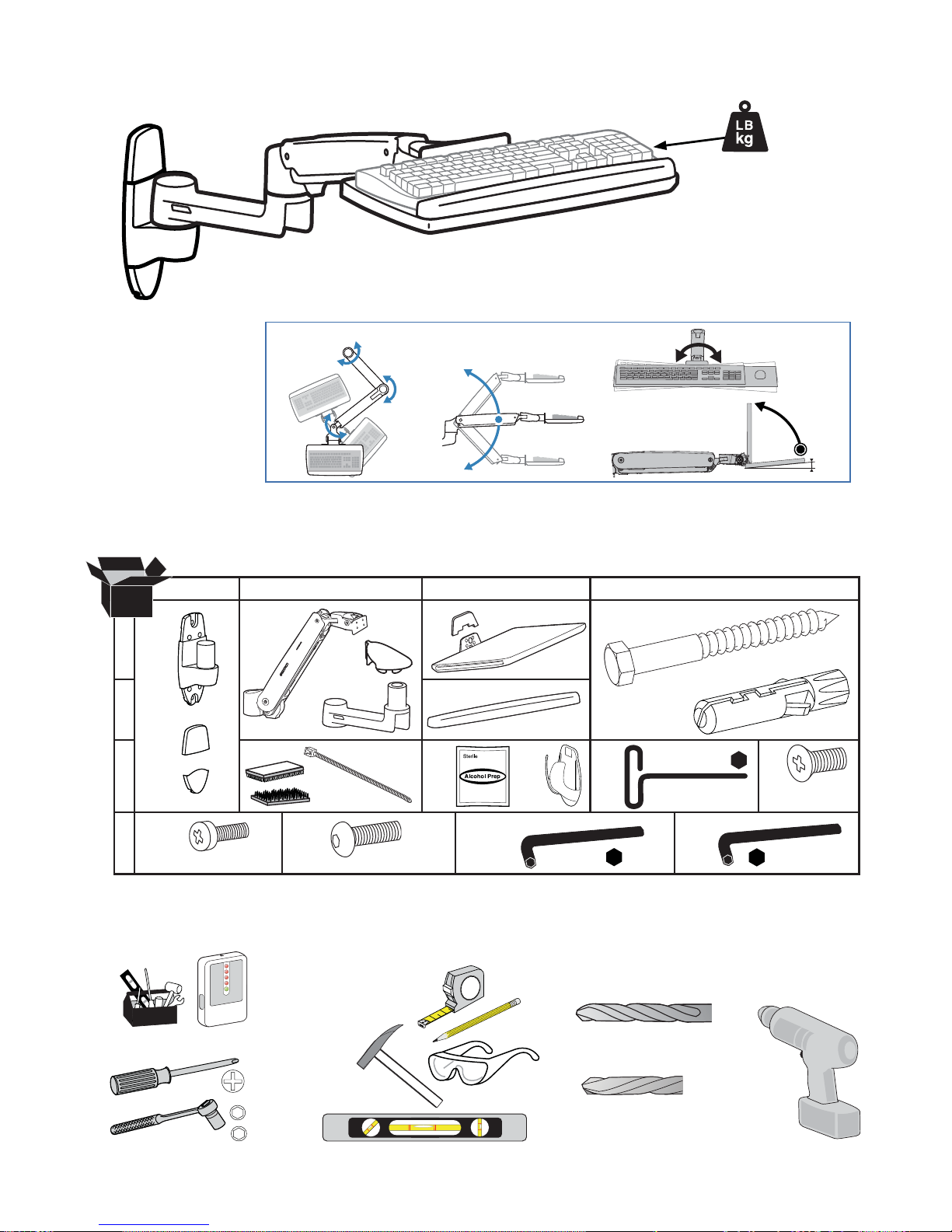

Tools Needed

Components

Concrete Wall Mounting

Wood Stud Mounting

Stud Finder

3 of 12

888-45-047-W-05 rev.U • 12/18

5’0” - 6’4”

(152-185cm)

22.5”

(571mm)

31.5”

(800mm)

35.4”

(899mm)

5’0” - 6’4”

(152-185cm)

26.4”

(670mm)

14.8”

(377mm)

2.5”

(63mm)

17.7”

(449mm) 20.7”

(526mm)

0.6”

(14mm)

1.8”

(46mm)

8.3”

(211mm)

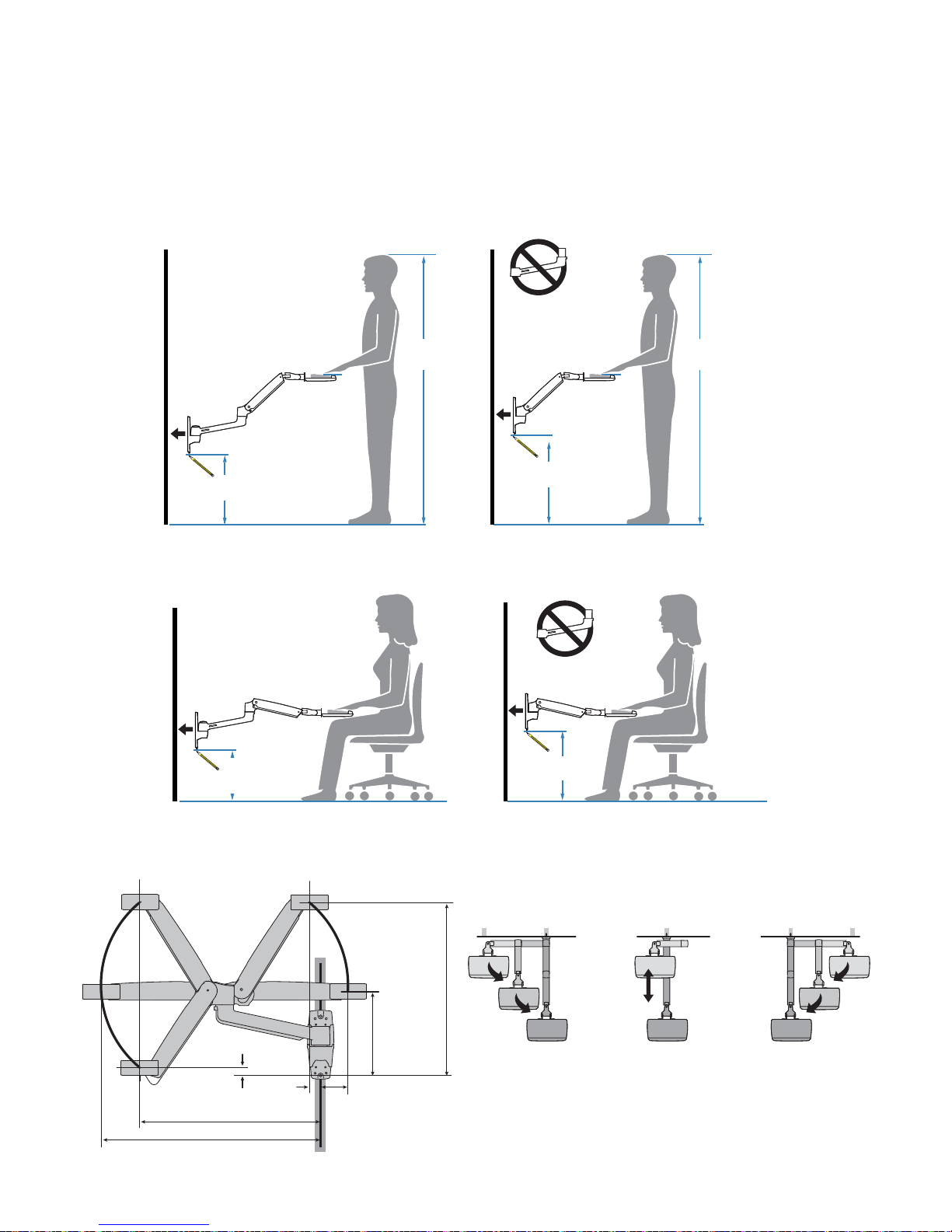

This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5'0"-6'4"

(152-185cm) when set up for standing .

If user heights are dierent than this, you should change mounting height to accommodate user heights. (Change mount-

ing height one inch for every one inch dierence in user heights).

Mounting Height for Ergonomic Workstation

Determine mounting location:

Top view showing range of motion when pulled out from the wall.

Front view with arm pushed back against the wall.

4 of 12

888-45-047-W-05 rev.U • 12/18

10-24 x 1/2"

1/8"

5 6 7

4.1"

(104mm)

1.125"

(28.6mm)

(152mm)

33"

(838 mm)

To Floor

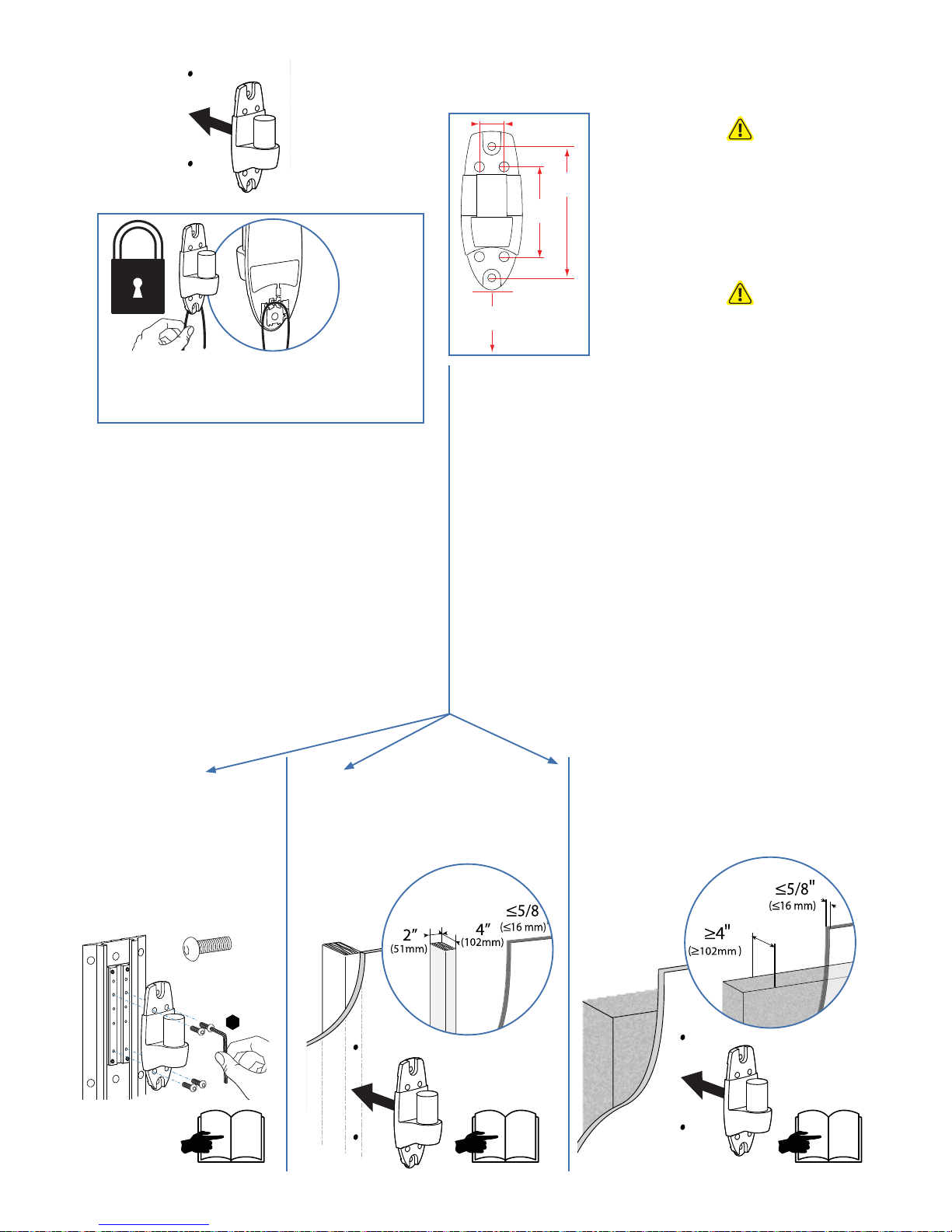

CAUTION: Make sure the wall mount bracket is level,

ush and snug to the wall surface. DO NOT OVERTIGHT-

EN THE BOLTS.

WARNING: Ensure that the wall structure is capable

of supporting four times the total weight of mounted

equipment. Mounting to wall surfaces that do not meet

this criteria may result in an unstable, unsafe condition

which could lead to personal injury and/or property

damage. Consult a construction professional if you

have any doubt about what this means in regard to

your particular application.

Concrete

Ergotron product

Wood

Optional locking feature

(customer supplied lock)

5 of 12

888-45-047-W-05 rev.U • 12/18

1/8"

10-24 x 1/2"

10-24 x 5/8"

Ergotron product

NOTE: Fasteners may unwind due to vibration caused by move-

ment of mounting solution over time. Inspect mounting solution

for loose fasteners on a routine basis. If desired, apply a light duty

thread locking adhesive to fasteners before installation to prevent

back-out.

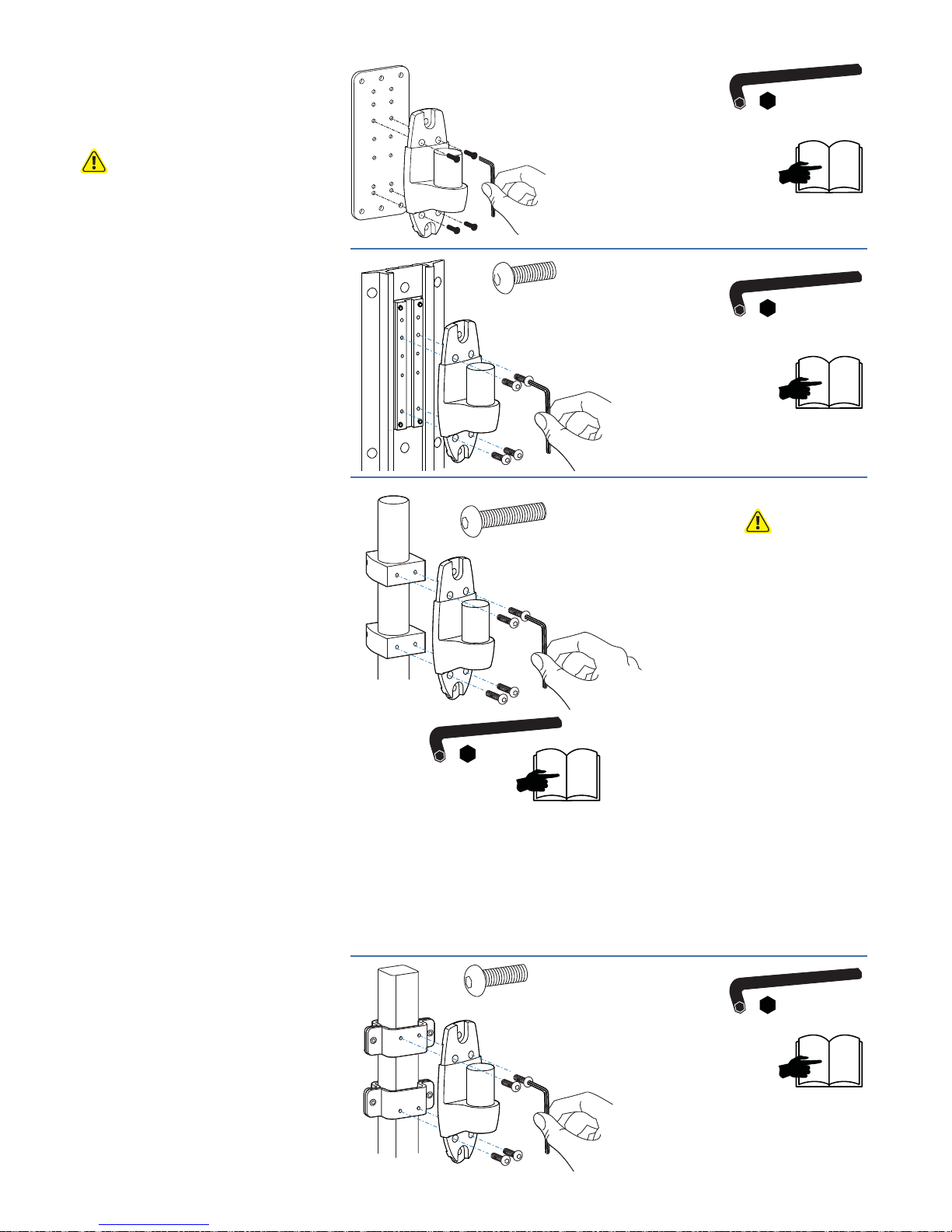

When attaching to Pole Clamps, use 10-24 x 5/8”

screws included with pole brackets, Do NOT use

10-24 x 1/2” screws

NOTE: Wall Track and Brackets sold separately.

6 of 12

888-45-047-W-05 rev.U • 12/18

bacd

13 mm

M8 x 80mm

Ø 3/16"

(5 mm)

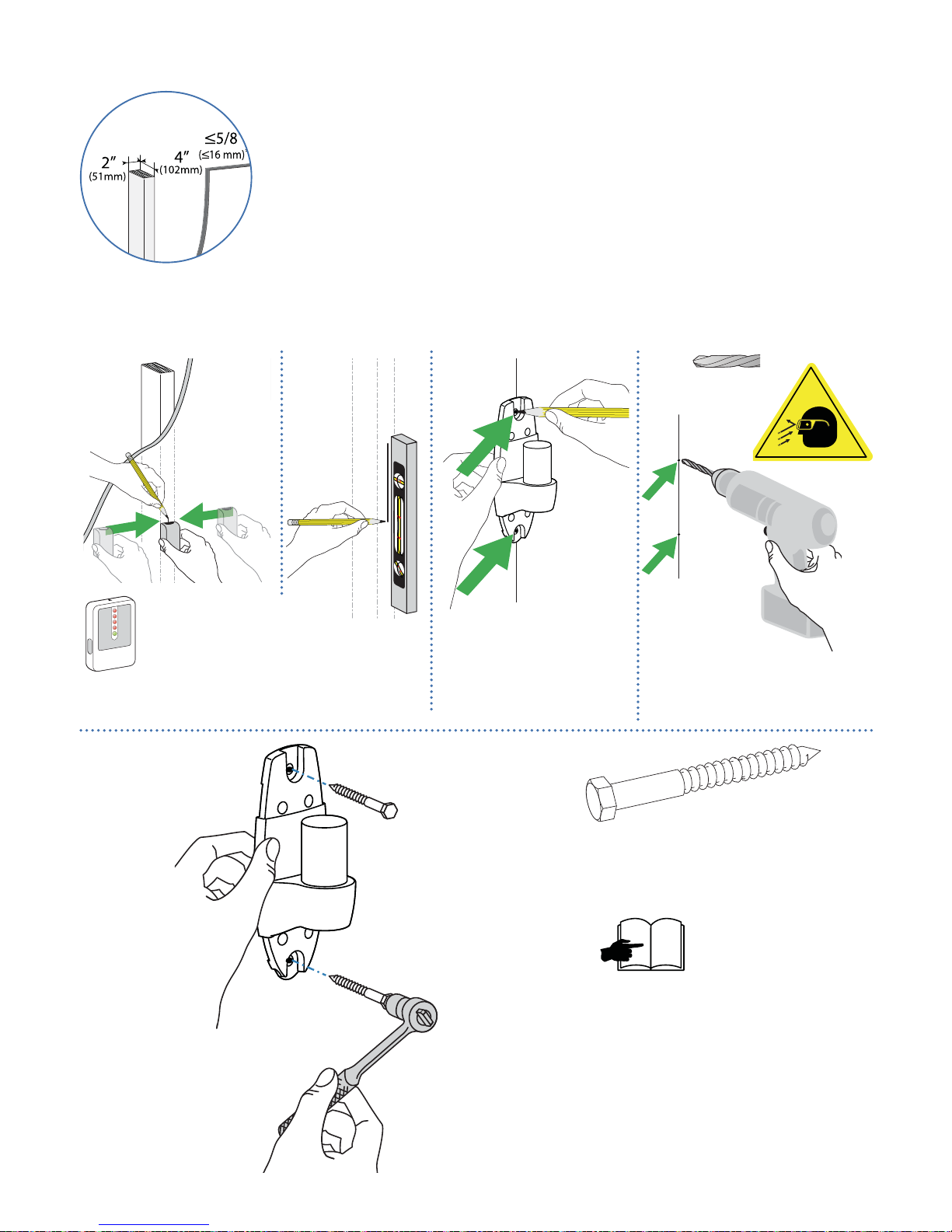

Wood Stud Mounting

Stud Finder

7 of 12

888-45-047-W-05 rev.U • 12/18

13 mm

M8 x 80mm

3-1/8"

(80 mm)

Ø 3/8"

(10 mm)

cde

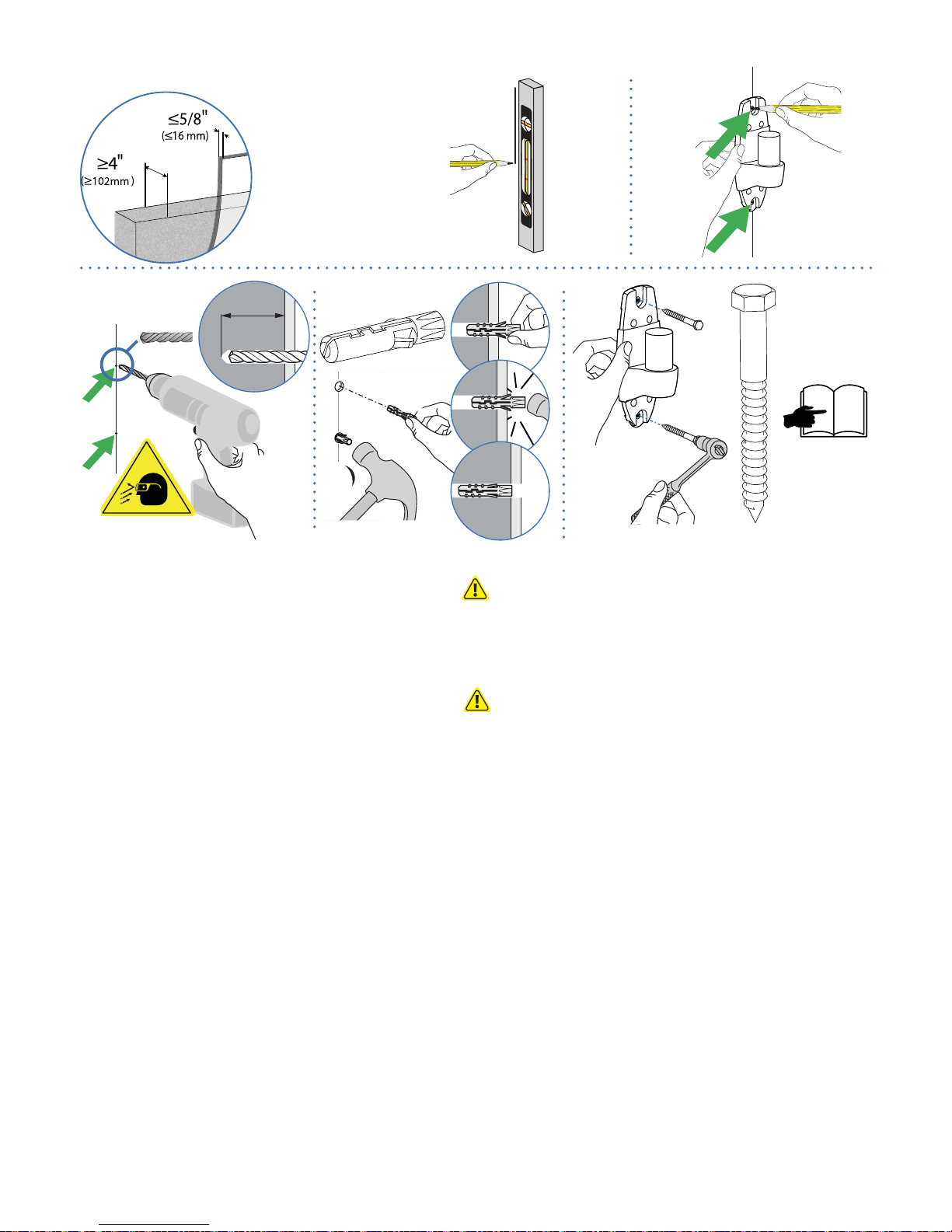

Concrete Wall Mounting

WARNING:

Mounting holes must be at least 3-1/8” (80mm) deep and must be located within solid concrete, not mortar or covering material.

If you drill into an area of concrete that is not solid, reposition mounting holes until both anchors can be fully inserted into solid

concrete!

WARNING:

Anchors that are not fully set in solid concrete will not support the applied load resulting in an unstable, unsafe condition which

could lead to personal injury and/or property damage. Consult a construction professional if you have any doubt about what this

means in regard to your particular situation.

8 of 12

888-45-047-W-05 rev.U • 12/18

WARNING

3ab

M4 x 8mm

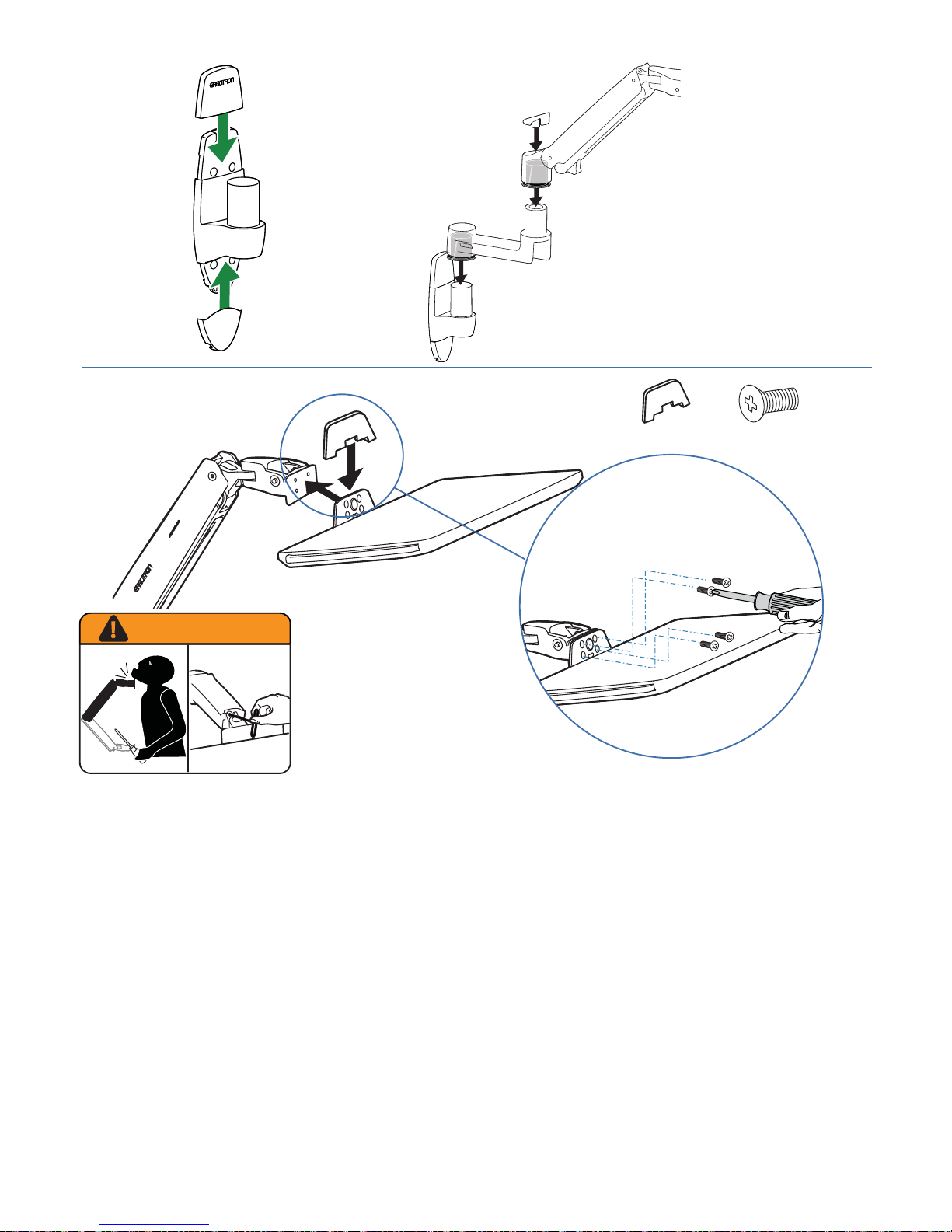

WARNING! Stored Energy Hazard: The arm mechanism is under tension and will move up rapidly, on its own, as

soon as attached equipment is removed. For this reason, DO NOT remove equipment unless the arm has been

moved to the highest position! Failure to follow this instruction may result in serious personal injury and/or

equipment damage!

9 of 12

888-45-047-W-05 rev.U • 12/18

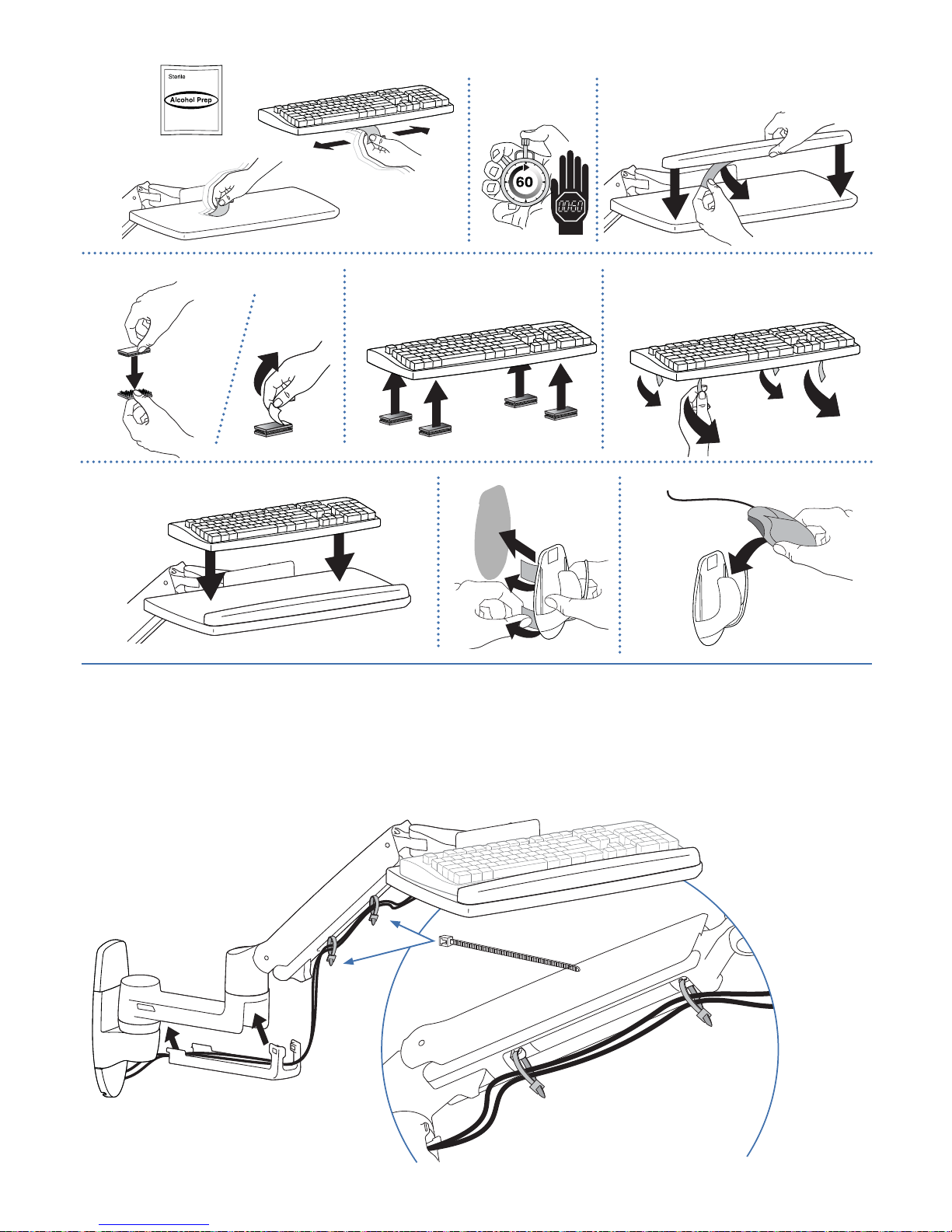

5abc

ghi

CABLE ROUTING

Leave Slack in cable

10 of 12

888-45-047-W-05 rev.U • 12/18

4mm

2.5mm

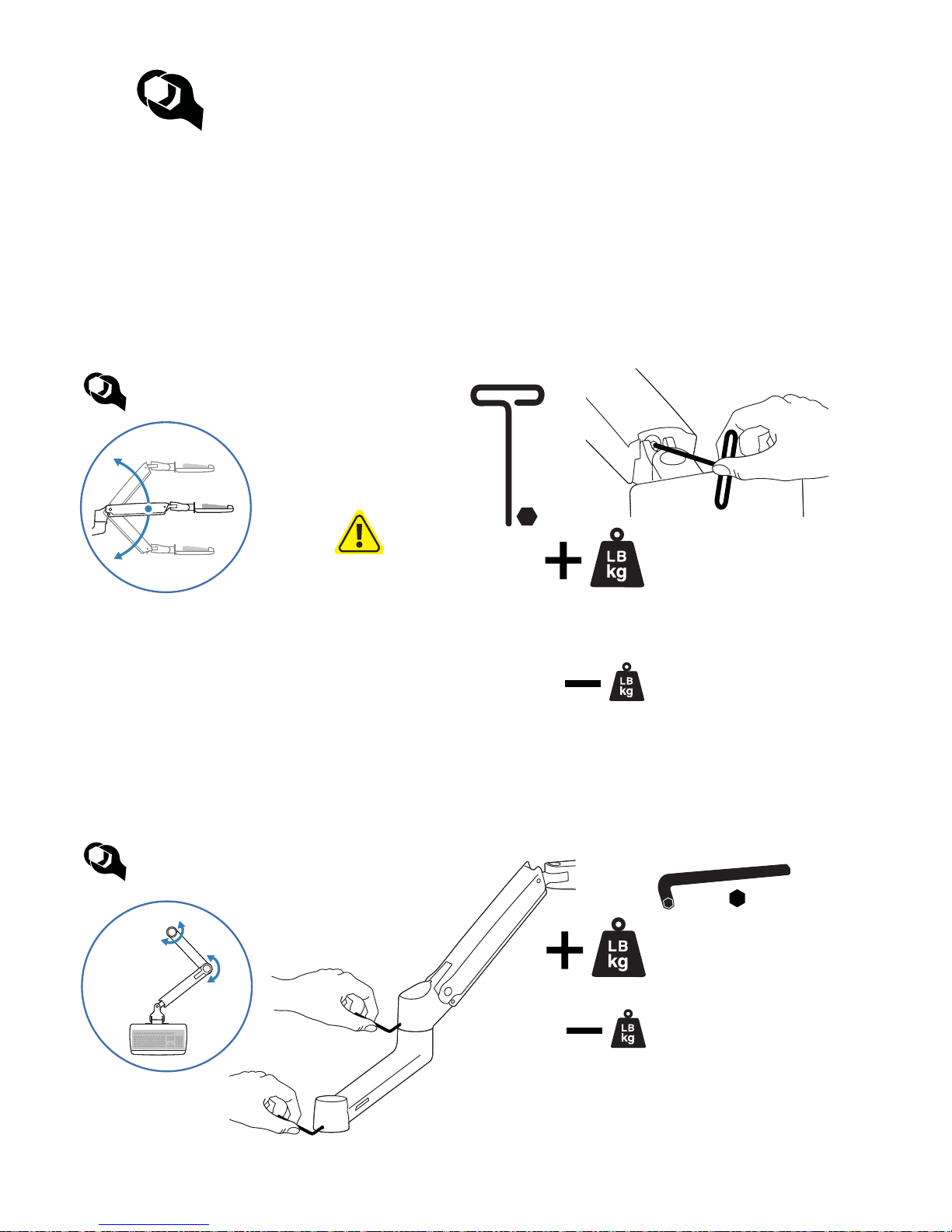

Adjustment Step

Important! You will need to adjust this product after installation is complete. Make sure all your equipment is

properly installed on the product before attempting adjustments. This product should move smoothly and easily

through the full range of motion and stay where you set it. If movements are too easy or difﬁcult or if product

does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.

Depending on your product and the adjustment, it may take many turns to notice a difference. Any time

equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you

should repeat these adjustment steps to ensure safe and optimum operation.

Lift – Up and down

CAUTION: DO NOT overtighten fasteners.

Overtightening may cause damage to your

equipment.

Increase Lift Strength

If the mounted weight is too heavy or

this product does not stay up when

raised, then you'll need to increase

Lift Strength:

Decrease Lift Strength

If the mounted weight is too light or

this product does not stay down when

lowered, then you'll need to decrease

Lift Strength:

Arm Swing – Side-to-side

Increase Friction

If this product moves too easily, then

you'll need to increase friction:

Decrease Friction

If this product is too difﬁcult to move,

then you'll need to decrease friction:
