Ergoline Vertical series Manuel utilisateur

Ergoline Vertical

User Manual

Ergoline Vertical

User manual

Seite 2 von 29

INDEX

1. INTRODUCTION .................................................................................................................. 3

IMPORTANT................................................................................................................................. 3

WARRANTY.................................................................................................................................. 3

2. EQUIPMENT DATA .............................................................................................................. 4

STANDARDS................................................................................................................................ 6

3. COMPULSORY PRECAUTIONS............................................................................................ 7

SAFETY RULES............................................................................................................................ 8

MANUFACTURER’S RESPONSIBILITY........................................................................................ 8

4. INSTALLATION....................................................................................................................9

PACKAGING................................................................................................................................. 9

CABIN ........................................................................................................................................ 10

ELECTRICAL CONNECTION...................................................................................................... 10

HOW TO INSTALL THE UNIT ..................................................................................................... 10

5. FUNCTIONING MODE ....................................................................................................... 19

PROGRAMMING......................................................................................................................... 19

REMOTE CONTROL CONNECTION ........................................................................................... 23

ROUTINE AND EXTRAORDINARY MAINTENANCE ................................................................... 23

MAINTENANCE REGISTER........................................................................................................ 24

6. NOTES............................................................................................................................... 28

TANNING ADVICE CARD ........................................................................................................... 28

EXPOSURE TIMES CARD........................................................................................................... 29

Ergoline Vertical

User manual

Seite 3 von 29

INTRODUCTION

In thanking and congratulating on your choice, with this manual we are illustrating in the simplest

possible way the general instructions for use and maintenance of the vertical solarium 48-180 high

performance.

IMPORTANT

IMPORTANT: Before installing the equipment, carefully read the present manual and scrupulously

follow the technical operating instructions and advice contained in it.

The material contained in the present document is given exclusively for informative purposes and is

subject to modification without notice. Despite the maximum attention paid in preparing the

document, Quadra Medical srl is not responsible for any damage deriving from errors or omissions or

from the use of information contained in it.

Carefully keep this manual and all the attached documentation in an accessible place known to all the

operators.

WARRANTY

The warranty is limited to the repair or replacement of the faulty part and is not valid for malfunctions

due to incorrect use and/or tampering and repairs carried out by unauthorized persons.

The warranty does not cover elements due to consumption like starters and lamps.

The warranty does not cover costs of labour and possible shipment costs.

The warranty is cancelled if the instructions contained in the present manual are not followed.

The warranty becomes effective from the date given in the delivery document.

Ergoline Vertical

User manual

Seite 4 von 29

EQUIPMENT DATA

Model Ergoline Vertical

Voltage supply 400 V ac

Phase 3 + N + PE

Frequency 50 Hz

Amperage 20 A

lamps 48x 180W 2mt

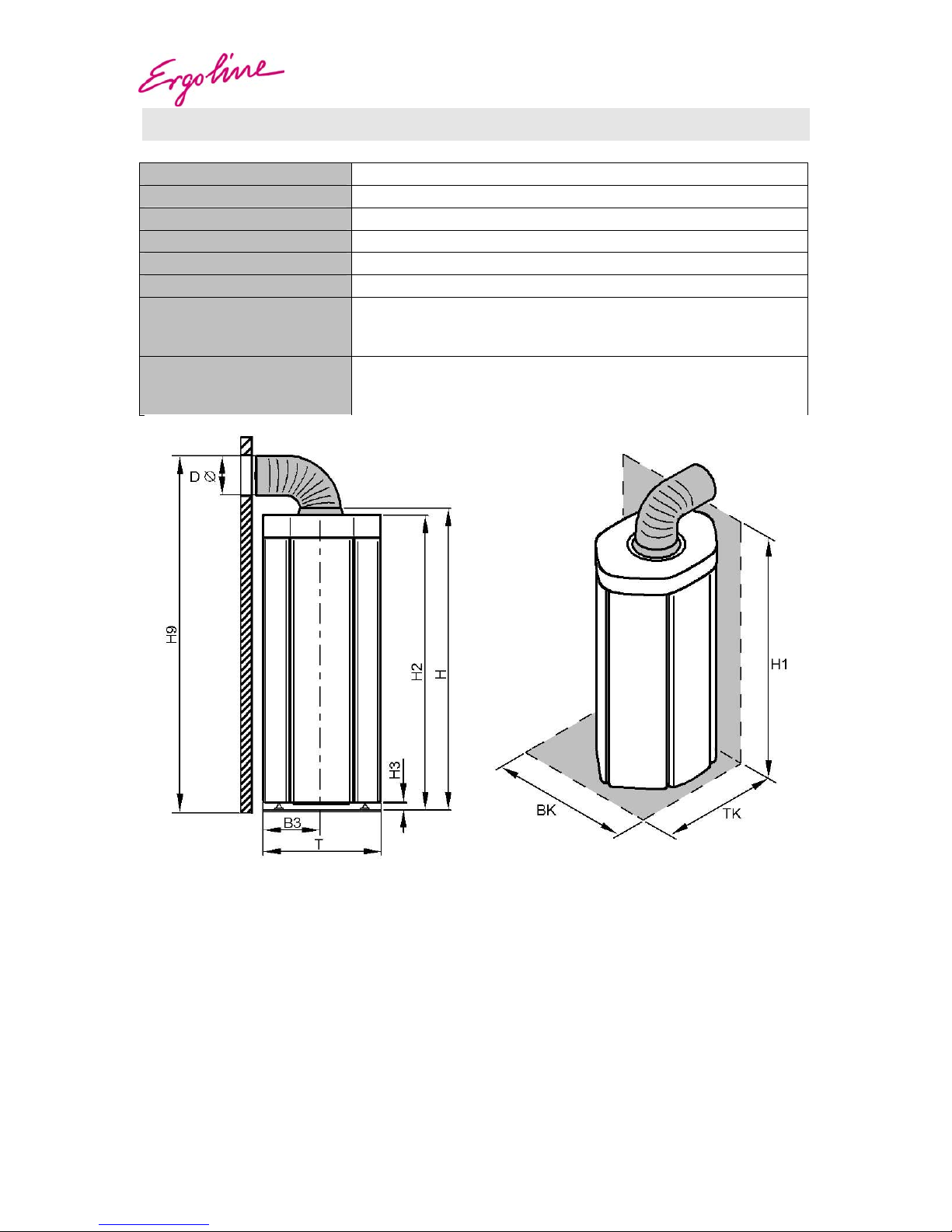

Unit dimensions

(door closed)

Length x width x height

(1200 x 1000 x 2350) mm

Unit dimensions

(door opened)

Length x width x height

(1290 x 1265 x 2350) mm

H = 2360mm

H1 = 2660mm

H2 = 2330mm

H3 = 65mm

H9 = 3000mm

D = 500mm

B3 = 525mm

TK = 2380mm

BK = 1630mm

TK = 2600mm

Ergoline Vertical

User manual

Seite 5 von 29

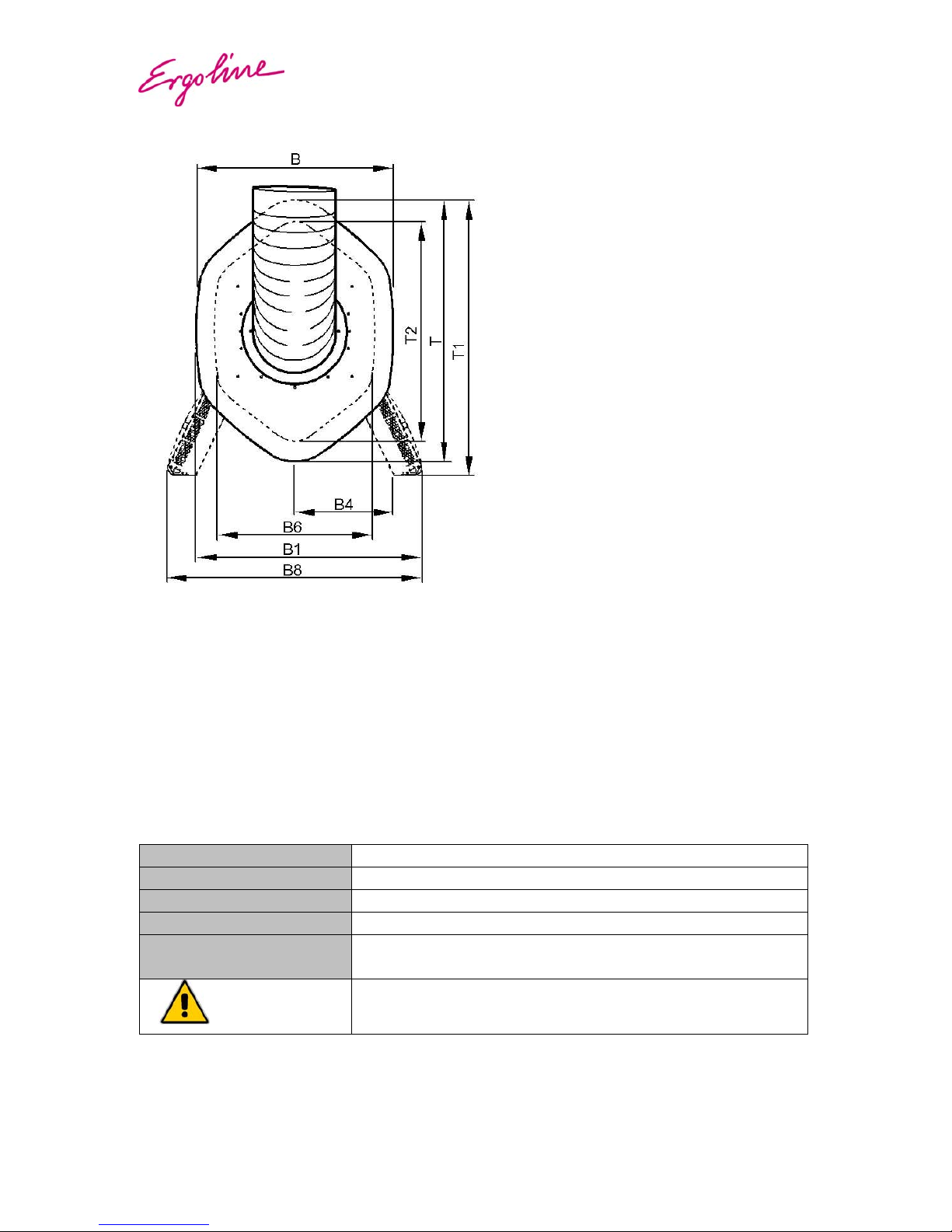

B = 930mm

B1 = 1270mm

B4 = 440mm

B6 = 600mm

B8 = 1600mm

T = 1230mm

T1 = 1380mm

T2 = 920mm

Installation site In dry rooms with sufficient air supply (more than 2000 m3/h)

Relative air humidity ≤70 %

Ambient temperature ≤30°C (86 °F)

Exhaust air hose gauge 500mm

Distance between top and

ceiling

300mm

ATTENTION!

The unit must not be operated in case of faulty of control panel or

some broken parts

Electrical connection

Ergoline Vertical

User manual

Seite 6 von 29

Mains voltage 400 V / 3+N+PE / 50 Hz

Cable cross section 5 x 4mmq

Here is a copy of the label on the unit:

Model:

Ergoline Vertical

Serial number:

******

UV type:

* *

Power supply:

400V 3+N+PE 50 Hz 10kW

Year:

* * * *

Lamps:

180W 2mt

Rated current:

3x 20A

Exercise temperature:

30°C max

Service:

4 to 15 minutes

STANDARDS

The equipment is built in compliance with current standards.

Reference standards:

CEI EN 55014-1 Electromagnetic compatibility – Provision for electrical household appliances, electric

tools and the like. Part 1: Emission.

CEI EN 55014-2 Electromagnetic compatibility – Requisites for electrical household appliances,

electric tools and the like. Part 2: Immunity.

CEI EN 60335-1 General part, safety standards for electrical appliances for domestic and similar use.

CEI EN 60335-2-27 Part II, particular standard for the safety of appliances for skin treatment with

ultraviolet and infrared rays for household and similar use.

CEI EN 50106 Particular standards for routine tests on electrical appliances coming within the

application field of EN 60335-1.

Ergoline Vertical

User manual

Seite 7 von 29

COMPULSORY PRECAUTIONS

Appliances that emit UVA and UVB rays can cause damage to the skin and eyes, due to the quantity

and quality of the radiation and depending on individual sensitivity.

Frequent exposure, in excessive doses and/or with poor or no protection, to the sun and a tanning

lamp causes early ageing of the skin, and could result in sunburn and increase the risk of skin

neoplasia.

If the eyes are inadequately protected they can develop superficial inflammation (reddening), after

excessive exposure, and in certain cases there could be damage to the retina; repeated exposure

could cause cataracts.

Persons who get sunburnt easily, who suffer from erythema solare, or who have suffered from skin

neoplasia should avoid exposure.

Special attention must be paid in cases of marked individual sensitivity to ultraviolet radiation and if

medicines or cosmetics are used; in this case it is advisable to previously see a doctor.

Always use the special protection glasses.

Carefully remove make-up and perfumes before exposure.

Use specific tanning products, suitable for the skin type and degree of tanning.

Respect intervals of at least 48 hours between two successive exposures and avoid exposure to the

sun on the same day.

In the event of skin reddening and/or rashes following tanning treatments or exposure to the sun,

avoid exposure and if the condition persists, see a doctor.

Respect the recommended exposure times and the equal distance between the body surface and the

radiant surface

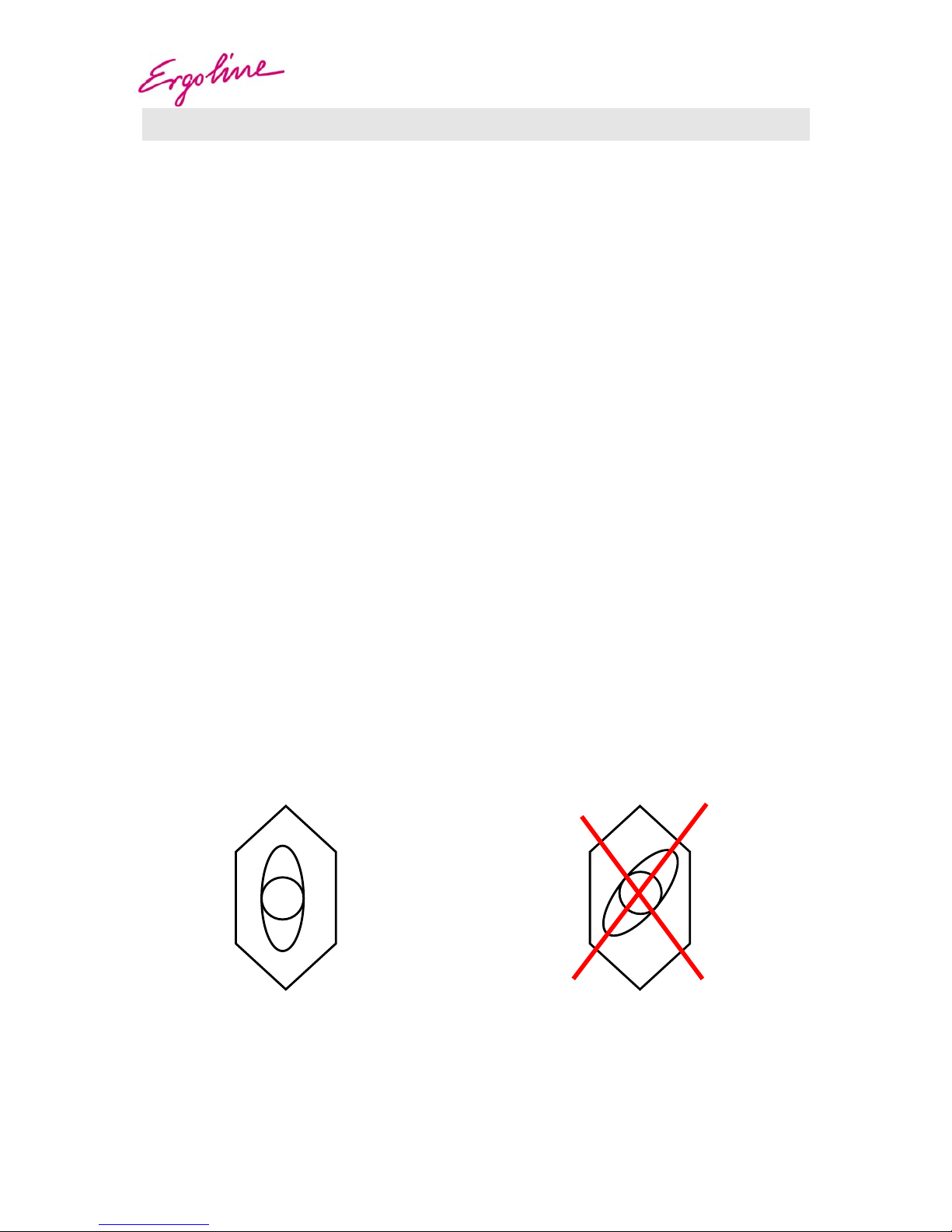

The following picture shows the correct position of the body inside the cabin:

YES NO

Ergoline Vertical

User manual

Seite 8 von 29

SAFETY RULES

The owner or the employer must instruct the operational personnel on the accident risks, the devices

arranged for the safety of the operator and the user (client), the risks of UV ray emissions and on the

general accident prevention regulations provided for by international directives and by the law in the

country where the appliance is used.

The behaviour of operative personnel must in any case scrupulously comply with the accident-

prevention regulations in the country where the appliance is used.

Before turning the appliance on, the operator must perfectly know the position and function of all the

controls and the characteristics of the equipment. Moreover, the operator must have carefully and

fully read the present manual.

It is absolutely prohibited to obstruct the aeration ducts of the equipment.

Routine and extraordinary maintenance must be carried out with the power to the appliance turned

off.

Any tampering or unauthorized replacement of one or more parts or units of the equipment, the use of

accessories or consumable materials other than the originals or in any case not recommended by the

manufacturer, can represent an accident risk and relieves the manufacturer of any civil and penal

responsibility.

In case of doubt as to the functioning of the timer, do not use the machine.

The UV emitters must only be replaced with identical emitters and by qualified

technical; personnel.

MANUFACTURER’S RESPONSIBILITY.

The manufacturer is relieved of any responsibility in the following cases:

•Lack of scheduled maintenance.

•Unauthorized modifications and/or interventions.

•Use of non-original replacement parts.

•Complete or partial non-compliance with the instructions.

Ergoline Vertical

User manual

Seite 9 von 29

INSTALLATION

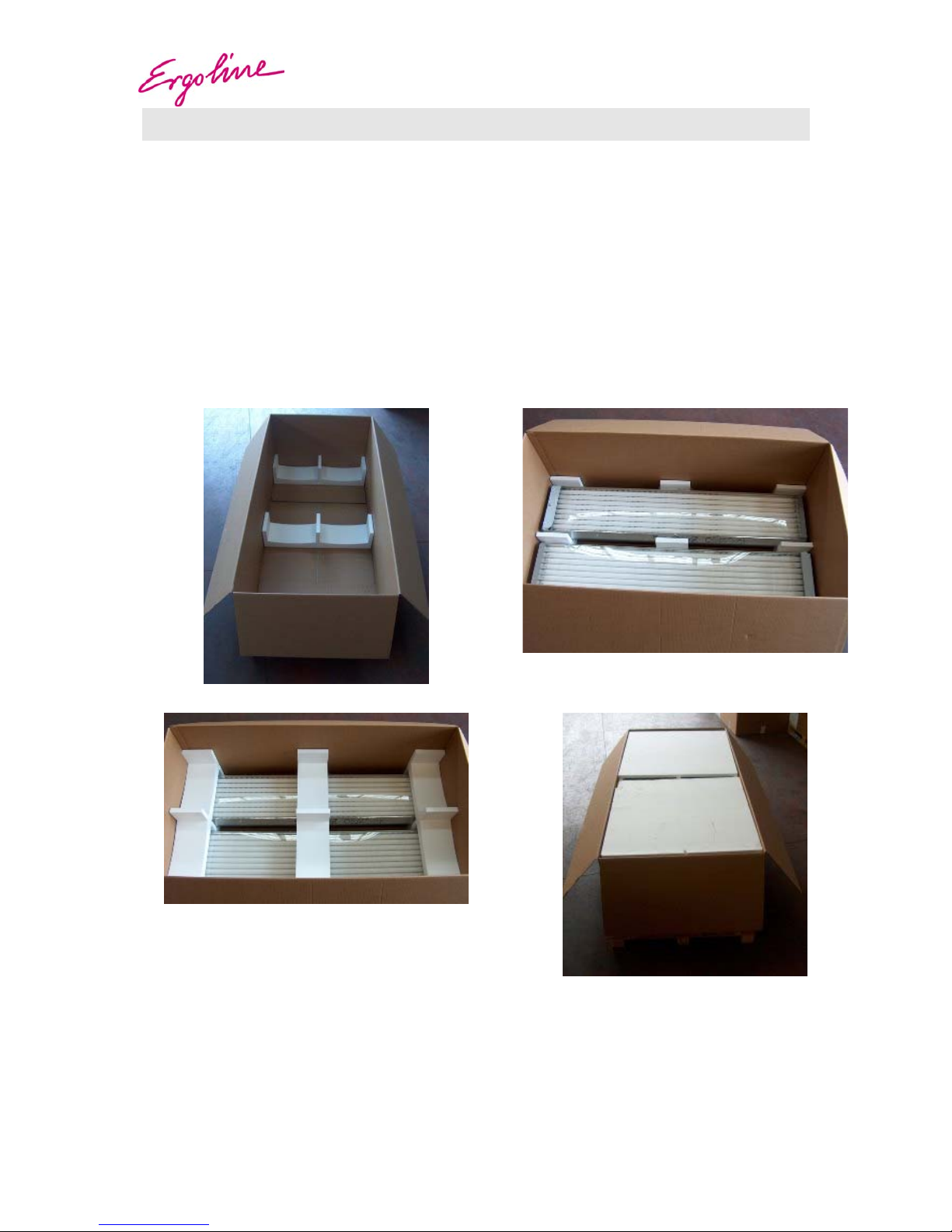

PACKAGING

The paking for the stand up unit is so composed:

1 pallette 2200 x 1100 x 930(high) mm

1 pallette 1200 x 1000 x 360(high) mm

The external boxes are in Vulcan cardboard, this means a high robustness and a high resistance to

hits.

The parts inside are placed on special polyester seats, that allow to insert in one box 6 panels with

tubes without risk of damaging: The polyester seats make the panels separated one to each other and

make that the weight of the upper panels do not impact on the panels below but on the seats.

Ergoline Vertical

User manual

Seite 10 von 29

CABIN

The aeration of the room (room/cubicle) must be adequate. The room will have a possible duct for the

suction and extraction of the hot air produced by the tanning equipment. In any case, see the

maximum working temperatures given on the dataplate of the appliance.

For optimum functioning of the appliance it is advisable to comply with the measurements (distances)

given below:

ELECTRICAL CONNECTION

The electrical system of the room must comply with current regulations (CEI 64-8/7;V2).

The equipment will be delivered with a power supply cable (4 mt) without plug.

It is the buyer’s responsibility to arrange the power outlet complete with plug.

The grid connection device must have a contact opening of at least 3 mm.

HOW TO INSTALL THE UNIT

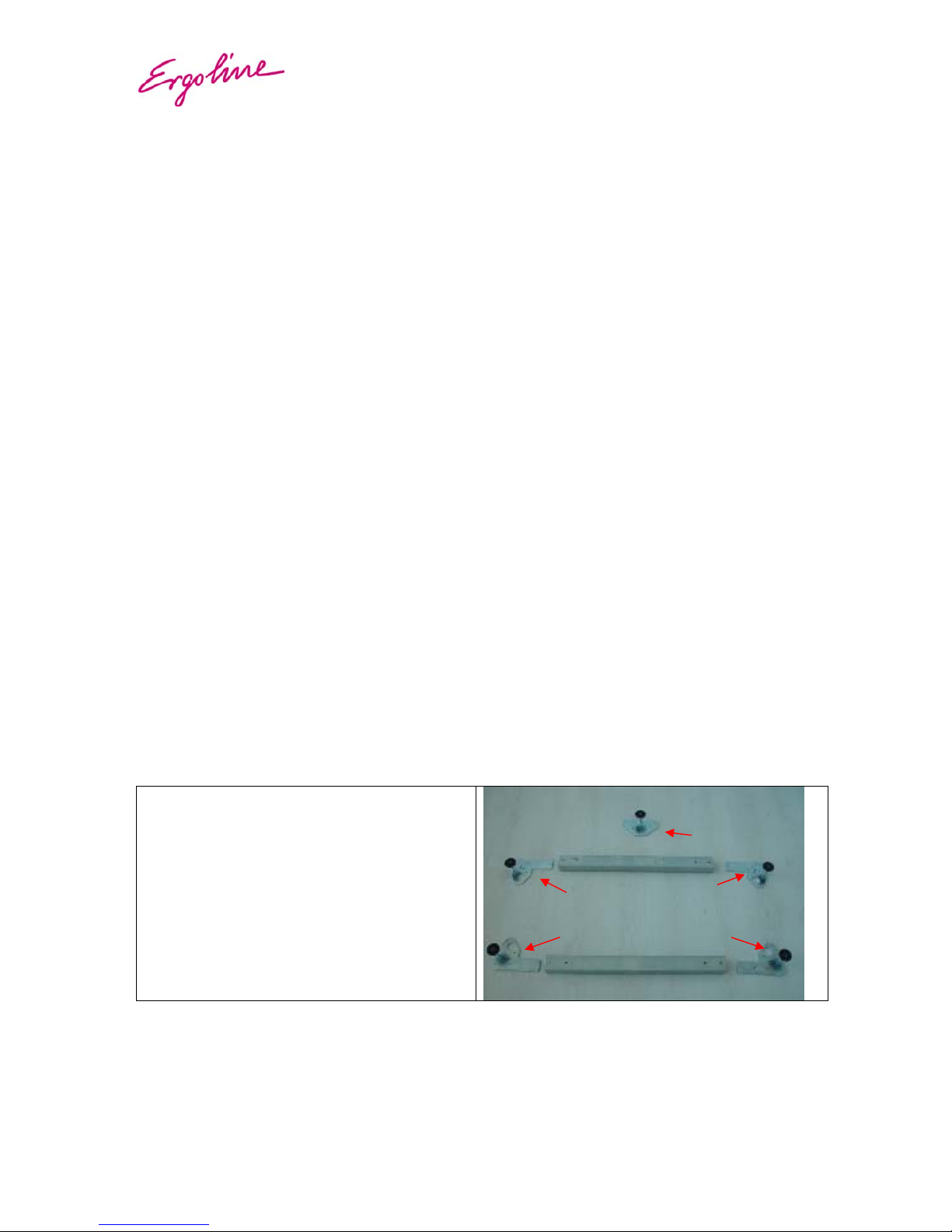

Take out from the package the metal brackets.

The brackets are numbered too as shown on the

right.
