Ergoline Genesis Classic 650 Manuel utilisateur

650

Length: 92”

Width: 51”

Height: 52”

Shipping Weight: 1650 Lbs.

No.ofLamps: 50(33-160Watt,12-500Watt,5-25Watt)

Electrical: 45AMPS @ 240 Volts 3Ø

Circuit Required: 120/240V 3 Ø

60 Amp 3-Pole

DANGER - ULTRAVIOLET RADIATION. FOLLOW INSTRUCTIONS.AVOID OVEREXPOSURE. AS

WITH NATURAL SUNLIGHT, OVEREXPOSURE CAN CAUSE EYE AND SKIN INJURY AND

ALLERGIC REACTIONS. REPEATED EXPOSURE MAY CAUSE PREMATUREAGING OF THE SKIN

AND SKIN CANCER. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE

BURNS OR LONG-TERM INJURY TO EYES.

MEDICATIONS OR COSMETICS MAY INCREASE YOUR SENSITIVITY TO THE ULTRAVIOLET

RADIATION. CONSULT PHYSICIAN BEFORE USING SUNLAMP IFYOUARE USING MEDICATIONS

OR HAVE AHISTORY OF SKIN PROBLEMS OR BELIEVE YOURSELF ESPECIALLY SENSITIVE

TO SUNLIGHT. IF YOU DO NOTTAN IN THE SUN, YOU ARE UNLIKELYTO TAN FROM THE USE

OF THIS PRODUCT.

THIS UNIT UTILIZES UVALAMPS. REPLACE ONLY WITH GENESIS 170WRX-E FR71-T12-VHO-

170WRX-E, JK ERGOLINE 500 SE C11292 (FACE TANNER)AND ERGOLINE SD POWER 25 11122

(SHOULDER TANNER).

LIE ONACRYLIC SURFACEAND LOWERTOPSECTION. TOP SECTION WILLSTOPAT 17 INCHES

(432 MM) FROM BOTTOMACRYLIC SURFACE. THE USE OFANYOTHER POSITION MAY RESULT

IN OVEREXPOSURE.

SKIN TYPE

II - FAIR

III -AVERAGE

IV - BROWN

V - DARK BROWN

MAXIMUM EXPOSURE TIME IS 15 MINUTES.

TANNING CAN BEGIN ON A REGULAR BASIS. AN APPEARANCE OF TANNING NORMALLY

APPEARS AFTER A FEW EXPOSURES AND MAXIMIZES AFTER FOUR (4) WEEKS OF

EXPOSURE FOLLOWING THE RECOMMENDED SCHEDULE FORYOUR SKIN TYPE.

USE PROTECTIVE EYEWEAR, SUPER SUNNIES, WHENEVER THE EQUIPMENTIS ENERGIZED.

READ THE INSTRUCTION BOOKLETBEFORE USING THIS UNIT.

INSTRUCTIONSACCOMPANYING THIS PRODUCT SHOULD ALWAYS BE FOLLOWED TO AVOID

OR MINIMIZE POTENTIAL INJURY.

“THIS PRODUCT IS IN CONFORMITYWITH PERFORMANCE STANDARDS FOR SUNLAMP PRODUCTS UNDER 21CFR PART1040.”

WEEK 1

1 ST-3RD

TREATMENTS

3 MIN.

WEEK 2

4TH-6TH

TREATMENTS

7 MIN.

8 MIN.

WEEK 3

7TH-10TH

TREATMENTS

10 MIN.

12 MIN.

WEEK 4

11TH-15TH

TREATMENTS

12 MIN.

15 MIN.

WEEKLY

SUBSEQUENT

TREATMENTS

15 MIN.

Specifications

RECOMMENDED EXPOSURE SCHEDULE

General Safety Information

1.TheSun Ergoline tanningunitmust have been

assembledand installedproperly by trainedand

experiencedpersonnel.

2.Compliance with allthe warning andsafety

labelsattached to thetanning unit required.

3. No safety device or safety notice may be

removed or disabled, as doing so could impair

the reliable functioning of the tanning unit.

4.Thetanningunit mustonly be operatedunder

the guidelines in this manual.

5.Thetanningunit must onlybe operated when in

fullworkingorder.

6. Carefully read all instruction included in this

SunErgoline Operationand InstructionManual.

7. Do not use tanning unit if the timer is inopera-

tive or defective or if the VIT filter glass is

cracked, broken or not in place in your unit.

8. Special care should be exercised if the user is

particularly sensitive to UV light and if certain

medications or cosmetics have been used. If

there is any doubt by the salon operator or

tanning bed customer, the user should consult

with a physician.

9. Cosmetics should be removed prior to each

tanningsession.

10. Use only lotions, creams and oils specifically

designedand formulatedfor indooruse.

11.Wearprotective eyewearanytime thetanning

unit is energized.

12.Do not tanmore than onceper 24hourperiod.

13.Follow therecommendations ontanning

times, intervals between tanning sessions and

the distance from the lamps. Refer to the “Expo-

sureTimes and Frequencies”section ofthis

manual for specific details.

14. The tanning unit may not be used by individu-

als who, when exposed to the sun, develope a

sunburnwithout subsequentlytanning.

15. Over exposure to ultraviolet light from the sun

or from the tanning unit may cause damage to

the skin or eyes. These biological effects will

vary due to the individuals specific skin type.

16. Excessive exposure from the tanning unit can

lead to sunburn, premature aging and a risk of

skin injury.

17. The tanning unit should be utilized by only

one person at a time.

18.While there is noimmediate clinical evidence

of the effects of UVA exposure to expectant

mothers, it is strongly advised that expectant

mothersbe discouraged fromusing thetanning

unit.

19. Persons using the tanning unit could experi-

ence a reddening of the skin or heat rash. This

rash is often caused by the heat of the tanning

system and should go away within 24 hours and

shouldnotreappear.

Safety Recommendations

Safety Precautions

1.The installation,electrical connectionand the

repair of the tanning unit must be performed by a

factorytrained orapprovedtechnician or

appropriatelyqualifiedpersonnel.

2. The electrical installation must comply with all

national and local electrical codes.

3. The tanning unit must be operated as specified

in this instruction manual.

4.Thetanning unitmay onlybe operatedunder

the timer control for a maximum of 15 minutes.

The display on the timer should be set to the

recommended time for your specific skin type

basedon thenumber of exposures.Increasing

the timer settings or disabling the timer could

result in injury.

Care and Cleaning of Your Tanning Unit

After each session is completed, spray the acrylic

surface with specially formulated UVT (ultraviolet

transmitting) acrylic cleaner. Wipe the surface of

the acrylic with a clean cloth. The acrylic should

never be wiped with a dry cloth because this will

generate a slight static charge which will attract

dust.Amild liquiddetergent andwatersolution can

be used temporarily in place ofAcrylic Cleaner.

For maximum efficiency of your tanning unit, periodic cleaning of lamps, reflectors and the inside of the

acrylics is required. Refer to relamping instructions for acrylic removal.

CAUTION: Do not use excessive amounts of water, any abrasive cleaners, or any spray cleaners that carry

label warnings regarding reactions to contact with skin!

DO NOT USE ALCOHOL OR AMMONIA

Electrical Safety:

The tanning unit should be disconnected from the power supply before cleaning or disinfecting

the inside of the acrylic. Avoid water or solution entering the lamp compartment.

Relamping Instructions

Base Lamp Removal

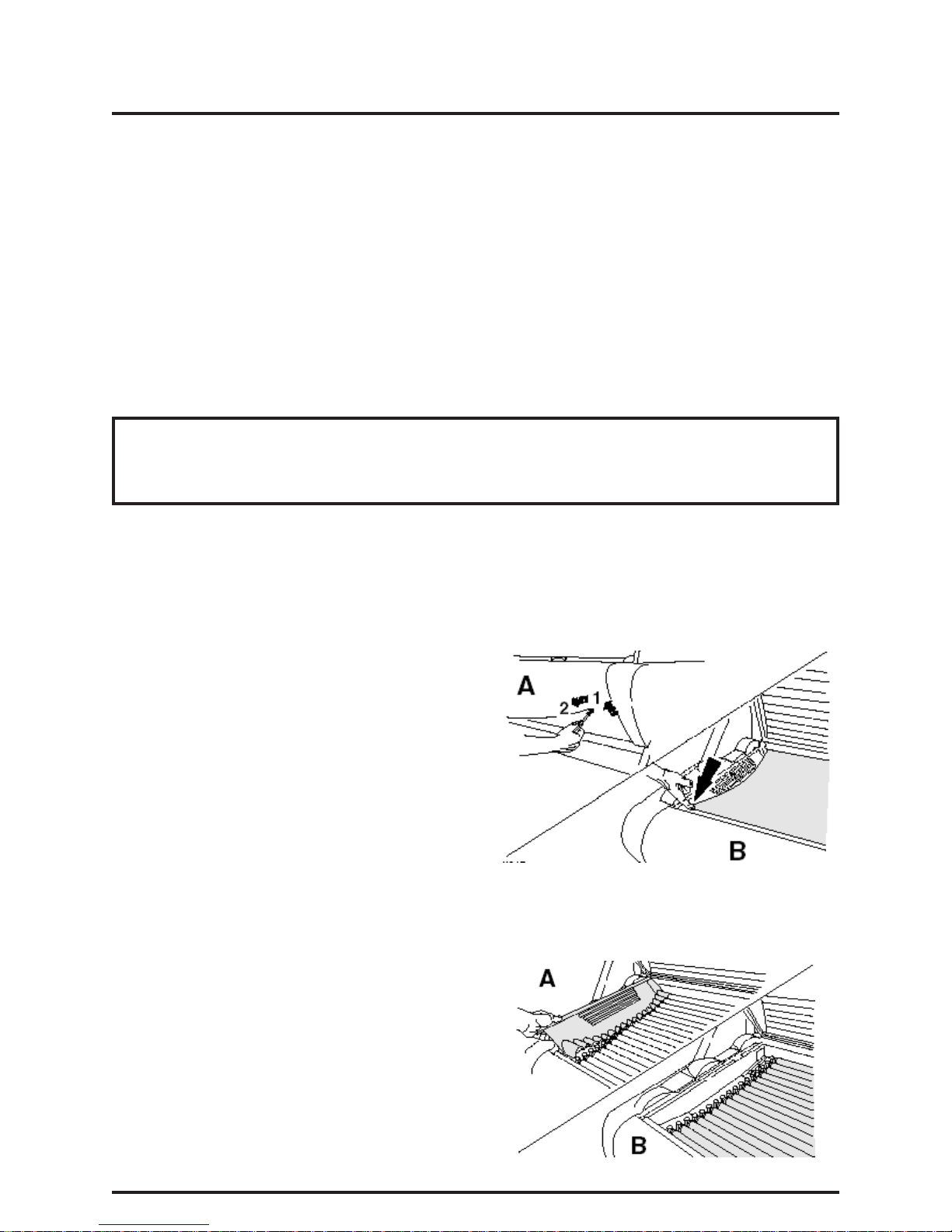

1. Unlock bottom unit acrylic with the provided

Ergoline Service Key. Insert key in lock at head

end of bottom unit and turn clockwise 1/4 turn.

(Refer to Illustration L1)

2. Raise the acrylic panel assembly until locked.

The panel should lock in an upright position to

allow access to inner acrylic.

3. Remove the lower acrylic panel by placing

index finger under the provided slot and lifting

edge of acrylic. Lift acrylic from the end of sheet

allowing the rear edge to slide from slot behind

thelamps. (Refer to Illustration L2)

4. Remove both head and foot starter covers as

shown.(Refer to Illustration L3)

5. To remove lamps turn lamp 1/4 turn and slide

lampfrom lampholder.

6. To install lamps place lamp in lampholder and

turn lamp 1/4 turn.To install lamp properly the

lamp etch must be facing the acrylic.

7. Repeat Steps 1 through 4 in reverse order to

reassemblethe tanningunit.

Illustration L1

Illustration L2

Illustration L3

Relamping Instructions

Side Panel Lamp Removal

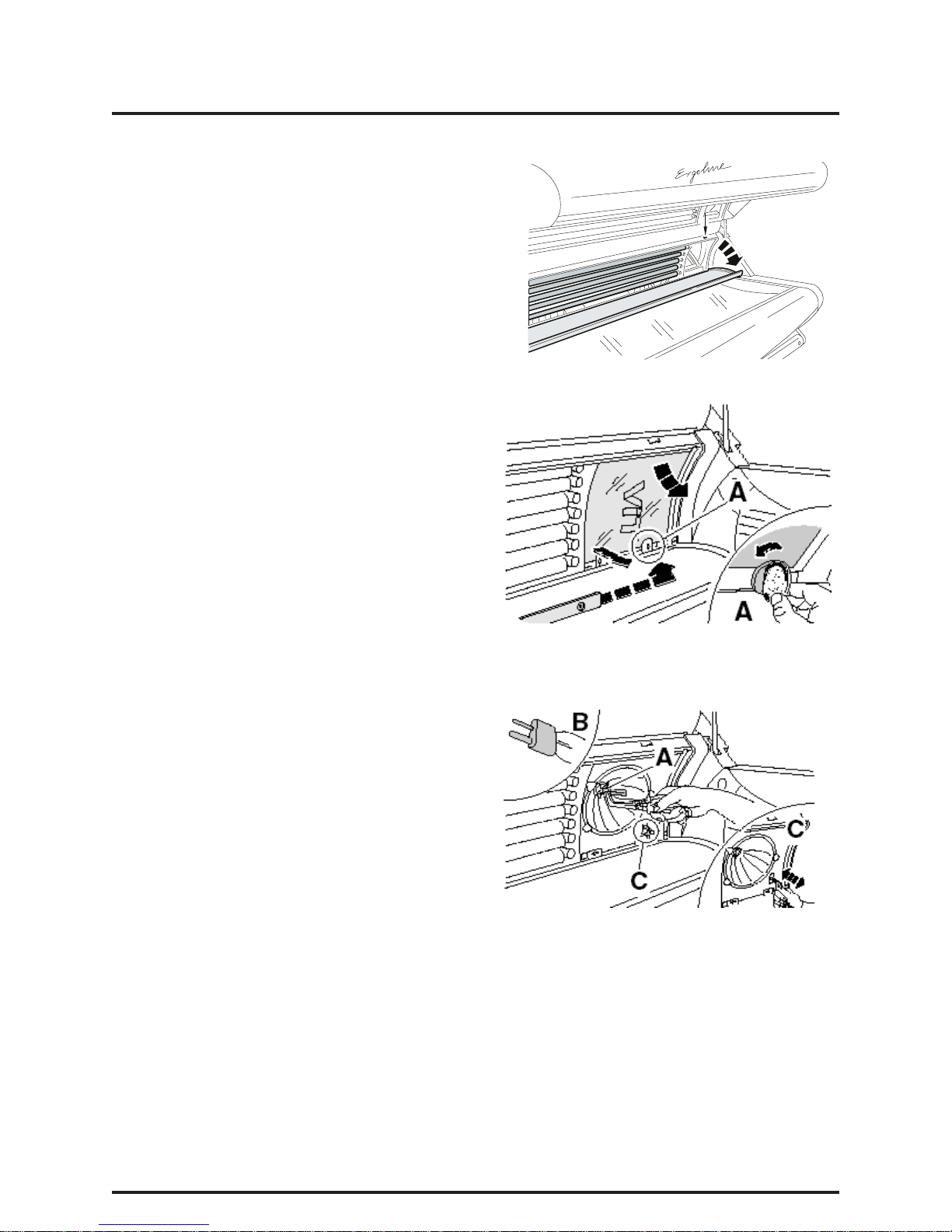

1.Detach side panel acrylicfrom profile retaining

frame by removing acrylic attaching screws with

theprovided ErgolineService Key.

(Refer to Illustration L4)

2. The acrylic side panel will hinge down.

3. Remove attaching screw from the starter cover

withthe ErgolineService Key andhinge down.

4. To remove lamps turn 1/4 turn and slide lamp

fromlampholder.

5. To install lamps place lamp in lampholder and

turn lamp 1/4 turn.To install lamp properly the

lamp etch must be facing the acrylic.

6. Repeat Steps 1 through 4 in reverse order to

reassemblethe tanningunit.

Top Canopy Lamp Removal

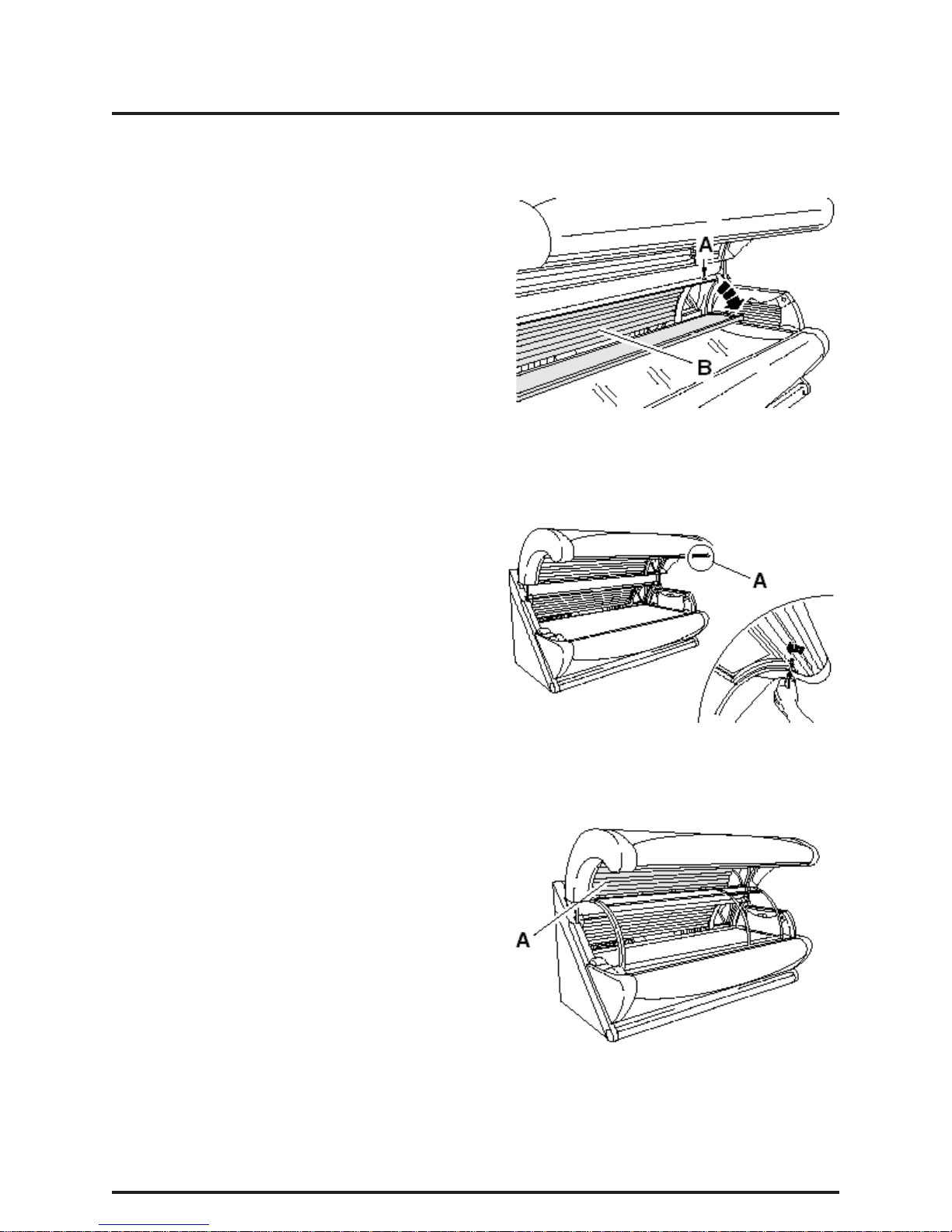

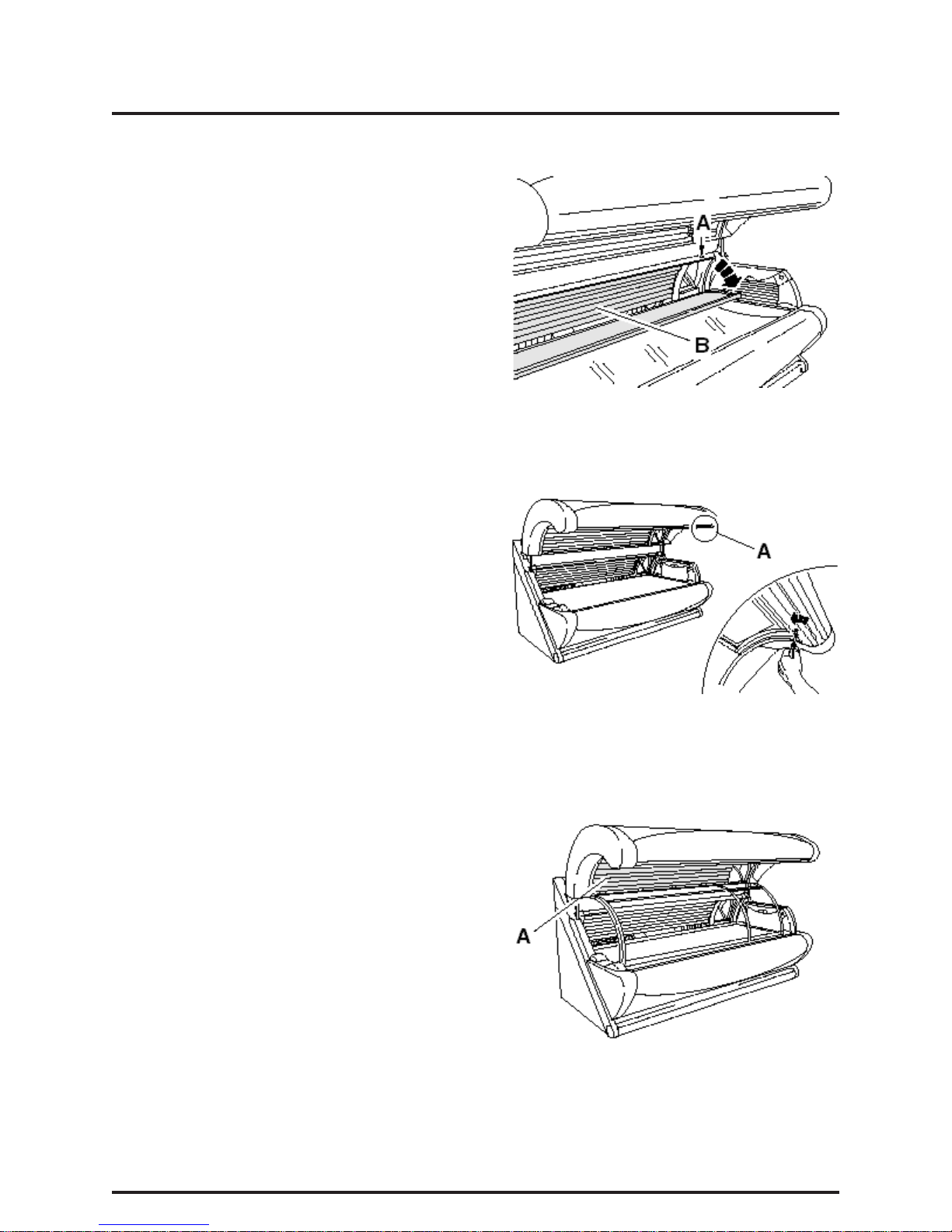

1. To detach top unit acrylic apply pressure to the

acrylic assembly and rotate the acrylic latches

clockwise. The acrylic assembly is attached with

two retainers, one at the head and one at the foot

end of the canopy. (Refer to Illustration L5)

2.After detaching the acrylic assembly, carefully

lower the front down, resting the assembly on the

base of the unit. (Refer to Illustration L6)

3. To remove lamps turn lamp 1/4 turn and slide

lampfrom lampholder.

4. To install lamps place lamp in lamp holder and

turn lamp 1/4 turn.To install lamp properly the

lamp etch must be facing the acrylic.

5. To install the top unit acrylic assembly lift

assemblyinto position andapply force.Turnthe

two acrylic latches counter clockwise until

latched.

Note:

If lamps will not light inspect the lamp. The Sun

Ergoline 600 utilizes reflector lamps and only

emits UV light from the top side of the lamp. It is

alsorecommended duringa lamp changethat

you inspect all starters to insure they are in good

workingorder andreplace if necessary.

Illustration L4

Illustration L5

Illustration L6

Relamping Instructions

Side Panel Facial Replacement

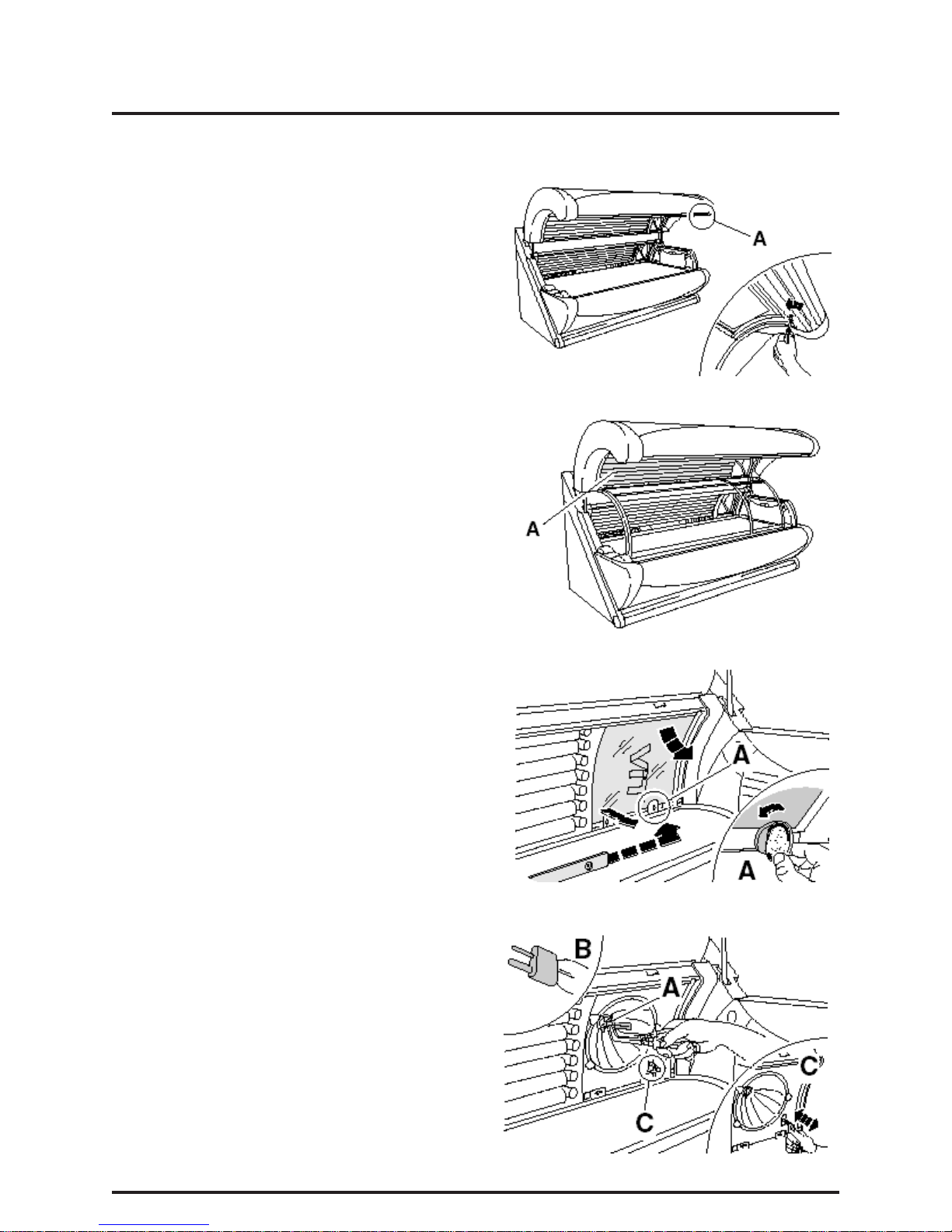

1.Detach side panel acrylicfrom profile retaining

frame by removing acrylic attaching screws with

theprovided ErgolineService Key.

(Refer to Illustration L7)

2. The acrylic side panel will hinge down.

3. Remove attaching screw from the starter cover

withthe Ergoline ServiceKey andhinge down.

4.Remove filter retainerconcealment panelby

removingthe two philipsscrews.

(Refer to Illustration L8)

5. Using a large screwdriver or coin turn filter

retaining twist locks 1/4 turn and remove filter

lens.(Refer to Illustration L8)

6. Remove facial lamp using a pair of offset

needlenose pliers. Carefullyplace thepliers on

theceramic lamp baseand apply outward

pressure.(Refer to Illustration L9)

7. Clean the VIT reflector with a damp cloth.

8. Prior to handling the new facial lamp it is

important to not touch the glass envelope of the

lamp with your hands. The oil from you fingers

will cause the lamp to malfunction and rupture.

9. To install the facial lamp, using the offset

pliers, grip the lamp by the ceramic base and

insert in the lamp socket. You should note that

the lamp socket has two different diameters of

pin contacts and may only be installed in one

direction.

10. Prior to installing the VITfilter panel inspect

the operation of the safety switch. Depress the

safety switch and release. The switch should

spring back to its full extension after it is re-

leased.(Refer to Illustration L9)

11. Clean VITfilter panel with a damp cloth.

Insert filter panel fully into channel at the top of

cassette and align in place. Attach filter with the

twist locks. The letters VIT 2.3 must be legible

from the outside of the cassette.

(Refer to Illustration L8)

12.Repeat Steps 1 through4 in reverseorder to

reassembleunit.

Illustration L7

Illustration L8

Illustration L9

Relamping Instructions

Canopy Facial Replacement

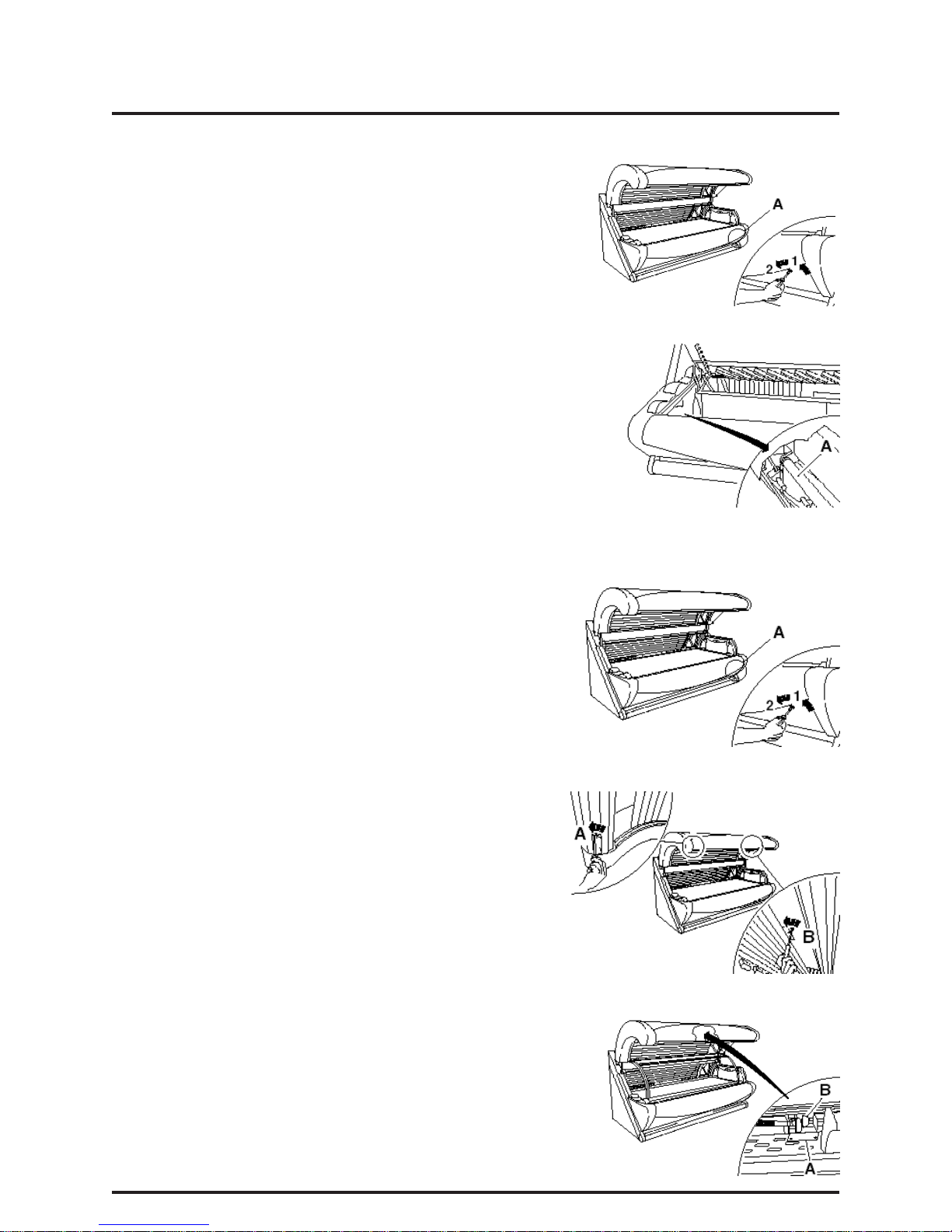

1. To detach top unit acrylic apply pressure to the

acrylic assembly and rotate the acrylic latches

clockwise. The acrylic assembly is attached with

two retainers, one at the head and one at the foot

end of the canopy. (Refer to Illustration L10)

2. After detaching the acrylic assembly carefully

lower the front of the assembly down resting the

assembly on the base of the unit.

(Refer to Illustration L11)

3. Remove twist lock concealment panel by

removingthe two philipsscrews.

(Refer to Illustration L12)

4. Using a large screwdriver or coin turn filter

retaining locks 1/4 turn and remove VIT filter lens.

(Refer to Illustration L12)

5. Remove facial lamp using a pair of needle

nose offset pliers. Carefully place the pliers on

theceramic lamp baseand apply outward

pressure.(Refer to Illustration L13)

6. Clean the VIT reflector with a damp cloth.

7. Prior to handling the new facial lamp it is

important not to touch the glass envelope of the

lamp with you hands. The oil from your finger

prints will cause the lamp to malfunction and

rupture.

8. To install the facial lamp, using the offset

pliers, grip the lamp by the ceramic base and

insert in the lamp socket. You should note that

the lamp socket has two different diameters of

pin contacts and may only be installed in one

direction.(Refer to Illustration L13)

9. Prior to installing the VIT filter panel inspect

the operation of the safety switch. Depress the

safety switch and release. The switch should

spring back to its full extension after it is re-

leased.(Refer to Illustration L13)

10. Clean VIT filter lens with a damp cloth. Insert

filter panel fully into grove at the top of the

cassette and align in place. Attach filter with the

retainer locks.The letters VIT 2.3 must be legible

from the outside of the cassette.

(Refer to Illustration L12)

11.Repeat Steps 1 through3 in reverseorder to

reassembleunit.

Illustration L10

Illustration L 11

Illustration L12

Illustration L13

Relamping Instructions

Shoulder Replacement

12. Remove screw A. Slightly raise cladding

panel (B) to disengage it from the lower catch,

removecladding paneltowards the frontand

place it on the acrylic panel.

(Refer to Illustration L14)

13. To remove lamps turn lamp 1/4 turn and slide

lampfrom lampholder.

14.To install lampsplacelamp in lampholderand

turn lamp 1/4 turn. To install lamp properly the

lamp etch must be facing the acrylic.

15.To install acrylicassembly engage cladding

panel (B) into the lower catch and secure the

screw(A). (Refer to Illustration L14)

Illustration L14

Upper Accent Lighting

16. To detach top unit acrylic apply pressure to

the acrylic assembly and rotate the acrylic

latches clockwise. The acrylic assembly is

attached with two (2) retainers, one at the head

and one at the footend of the canopy.

(Refer to Illustration L15)

17. After detaching the acrylic assembly,

carefully lower the front down, resting the assem-

bly on the base of the unit.

(Refer to Illustration L16)

18. Remove front five (5) tanning lamps. This will

exposeinner servicepanel. Remove inner

service panel by removing screw (A) from the

inside of the head and footend of the unit.

19.Loosen screws (B) frominner panel. Pull red

accent cover from the groove and fold up.

Remove screws (B) at this time.

(Refer to Illustration L15)

20. Remove accent lighting turn lamp 1/4 turn

andslide lampfrom lampholder.

21.To install lampsplacelamp in lampholderand

turnlamp 1/4 turn.

22. To install red accent cover slide cover into

groove and rotate into place. Attach with screws

(B).(Refer to Illustration L15)

23. Slide inner service panel into place and attach

with screws (A).

Illustration L15

Illustration L16

Relamping Instructions

24. Rotate top acrylic assembly into place and

secure by rotating the two (2) acrylic latches

counterclockwise.

Lower Accent Lighting

25. Open service compartment with service key.

Insert key into lock and turn clockwise 1/4 turn

and raise complete base assembly to its full

uprightposition. (Refer to Illustration L16)

26. Lower accent lighting is located along the

lower front rail. To remove lamp (A) turn 1/4 turn

andslide lampfrom lampholderto disengage.

(Refer to Illustration L17)

27.Close service compartment.

Halogen Accent Lighting

28.Changing halogenaccent lamps. Detach top

acrylic by applying pressure to the acrylic

assembly and rotate the acrylic latches clock-

wise. The acrylic assembly is attached with two

(2) retainers, one at the head end and one at the

foot end of the canopy. (Refer to Illustration L18)

29.After detaching the acrylic assembly, care-

fully lower the front down, resting the assembly

on the lower base of the unit.

30. Remove front five (5) tanning lamps.This will

exposeinner servicepanel. Remove innerservice

panel.Remove innerservice panelby removing

screw (A) from the inside of the head and footend

of the unit.

31.Loosen screws (B)from innerpanel. Pull red

accent from the grove and fold up. Remove

screws (B) at this time.

(Refer to Illustration L19)

32.To removehalogen accentlamp (B) pulllamp

anddisengagefrom lampholder.

(Refer to Illustration L20)

33. To install halogen lamp align pins in lamp with

slots in lampholder and push lamp into place.

34. Repeat Steps 25 thru 31 in reverse order to

reassemble.

Illustration L16

Illustration L17

Illustration L18

Illustration L19

Illustration L20

Recommended Exposure Schedule

SKIN TYPE

II - FAIR

III - AVERAGE

IV- BROWN

V-DARKBROWN

MAXIMUM EXPOSURE TIME IS 15 MINUTES.

No two individual skin tones are the same. A tan to one person

may be different to another and treatment length may vary.

Exposure Time and Frequencies

Melanin - The brownish pigment produced by special cells in the base layer of your skin

determines the individual’s tan.As the skin is exposed to the ultraviolet light, the melanin is activated

and combines with protein cells that rise to the skin’s surface, thus producing a tan.

The amount of melanin in your body determines how quickly and dark you tan. The more

melanin produced and exposure time an individual has, the faster and deeper the individual will tan.

NOTE

The tan produced by the tanning unit is a deep, rich “COSMETIC” tan. However, regardless

of how dark an individual may tan on this system, it will not provide adequate protection

against overexposure to natural sunlight or UVB tanning systems.

SKIN TYPE II - This is the individual that

usually burns easily and severely, tans

minimally or lightly and peels.

SKIN TYPE III -Often referred to as

“AVERAGE” complexion, burns moderately

and tans about average.

SKIN TYPE IV -This individual burns

minimally, tans easily and above average

with each exposure.

SKIN TYPE V -This individual’s system

rarely burns, tans easily and substantially.

WEEK 1

1ST-3RD

TREATMENTS

3 MIN.

WEEK 2

4TH-6TH

TREATMENTS

7 MIN.

8 MIN.

WEEK 3

7TH-10TH

TREATMENTS

10MIN.

12MIN.

12 MIN.

WEEK 4

11TH-15TH

TREATMENTS

12MIN.

15MIN.

15 MIN.

WEEKLY

SUBSEQUEN

TREATMENTS

15MIN.

15 MIN.

NOTE: Adequate ventilation of the room or

booth housing the tanning unit is required for

proper and comfortable operation. Your tanning

unit will perform best at the ambient

temperature of 75° to 90° F. Equally important

many facial makeups have oil bases and

should be removed prior to a session.

It is recommended that, following a tanning

session, a skin moisturizer be applied. This

promotes a smoother, more even looking tan.

It is recommended you do not use tanning

creams or lotions intended for outdoors use.

Table des matières

Autres manuels ergoline Produit de soins personnels

ergoline

ergoline OPEN SUN PILOT EXTREME POWER Manuel utilisateur

ergoline

ergoline EXCELLENCE 850 Manuel utilisateur

ergoline

ergoline Lounge Turbo Power Manuel utilisateur

ergoline

ergoline SUNRISE 480 LED ADVANCED PERFORMANCE Manuel utilisateur

ergoline

ergoline INSPIRATION 400 Manuel utilisateur

ergoline

ergoline Vertical series Manuel utilisateur

ergoline

ergoline INSPIRATION 400 TWIN POWER Manuel utilisateur

ergoline

ergoline Classic 450 Manuel utilisateur

ergoline

ergoline Sunrise 6200 Smart Performance Manuel utilisateur

ergoline

ergoline SUNDASH 32 SUPER POWER Manuel utilisateur

ergoline

ergoline BEAUTY LOUNGE 280 COLLAGEN Manuel utilisateur

ergoline

ergoline PRESTIGE 1000 INTELLIGENT PERFORMANCE Manuel utilisateur

ergoline

ergoline INSPIRATION 600 Manuel utilisateur

ergoline

ergoline FLAIR 32 SUPER POWER Manuel utilisateur

ergoline

ergoline BALANCE 700 HYBRID PERFORMANCE Manuel utilisateur

ergoline

ergoline ESSENCE 48 SMART POWER Manuel utilisateur

ergoline

ergoline BALANCE 440 HYBRID T OLOGY Manuel utilisateur

ergoline

ergoline Prestige 1600 Manuel technique

ergoline

ergoline PASSION 300-S SUPER POWER Manuel utilisateur

ergoline

ergoline opensun550 Manuel utilisateur

ergoline

ergoline Advantage 400 Turbo Power Manuel utilisateur

ergoline

ergoline BEAUTY LOUNGE COLLAGEN Manuel utilisateur

ergoline

ergoline ESSENCE 280 SMART POWER 120 Manuel utilisateur

ergoline

ergoline AFFINITY 700 ADVANCED PERFORMANCE Manuel utilisateur

Manuels Produit de soins personnels populaires d'autres marques

Pretika

Pretika ST102 Mode d’emploi

Beurer

Beurer FC 76 Manuel utilisateur

Pebble Grey

Pebble Grey 500.40.70-75 Manuel utilisateur

PUSH

PUSH ortho Manuel utilisateur

Dermlite

Dermlite DL3N Manuel utilisateur

DERMAPEN

DERMAPEN SEMI Manuel utilisateur

HiB

HiB Spectre 50 Manuel utilisateur

Carex

Carex SunLite Manuel utilisateur

Roper Rhodes

Roper Rhodes Intense Manuel de la liste des pièces

Interacoustics

Interacoustics Titan IMP440 Instructions d'utilisation et de sécurité

ReTrak

ReTrak VS001 Manuel utilisateur

LED Technologies

LED Technologies dpl PAIN RELIEF Joint Wrap Manuel utilisateur

Casa Lusso

Casa Lusso MVL1000x450PR Manuel utilisateur

Quoizel

Quoizel QR3326 Instructions de montage

Beurer

Beurer EM 37 Manuel utilisateur

BERTSCHAT

BERTSCHAT HEATED HOODIE PRO - DUAL HEATING Manuel utilisateur

ACP

ACP OMNISTAND Manuel utilisateur

Scarlett

Scarlett VitaSpa SC-CA304PS11 Manuel utilisateur

ergoline Genesis Classic 650 Manuel utilisateur

Manuels Produit de soins personnels populaires d'autres marques
