USER MANUAL

Order code: EQLA25

www.prolight.co.uk

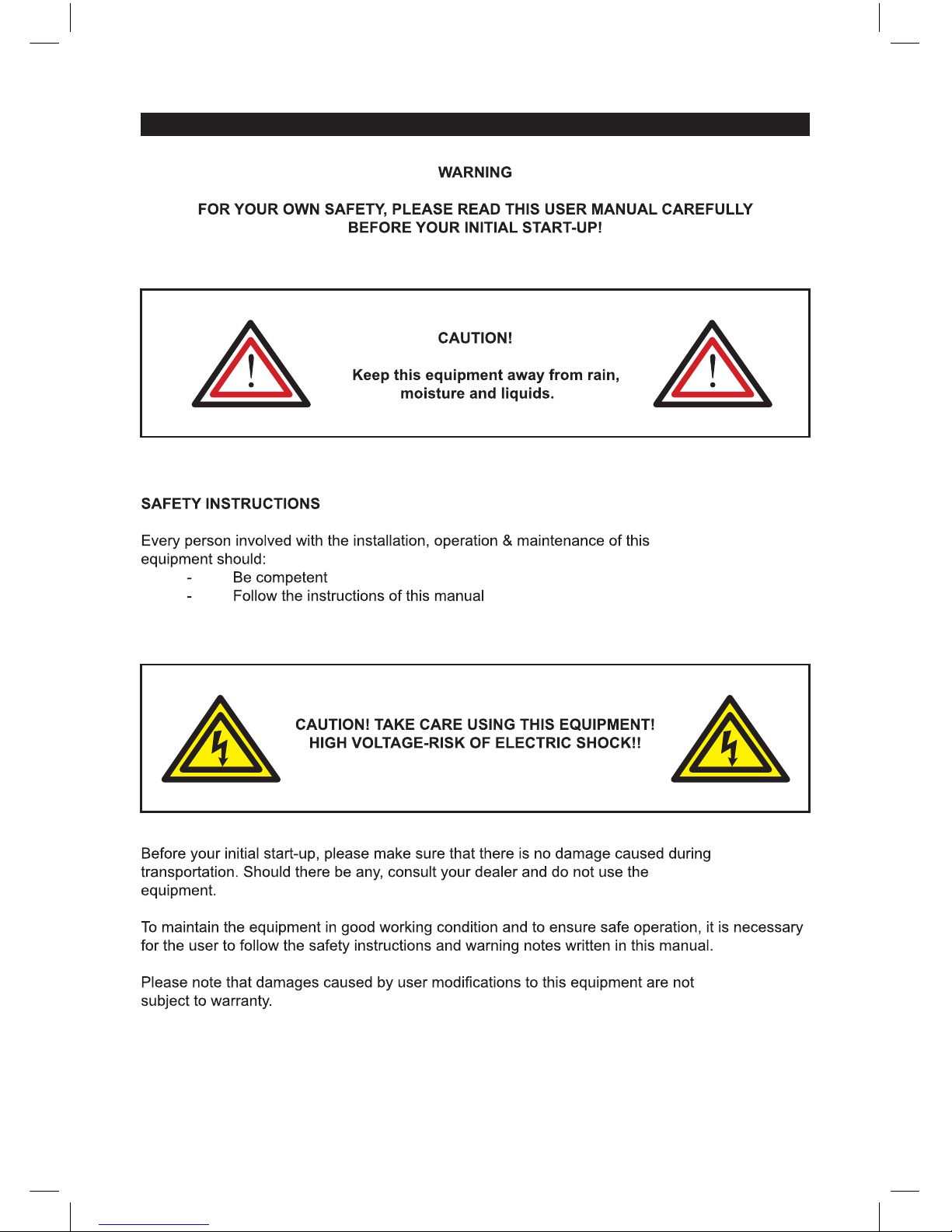

Equinox Cirrus Safety

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modification to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to flammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualified engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature fluctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualified

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

You should find inside the Laser carton the following items:

1, Cirrus Laser 2, Power adaptor 3, I.R. Remote 4, Instruction manual

Technical Specifications:

Laser diodes: 1 x 100mW Red (650nM), 1 x 40mW Green (532nM) DPSS laser

Stepping motor scanner with extra wide projection angle

Operating modes: Sound activated and Auto run modes

Infra-red Control operation

Infra-red Hand Controller included (battery inc)

Power consumption: 7W

Power supply: DC 9V (by adaptor inc)

Dimensions: 135 x 105 x 55mm

Weight: 0.7Kgs

Features:

Cluster beam firework patterns that look great with or without smoke.

Overview:

Equinox Cirrus Technical Specifications

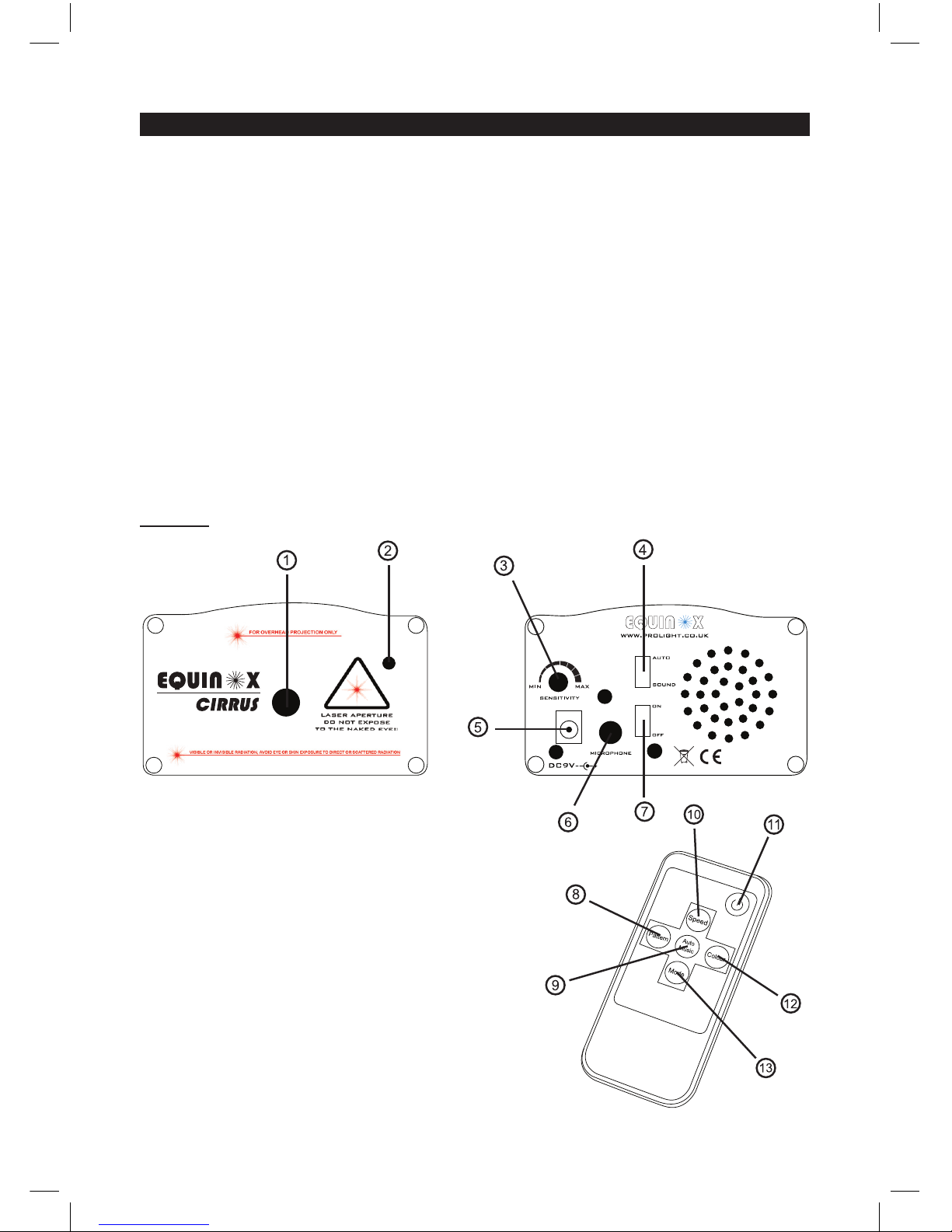

Identification:

1, Laser aperture

2, I.R. Sensor

3, Sensitivity control

4, Auto and sound mode switch

5, Power input

6, Microphone

7, On/Off switch

8, Pattern selection button

9, Auto and sound mode button

10, Speed button

11, On/Off button

12, Colour selection button

13, Mode button - No function for this model

Operation modes:

1, Sound active mode

To Set the Cirrus laser in sound active mode, set the “sound/auto” switch on the rear of the unit to the

Sound position. The laser will now react to the beat of the music. Use the sensitivity control for the

correct sound activation.

2, Auto run mode

To Set the Cirrus laser in auto run mode, set the “sound/auto” switch on the rear of the unit

to the “auto” position. The laser will now run through its built-in programmes.

I.R Remote functions:

To control the Cirrus laser via the I.R Remote, first be sure to remove the plastic battery protector from

the remote control.

Power Button

To turn the unit on, press the “power button”. The unit will automatically start in the mode it was last

used.

Pattern Button

To select a pattern, first make sure that the laser is set in auto mode. Now press the “pattern” button to

selects one of the four built-in patterns.

Speed Button

To change the speed of the pattern, press the “speed” button. You can choose from 3 different speeds;

1, Slow, 2 medium, 3 fast.

Colour Button

To select a colour for the desired pattern, press the “colour” button to choose from one of the following

options;

Music:- 1, Red and green (mix), 2, Red only, 3, Green only, 4 Red and Green (constant)

Auto:- 1, Red and Green 2, Red only 3, Green only

Music/Auto Button

To select between the Sound active and Auto modes, press the “music/auto” button. The laser will now

react to the desired chosen mode.

Mode Button

This button has no function on this particular model.

Equinox Cirrus Technical Specifications

Important Warnings

Class 3B Lasers have the potential to harm eyesight if viewed directly in the face, and in many

instances this may be the case, even if viewed over longer distances of several tens of metres.

Therefore before using the laser product you should familiarise yourself with its operation, and

also the safety aspects that need to be considered.

Laser lighting effects are quite safe to watch if installed and used correctly, and being aware of

a few basic factors will help you to achieve this. This guide has been prepared to help provide

a basic backgrounder to the key safety aspects, and is based on current UK health and safety

guidance on the use of lasers for public displays.

Class 3B Laser Lighting Effect User Safety Guide ProLight Concepts Limited

Installation and Operation Notes

1. The laser should only be installed and operated by those that are aware of how

to operate laser, and what the various controls perform. The keyswitch provided

on the laser should help to prevent use by unintended people.

2. The laser should be mounted in a suitable and secure position in the venue, so

that once in position it is unlikely to be affected by unintended movement.

3. Prior to installation and operation of the laser, the paths of the beams and

effects should be considered, particularly with respect to how they will touch the

audience. If direct audience scanning is desired then the laser energy in the

effects needs to be considered to decide if the effects are safe for direct

viewing.

Introduction

Laser lighting products are used to create some of the most vivid and striking visual effects, and are

often noted for how they seem to produce solid shapes that cut through the air, and pick up highly

defined swirling smoke patterns. The light that is used to create these stunning effects is different from

normal light and therefore several precautions need to taken when using lasers to ensure that the

lighting effects are safe and enjoyable to view. The optical power output from the kind of lasers used for

lighting displays can be harmful if not properly setup or is misused. But when used following the

recommended health and safety guidelines, laser lighting effects no more harmful than looking at any

conventional lighting effect.

This guide has been put together to provide you with some background information about laser safety,

and guidance on the recommended health and safety requirements for using lasers in public places.

Although this guide covers the main points to consider when using laser effects, users are advised to

familiarise themselves with other guidance, particularly that issued by the Health and Safety Executive,

HS(G)95 The Radiation Safety Of Lasers Used For Display Purposes, which is freely downloadable from

the HSE website. Attending one of the laser safety training courses, listed at the end of this guide, is also

highly recommended.

Equinox Cirrus Safety

What is a laser?

A laser is device that produces a special kind of light that is different from normal light sources. Laser

light sources differ from normal light sources in that they can produce very intense beams of light that can

remain parallel over long distances. It is this high concentration of light that can sometimes make lasers

harmful to look directly into.

What is a Class 3B Laser?

Any device that contains a laser has to be classified depending upon the amount of laser light that

someone might be exposed to. During design and manufacture of the product, the manufacturer assigns

the laser product to one of the various classes defined in the Laser Product Safety Standard

(BS/EN 60825-1:2007). The classes range from the safest, which is Class 1, through to the most

hazardous, which is Class 4.

For example, CD and DVD players contain lasers to read the disk, and because they are normally

inaccessible to people, they are classified as a Class 1 laser products. Laser Pointers output more

accessible power than CD/DVD players and are normally limited to being Class 2 devices. While most

laser lighting effects products are Class 3B and Class 4 laser products. These two classes have the

highest potential to cause harm because they emit the greatest light output. This is, of course, desirable

and necessary for laser lighting effects!

A laser product that emits more than 5mW of light and less than 500mW is normally classified as a Class

3B laser product, meaning it carries a risk of harming eyesight if viewed directly.

Are Class 3B Laser Lighting Effects safe to view?

Yes, if used responsibly, and in accordance with the relevant the guidance issued by the Health and

Safety Executive.

In the simplest terms, generally keeping the beams and effects above the audience will not present a

hazard to those viewing the show or effects. When you start to aim the laser effects down into the

audience area is when it becomes harder to tell if the effects could cause harm.

With a Class 3B laser lighting effect, the problem can arise if the beams or effects actually hit someone’s

face.

If in doubt, keep the effects above the audience.

Equinox Cirrus Safety

What harm can a Class 3B Laser cause?

Class 3B laser devices can be harmful to eyesight if viewed directly. i.e. that is, the beam or effect strikes

the face of a person. The actual injury that a Class 3B laser can cause depends upon a number of

factors, including how long the laser beam enters the eye for, the intensity of light, and what part of the

eye it actually gets focused onto. The most susceptible part of the eye to receive damage from a laser is

the internal back wall of the eyeball, known as the retina. It is this part of the eye that receives the light

signals that are sent to brain. All light entering the eye gets focused onto the retina.

Normal light sources such as traditional light bulbs and regular lighting effects are normally not harmful

to view. Lasers differ in that they can get focused down to very small points on the retina that can literally

burn holes on the back of the eye, which can lead damage to eyesight. This process can happen in less

time than it takes for a person to blink. There are no pain receptors on the retina, so the person will be

unaware of any damage taking place. Damage caused to the retina is permanent, and can vary from

unnoticeable loss of vision, through to severe loss of sight, particularly if the damage occurs in the part

of the retina that senses the central vision.

Are there any laws or licences relating to using Class 3B lasers?

There are no specific “laser licences” that anybody needs in order to own or operate a laser for lightshow

use. However, there is specific guidance issued by the Health and Safety Executive in the form of a

document called HS(G)95 The Radiation Safety of Lasers Used for Display Purposes. HS(G)95 outlines

a number of detailed points to consider when using lasers for lightshow purposes.

Furthermore, since April 2010 new health and safety legislation was introduced in the UK that sets legal

limits as to the amount of laser light a person may be exposed to in the workplace. Class 3B lasers have

the ability to exceed the safety limits. The full title of the laser safety regulations is the Control of Artificial

Optical Radiation at Work Regulations 2010, which also define the need for risk assessment of the

exposure levels.

Most places of public entertainment operate under a Public Entertainments Licence, which is issued by

the Local Authority. The entertainment licence requirements will normally need to have a specific

provision covering the use of lasers at the venue, where it is expected that the laser installation, (whether

temporary or permanent), is to operated in compliance with the HS(G)95 laser safety guidance as part of

the venue’s Public Entertainment Licence conditions.

The use of lasers, as any other equipment used for shows, will also be covered by more general health

and safety legislation, such as the Health & Safety at Work Act 1974, and the Management of Health

and Safety at Work Regulations 1999, etc. These regulations, among other things, state that you must

ensure the safety of people present at the event where the laser is used, and also that a suitable risk

assessment regarding the use of laser must be carried out.

Equinox Cirrus Safety

Class 3B Laser Product Features

Class 3B laser products are required to have several specific safety features as part of their

design. These features are laid out in the British Standard on Laser Product Safety BS/EN 60825-1:2007

and are a requirement of the product meeting CE approvals.

The important ones are listed below:-

1) Laser Safety Warning Labels

2) Key switch

3) Emissions Indicator

4) Remote Interlock Connector

Summary of each features purpose

The Class 3B laser projector should contain three Laser Safety Warning Labels; the starburst symbol,

aperture label, and the warning/classification label. The starburst is intended to show that the product

is a laser product, using the starburst symbol in the warning triangle. The aperture label is located to

indicate where the laser projector emits its beams. The warning/classification label states the class of

the laser product, the maximum output power, and the wavelength(s) (colours) of the laser, along with a

warning ” Laser Radiation – Avoid Exposure To The Beam”

The Keyswitch is provided to help limit the use of the laser projector to those that have key access.

Without the key inserted and in the on position, the laser will not emit an output. The idea behind laser

products having key switches is that only those people that are aware of how to operate the laser safely

should be given access to the keys.

The emissions indicator is intended to show when the laser is ready to produce a light output.

The Remote Interlock Connector will only allow the laser to function when the two pins are shorted

together. For lightshow use it is recommended by HS(G)95 laser safety guidance laser effects can be

overridden by a remote Emergency Stop switch. The remote interlock connector provides a convenient

way for such a switch to be easily added to the laser system, to provide this control.

Audience Scanning

Audience Scanning is the term commonly used to describe when laser effects are being directly aimed at

the viewing audience. This creates a very dramatic looking effect, as people can touch the light, and look

down smoky tunnels. But because the laser light can touch or scan past people’s faces, it also carries a

risk that it could cause damage to people’s eyesight, if they are overexposed to the laser light.

Equinox Cirrus Safety

Maximum Permissible Exposure (MPE)

The amount of laser light that a person can be exposed to without it causing harm to eyesight is known

as the Maximum Permissible Exposure (MPE) or Exposure Limit Value (ELV). These levels are defined

the in the British Laser Safety Standard BS/EN 60826-1:2007, and more recently in the Laser H&S

regulations. When people are exposed to laser light which is above the MPE, it poses a risk of causing

eye damage. This could be of concern when the laser effects are viewed directly in the face or there is a

chance that they could be.

How do I know what the MPE is?

Knowing what the MPE and exposure level is for a given laser effect is quite a complex and

involved process to establish. For it is dependant on a whole number of conditions and variables that

need to be taken into account. The laser safety standard BS/EN 60825-1:2007 contains the data

required to calculate the safe levels, but it is not straightforward to interpret. Laser Safety Calculation

Software has been developed to help ease the task of establishing laser effects exposure.

Laser Safety Officer

The PD IEC/TR 60825-14:2004 Laser Safety Guidance recommends that all establishments that use,

or businesses that work with Class 3B laser products, should appoint a Laser Safety Officer (LSO). The

Laser Safety Officer should be aware of the safety issues when using lasers, and is responsible for

overseeing how the laser is used. In smaller businesses, the LSO will probably also be the installer,

operator, owner etc.

Diffraction vs Direct X-Y Scanning Lasers

Diffraction type lasers have become increasingly popular in recent years creating laser effects that split

the beam into hundreds, if not thousands of less powerful beamlets. This type of effect is usually much

safer to view directly than traditional scanned beam effects, for the simple reason that as the beam is

split into smaller beams, the power in each beam is reduced. With x-y scanning systems, even though it

may look as if the power is being reduced by the movement, the moment any beam crosses a person’s

face, the full power of the beam may briefly enter someone’s eye. Caution should still be used with

diffraction effects, in particular ensuring that the brighter central beams are kept above head height.

Separation Distances

Health and Safety guidance states that for supervised installations laser light above the Maximum

Permissible Exposure (MPE) should not be accessible to members of the audience. It also recommends

the area where the MPE may not be exceeded, extends from 3m above, and 2.5m laterally from any

location in the venue where members of the public may gain access during the display. The following

diagrams illustrate this.

Equinox Cirrus Safety

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Equinox Systems Équipement d'éclairage

Equinox Systems

Equinox Systems COBALT Manuel utilisateur

Equinox Systems

Equinox Systems Lexor Manuel utilisateur

Equinox Systems

Equinox Systems Axis 50W Gobo Flower Manuel utilisateur

Equinox Systems

Equinox Systems Kaleido EQLED85 Manuel utilisateur

Equinox Systems

Equinox Systems EQLED032A Manuel utilisateur

Equinox Systems

Equinox Systems POLARIS Manuel utilisateur

Equinox Systems

Equinox Systems Eyebar Manuel utilisateur

Equinox Systems

Equinox Systems KAMIKAZE EQLA14 Manuel utilisateur

Equinox Systems

Equinox Systems Domin8r IIEQLED53 Manuel utilisateur

Equinox Systems

Equinox Systems PIXELpoint Batten Manuel utilisateur

Equinox Systems

Equinox Systems Megabar System EQLED63 Manuel utilisateur

Equinox Systems

Equinox Systems Explo Strobe EX-2500 Manuel utilisateur

Equinox Systems

Equinox Systems EQLED65 Giga Bar System Manuel utilisateur

Equinox Systems

Equinox Systems Tri Power Batten MKII Manuel utilisateur

Equinox Systems

Equinox Systems VIXEN EQLA36 Manuel utilisateur

Equinox Systems

Equinox Systems EQLED203 Manuel utilisateur

Equinox Systems

Equinox Systems Lighting strike STRO21 Manuel utilisateur

Equinox Systems

Equinox Systems MidiPar Tri Plus Manuel utilisateur

Equinox Systems

Equinox Systems Terminator 2 Manuel utilisateur

Equinox Systems

Equinox Systems Saturn Spot Manuel utilisateur

Equinox Systems

Equinox Systems Interceptor MKII Manuel utilisateur

Equinox Systems

Equinox Systems Nova Par 64 Manuel utilisateur

Equinox Systems

Equinox Systems PEGASUS II Manuel utilisateur

Equinox Systems

Equinox Systems Party Par EQLED015 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
