Epson 4870 - Perfection Pro Manuel utilisateur

EPSON Perfection 4870 Series

12/03 EPSON Perfection 4870 Series - 1

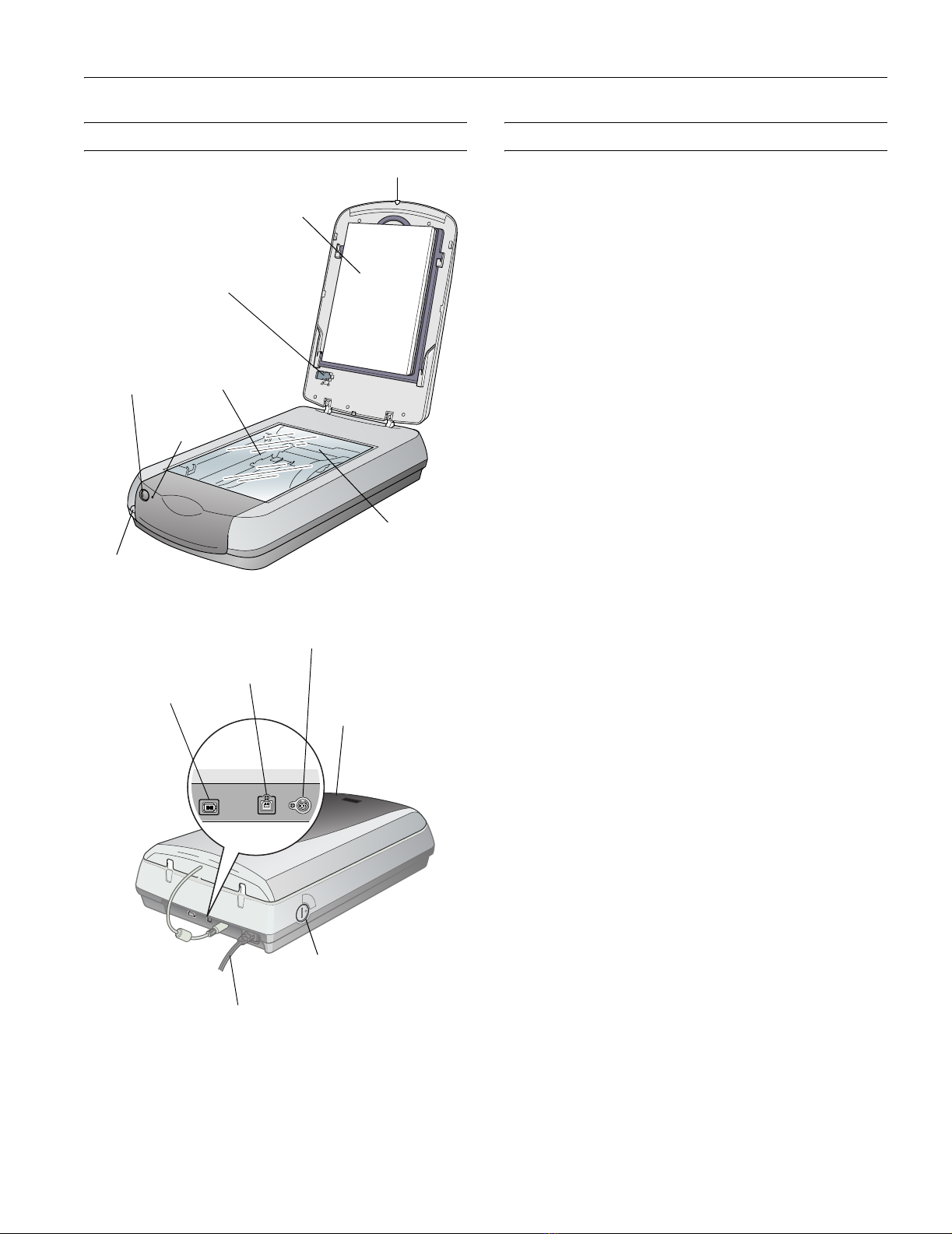

Scanner Parts Scanner Specifications

Basic Specifications

Scanner type Flatbed, color

Photoelectric Color CCD line sensor

device

Effective pixels 40,800 ×56,160 pixels at 4800 dpi

Maximum US letter or A4 size

document size (8.5 ×11.7 inches [216 ×297 mm])

Optical resolution 4800 dpi

Maximum 4800 dpi (main scan) ×9600 dpi hardware

resolution* (sub scan)

* The maximum hardware resolution of 4800 ×9600 dpi is achieved

using EPSON’s Micro Step Drive™technology.

Maximum 12,800 dpi

interpolated

resolution

Output resolution 25 to 12,800 dpi in 1 dpi increments

Speed (color) 16.9 msec/line at 4800 dpi

4.1 msec/line at 600 dpi

Command level ESC/I (B8), FS

Pixel depth 16 bits per pixel (input and output)

Brightness 7 levels (in EPSON Scan, gamma

correction controls brightness)

Interface

USB 1.1/2.0 (Type B receptacle connector)

IEEE 1394 (FireWire



)

Light source White cold cathode fluorescent lamp

Reliability 36,000 cycles of carriage movements

(MCBF) (scanner)

Dimensions Width: 12.0 inches (30.4 cm)

Depth: 18.7 inches (47.6 cm)

Height: 5.3 inches (13.4 cm)

Weight Approx. 14.8 lb (6.7 kg)

TPU indicator light

Document

table

Carriage and

lamp (in the

home position)

USB port

Power cord

Transparency unit

(TPU) connector

Transportation lock

(in unlocked position)

]Start button

Indicator

light

PPower button

IEEE 1394 port Transparency unit

(TPU) under lid

Document

cover

Transportation

lock

EPSON Perfection 4870 Series

2 - EPSON Perfection 4870 Series 12/03

Electrical

Input voltage 100-120 VAC ± 10%

range

Rated frequency 50 to 60Hz

Rated input 0.7 A

current

Power Approx. 24 W operating

consumption Approx. 16 W in stand-by mode

Approx. 4.5 W in power saving mode

Note:

Scanners sold outside the US market may operate at a

different voltage. Check the label on the back of the scanner

for voltage information.

Environmental

Temperature Operation: 41 to 95 °F (5 to 35 °C)

Storage: –13 to 140 °F (–25 to 60 °C)

Humidity Operation: 10% to 80%

(without Storage: 10% to 85%

condensation)

Operating Ordinary office or home conditions; avoid

conditions extreme dust, direct sunlight, and strong

light sources.

Safety Approvals

Safety UL 60950

CSA C22.2 No. 60950

EMC FCC part 15 subpart B class B

CSA C108.8 class B

USB Interface

Interface type Universal Serial Bus Specification

Revision 2.0

Connector type One receptacle (Type B)

FireWire Interface

Interface type IEEE 1394a-2000 compatible

Data transfer Half-duplex data/strobe differential

serial

Synchronization Clock synchronization with DS-Link

Encoding/ DS-Link

Decoding

Logic level 3.3 V

Transparency Unit

The transparency unit is built into the scanner lid.

Rated voltage DC 24 V ± 10%, DC 5 V ± 5%

Document Positive or negative film in the following

specifications sizes:

35 mm strips (24 frames)

35 mm slides (8 slides)

120/220 (6 ×12 cm) film (3 frames)

4 ×5-inch film (2 frames)

Readable area 5.7 ×9.1 inches (144 ×231 mm)

Scanning and Restoring Photos

The following example uses Adobe®Photoshop®Elements and

EPSON Scan. If you are using another software application,

your steps may be different.

1. Start Adobe Photoshop Elements:

In Windows, click Start > Programs or All Programs >

Adobe Photoshop Elements 2.0.

On a Macintosh, open the Adobe Photoshop Elements 2

folder (in your Applications folder) and double-click the

Photoshop Elements 2.0 icon.

2. Select File > Import > EPSON Perfection 4870.

3. In EPSON Scan, choose Home or Professional mode. You

see a screen similar to this:

EPSON Perfection 4870 Series

12/03 EPSON Perfection 4870 Series - 3

4. Click the Preview button at the bottom of the screen. Your

photo appears in the Preview window.

5. Click the button to select the image area to be scanned.

Adjust the marquee if necessary.

6. Do one of the following:

❏If you’re using Home Mode, click the Image

Adjustments button.

❏If you’re using Professional Mode, scroll to the bottom

of the screen.

7. Select the Digital ICE or Color Restoration checkbox:

❏If your photo is dirty, scratched, creased, or torn, select

Digital ICE.

❏If the colors in your photo are faded, select Color

Restoration.

Note:

You can select both settings if necessary.

8. Click the Scan button.

9. Click the Close button. Your image now appears in

Photoshop Elements.

Scanning Transparencies and Film

Before scanning transparent documents, you need to remove

the scanner’s reflective document mat; this exposes the scanner’s

transparency unit (light source), which is built into the lid.

If you’re scanning slides or film strips, you’ll also need to use

one of the film holders.

Using the Transparency Unit

1. Make sure the transparency unit cable is connected to the

option interface connector on the back of the scanner.

(If it is not connected, turn off the scanner, connect the

transparency unit cable, then turn the scanner back on.)

2. Lift the scanner lid all the way up and pull the reflective

document mat up and off of the scanner lid, as shown.

3. If you are scanning film or negatives, open the cover, then

slide the film into the corresponding holder, with the film’s

shiny base side facing down. (If you are scanning slides, go

to step 6.)

EPSON Perfection 4870 Series

4 - EPSON Perfection 4870 Series 12/03

4. Lock the film holder cover into place

5. Place the film holder on the scanner as shown. Make sure

the white triangle on the holder points to the upper-right

corner of the scanner.

6. If you are scanning slides, place the holder on the scanner.

Then place the slides in the holder.

7. Close the scanner cover.

Selecting Film or Slide Settings in EPSON

Scan

The following example uses Adobe Photoshop Elements and

EPSON Scan. If you are using another software application,

your steps may be different.

1. Start Adobe Photoshop Elements:

In Windows, click Start > Programs or All Programs >

Adobe Photoshop Elements 2.0.

On a Macintosh, open the Adobe Photoshop Elements 2

folder (in your Applications folder) and double-click the

Photoshop Elements 2.0 icon.

2. Select File > Import > EPSON Perfection 4870.

3. In EPSON Scan, choose Home or Professional Mode.

Select the Document Type (Home Mode) and Film Type

(Professional Mode).

Note:

When scanning slides, choose Positive Film.

4. Do one of the following:

❏If you’re using Home Mode, click the Image

Adjustments button.

❏If you’re using Professional Mode, scroll to the bottom

of the screen.

5. Click the Preview button at the bottom of the screen.

Make sure this

calibration space

is uncovered

Make sure this

calibration space is

uncovered

Home Mode

Professional Mode

EPSON Perfection 4870 Series

12/03 EPSON Perfection 4870 Series - 5

Thumbnails of your images appear in the Preview window:

6. For each thumbnail, select from the following Image

Adjustment options:

❏Grain Reduction (available only in Professional mode).

Use with high-speed film or under-exposed images.

Select the level of grain reduction by clicking the

button.

❏Color Restoration. Restores color to faded images.

❏Dust Removal. Removes dust. Select the level of dust

removal by clicking the button.

❏Digital ICE. Removes scratches, dust and fingerprints.

Note:

You cannot select Dust Removal and Digital ICE at the

same time.

7. Click the Scan button.

8. Click the Close button. Your images now appear in

Photoshop Elements.

Indicator Light

The indicator light (next to the ] Start button) indicates the

status of the scanner, as described below.

Transporting the Scanner

If you need to ship your scanner, you must prepare it for

transportation in it’s original box or one of a similar size.

1. Turn on the scanner and wait until the carriage moves to

the home position. When the indicator light remains solid

green, turn off the scanner.

2. Disconnect the power cable.

3. Disconnect the USB or IEEE 1394 cable.

4. Disconnect the transparency unit cable.

5. Turn the transportation lock to the locked position to

secure the carriage.

Light Color Status

On Green The scanner is ready to scan images.

Flashing Green The scanner is initializing (warming up) or is

busy scanning.

Flashing Red Check the following, then turn your

scanner off and back on to reset it:

❏Make sure the transportation lock is

turned to the unlocked position. See

the Start Here sheet for details.

❏Make sure the scanner is properly

connected to your computer.

❏If you are scanning transparencies,

make sure you’ve removed the

reflective document mat. See page 3.

If this does not eliminate the error, the

fluorescent lamp may need to be replaced

or the scanner may have another problem.

Consult your dealer or EPSON.

Off — The scanner is unplugged or turned off.

EPSON Perfection 4870 Series

6 - EPSON Perfection 4870 Series 12/03

6. Slide the transportation lock to the locked position to secure

the transparency unit. Related Documentation

CPD-16641 EPSON Perfection 4870 Photo Start Here

poster

CPD-16660 EPSON Perfection 4870 Pro Start Here

poster

CPD-16643 EPSON Perfection 4870 Series scanner

software CD-ROM

CPD-16642 EPSON Perfection 4870 Series Quick

Guide

—Reference Guide (HTML)

Autres manuels pour 4870 - Perfection Pro

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Epson Scanner

Epson

Epson B11B200211 Manuel d'exploitation et d'entretien

Epson

Epson Perfection 1660 Photo Mode d’emploi

Epson

Epson ActionLaser 1600 Manuel utilisateur

Epson

Epson Perfection 4490 Photo Manuel utilisateur

Epson

Epson Perfection V330 Photo Manuel utilisateur

Epson

Epson Expression 800 Manuel utilisateur

Epson

Epson 1680 - Expression Special Edition Manuel utilisateur

Epson

Epson WorkForce DS-5500 Manuel utilisateur

Epson

Epson Perfection V19 Manuel utilisateur

Epson

Epson Perfection V700 Series Manuel utilisateur

Epson

Epson PERFECTION V10 Mode d’emploi

Epson

Epson DS-760 Manuel utilisateur

Epson

Epson 1640XL - Expression Graphic Arts Manuel utilisateur

Epson

Epson Perfection V750 Pro - Perfection V750-M Pro... Mode d’emploi

Epson

Epson Perfection 3490 Photo Mode d’emploi

Epson

Epson TM-S9000MJ Manuel d'utilisation et d'entretien

Epson

Epson Perfection V33 Photo Manuel utilisateur

Epson

Epson Perfection 1670 Photo Manuel utilisateur

Epson

Epson Perfection V37 Mode d’emploi

Epson

Epson 2480 - Perfection Photo Manuel utilisateur

Epson

Epson 1250 - Perfection Photo Flatbed Scanner Manuel utilisateur

Epson

Epson Perfection 600 Manuel utilisateur

Epson

Epson GT-20000 Manuel utilisateur

Epson

Epson Perfection V700 Series Manuel utilisateur

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur
