Epson WH-10 Manuel utilisateur

English

WH-10

Installation Manual. . . . . . . . . . . . . . . . . . . . . . 2

設置マニュアル . . . . . . . . . . . . . . . . . . . . . . . 13

2WH-10 Installation Manual

English

Wall Hanging Bracket Set

WH-10

Installation Manual

The WH-10 is an optional hanging bracket for attaching the printer to a wall. This manual

describes the procedures and precautions for installing and using the WH-10.

Applicable Printer Models

This WH-10 can be used only with the products specified below. Please note that the use of

products other than those specified may result in improper installation and operation.

❏TM-T88IV/TM-T88V/TM-T88VI

❏TM-T88IV/TM-T88V/TM-T88VI with the OT-BX88/OT-BX88V/OT-BX88VI power

supply cover

❏TM-U220B/TM-U220D with the Serial numbers xxx030000 or later. (xxx depends on the

model.)

❏TM-U230

❏TM-T90

❏TM-L90

Precautions

❏To use the TM-T88IV/TM-T88V/TM-T88VI on the wall, be sure to attach the connector

cover to the printer.

❏To prevent paper jams and to insure the print density level, do not use 3-sheet roll paper

with the TM-U220.

❏Static electricity may cause cut paper to adhere to the printer case.

(This static electricity will not affect the operation of the printer.)

Unpacking

Open the package and confirm that it contains all of the parts listed in the illustration. If any parts

are missing or damaged, please contact your dealer for assistance.

❑ Brackets (2 pieces)

❑ Wall-mount

*Note: Screws for wall-mount are not

included.

❑ Roll-paper stopper for TM-T88IV

❑ Installation manual

❑ Screws for brackets

(3×12) (4 pieces)

❑ Control panel sheets

•ForTM-T88IV

•ForTM-T88V

• For TM-U220

*Note: Control panel sheets for the

TM-T90, the TM-L90, and the TM-U230

are packed with the printer.

❑ Roll-paper stopper for TM-T88V/

TM-T88VI

WH-10 Installation Manual 3

English

Depending on the conditions during storage and shipping, some rust may form around the edges

of the wall-mount or brackets. This may be removed with sandpaper.

Installation

Before installation, be sure that the printer and all equipment connected to the printer is turned

off. Detach all cables from the body of the printer.

Installing the Wall-mount

CAUTION:

To fix the printer securely, install the wall-mount on a wall made of wood, concrete, or metal. The

thickness of the wall should be 10 mm or more.

In order to insure that the wall-mount can properly support the weight of the printer, please secure it with

screws appropriate to the type of wall the wall-mount is installed on. A screw with 4 mm diameter and

length of 12 mm or more is recommended.

Be sure to fasten the wall-mount securely to the wall with a screw in each of the 10 holes.

Before attaching the wall-mount, make sure enough

space remains around the printer.

Make sure that there is enough space for opening the

printer covers.

Attach the wall-mount to the wall in the position

illustrated to the right (with the area marked Aat the

top), and fasten securely with 10 screws. These screws

are not included; please use screws appropriate to the

type of wall being used.

Affixing the Control Panel Sheet

For the TM-T88IV/TM-T88V, TM-T90, TM-L90,

TM-U220, and the TM-U230, attach the control

panel sheet to see the control panel in the correct

direction, since the operation direction of these

printers will be upside down on the wall.

(The control panel sheets for the TM-T90, TM-L90,

and the TM-U230 are packed with the printer.)

1. Open the printer cover (roll paper cover) (not

necessary for the TM-T90 or the TM-U220).

2. Align the FEED (Feed) switch mark on the control panel sheet with the FEED (Feed) switch

mark on the printer control panel and affix the control panel sheet to the printer.

3. Close the printer cover (roll paper cover).

❑Screw (3×10)

for TM-U220 (1 piece)

❑ Screws (3×6)

for TM-U220 (5 pieces)

*Note: 4 of the screws are used for

attaching the brackets.

❑Roll paper holder for hanging

bracket for TM-U220

❑Cam for TM-U220

84mm

48mm

84 mm

48 mm

4WH-10 Installation Manual

English

Attaching the Roll-paper Stopper (Only for the TM-T88IV/TM-T88V/TM-T88VI)

1. Cut off the roll-paper stopper.

2. Open the printer cover (roll paper cover).

3. Align the 2 projections on the roll-paper stopper with the holes in the printer, and push them

into place. For the TM-T88V/TM-T88VI, align the projections with the holes, and rotate the

roll-paper stoppers toward the printer back until they click.

Note:

For the TM-T88V/TM-T88VI, make sure the position of the stepped parts on the top of the roll-

paper stoppers are aligned with that of the projections on the roll paper holder (for 58 mm paper

width, on the roll paper guide).

Changing the Roll-paper Detector Position

(Only for the TM-T88IV/TM-T88V/TM-T88VI and the TM-T90)

1. Loosen the screw for the detector.

2. Push the lever on the detector until it touches the back of the hole.

3. Turn the knob toward you until the lever clicks into place in the other hole.

4. While settling the knob by pressing the knob toward you, secure the screw.

cut

Left side Right side

For TM-T88IV For TM-T88V/TM-T88VI

Left side Right side

cut

TM-T88IV

Projection on the

roll paper holder

58 mm paper width

Projection on the

roll paper guide

Stepped part

TM-T88V/TM-T88VI

Knob

Detector screw

Detector lever * This installation example is for the

TM-T88IV.

WH-10 Installation Manual 5

English

Changing the Roll-paper Near-end Detector Position and Paper Width

(Only for the TM-U220)

Two types of screws are used with the WH-10: 3×6 and 3×10. The longest screw (3×12) will not

be used.

1. Open the printer cover (roll paper cover).

For a model that does not have a roll-paper near-end detector and does not need a change in

paper width, jump to step 7. For a model that does not have a roll-paper near-end detector and

needs a change in paper width, jump to step 3.

2. Loosen the detector adjustment screw a little bit by using a tool such as a coin and then loosen

the screw gently by hand as until it stops. It must not be removed completely.

3. Remove the 2 screws of the roll paper guide.

For a model that does not have a roll-paper near-end detector, jump to step 6.

4. Rotate the detector lever on the roll paper guide to change its direction.

Note:

After the direction of the detector lever is changed, be sure that the cable is connected to the

connector firmly.

5. Tighten the detector adjustment screw.

Detector adjustment screw

Roll paper

guide

Cable

Detector lever

6WH-10 Installation Manual

English

6. Align the hole on the roll paper guide with the hole on the roll paper holder to match your roll

paper width and then tighten the screw (3×10).

Note:

You will not use one of the two screws that have been removed when the roll paper guide is

removed. Please store it as an extra screw in case you need it.

7. Align the hole on the roll paper holder for hanging bracket with the dowel on the roll paper

guide. (For a model that needs a change of paper width, the hole to be used will be different to

match your roll paper width.)

Putting the screw (3 × 6) in the hole on the roll paper holder for hanging bracket makes it

easier for you to tighten the screw in the next step.

8. Tighten the screw (3 × 6) to fix the roll paper holder for hanging bracket and the base frame.

Roll paper

guide

Roll paper

holder

76 mm 70 mm 58 mm

Roll paper holder for

hanging bracket

76 mm 70 mm 58 mm

Hole

Dowel

WH-10 Installation Manual 7

English

9. Tighten the screw (3 × 10) to fix the roll paper holder for hanging bracket and the roll paper

holder.

10. Check that the brake arm is up as shown in the illustration below.

CAUTION:

Do not move the brake arm until the roll paper holder for hanging bracket is attached onto the base

frame. Otherwise the arm part will be damaged.

11. Insert the dowel of the cam into the hole of the platen frame.

Brake arm

Dowel

Hole

Platen

frame

8WH-10 Installation Manual

English

12. While you make sure the pin of the brake arm is in the groove on the inner side of the cam,

rotate the cam along with the surface of the platen frame in the direction indicated by the

arrow until it clicks into position.

13. Close the printer cover (roll paper cover).

Note:

When closing the cover, push the middle of the printer indicated by the circle in the illustration

below.

Pin of brake arm

WH-10 Installation Manual 9

English

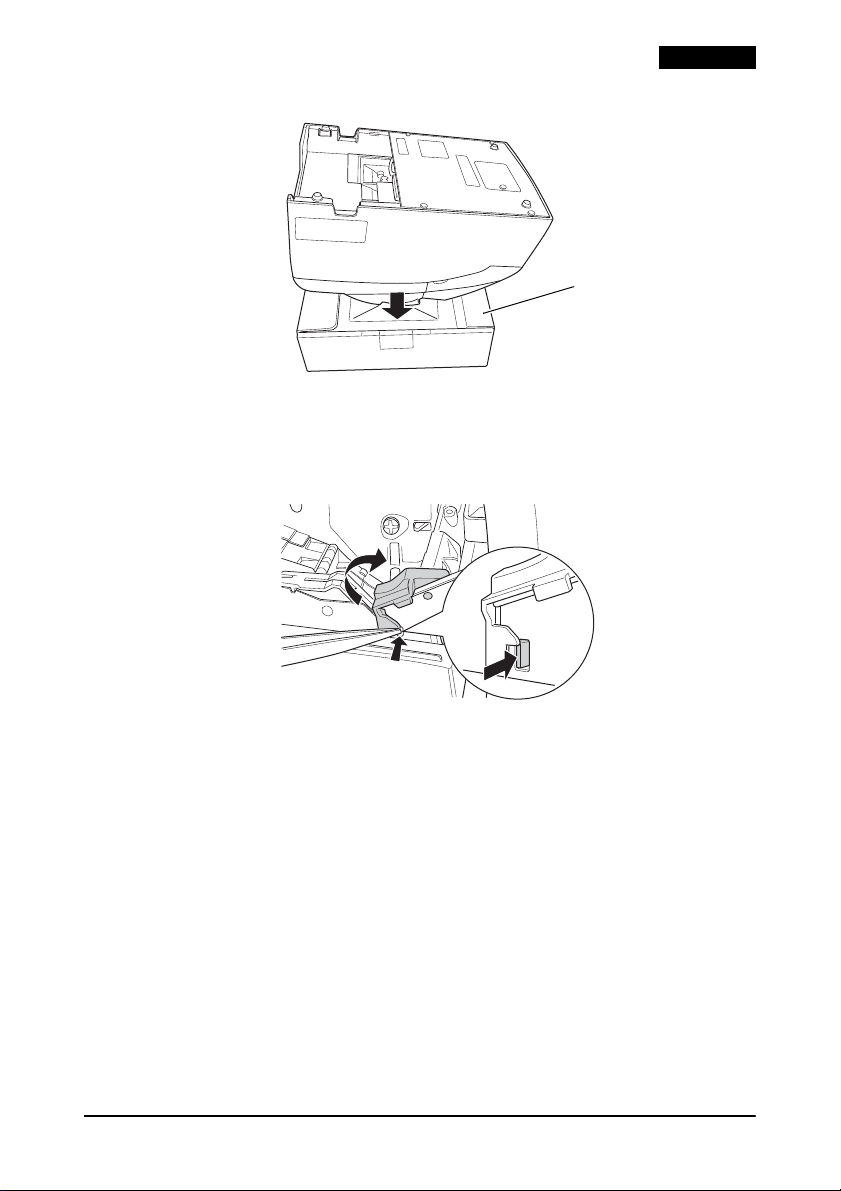

14. Turn the printer over and then put it on the packing box as a horizontal platform.

15. See the “Installing the Brackets” section for attaching the brackets.

Removing the Cam

While you push the cam through the hole on the platen frame with a pointed tool such as

tweezers, rotate the cam in the upward direction to remove it.

Fold this part inside and

insert it into holes to

assemble the package.

10 WH-10 Installation Manual

English

Installing the Brackets

Four different sets of screw holes are found on each bracket. Each hole is identified by a number;

be sure to use the holes indicated in the instructions.

TM-T88IV/TM-T88V/TM-T88VI

Attach the upper bracket to the holes numbered “3” and the lower bracket to the holes numbered

“4” using the screws (3 × 12).

TM-T88IV/TM-T88V/TM-T88VI with the OT-BX88/OT-BX88V/OT-BX88VI Power Supply

Cover Option

Attach both the upper bracket and the lower bracket to the holes numbered “4” using the screws

(3 × 12).
