Epson U300C - TM Dot-matrix Printer Manuel utilisateur

TM-U300C/U300PC

User’s Manual / Petunjuk Penggunaan

Di Impor oleh:

PT. Epson Indonesia

Wisma Kyoei Prince Lt.16

Jalan Jenderal Sudirman Kav.3

Jakarta Pusat 10220, Indonesia

M00037700

5 6 7

iii

N11

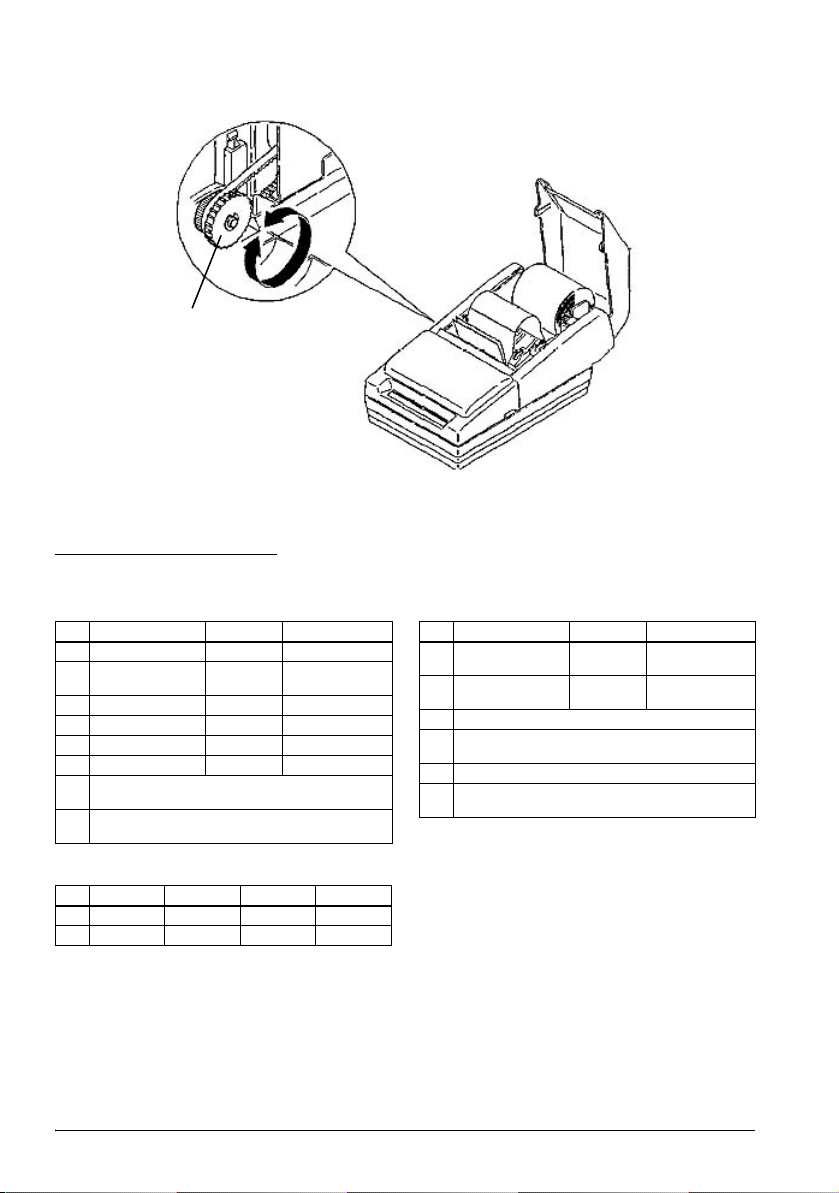

DIP Switch Tables

Serial interface

SW Function ON OFF

1-1 Data receive error Ignored Prints “?”

1-2 Receive buffer

capacity

40 bytes Approx. 1 Kbyte

1-3 Handshaking XON/XOFF DTR/DSR

1-4 Data word length 7 bits 8 bits

1-5 Parity check Enabled Disabled

1-6 Parity selection Even Odd

1-7

1-8

Transmission speed (See table below.)

1-9

1-10

Internal use. Do not change setting.

Transmission speed (bps)-bits per second

SW 1200 2400 4800 9600

1-7 ON OFF ON OFF

1-8 ON ON OFF OFF

Parallel interface

SW Function ON OFF

1-1 Auto line feed Always

enabled

Depends on

AUTO FEED XT

1-2 Receive buffer

capacity

0 byte Approx. 1 Kbyte

1-3 Internal use. Fixed to OFF. (Do not change setting.)

1-4

1-5

Internal use. Fixed to ON. (Do not change setting.)

1-6 Internal use. Fixed to OFF. (Do not change setting.)

1-7

1-8

Internal use. (Do not change setting.)

TM-U300C/U300PC User’s Manual 1

English

TM-U300C/U300PC

User’s Manual

Illustrations

All of the illustrations are at the beginning of this manual. They may be different from your printer in

appearance, depending on your printer model. They are identified by letters (A, B, C . . .). Some of the

illustrations have numbers in them. See the list below for the meaning of the numbers.

DIP Switch Tables

The DIP switch tables are at the beginning of this manual.

transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with

respect to the use of the information contained herein. While every precaution has been taken in the

preparation of this book, Seiko Epson Corporation assumes no responsibility for errors or omissions.

Neither is any liability assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:

accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this

product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and

maintenance instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any

options or any consumable products other than those designated as Original Epson Products or Epson

Approved Products by Seiko Epson Corporation.

EPSON is a registered trademark of Seiko Epson Corporation in Japan and other countries/regions.

NOTICE: The contents of this manual are subject to change without notice.

1. Take-up device cover 9. Ribbon

2. Printer cover 10. Print Head Unit

3. Control Panel 11. Position detector plate

4. Power switch 12. Adjustment guide

5. Interface connector 13. Glued edge

6. Drawer kick-out connector 14. DIP switches

7. Power supply connector 15. Paper feed knob

8. Ribbon mask

2 TM-U300C/U300PC User’s Manual

English

Important Safety Information

This section presents important information intended to ensure safe and effective

use of this product. Read this section carefully and store it in an accessible location.

Key to Symbols

The symbols in this manual are identified by their level of importance, as defined

below. Read the following carefully before handling the product.

WARNING:

Warnings must be followed carefully to avoid serious bodily injury.

CAUTION:

Cautions must be observed to avoid minor injury to yourself or damage to your

equipment.

Safety Precautions

WARNING:

Shut down your equipment immediately if it produces smoke, a strange odor, or

unusual noise. Continued use may lead to fire. Immediately unplug the

equipment, and contact your dealer or a Seiko Epson service center for

advice.

Never attempt to repair this product yourself. Improper repair work can be

dangerous.

Never disassemble or modify this product. Tampering with this product may

result in injury or fire.

Be sure to use the specified power source. Connection to an improper power

source may cause fire.

Do not allow foreign matter to fall into the equipment. Penetration by foreign

objects may lead to fire.

If water or other liquid spills into this equipment, unplug the power cord

immediately, and then contact your dealer or a Seiko Epson service center for

advice. Continued usage may lead to fire.

Do not use aerosol sprayers containing flammable gas inside or around this

product. Doing so may cause fire.

CAUTION:

Do not connect cables in ways other than those mentioned in this manual.

Different connections may cause equipment damage and burning.

Be sure to set this equipment on a firm, stable, horizontal surface. The product

may break or cause injury if it falls.

Do not use in locations subject to high humidity or dust levels. Excessive humidity

and dust may cause equipment damage or fire.

Do not place heavy objects on top of this product. Never stand or lean on this

product. Equipment may fall or collapse, causing breakage and possible injury.

Take care not to injure your fingers on the manual cutter

• When you remove printed paper

• When you perform other operations such as loading/replacing roll paper

To ensure safety, unplug this product before leaving it unused for an extended

period.

TM-U300C/U300PC User’s Manual 3

English

Restriction of Use

When this product is used for applications requiring high reliability/safety, such

as transportation devices related to aviation, rail, marine, automotive, etc.;

disaster prevention devices; various safety devices, etc.; or functional/precision

devices, etc.; you should use this product only after giving consideration to

including fail-safes and redundancies into your design to maintain safety and

total system reliability. Because this product was not intended for use in

applications requiring extremely high reliability/safety, such as aerospace

equipment, main communication equipment, nuclear power control equipment,

or medical equipment related to direct medical care, etc., please make your own

judgment on this product’s suitability after a full evaluation.

Purpose of This Manual

This manual provides information describing basic operations to operators of the

TM-U300C/U300PC to enable safe and correct use of the printer.

Unpacking

The following items are included with the standard specification printer.

If any item is damaged, contact your dealer.

*1: May not be included with your printer depending on the printer model.

Downloading Drivers, Utilities, and Manuals

Drivers, utilities, and manuals can be downloaded from the following URL.

http://www.epson-pos.com/

Part Names

See illustration A.

Control Panel (LEDs and Buttons)

See illustration B.

POWER LED

Lights when the power is on and is off when the power is off.

PAPER LED

Lights when roll paper is out or nearly out.

Flashes when an error occurs, when validation paper must be inserted or

removed, when the self-test enters the printing standby state, or when printing

has stopped due to exceeding the allowable print duty cycle.

FEED button

Feeds the roll paper.

❏Printer ❏Roll paper

❏Ribbon cassette ❏AC adapter

❏AC cable*1 ❏User’s Manual (this manual)

4 TM-U300C/U300PC User’s Manual

English

Removing the Transportation Damper

The transportation damper must be removed before turning on the printer.

Open the printer cover and remove the damper as shown in illustration C.

Connecting the Cables

1. Make sure the printer is turned off.

2. Connect the power cord and an interface cable to the connectors on the

printer back.

3. Ground the printer by connecting a frame ground cable to the printer with

the frame ground screw located on the bottom of the printer. For the TM-

U300PC, fix a shield wire of the parallel interface cable and the frame ground

cable with the same screw.

Note:

The frame ground cable is not enclosed. Be sure to use the appropeiate cable for your

system.

4. Insert the power cord plug into a socket.

Installing and Replacing the Ribbon Cassette

Note:

Use Epson ERC-34 ribbon cassette.

1. Open the printer cover while pressing both sides of the printer cover. (See

illustration D.)

2. Remove the used ribbon cassette, if there is one. To remove it, lift the tab on

the left side of the cassette first. (See illustration E.)

3. Turn the ribbon-tightening knob in the direction of the arrow to take up any

slack in the ribbon. (See illustration F.)

4. Fit the ribbon between the print head unit and the ribbon mask, and push the

cassette firmly into position. (See illustration G.)

5. Turn the knob 5 or 6 times to feed the ribbon smoothly into place, and check

that the ribbon is not twisted or creased.

6. Close the printer cover.
