Unpacking and Assembling the Printer |3

Unpacking and Assembling the Printer

Note: Unless otherwise indicated, the illustrations in this manual show the SureColor®T7270, but the instructions

apply to all three models.

Before beginning assembly, make sure you have sufficient space to set up and use the printer. The

following illustrations show the minimum space required for using the printer:

SureColor T3270 (on surface):

Note: If the printer is mounted on the optional 24” stand, the required clearance in front of the printer changes

from 11.8 inches (300 mm) to 23.6 inches (600 mm).

SureColor T5270/T7270 SureColor T5270D/T7270D

When choosing a place for the printer, leave adequate room for easy access and ventilation. Avoid locations

subject to direct sunlight, excessive heat, humidity, or dust. Be sure the printer is placed on a flat, stable

location that can support the following weight for each printer:

•SureColor T3270 - 119 lb (54 kg) (with 24” stand: 148 lb (67 kg))

4|Unpacking and Assembling the Printer

•SureColor T5270 - 185 lb (84 kg)

•SureColor T7270 - 203 lb (92 kg)

•SureColor T5270D - 260 lb (118 kg)

•SureColor T7270D - 293 lb (133 kg)

WARNING: Two people are required to unpack and install the SureColor T3070 printer; four people are

recommended to unpack and install the SureColor T5070, T5270D, T7270, and T7270D printers.

You need an even larger floor space to assemble the printer and stand, so be sure to prepare a large, clear

area before unpacking them. Also make sure you save the box and packaging in case you need to ship the

printer later.

The following items are included with your printer:

SureColor T3270/T5270/T7270

Note: Items inside the dashed lines are included with the optional stand for the SureColor T3270.

Note: For information on the optional hard disk and the Take up Reel, see the online User’s Guide.

Setting up the SureColor T3270/T5270/T7270 |5

SureColor T5270D/T7270D

Setting up the SureColor T3270/T5270/T7270

Assembling the Stand

1. Unpack the stand and make sure you have all of these items.

6|Assembling the Stand

2. Slide the horizontal strut into both of the legs as shown.

3. Use the long end of the hex wrench to tighten the pre-placed screws on each side of the horizontal

strut.

4. Lock the casters to fix the stand in place. (When moving the printer, unlock the casters.)

Mounting the Printer on the Stand |7

Mounting the Printer on the Stand

You need at least two people (SureColor T3270) or four people (SureColor T5270/T7270) to install the

printer and position it on the stand. When lifting the printer, only hold the areas shown below. Otherwise,

damage may occur.

Caution: Before installing the printer, lock the casters to make sure the stand is fixed in place.

1. Lift the printer onto the stand. Line up the marks on the bottom of the printer with the arrows on the

top of the stand legs before setting the printer down.

SureColor T3270

SureColor T5270/T7270

8|Attaching the Paper Basket

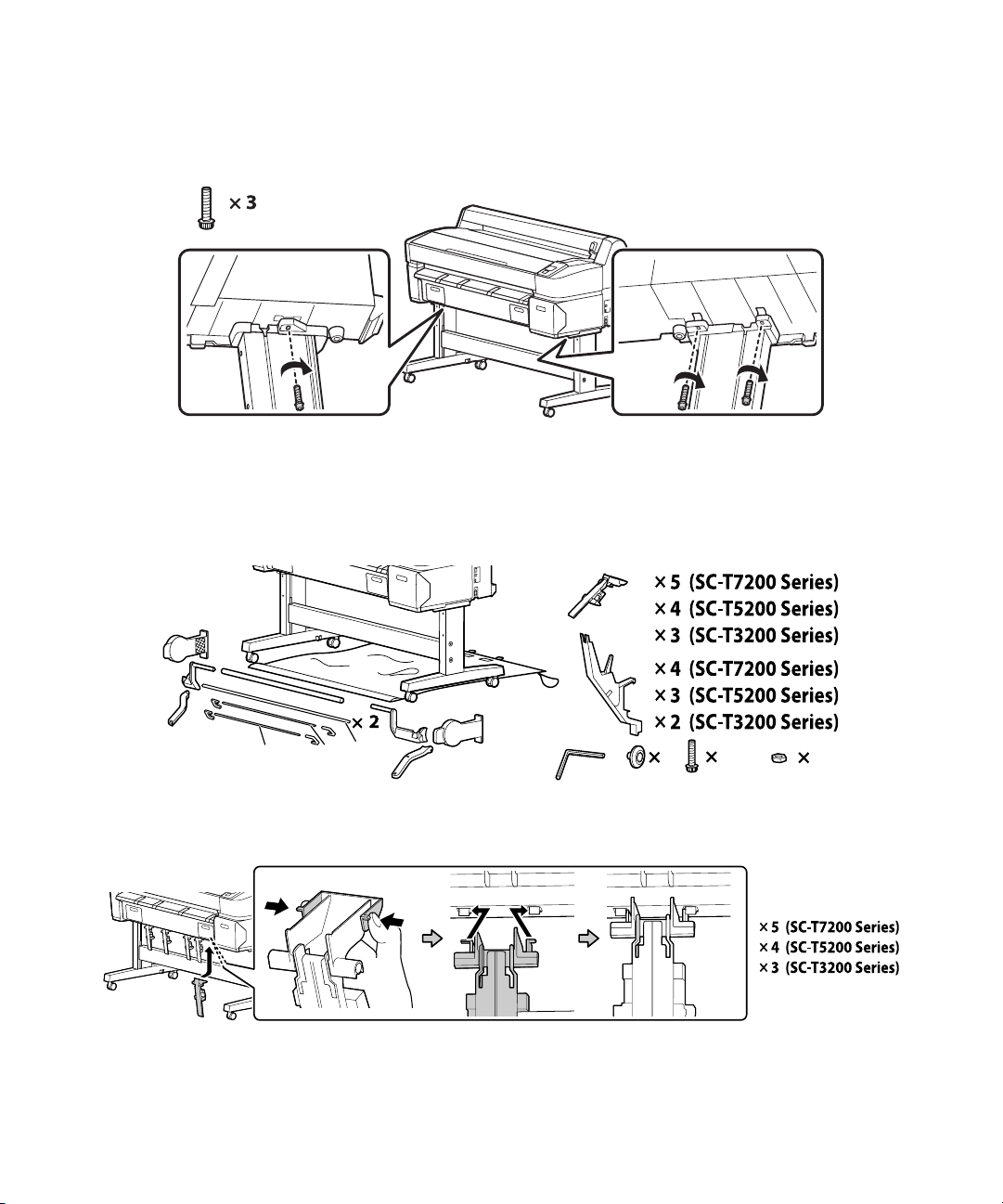

2. Attach the printer to the stand using three bolts.

Attaching the Paper Basket

The paper basket is a cloth sheet that attaches to the printer stand and catches your prints as they come

out. You need the following parts to assemble and attach the paper basket:

1. Attach the STABILIZERS as shown.

10 6

ABC2

Attaching the Paper Basket |9

2. Insert a plastic connector into the end of one of the shorter square poles.

3. Slide the pole through the holes in the STABILIZERS and attach the other plastic connector to the

end of the pole. Then, fasten the plastic connectors in place on each side of the stand as shown.

4. Attach the stack guides to the bottom of the printer. Make sure each guide snaps securely into place.

10 |Attaching the Paper Basket

5. Insert a plastic connector into the end of the second shorter square pole.

6. Slide the pole through the holes in the stack guides and attach the other plastic connector to the end of

the pole. Then, fasten the plastic connectors in place on each side of the stand as shown.

7. Insert the two longer square poles into the right-hand basket arm.
