Epson SureColor T-3270 Manuel utilisateur

v20150130

Epson SureColor T-3270/5270/7270

WinProle

INSTALLATION GUIDE

Windows XP, Vista, 7

DO NOT INSTALL THE EPSON (OEM) INKS OR PAPER THAT WERE PROVIDED WITH THE PRINTER.

CAUTION

1) Verify the version of the Windows operating system

2) Download and install the Epson printer driver

3) Congure the Epson printer driver

4) Download, install and register the SubliJet-E WinProle

5) Congure your design software* (i.e. CorelDRAW, Photoshop, Illustrator, etc)

6) Using the Sawgrass color palette*

SECTIONS:

The steps outlined below are required to complete the

installation and conguration process of the Epson

SC-T3270, 5270 or 7270 printer driver and SubliJet-E

WinProle on a computer running Microsoft Windows

8. For optimum results, perform the steps in the order

presented.

Page 1

Page 2

Page 10

Page 14

* Steps 1-4 are included in this document. Steps 5 and 6 are located on the SubliJet-E SC-T3270,

5270 and 7270 WinProle Installation and Conguration webpage on sawgrassink.com and can be

accessed by the links provided above.

Epson SC-T3270/5270/7270

Installation and Conﬁguration Guide

Step 1 of 6: Verify the Operating System Version

PAGE 1 of 20 >>

To begin, verify your version of the Windows operating system to download the compatible driver.

1) To check the version, click the Start button in the lower left corner of the Desktop. Then, right-click on

Computer and select Properties in the drop down list (see FIGURE 1).

FIGURE 1

2) The screen shown below should appear. Note the Windows Edition and System Type. The example

pictured below is running Windows 7 on a 64-bit operating system. Note your version and only download

the driver that is compatible with that version (see FIGURE 2).

FIGURE 2

Now that the version of the Windows operating system is known, proceed to Step 2, Epson Printer

Driver Download and Installation.

PAGE 2 of 20 >>

Epson SC-T3270/5270/7270

Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

The following instructions explain how to download and install the Epson printer driver on a computer

running Windows. These instructions feature Windows 7 and Internet Explorer 11. Your experience

may differ based on the operating system and internet browser being used.

1) Locate the Sawgrass Technologies website by entering sawgrassink.com in the address eld of your

web browser. Once there, hold the mouse arrow over Technical Support. From the drop down

list that appears select SubliJet-E, Epson SC-T3270/5270/7270, WinProle then Installation and

Conguration Instructions (see FIGURE 1).

FIGURE 1

C D E

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 3 of 20 >>

3) This will take you directly to the SC-T3270 section of Epson’s website. Click on Drivers and

Downloads (see FIGURE 3).

FIGURE 3

FIGURE 2

2) Once on the appropriate Installation and Conguration Instructions webpage for your setup, click on the

link in Step 3 for your particular printer, Install the Epson (OEM) driver. For these instructions, we will

install the Epson SC-T3270 driver but the T5270 and T7270 steps will be the same (see FIGURE 2).

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 4 of 20 >>

5) Click on the Download that is associated with the Driver and Utilities combo package only (Not the

Epson PS Folder Application and PS3 PostScript) (see FIGURE 5).

FIGURE 5

6) The download should begin automatically. If you do not see a download prompt within 5 seconds, click

download the le manually (see FIGURE 6).

FIGURE 6

4) Verify that the correct Operating System is selected. If so, click on Drivers (see FIGURE 4).

Note: At anytime during the download and installation process, your rewall or virus protection

software may present warnings. Make the appropriate selections necessary to continue.

FIGURE 4

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 5 of 20 >>

FIGURE 8

7) The following window will appear asking if you want to Run, Save or Cancel. Click Save (see FIGURE 7).

FIGURE 7

8) The le will begin downloading into the Downloads folder on your computer. When complete, the

download message at the bottom of the screen will give you the option to Run, Open Folder or View

downloads. Click Run (see FIGURE 8).

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 6 of 20 >>

9) An Epson Installer window will appear instructing you to click Ok to continue. Click OK. The WinZip

Self-Extractor will start running (see FIGURE 9).

FIGURE 9

FIGURE 10

10) You must accept the Software License Agreement before you can install the printer driver. If you agree

with the terms click Accept (see FIGURE 10).

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 7 of 20 >>

12) Next, select the software to install. Only install the Epson drivers and utilities. Uncheck the other

options. Click Install (see FIGURE 12).

FIGURE 12 B

11) In the Epson Software Installer screen that opens, select the printer to install. There are 5 options,

select either the SureColor T3270, SureColor T5270 or SureColor T7270. Then click Next

(see FIGURE 11).

FIGURE 11

SubliJet-E: Epson SC-T3270/5270/7270 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 8 of 20 >>

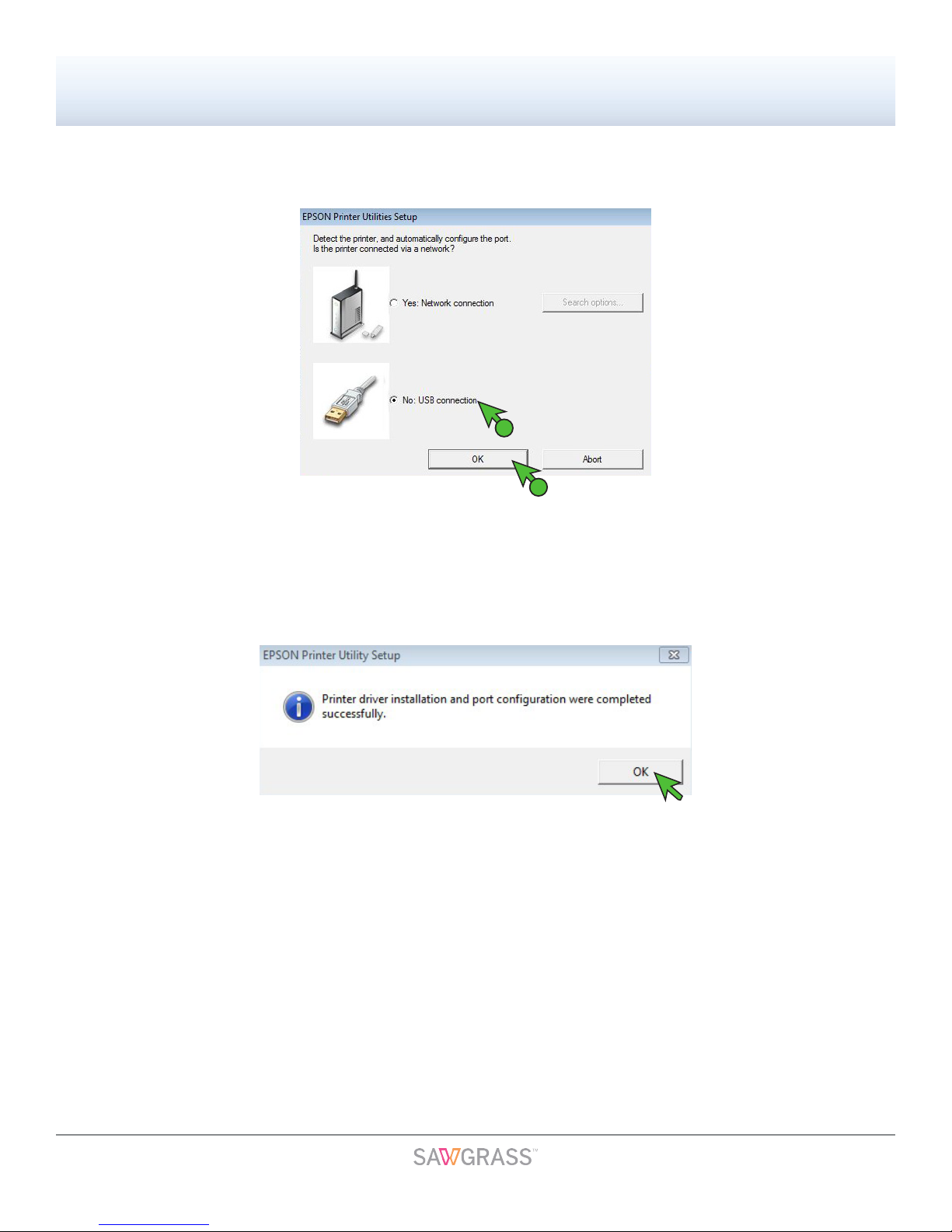

14) The following window will appear signifying that the installation was successful. Click OK to continue

the installation (see FIGURE 14).

FIGURE 14

13) Select whether this printer will be connected via a network. For this instance, select No: USB

connection. Then click OK (see FIGURE 13).

FIGURE 13
