Epson Stylus Pro 9890 Series Manuel utilisateur

DO NOT INSTALL THE EPSON (OEM) INKS OR PAPER THAT WERE PROVIDED WITH THE PRINTER.

POWER LOSS MAY CAUSE CARTRIDGE CHIP FAILURE. USE AN UNINTERRUPTIBLE POWER SUPPLY (UPS)

TO AVOID ACCIDENTAL POWER LOSS.

REMOVE CARTRIDGE BEFORE POWERING PRINTER OFF. FAILURE TO REMOVE CARTRIDGE PRIOR TO

POWERING OFF MAY RESULT IN CHIP FAILURE.

CARTRIDGE CHIP DOES NOT INDICATE DEPLETION. REPLACE CARTRIDGE ONCE THE EPSON DISPLAY

SHOWS 1% INK REMAINING. SOME RESIDUAL INK WILL REMAIN IN CARTRIDGE BAG SO THAT BAG WILL

NOT COLLAPSE. RUNNING CARTRIDGES DRY CAN RESULT IN INK DELIVERY SYSTEM FAILURE.

SAWGRASS DOES NOT CONDONE THE USE OF CHIP RESETTERS. RESETTING THE CHIPS CAUSES THE

CARTRIDGE TO FAIL TO DELIVER THE INK AS EXPECTED, POTENTIALLY DAMAGING THE VACUUM PUMP

AND/OR OTHER COMPONENTS OF THE INK DELIVERY SYSTEM.

CAUTION

Epson Stylus Pro 7890/9890

WinProle

INsTAllATION GUIde

Windows XP, Vista and 7

v20130619

SECTIONS:

The steps outlined below are required to complete the

installation and conguration process of the Epson

7890/9890 printer driver and SubliJet IQ Pro Photo

WinProle on a computer running Microsoft Windows. For

optimum results, perform the steps in the order presented.

1) Verify the version of the Windows operating system

2) Download and install the Epson printer driver

3) Congure the Epson printer driver

4) Download, install and register the SubliJet IQ Pro Photo WinProle

5) Congure your design software* (i.e. CorelDRAW, PhotoShop, Illustrator, etc.)

6) Using the Sawgrass color palette*

* Steps 1-4 are included in this document. Steps 5 and 6 are located on the SubliJet IQ Pro Photo

WinProle Installation and Conguration webpage on sawgrassink.com and can be accessed by the

links provided above.

Page 1

Page 2

Page 9

Page 13

Epson 7890/9890 – Installation and Conﬁguration Guide

Step 1 of 6: Verify the Operating System Version

PAGE 1 of 19 >>

To begin, verify your version of the Windows operating system to download the compatible driver.

1) To check the version, click the Start button in the lower left corner of the Desktop. Then, right-click on

Computer and select Properties in the drop down list (see FIGURE 1).

FIGURE 1

2) The screen shown below should appear. Note the Windows Edition and System Type. The example

pictured below is running Windows 7 on a 64-bit operating system. Note your version and only download

the driver that is compatible with that version (see FIGURE 2).

FIGURE 2

Now that the version of the Windows operating system is known, proceed to Step 2, Epson Printer

Driver Download and Installation.

Epson 7890/9890 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 2 of 19 >>

The following instructions explain how to download and install the Epson printer driver on a computer

running Windows. These instructions feature Windows 7 and Internet Explorer 9. Your experience may

differ based on the operating system and internet browser being used.

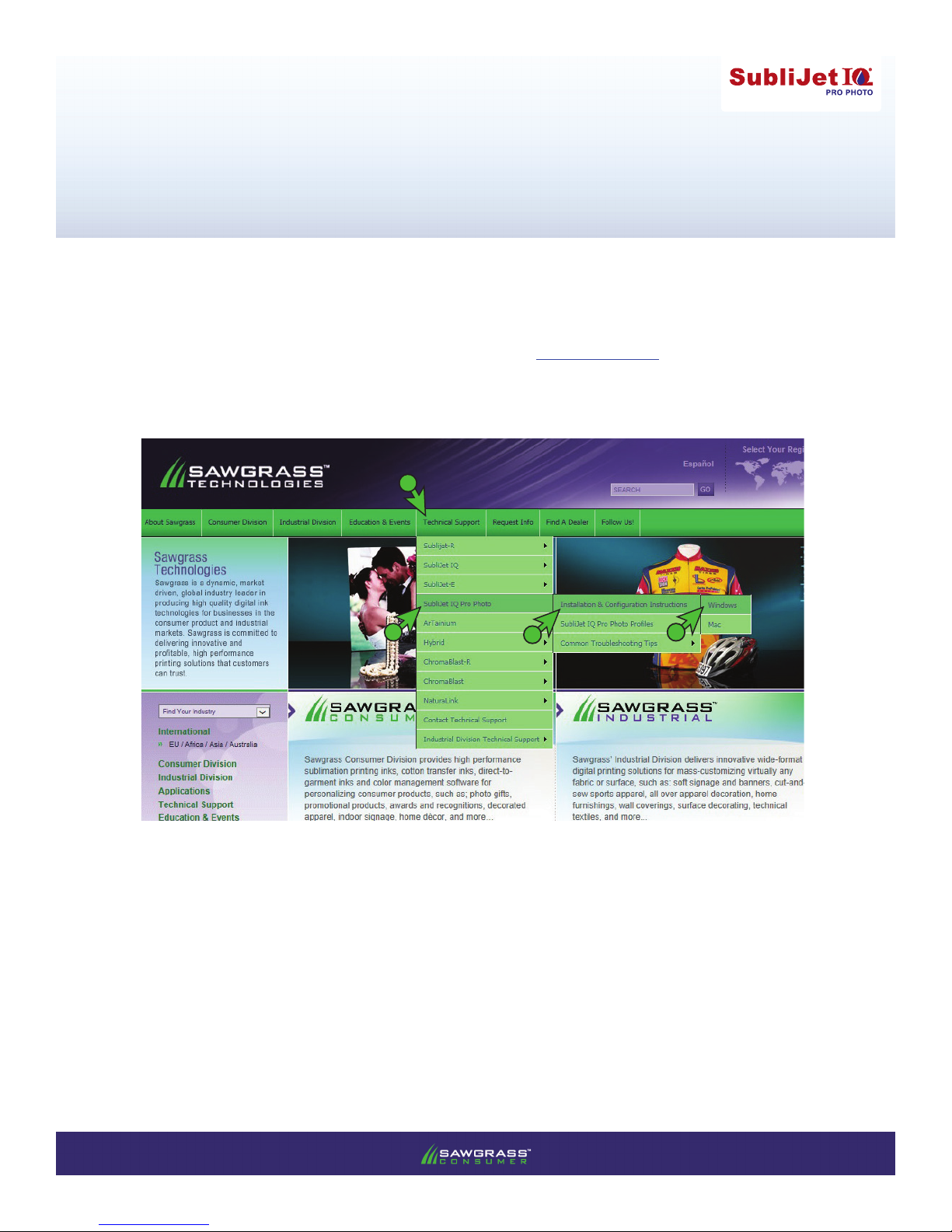

1) Locate the Sawgrass Technologies website by entering sawgrassink.com in the address eld of your

web browser. Once there, hold the mouse arrow over Technical Support. From the drop down

list that appears select SubliJet IQ Pro Photo, Installation and Conguration Instructions, then

Windows (see FIGURE 1).

FIGURE 1

SubliJet IQ Pro Photo: Epson Stylus Pro 7890/9890 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 3 of 19 >>

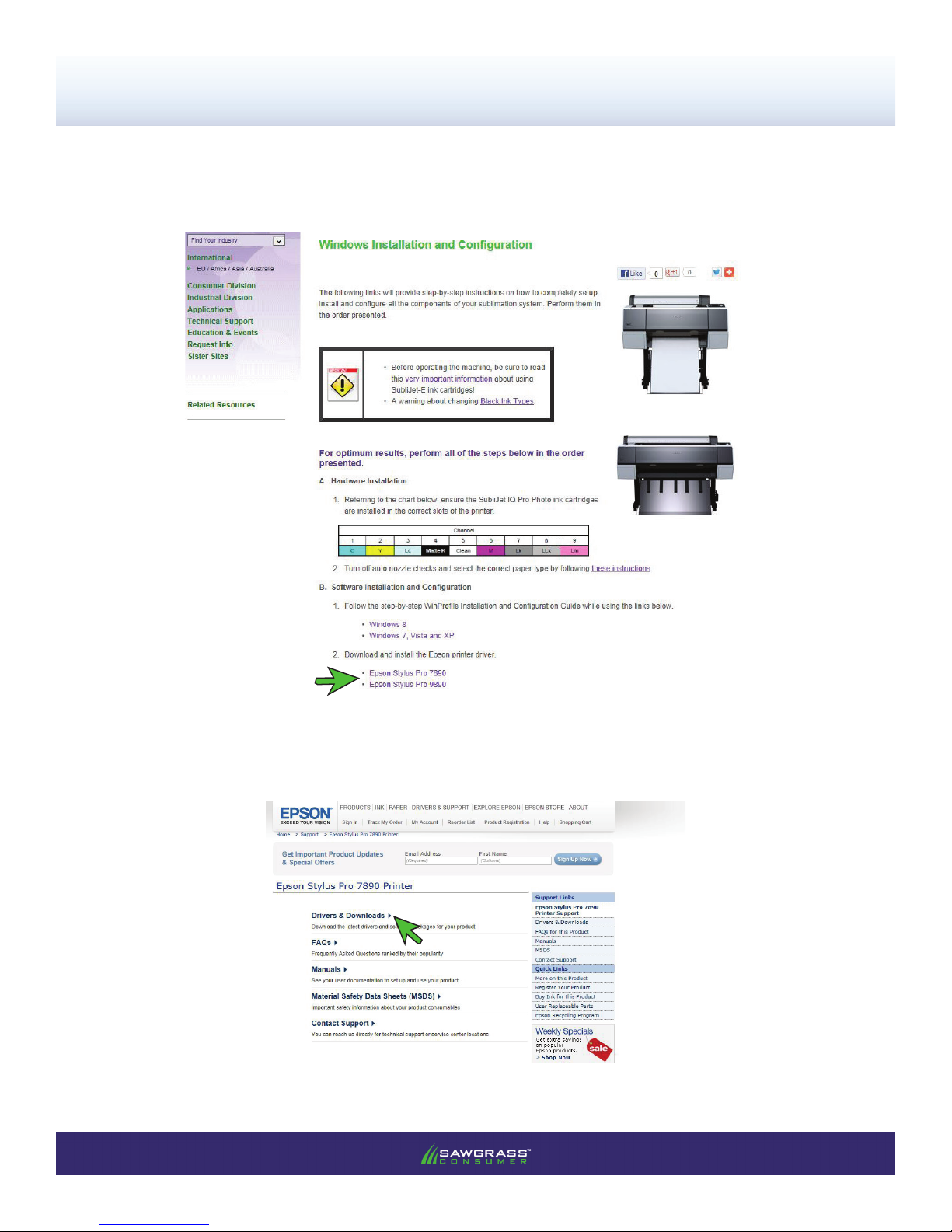

3) This will take you directly to the Stylus Pro 7890 or 9890 section of Epson’s website. Click on Drivers

and Downloads (see FIGURE 3).

FIGURE 3

2) Once on the appropriate Installation and Conguration Instructions webpage for your setup, click on the

link in Section B, Step 2, Download and install the Epson printer driver. Select either Epson Stylus Pro

7890 or 9890 depending on your printer (see FIGURE 2).

FIGURE 2

SubliJet IQ Pro Photo: Epson Stylus Pro 7890/9890 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 4 of 19 >>

5) Before the download begins, you will be asked to provide an email address. You may bypass this step

by clicking the Download button under the Download Only section (see FIGURE 5).

FIGURE 5

4) Verify that the correct Operating System is selected. If so, under the Drivers section click on

Download that is associated with the Printer Driver only (see FIGURE 4).

Note: SawgrassTechnologies does not recommend the combination package with the utilities be installed.

Note: At anytime during the download and installation process, your rewall or virus protection

software may present warnings. Make the appropriate selections necessary to continue.

FIGURE 4

SubliJet IQ Pro Photo: Epson Stylus Pro 7890/9890 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 5 of 19 >>

FIGURE 7

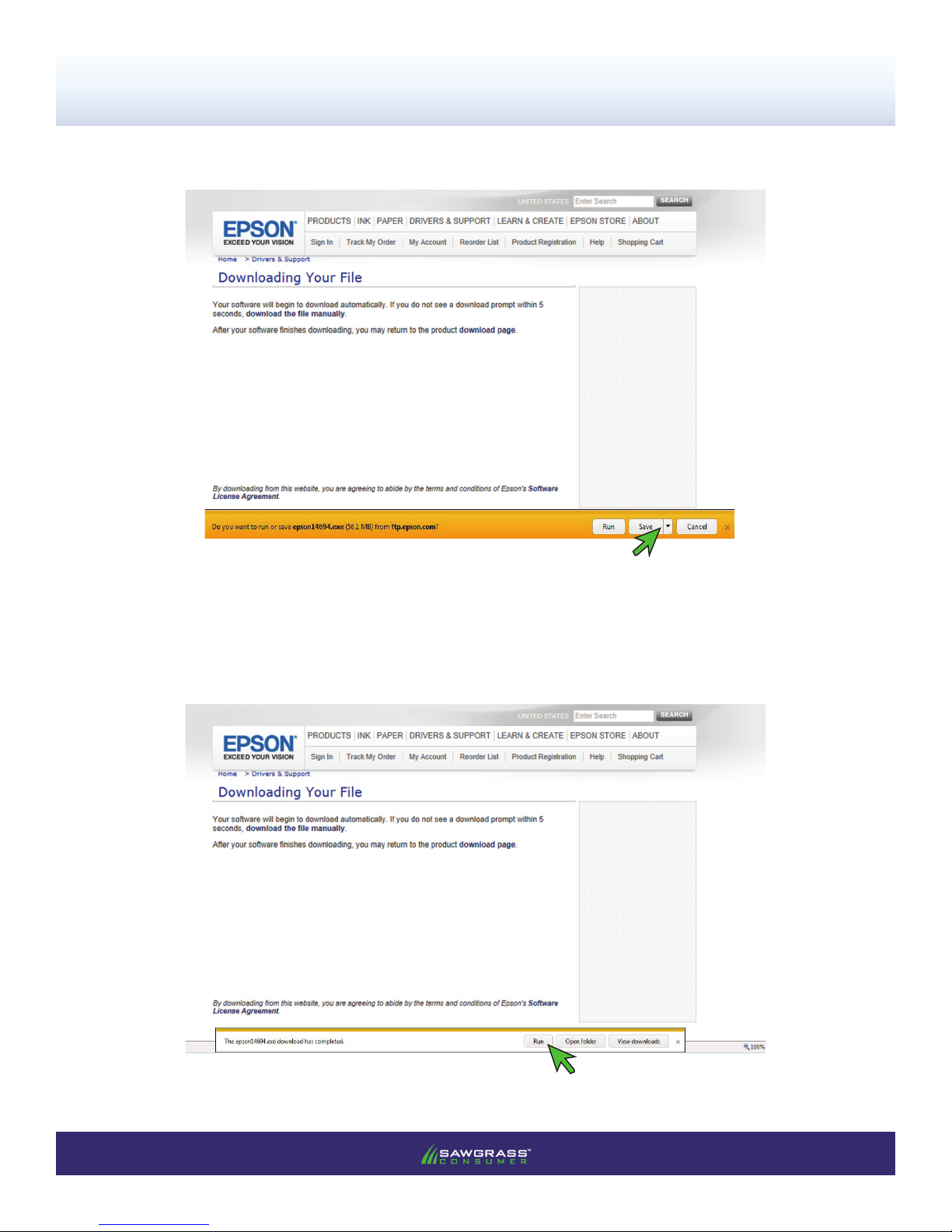

6) The following window will appear asking if you want to Run, Save or Cancel. Click Save (see FIGURE 6).

FIGURE 6

7) The le will begin downloading into the Downloads folder on your computer. When complete, the

download message at the bottom of the screen will give you the option to Run, Open Folder or View

downloads. Click Run (see FIGURE 7).

SubliJet IQ Pro Photo: Epson Stylus Pro 7890/9890 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 6 of 19 >>

8) An Epson Installer window will appear instructing you to click Ok to continue. Click OK (see FIGURE 8).

FIGURE 8

9) Before you extract the le, check Overwrite les without prompting and also check When done

unzipping open. Click Unzip to continue (see FIGURE 9).

FIGURE 9

10) The following window should appear when the les have been extracted successfully. Click OK to

continue (see FIGURE 10).

FIGURE 10

SubliJet IQ Pro Photo: Epson Stylus Pro 7890/9890 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 7 of 19 >>

11) Select the appropriate printer model. Click OK to continue (see FIGURE 11).

12) Select a language. Click OK to continue (see FIGURE 12)

FIGURE 11

FIGURE 12

13) A Printer Utilities Setup window will open that will search for the printer and congure the port. Make

sure the printer is turned on and connected via USB (see FIGURE 13).

FIGURE 13

SubliJet IQ Pro Photo: Epson Stylus Pro 7890/9890 – Installation and Conﬁguration Guide

Step 2 of 6: Epson Printer Driver Download and Installation

PAGE 8 of 19 >>

14) The following window will appear signifying that the installation was successful. Click OK to conclude

the installation (see FIGURE 14).

FIGURE 14

The Epson printer driver installation is complete. Proceed to Step 3, Epson Print Driver Conguration.
