Contents

Welcome! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Prepare to Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Choose Photos and Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Do More With Your Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Save Photos to a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Print From a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Print From an External Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Replace Print Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Take PictureMate With You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Set PictureMate Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Printer Care and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

PictureMate.book Page 1 Thursday, January 18, 2007 4:43 PM

4109192 Rev.0 4109192 Rev.0 4109192 Rev.0 4109192 Rev.0

1-B C 1-B M 1-B Y 1-B K

PictureMate

Snap and Flash are your easy-to-use,

personal photo labs. Just insert a digital camera

memory card and you’re ready to print brilliant, long-

lasting photos. Because PictureMate is light and

portable, you can print whenever and wherever you

take pictures. Plus, your PictureMate prints will be as

brilliant and vibrant generations from now as they are

today.

A Quick Introduction to the Digital

Photography Process

With film cameras, the process was

simple; buy film, take pictures, leave

the film at the photo lab, and come

back later for your photos and

negatives. Since you had negatives,

you could take them back later if you

wanted reprints.

The digital process is simple too, and it gives you

complete control. Just follow the basic steps shown on

the right.

1. Review and Delete

After you finish taking your photos, review

them on your digital camera’s screen.

Delete the photos you don’t want.

2. Print

Insert your camera’s memory card

in PictureMate, choose your

photos, and print.

3. Save

To preserve your digital photo files

(just like film negatives), save them to a CD, flash

drive, or your computer. Then you can reprint them

any time. (On PictureMate Flash, you can use the built-

in CD burner.)

4. Clear the Memory Card

After you save your photo files, use your camera to

delete them from your memory card so you have

space for more photos.

Welcome!

PictureMate.book Page 2 Thursday, January 18, 2007 4:43 PM

4109192 Rev.0 4109192 Rev.0 4109192 Rev.0 4109192 Rev.0

1-B C 1-B M 1-B Y 1-B K

Special Features

Printing with your PictureMate becomes even easier

with these special features:

From PictureMate’s photo viewer

screen, you can print all your photos

simply by choosing Select All and

pressing Print. Or you can select

just the ones you want. (See

page 8.)

You can crop photos right from

PictureMate—no computer required.

(See page 17.)

If your camera supports DPOF

(Digital Print Order Format), you can

pre-select which photos to print

while the memory card is still in your

camera. Then, when you insert the

card into PictureMate, it knows

which photos you chose. Just press

Print. (See page 13.)

If you have a PictBridge

- or USB DP

(USB Direct Print)-enabled camera, you

can connect the camera to PictureMate

and control printing right from your

camera. (See page 42.)

You can add decorative frames

(including Disney

character frames)

to your photos and see them on the

PictureMate screen before you print.

(See page 22.)

If you want to print outdoors or in other

places without convenient electrical

outlets, you can buy the optional

PictureMate battery. (See page 53.)

If you have a Bluetooth

-enabled PDA,

cell phone, or computer, you can send

photos wirelessly to PictureMate for

printing using the optional Epson

Bluetooth Photo Print Adapter. (See

page 43.)

PictureMate.book Page 3 Thursday, January 18, 2007 4:43 PM

4109192 Rev.0 4109192 Rev.0 4109192 Rev.0 4109192 Rev.0

1-B C 1-B M 1-B Y 1-B K

Supported Photo Formats

Make sure your photos meet these requirements for

printing with your PictureMate (without a computer):

●JPEG files or uncompressed TIFF files only

●Resolutions ranging from 80 × 80 to

9200 × 9200 pixels

PictureMate recognizes and prints the first 999 photos

on your memory card.

Where to Find Information

Your manuals cover both PictureMate Snap and Flash.

See your Start Here sheet to unpack,

set up, and use your PictureMate.

Basics (this book) explains how to print

photos directly from your memory card,

from your computer, and from other

devices, replace the Print Pack, and

solve problems.

The on-screen User’s Guide installed

from the CD provides comprehensive

information and instructions for using

PictureMate.

Where to Get a Print Pack and

Accessories

The PictureMate 200 Series Print Pack

has everything you need to print in one

box: photo paper and a photo cartridge.

You can buy a Print Pack wherever

PictureMate is sold or from retailers that

sell printer supplies.

The following Print Packs are available:

You can also buy a Print Pack and other PictureMate

accessories from an Epson authorized reseller. To find

the nearest reseller, call 800-GO-EPSON

(800-463-7766). Or you can purchase online at

www.epsonstore.com (U.S. sales) or www.epson.ca

(Canadian sales).

Print Pack

contents

Part

number

Supported

PictureMate models

Glossy photo paper

(150 sheets) and

photo cartridge

T5846 All PictureMate 200

Series models

Matte photo paper

(100 sheets) and

photo cartridge

T5845-M

PictureMate.book Page 4 Thursday, January 18, 2007 4:43 PM

4109192 Rev.0 4109192 Rev.0 4109192 Rev.0 4109192 Rev.0

1-B C 1-B M 1-B Y 1-B K

Before you print with PictureMate, you need to:

●Load paper (below)

●Insert your memory card (see page 6)

When you finish printing, you can remove your

memory card (see page 7).

Note: The illustrations in this manual show the PictureMate

Snap, but the instructions cover both PictureMate Snap and

PictureMate Flash, except where noted.

Loading Paper

Caution: Don’t load plain paper; this may damage PictureMate.

Move the handle to the back.

Open the paper support.

Press the Open button to open the output tray.

Prepare to Print

PictureMate.book Page 5 Thursday, January 18, 2007 4:43 PM

4109192 Rev.0 4109192 Rev.0 4109192 Rev.0 4109192 Rev.0

1-B C 1-B M 1-B Y 1-B K

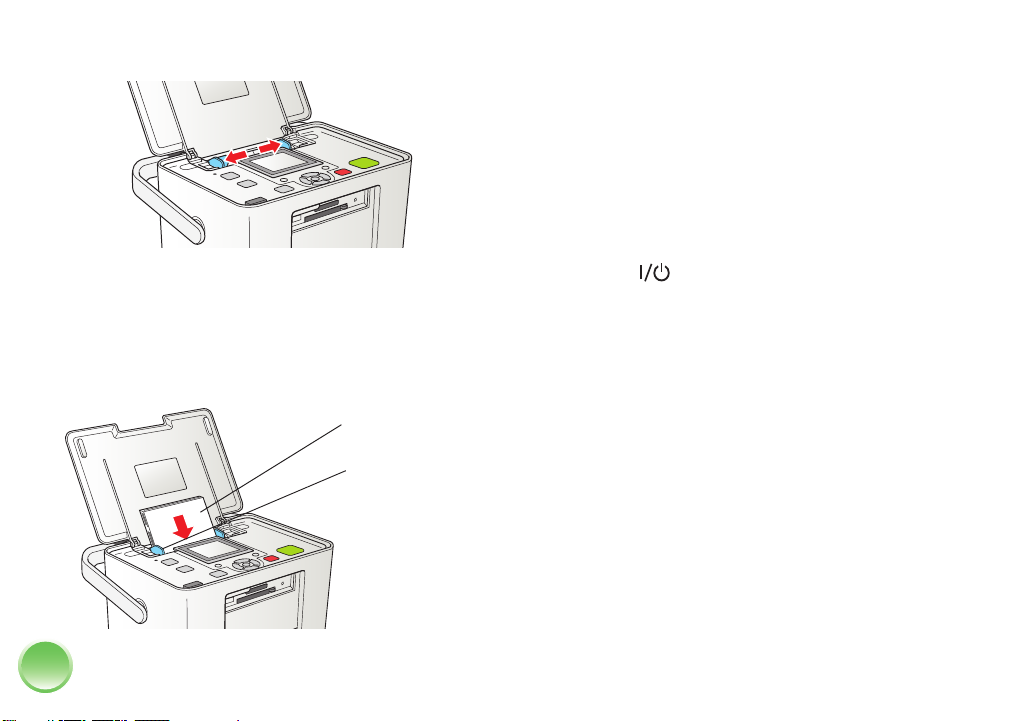

Slide the edge guides outward.

Create a stack of up to 20 sheets of paper and

separate the sheets slightly by fanning them.

Place your paper into the slot between the edge

guides with the glossy or whiter side up. Slide the

edge guides inward slightly.

Note: Load a maximum of 20 sheets at a time. Load

your paper glossy or whiter side up to prevent smearing.

Store any unused paper in the original package

and keep it flat in a dry area to prevent curling.

Note: When you need more paper, order a PictureMate 200

Series Print Pack. See page 48 for more information.

Inserting Your Memory Card

Press the On button to turn on PictureMate.

Press the Open button to open the output tray, if

necessary.

Insert the memory card into the correct slot, as

shown on the next page. Insert just one card at a

time.

Note: PictureMate can’t read multiple cards at once.

Push the card in carefully until it stops (it won’t go

in all the way).

When the card is in, the memory card light comes

on and begins to flash.

Caution: Do not remove a card while the memory card

light is flashing; you may lose photos on your card.

Load glossy or

whiter side up

Make sure paper

is beneath arrow

on edge guides

PictureMate.book Page 6 Thursday, January 18, 2007 4:43 PM

4109192 Rev.0 4109192 Rev.0 4109192 Rev.0 4109192 Rev.0

1-B C 1-B M 1-B Y 1-B K

Now you are ready to choose your photos and start

printing. (See page 8.)

Removing Your Memory Card

When you are ready to remove a memory card, first

make sure the memory card light is not flashing.

Caution: Do not remove a card while the memory card light is

flashing; you may lose photos on your card.

Top slot: Push in the card and release it, then pull it

straight out of the slot.

Bottom slot: Push in and release the card release

button so it pops out. Then push in the button again to

eject your card and pull it straight out of the slot.

Microdrive

CompactFlash

(Type I and II)

(Secure Digital) and SDHC

(High Capacity)

miniSD

* and miniSDHC *

microSD * and microSDHC *

MMC

(MultiMediaCard

)

xD-Picture Card

xD-Picture Card (Type M and Type H)

Sony Memory Stick

Memory Stick Duo

Memory Stick PRO

Memory Stick PRO Duo

MagicGate

Memory Stick **

MagicGate Memory Stick Duo

Top slot:

Bottom slot:

* Requires adapter

** Maximum capacity 128MB

Memory card light

PictureMate.book Page 7 Thursday, January 18, 2007 4:43 PM

4109192 Rev.0 4109192 Rev.0 4109192 Rev.0 4109192 Rev.0

1-B C 1-B M 1-B Y 1-B K

After you insert your camera’s memory card,

PictureMate displays your photos on the photo viewer

screen (shown at right).

Note: You can adjust the angle of the photo viewer screen by

raising or lowering the top of the screen. Be sure to lower the

screen before closing the printer lid.

Then you can view your photos and choose from the

following options for printing them:

●Print individual photos on your card (see page 9)

●Print all the photos on your card (see page 10)

●Select a range of photos to print (see page 11)

●Print photos taken on specific dates (see page 12)

If your camera supports DPOF (Digital Print Order

Format), you can use it to pre-select the photos and

copies you want to print. PictureMate then prints the

selected photos. (See page 13.)

To view a slideshow of your photos, see page 13.

To store and display your printed photos, see page 14.

Viewing Photos on PictureMate

PictureMate’s photo viewer screen makes it easy to

select the photos you want to print.

Choose Photos and Print

Layout

icon

Total number of prints Number of copies of this photo

Guide to

available

options

Icons

showing

selected

settings

Navigation buttons

for selecting photos or settings

Left

selection

button

(selects

current

option on

screen)

Right

selection

button

(selects

current

option on

screen)

PictureMate.book Page 8 Thursday, January 18, 2007 4:43 PM

4109192 Rev.0 4109192 Rev.0 4109192 Rev.0 4109192 Rev.0

1-B C 1-B M 1-B Y 1-B K

Changing How Many Photos Display on the

Screen

After inserting a memory card, you can

change how many photos are displayed

on the photo viewer screen. Press the

Display button on the control panel

to switch between 1, 6, and 15 photos.

You can also select whether a photo displays with or

without the guide (the information bar near the

bottom of the photo; see page 55).

Note: You can select how many photos display on the screen

whenever you insert a card. (See page 55.)

Responding to a Blank Screen (Power Saver)

If you are not using PictureMate, the screen goes dark

after about 13 minutes to save power.

Press any button to turn it back on.

Printing Individual Photos

If you have many photos on your camera’s memory

card, you can select just the ones you want to print.

After inserting a card, press lor rto view your

photos.

When you see a photo you want, press OK to

select it for printing.

The selected photo is highlighted orange. If you’ve

set the screen to display one photo at a time, an

orange frame shows you the area that will print.

Note: If you want to edit your photo, see page 15 for

instructions.

PictureMate.book Page 9 Thursday, January 18, 2007 4:43 PM

Autres manuels pour PictureMate Snap PM 240

Table des matières

Autres manuels Epson Imprimante

Epson

Epson Stylus CX4100 Series Manuel utilisateur

Epson

Epson RP-U420 Series Manuel utilisateur

Epson

Epson M200 Manuel utilisateur

Epson

Epson FX-2180 - Impact Printer Manuel utilisateur

Epson

Epson GQ-3500 Manuel utilisateur

Epson

Epson ColorWorks C3500 Manuel utilisateur

Epson

Epson R200 - Stylus Photo Color Inkjet Printer Manuel utilisateur

Epson

Epson 4000 - Stylus Pro Color Inkjet Printer Manuel d'installation et d'exploitation

Epson

Epson Stylus Photo 820 Manuel utilisateur

Epson

Epson STYLUS CPD-7738 Mode d’emploi

Epson

Epson 500DN - B Color Inkjet Printer Guide de référence

Epson

Epson 875DC - Stylus Photo Color Inkjet Printer Manuel utilisateur

Epson

Epson 11880 - Stylus Pro Color Inkjet Printer Manuel utilisateur

Epson

Epson SureColor T7770D Manuel utilisateur

Epson

Epson WF-C20600 Manuel utilisateur

Epson

Epson XP-220 Manuel utilisateur

Epson

Epson Stylus C62 Mode d’emploi

Epson

Epson Stylus Photo 890 Manuel utilisateur

Epson

Epson 7800 - Stylus Pro Color Inkjet Printer Manuel utilisateur

Epson

Epson ActionPrinter 4000X Manuel utilisateur

Epson

Epson SureColor P-Series Manuel utilisateur

Epson

Epson B-310N - Business Color Ink Jet Printer Guide de référence

Epson

Epson AL-M200 Series Manuel utilisateur

Epson

Epson PictureMate PM 270 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur
