As an ENERGY STAR Partner, EPSON has determined that

this product meets the ENERGY STAR guidelines for energy

efficiency.

The International ENERGY STAR Office Equipment Program is a voluntary partner-

ship with the computer and office equipment industry to promote the introduction of

energy-efficient personal computers, monitors, printers, fax machines, copiers, and

scanners, in an effort to reduce air pollution caused by power generation.

■Symbols used in the Manual

wWarnings

must be followed carefully to avoid bodily injury.

cCautions

must be observed to avoid damage to your equipment.

Notes

contain important information and useful tips on the operation of your printer.

PapU

booklet.fm Rev. A

A5-Format BookletENew.fm

4/28/99 Durchlauf 2

Proof-Abzeichnung:

K. Nishi _______

N.Nomoto _______

J.Hoadley _______

Setting Up the Printer

■Setting Up the Printer

❚Unpacking the Printer

Besides this guide, your printer box should include EPSON printer software disk, a

Notice Sheet, and the following items:

Note:

Depending on your printer model, the power cord may be permanently attached to the

printer.Also, theshapeofthepowercordplugvariesdependingonthecountryinwhich

you bought your printer; be sure the plug you have is the right one for your location.

cCaution:

There are several models of the printer designed for different voltages, and

it is not possible to adjust the printer for use with another voltage. If the

label on the back of the printer does not show the correct voltage for your

country, contact your dealer.

You must remove all protective materials packed around and inside your printer before

you set it up and turn on the power. Follow the directions on the Notice Sheet (packed

with the printer) to remove these materials. A screwdriver has been provided for

removing the transportation screw.

screwdriver ribbon cartridge

printer

power cord

paper separator

paper guide

PapU

booklet.fm Rev. A

A5-Format BookletENew.fm

4/28/99 Durchlauf 2

LProof-Abzeichnung:

K. Nishi _______

N.Nomoto _______

J.Hoadley _______

8Setting Up the Printer

Save all packing and protective materials, including the transportation screw and the

protective locking clips on the paper tension unit, in case you need to ship the printer

in the future. It should always be transported in its original packaging or equivalent

materials.

❚Choosing a Place for the Printer

Follow the guidelines below when selecting a location for your printer.

■Place the printer on a flat, stable surface. The printer will not operate properly if it

is tilted or at an angle.

■Place the printer where you can easily connect it to a network interface cable, if

necessary.

■Leave adequate room around the printer for easy operation and maintenance.

■Avoid using or storing the printer in places subject to rapid changes in temperature

and humidity. Also keep it away from direct sunlight, strong light, heat sources, or

excessive moisture or dust.

■Avoid places subject to shocks and vibrations.

■Place the printer near a wall outlet where you can easily unplug the power cord.

■Avoid electrical outlets controlled by wall switches or automatic timers. An

interruption in power can erase information in the memory of your printer or

computer.

Also avoid outlets on the same circuit as large motors or other appliances that can

cause voltage fluctuations.

■Keep the entire computer system away from potential sources of electromagnetic

interference, such as loudspeakers or the base units of cordless telephones.

■Use a grounded power outlet; do not use an adapter plug.

■Make sure the paper path is clear and unobstructed before you print on continuous

paper.

■If you plan to use a printer stand, follow these guidelines:

■Use a stand that supports at least 26 kg (57.8 lb).

■Never use a stand that tilts the printer. The printer should always be kept level.

■Position your printer’s power cord and interface cable so they do not interfere with

paper feeding. If possible, secure the cables to a leg of the printer stand.

PapU

booklet.fm Rev. A

A5-Format BookletENew.fm

4/28/99 Durchlauf 2

Proof-Abzeichnung:

K. Nishi _______

N.Nomoto _______

J.Hoadley _______

Setting Up the Printer

❚Positioning the continuous paper supply

Beforeusingcontinuouspaper,makesureyou lineupyourpapersupply withthetractor

feeder so the paper feeds smoothly into the printer, as shown below.

❚Installing or Replacing the Ribbon Cartridge

EPSONrecommendsusinggenuine EPSON ribboncartridges(S015086).Products not

manufactured by EPSON may cause damage to your printer not covered by EPSON’s

warranties.

1. Make sure the printer is turned off. The printer is off when the surface of the

Operate button is even with the button protectors as shown.

cCaution:

Moving the print head while the printer is on may damage the printer.

2. If the printer is connected to an electrical outlet, unplug it from the outlet.

When using the option When using the option

PapU

booklet.fm Rev. A

A5-Format BookletENew.fm

4/28/99 Durchlauf 2

LProof-Abzeichnung:

K. Nishi _______

N.Nomoto _______

J.Hoadley _______

10 Setting Up the Printer

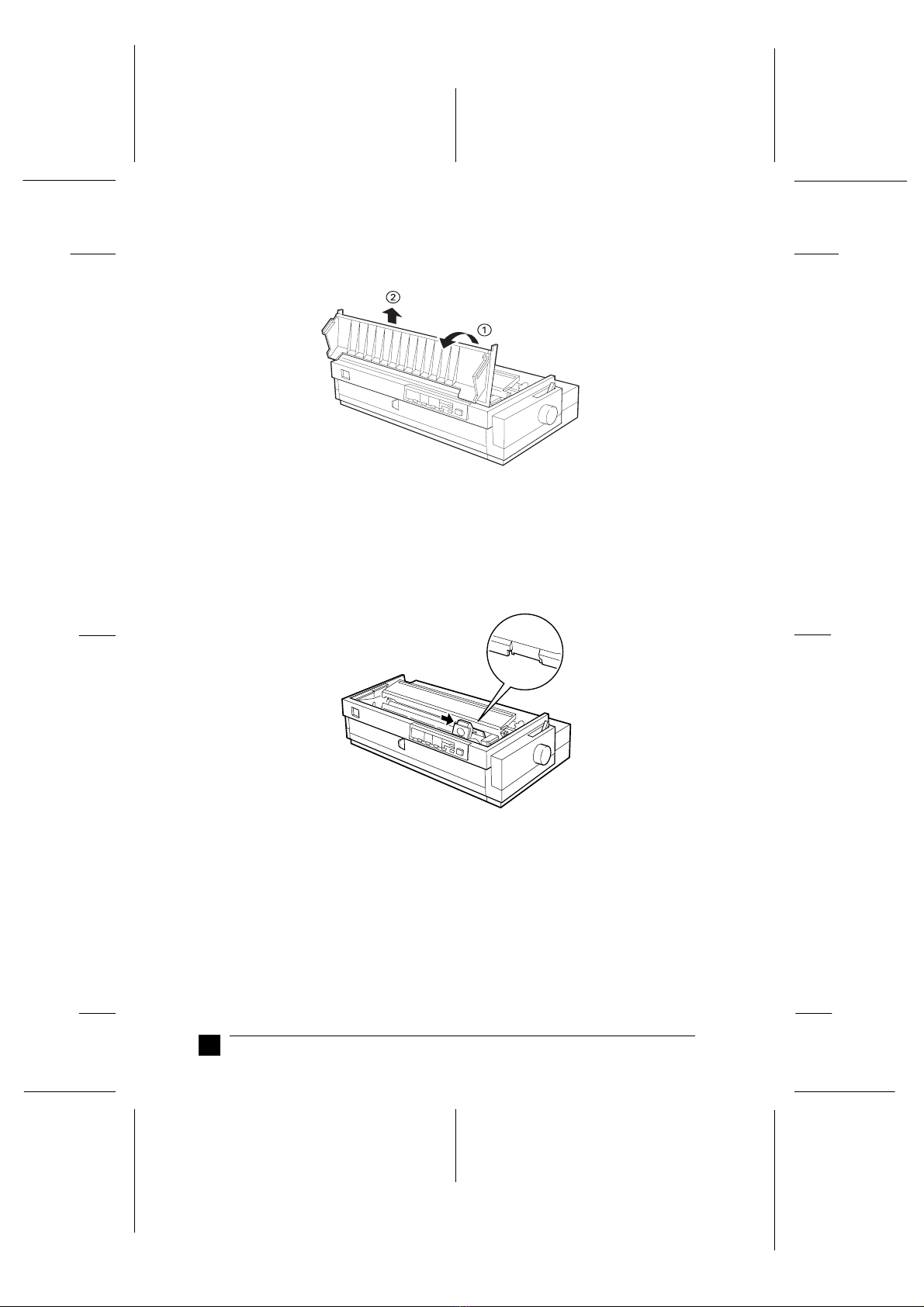

3. Lift the printer cover by its back edge and then pull it straight up and off.

4. Slide the print head to the ribbon installation position (the indented portion of the

paper tension unit) by hand.

Note:

When the pull tractor is installed, you can replace the ribbon cartridge when

the print head is not in the ribbon installation position.

Autres manuels pour LQ-2080

Table des matières

Autres manuels Epson Imprimante

Epson

Epson Stylus Photo 2100 / 2200 Manuel utilisateur

Epson

Epson ET-2400 Manuel utilisateur

Epson

Epson TM-P20II Manuel utilisateur

Epson

Epson Stylus Pro 7890 Series Manuel utilisateur

Epson

Epson LQ-1000 - Impact Printer Dimensions

Epson

Epson Stylus Color Stylus Color II Manuel utilisateur

Epson

Epson TM-P80 Manuel utilisateur

Epson

Epson SureColor P800 Guide d'installation

Epson

Epson 7880 - Stylus Pro Color Inkjet Printer Manuel utilisateur

Epson

Epson Stylus Photo 925 Manuel utilisateur

Epson

Epson Stylus Photo P50 Guide de l'utilisateur

Epson

Epson Stylus Color 480SXU Manuel utilisateur

Epson

Epson 3880 - Stylus Pro Color Inkjet Printer Instructions d'installation et d'entretien

Epson

Epson Stylus Pro 7500 Manuel

Epson

Epson Stylus C65 Manuel utilisateur

Epson

Epson WorkForce Pro WF-M5190DW Manuel utilisateur

Epson

Epson Ecotank ET-2721 Manuel utilisateur

Epson

Epson 1520 - Stylus Color Inkjet Printer Manuel utilisateur

Epson

Epson Stylus Color 900 Manuel utilisateur

Epson

Epson EPL-6000 Manuel utilisateur

Epson

Epson 4000 - Stylus Pro Color Inkjet Printer Manuel utilisateur

Epson

Epson Stylus Color 400 Manuel utilisateur

Epson

Epson Stylus C44 Mode d’emploi

Epson

Epson 1400 - Stylus Photo Color Inkjet Printer Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur
