F6070 Setup Guide

2|Unpacking and Assembling the Printer

Read all of these instructions before using your printer. Also be sure to follow all warnings and instructions

marked on the printer and in the User’s Guide.

Unpacking and Assembling the Printer

Before beginning assembly, make sure you have sufficient space to set up and use the printer. The

following illustration shows the minimum space required for using the printer:

Callout Distance

1 150 mm (5.9 in.)

2 1278 mm (50.3 in.)

3 1413 mm (55.6 in.)

4 150 mm (5.9 in.)

5 600 mm (23.6 in.)

6 1768 mm (69.6 in.)

7 10 mm (0.4 in.)

Unpacking and Assembling the Printer |3

When choosing a place for the printer, leave adequate room for easy access and ventilation. Avoid locations

subject to direct sunlight, excessive heat, humidity, or dust. Be sure the printer is placed on a flat, stable

location that can support 198 lb (90 kg).

Caution: Six people are required to unpack and install the printer.

You need a large floor space to assemble the printer and stand, so be sure to prepare a large, clear area

before unpacking them. Also make sure you save the box and packaging in case you need to ship the

printer later.

The following items should be included with your printer:

Printer

Software and guides

Printer

Power cord

Roll paper adapter

4|Unpacking and Assembling the Printer

Stand

The items below can be found in the “Ink Supply System Cover 2” box.

Horizontal strut

Legs

Hex wrench

Mounting brackets

Assembling the Stand |5

Assembling the Stand

Unpack the stand and make sure you have all of these items:

Note: You will also need a hex screwdriver.

1. Remove the tape from the horizontal strut. Slide the horizontal strut into both of the legs as shown.

6|Assembling the Stand

2. Use the long end of the hex wrench to tighten the pre-placed screws on each side of the horizontal

strut.

3. Remove the four screws as shown.

Assembling the Stand |7

4. Remove the plastic piece as shown.

5. Fasten the mounting piece to the bracket using two B screws.

6. Slide the mounting piece into the groove, as shown.

8|Installing the Printer

7. Insert the plastic piece and tighten the screws.

Installing the Printer

You need six people to install the printer; four people to carry it and two people to position it on the stand.

1. Lock the casters.

Installing the Printer |9

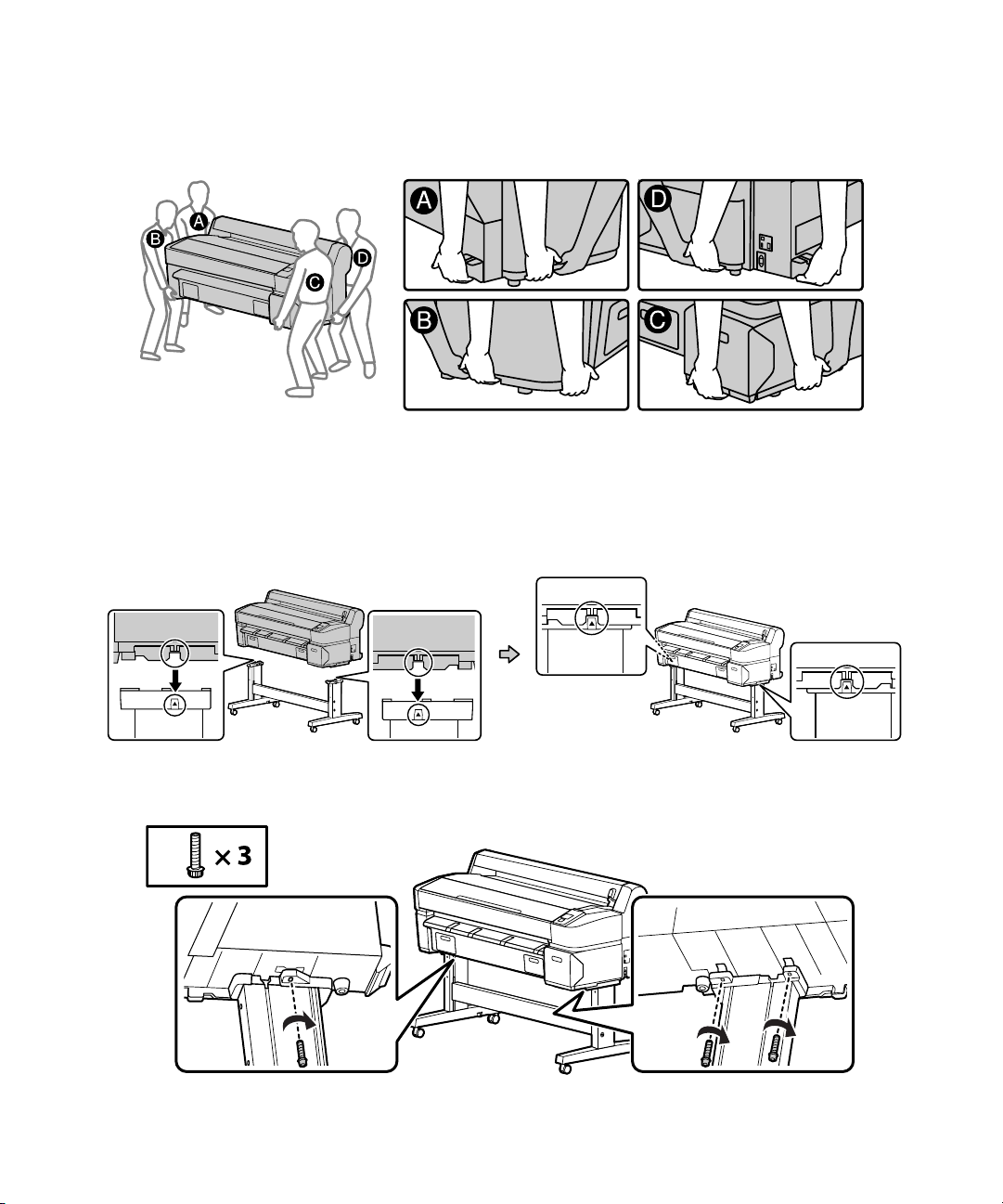

2. Using four people, lift the printer as shown.

Caution: When lifting the printer, only hold the highlighted areas, otherwise the printer may not operate or

print normally.

3. Lift the printer onto the stand. Line up the marks on the bottom of the printer with the arrows on the

top of the stand legs before setting the printer down.

4. Attach the printer to the stand using three A screws.

10 |Setting the Language

5. Contact a service engineer to attach the Epson Genuine Ink Supply System, Ink Supply System

Cover 2, and to adjust the printer.

Caution: Do not turn the printer on until the service engineer’s work is complete.

6. Plug the power cord into the printer.

7. Plug the power cord into a properly grounded electrical outlet.

Caution: Use only the type of power source indicated on the printer’s label.

Setting the Language

1. Turn on the printer, if necessary.

2. Press the Menu button.

3. Press dor uto select Preferences, and press OK.

4. Press dor uto select Language, and press OK.

5. Select your language, and press OK.

6. Press the ybutton until you return to the main menu.
