Epson EPL-7500 Manuel

EPL-7500

SETUP SHEET

CONTENTS

Unpacking

Assembling

Paper Loading

Test Printing

Selecting the Interface

Connecting the Printer to the Computer

Macintosh

Users : You must

follow the steps on page 6

before you connect your printer.

EPSON

Printed in Japan 90.11-2 4000350

G01-00

Unpacking

Remove the accessory pack

from the large box.

Remove the printer from

the box and set it on a flat,

stable surface.

Remove the plastic bags

protecting the printer and

the paper cassette. Save the

packing material in case you

need to transport the

printer.

Locate the protective plate.

Use the wrench to unscrew

the two screws as shown

below; open the printer and

remove the protective plate.

Power cord

-Wrench

Accessory pack

Printer

Assembling

Installing the imaging cartridge

To install the imaging cartridge and the cleaning pad, follow the

instructions in the imaging cartridge box.

CAUTIONS:

Do not turn the cartridge upside down.

Never transport the printer with the imaging cartridge

installed.

-2-

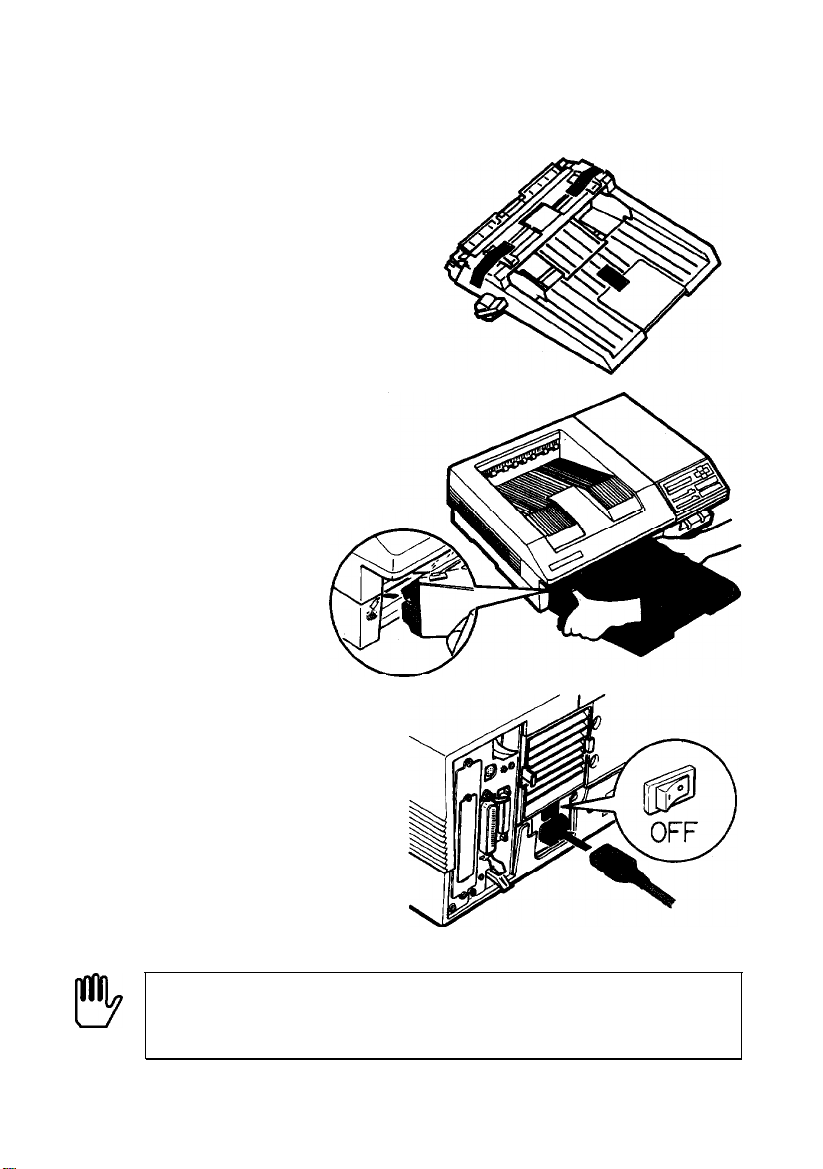

Installing the paper cassette

Attaching the power cord

Make sure the power switch

is turned off.

Remove the tapes from the

paper cassette.

Align the small notches on

either side of the paper

cassette with the metal pins

inside the printer; then

lower the paper cassette

into place. Make sure the

notches fit securely onto the

pins on the printer. If the

paper cassette is not

installed properly, an OUT

OF PAPER error may

appear on the display.

Insert the power cord into

the socket at the back of

the printer. Then plug the

other end of the power cord

into a properly-grounded

outlet.

I!!!!9

WARNING: If the rated voltage of the printer and your

outlet voltage do not match, contact your dealer for

assistance. Do not plug in the power cable.

-3-

Paper Loading

Push the paper set lever

forward to the manual

position.

Slide the paper guides on

the paper cassette all the

way open.

Take a stack of paper (high-

quality copier paper is

preferred). Tap the edge of

the paper on a flat surface.

Insert the stack of paper

into the paper cassette,

making sure that the top of

the stack does not exceed

the maximum height mark

inside the cassette.

Slide the paper guides

together until they both rest

lightly against the paper.

Pull the paper set lever back

to the automatic position.

-4-

Test Printing

Make sure the imaging cartridge is installed. Then, turn on the

printer by pressing the vertical bar (

on the power switch.

2. After about 70 seconds, the printer automatically begins

printing a start page.

CAUTION: Be careful not to touch the fuser, which is

marked by a caution label. Also, don’t touch the areas

marked by high voltage labels.

Selecting the Interface

IBM

and Compatible Computer Users

Users of IBM and compatible computers can skip to the next

section because the parallel interface is already selected.

Macintosh

Users

Follow the simple 10-step procedure below to select the EPL-7560’s

AppleTalk®interface before connecting your Mac®to the printer.

CAUTION: Do not connect the cable before you have

selected the AppleTalk interface on the EPL-7500.

To select the AppleTalk interface, follow these steps:

Turn on the printer and wait until it prints the start page.

Press ON LINE to take the printer off line.

Press

SelecType

twice. The level 2 light comes on.

If INTERFACE does not appear on the display, press

once. INTERFACE appears on the display.

-6-

5. Press

1,1

once and then press

until APPLETALK

appears on the display.

WF’LETFILK

6. Press

once. SELECTED appears briefly on the display;

then APPLETALK* appears. The asterisk (*) shows that

AppleTalk is selected.

7. Press

once, then

once.

8. Press

until SAVE LEVEL 2 appears on the display.

SQl..JE

LEI..!EL

9. Press

once.

10.

Turn the printer off.

CAUTION: If you connect an AppleTalk cable, never

operate the printer with the SelecType INTERFACE

APPLETALK setting may leave your printer inoperable or

-7-

Connecting the Printer to the Computer

Make sure both the printer and the computer are off.

Connect a properly-shielded interface cable to the appropriate

interface connector, as shown below.

Parallel interface

Plug the other end of the cable into your computer.

Next, read the instructions on the disk package.

IBM is a registered trademark of International Business Machines Corporation.

AppleTalk, Macintosh, and Mac are registered trademarks of Apple Computer, Inc

-8-
