This supplement includes update information for the EPL-5700.

Installing the Printer Driver

Please change

the

first sentence of step 6 at page 13 of your

Getting Ready! manual.

Replace:

If you inserted the CD-ROM

in drive

click

OK.

With:

In you inserted the CD-ROM in drive D, type D: \ WIN95 and

click OK.

lnstalling Screen fonts

Follow these steps to install the screen fonts:

Make sure Windows is running and the printer is turned off.

Insert the CD-ROM that comes with your printer into your

CD-ROM drive D(or E).

If you are using Windows 3.1, Windows 3.11 for Workgroups

or Windows NT 3.51, make sure the Program Manager

window is open; then choose

Run

on the File menu. If you

are using Windows 95, or Windows NT 4.0, click Start, then

choose

Run,

Type

D:\EPSETUP

(or

E:\EPSETUP);

then click

OK.

1998 by SEIKO EPSON CORPORATION, Nagano,

Japan

40008983

M01-00

[Excluding Windows NT 3.51 users]: In the dialog box that

appears, double-click Install Font Manager; or you can

install by selecting Install Font Manager and then clicking

the arrow at the top right.

[For Windows NT 3.51 users only]: In the dialog box that

appears, double-click Install Screen Fonts; or you can install

by selecting Install Screen Fonts and then clicking the arrow

at the top right.

Follow the on-screen instructions.

When installation is complete, click OK.

The screen fonts are now installed on your computer.

EPSON Status Monitor

Utility

Though the EPSON Status Monitor utility that comes with your

printer can monitor a local printer, it can not monitor a network

printer. Please disregard the description about networks in

chapter 4 of your

Reference Guide.

Please use the EPSON Status Monitor 2 utility that comes with

the optional Ethernet Interface Card

(C82357*

C82362*)

monitor or get the current status of a network printer.

Please note even if you select Thin as the Paper Type setting in

the Advanced menu, it is treated as Normal.

Remote Control Panel

Utility

Please replace the Paper Type description at page 5-14 of your

Reference Guide

with the following:

Paper Type

Allows you to use various types of paper. Thick is useful for

thick paper with a width less than 132 mm wide.

Transparency is useful for transparencies. Always use Normal

unless print quality problems occur.

Replacing the

developer

cartridge

Please disregard the “Toner Out” description in chapter 6 (such

as on pages 6-3 or 6-26) of your Reference Guide. Replace the

developer cartridge, when the “Toner Low” message appears

and the printed image becomes light or faint.

Safety Information

Please change the appropriate part of your Reference Guide.

at page 5, line 15-16:

This is a semiconductor laser. The maximum power of the laser

diode is 5 mW and the wavelength is 770-810 nm

at page 6, line 21-22:

Dette er en halvleder laser. Maksimal effeckt til laserdiode er 5

mW og bolgelengde er 770-810 nm.

Please add the following description at the bottom of page 6.

Warning:

Use of controls or adjustments or performance of procedures

other than those

specified

in this guide may result in

hazardous radiation exposure.

Also please change the lines 1 to 7 on page 8 to the following.

Maximum Radiation Power: 0.73 mW at laser aperture of the

print head unit

Wavelength: 770-810

This product employs a Class IIIb Laser Diode. The Laser

Diode and Scanning Polygon Mirror are incorporated in the

print head unit. The print head unit is NOT A FIELD SERVICE

ITEM. The print head unit should not be opened under any

circumstance.

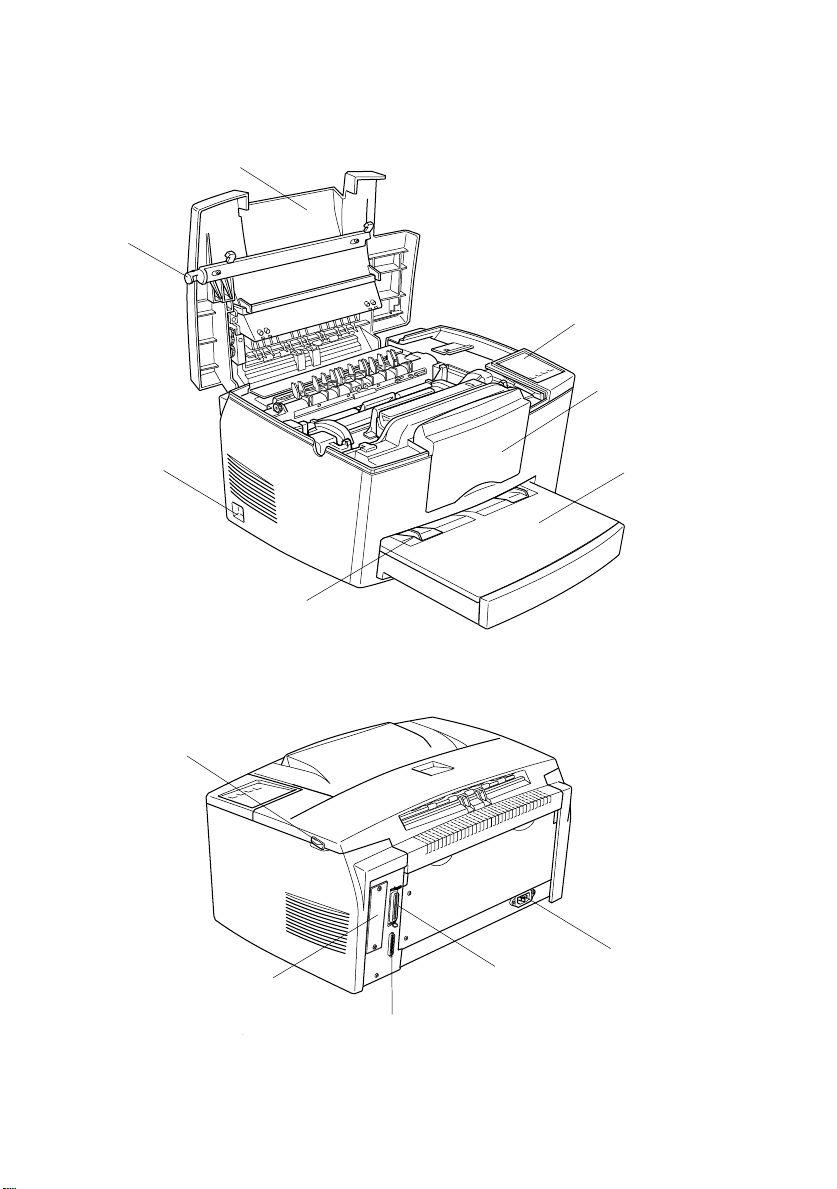

Printer Parts

Proof Sign-off:

Nishi _______

Hoadley _______

extension

output tray

latch

control panel

paper tray

printer cover

power switch

manual feed

slot

r0-1

AC inlet

Type B interface

connector

(option) Serial interface

connector

Parallel interface

connector

paper path selector

cor-1

BF Ktwk Rev.B

A5 size cover

97/12/26 pass 0
