Epson Color Printer Manuel utilisateur

STYLUS COLOR 640

Page 8

STYLUS COLOR 640

Page 7

STYLUS COLOR 640

Page 6

STYLUS COLOR 640

Page 5

REF. PART NO. DESCRIPTION QTY

755 1031178 BUSHING, FASTEN, SHAFT, LEFT 1

756 1037724 PAPER SUPPORT, SUUPPORT, UPPER 1

757 1042947 HOLDER, PAPER SUPPORT, SUPPORT, UPPER 1

758 1036849 EXTENSION SPRING, 0.29 1

759 1037575 COVER CARTRIDGE, BK 1

760 1040656 COVER, CARTRIDGE, C; B 1

761 1030378 SEPARATOR, CARTRIDGE, BK 1

762 1030379 SEPARATOR, CARTRIDGE, C 1

763 2021854 DETECTOR, HP 1

764 1043828 CORK; B 1

765 1034969 CLEANER, HEAD, ASP 1

END

STYLUS COLOR 640

Page 4

REF. PART NO. DESCRIPTION QTY

589 B101254590 LEAF SPRING 1

590 1030972 PLAIN WASHER, 2.6X0.5X8 1

700 F059000 PRINT HEAD, IJ160-0A0 KIT – F059000-D 1

701 1030383 FASTENER, HEAD 1

702 1030954 TORSION SPRING, 49 1

703 1024130 C.B.P-TITE SCREW, 3X6, F/ZN 4

704 2023353 CABLE, HEAD 1

705 1030386 HOLDER, CABLE 1

706 1033220 SPACER, CABLE HEAD 1

707 1038244 FRAME, ASF; B 1

708 1040589 HOPPER 1

709 1040590 EDGEGUIDE 1

710 1040606 CORK 1

711 1030429 SLIDER, EDGE GUIDE 1

712 1030960 COMPRESSION SPRING, 3.23 1

713 1033016 PAD, BRAKE EDGE GUIDE 1

714 1040645 REINFORCEMENT PLATE, HOPPER 1

716 1040661 PAD ASSY., RIGHT 1

717 1030450 LEVER, PAD, RELEASE, RIGHT 1

718 1030420 ROD SPRING, HOLDER, PAD 2

719 1040608 HOLDER, EDGE GUIDE, RIGHT 1

720 1036867 COMPRESSION SPRING, 1.17 2

721 1036874 EXTENSION SPRING, 0.62 2

722 1040595 LEVER, PAPER RETURN, RIGHT 1

723 1040646 EXTENSION SPRING, 0.294 2

724 1040596 ROLLER, LD, SUPPORT 2

725 1040648 HOLDER, ROLLER, LD, SUPPORT, RIGHT 1

726 1040660 PAD ASSY., LEFT 1

727 1030449 LEVER, PAD, RELEASE, LEFT 1

728 1040602 HOLDER, EDGE GUIDE, LEFT 1

729 1040594 LEVER, PAPER RETURN, LEFT 1

730 1040647 HOLDER, ROLLER, LD, SUPPORT, LEFT 1

731 1040658 ROLLER ASSY., LD, LEFT 1

732 1040659 ROLLER ASSY., LD, RIGHT 1

733 1040597 COVER, ROLLER, LD, LEFT 1

734 1040598 COVER, ROLLER, LD, RIGHT 1

735 1036868 COMPRESSION SPRING, 1.961 2

736 1038211 LEVER, FASTEN, EDGEGUIDE; B 2

737 1030959 EXTENSION SPRING, 0.088 2

738 1040601 SHAFT, ROLLER, LD 1

739 1042067 LEVER, HOPPER, RELEASE 2

740 1040607 WHEEL, DETECT 1

741 1030951 LEVER, BRAKE 1

742 1030970 PAD, BRAKE 1

743 1030966 TORSION SPRING, 41.2 1

744 1030456 BUSHING, FASTEN, SHAFT 1

745 1040599 SHEET, PAPER FEED 2

746 1040600 HOLDER, SHEET, PAPER FEED 2

747 1005416 SHAFT, MOUNT, CR 1

748 1032300 C.P.S-TITE(P4), 3X6, F/ZN 1

750 1040588 SPUR GEAR, 34 1

751 1030419 PAPER GUIDE, LOWER 1

752 1030372 POROUS PAD, INK EJECT, LARGE 2

753 1030374 TRAY, POROUS PAD 1

754 1040873 SPACER, TRAY 1

STYLUS COLOR 640

Page 3

REF. PART NO. DESCRIPTION QTY

527 1031164 C-RING 3

528 1030967 PLAIN WASHER, 12.2X0.5X15 2

529 1040586 ROLLER, ASSY., PAPER EJECT 1

530 1030422 BUSHING, 6 2

531 B150300711 RETAINING RING 1

532 1030424 SPUR GEAR, 36 1

533 1040576 SPUR GEAR, 11 1

534 1030971 PLAIN WASHER, 4.1X0.5X6.5 2

535 1040585 PAPER GUIDE, FRONT 1

536 1042582 GROUNDING WIRE, EJ 1

538 1040574 FRAME, PAPER EJECT 1

539 1042338 HOLDER, STAR WHEEL, RIGHT 1

540 1042339 HOLDER, STAR WHEEL, LEFT 1

541 1032723 HOLDER, STARWHEEL, FRONT 1

542 1030415 STAR WHEEL ASSY., 8 (NATURAL) 20

543 1033652 STAR WHEEL, 8; B 1

544 1032244 ROD SPRING, STAR WHEEL 14

545 1030408 PAPER GUIDE, UPPER 5

546 1032646 PAPER GUIDE, RIGHT 1

547 1030414 PAPER GUIDE, LEFT 1

548 1030968 SHAFT, PAPER GUIDE, UPPER 6

549 1030969 SHAFT, ROLLER, DRIVEN 6

550 1038961 ROLLER, DRIVEN; D 12

551 1030956 TORSION SPRING, 117.6 6

552 2022329 CIRCUIT ASSY, PE 1

553 1030411 HOLDER, PE 1

554 1030410 LEVER, PE 1

555 1030958 TORSION SPRING, 0.22 1

556 1042648 SHEET, GUIDE PLATE, CABLE 1

557 1040575 GUIDE PLATE, CABLE 1

558 1032719 SHEET, CABLE 1

559 2021854 DETECTOR, HP 1

560 1032426 CARRIAGE ASSY. 1

561 1030380 LEVER, ADJUST 1

562 1030381 GROUNDING PLATE, HEAD 1

563 1030382 OIL PAD 1

564 1030387 SLIDER, CR 1

565 1041884 TIMING BELT 1

566 1030391 SHAFT, CR, GUIDE 1

567 1031313 PULLEY ASSY., DRIVEN 1

568 1030389 HOLDER, PULLEY, DRIVEN 1

569 1030955 COMPRESSION SPRING, 19.6 1

570 1037577 LEVER, PG 1

571 1030395 LEVER, PG, SUPPORT 1

572 1032240 TORSION SPRING, 63.7 1

573 1040653 COMBINATION GEAR 6, 34.4 1

574 1040652 COMBINATION GEAR 8, 30 1

576 1034669 POROUS PAD, SLIDER, CAP 1

577 1040644 BUSHING, FASTEN, COMBINATION GEAR 1

578 1023219 PUSHING NUT, 2 1

579 2028816 HARNESS, HP 1

580 2028815 HARNESS, PE 1

581 2028817 HARNESS, ASF 1

586 1015240 C.C.S.SCREW 2

587 B300204211 C.B.S. SCREW 19

588 1032300 C.P.S-TITE(P4), 3X6, F/ZN 2

STYLUS COLOR 640

Page 2

REF. PART NO. DESCRIPTION QTY

D4 2014230 DIODE 1

F1 X502036070 FUSE 1

IC1 2023322 MICRO CONTROLLER, TMP95C061BF 1

IC10 2024977 TIMER IC 1

IC11 2014681 EEPROM, AT93C46-10SC 1

IC14 2017973 HIC 1

IC2 2026760 GATE ARRAY 1

IC3 X630114030 IC SOCKET 1

IC5 2023181 D-RAM 1

IC7 2026633 HIC, H8D2813E 1

IC9 2024507 RESET IC, M62030FP 1

Q1 2019965 TRANSISTOR 1

Q7 1040157 HEAT SINK 1

Q7 2024208 TRANSISTOR 1

Q8 1040157 HEAT SINK 1

Q9 1040157 HEAT SINK 1

Q9 2024209 TRANSISTOR 1

R166 2006289 CHIP RESISTOR 1

R167 2006289 CHIP RESISTOR 1

R22 X193211012 CHIP RESISTOR 1

R53 X193211012 CHIP RESISTOR 1

R84 2024308 METAL FILM RESISTOR 1

R93 2024307 METAL FILM RESISTOR 1

300 2025775 BOARD ASSY., POWER SUPPLY 1

330 2023343 WIRE HARNESS 1

400 2006741 POWER CABLE, BS31303SA-SR-10A 1

401 2018028 HARNESS 1

450 2023066 BOARD ASSY., PANEL 1

500 2028550 PRINTER MECHANISM(ASP) M4L10-100 1

501 1040655 FRAME ASSY., LEFT 1

502 2028086 MOTOR ASSY., PF 1

503 1039368 SPUR GEAR, 23.2 1

504 1030453 COMBINATIONGEAR, 16, 40.8 1

505 1030343 FRAME, RIGHT 1

506 1040571 FRAME, TOP 1

507 1031323 MOTOR ASSY, CR 1

508 1040515 PUMP ASSY. 1

509 1042881 CAP ASSY. 1

510 1030345 FRAME, BOTTOM 1

511 1032969 SHEET, PROTECTION, HEAD 1

512 1030344 FRAME, FRONT 1

513 1030392 BUSHING, PARALLELISM ADJUST, LEFT 1

514 1030393 BUSHING, PARALLELISM ADJUST, RIGHT 1

515 1030417 PAPER GUIDE, REAR 1

516 1041663 ROLLER, PF 1

517 1030957 COMPRESSION SPRING, 5.85 1

518 1037093 BUSHING, 12, LEFT 1

519 1030454 LEVER, CHANGE 1

520 1030452 SPUR GEAR, 26.4 1

521 1030975 SPACER, C-RING 2

522 1032301 SCALLOP SPRING PIN-AW, 2X16, F/B 1

523 1030965 COMPRESSION SPRING, 0.9 1

524 1030402 SPUR GEAR, 67.2 1

525 1037094 SPACER, FASTEN, ROLLER, PF 1

526 1037095 SPACER, FASTEN, ROLLER, PF; B 1

STYLUS COLOR 640

(INCLUDES DETAILS OF NEWLY-AVAILABLE PRINT-HEAD KITS)

Page 1

SHADED ROWS IINDICATE MAJOR ITEMS

REF. PART NO. DESCRIPTION QTY

100 1039820 HOUSING; B 1

101 1039830 COVER, PRINTER; B 1

102 1040615 PAPER SUPPORT; B 1

103 1039828 STACKER ASSY.; B 1

104 1039829 PANEL ASSY., RIGHT; B 1

105 1030603 SHIELD PLATE, PANEL 1

106 1039827 HOUSING, PANEL, LEFT; B 1

107 1037312 BUTTON, P/S; B 1

108 1030669 GROUNDING PLATE 2

109 1030609 COVER, SHIELD PLATE, M/B, RIGHT 3

110 1030610 COVER, SHIELD PLATE, M/B, LEFT 1

111 1030608 COVER, CABLE 2

112 1037313 COVER, INLET, UPPER; B 1

113 1037314 COVER, INLET, LOWER; B 1

114 1032587 SHIELD PLATE, M/B; C 1

115 1041678 LOGO PLATE 1

116 1038233 HOUSING, SUPPORT, RIGHT; B 1

117 1038234 HOUSING, SUPPORT, LEFT; B 1

119 1033230 FOOT 5

121 B010103311 C.P.SCREW 2

122 B300204211 C.B.S. SCREW 23

123 1032538 C.B.(O) SCREW, 4X5, F/ZG 1

124 B300204411 C.B.S. SCREW 4

125 1005019 C.B.P-TITE SCREW, 3X8, F/ZN 3

126 1012350 C.B.P-TITE, 3X10, F/ZN 2

128 1031165 MINI CLAMP 1

180 1041680 LABEL CAUTION 1; B 1

183 1037833 LABEL LEVER CART. BLACK 1

184 1037835 LABEL LEVER CART. COLOUR 1

200 2027863 BOARD ASSY., MAIN 1

IC3 2029011 EP-ROM, TDZ00 1

BAT1 2027639 BATTERY HOLDER 1

BAT1 X505000700 LITHIUM BATTERY 1

BAT1 Y502002001 SPONGE TAPE 1

C15 2004332 ELECTROLYTIC CAPACITOR 1

C16 2023447 ALUMINIUM ELECTROLYTIC CAPACITOR 1

C27 2023050 ALUMINIUM ELECTROLYTIC CAPACITOR 1

C42 2023447 ALUMINIUM ELECTROLYTIC CAPACITOR 1

C59 2023447 ALUMINIUM ELECTROLYTIC CAPACITOR 1

C65 2004332 ELECTROLYTIC CAPACITOR 1

C66 2004332 ELECTROLYTIC CAPACITOR 1

CN1 2013284 CONNECTOR 57RE-40360-830B(D7B) 1

CN10 2005704 CONNECTOR 1

CN11 2007079 PHOTO MICROSENSOR 1

CN3 2023034 CONNECTOR 1

CN4 2022864 CONNECTOR 1

CN5 X600440310 CONNECTOR 1

CN6 2017936 CONNECTOR 1

CN7 2017936 CONNECTOR 1

CN8 2023336 CONNECTOR 1

CR1 2021879 CERAMIC OSCILLATOR 1

CR2 2023326 CERAMIC OSCILLATOR 1

CR3 2023154 QUARTZ OSCILLATOR 1

D1 2002872 DIODE 1

D2 2014230 DIODE 1

REV. 04 10002

103

400

123

400 for EAI

400 for ETT

100

124

101

115

126

751

752

753

500

126

125

105

450

107

122

106

124

180

182

for LATIN

124

401

EXPLODED DIAGRAM FOR EPSON STYLUS COLOR 640 (1/3)

for EUR,S.E.ASIA,OCEANIA,EKL,RUSSIA

102 for USA

102 for EUR.,S.E.ASIA,OCEANIA

EKL,RUSSIA

104

181

for LATIN

185

for CHINA

769

586

501

502

587

503

750

587

504

725

724

732

734

733

731

724

745

746

742

741 720 729

723

736

737 738

735

739

728

718

726 727 709

764

712 711

707

713 708

714 703

703

710

736

739

748

737

744

740

747

763

721

720

735

722 723

719

718

716

717

565

506

587

558

587

556

587

557

758

756

757

559 587

505 122

116

108

114

121

112

122

110

122

579

580

581

330

510

128

511

122

200

122

587

122

300

111

113

121

587

569

568

721

755

743

730

534

530

587

532

574

578

573

590

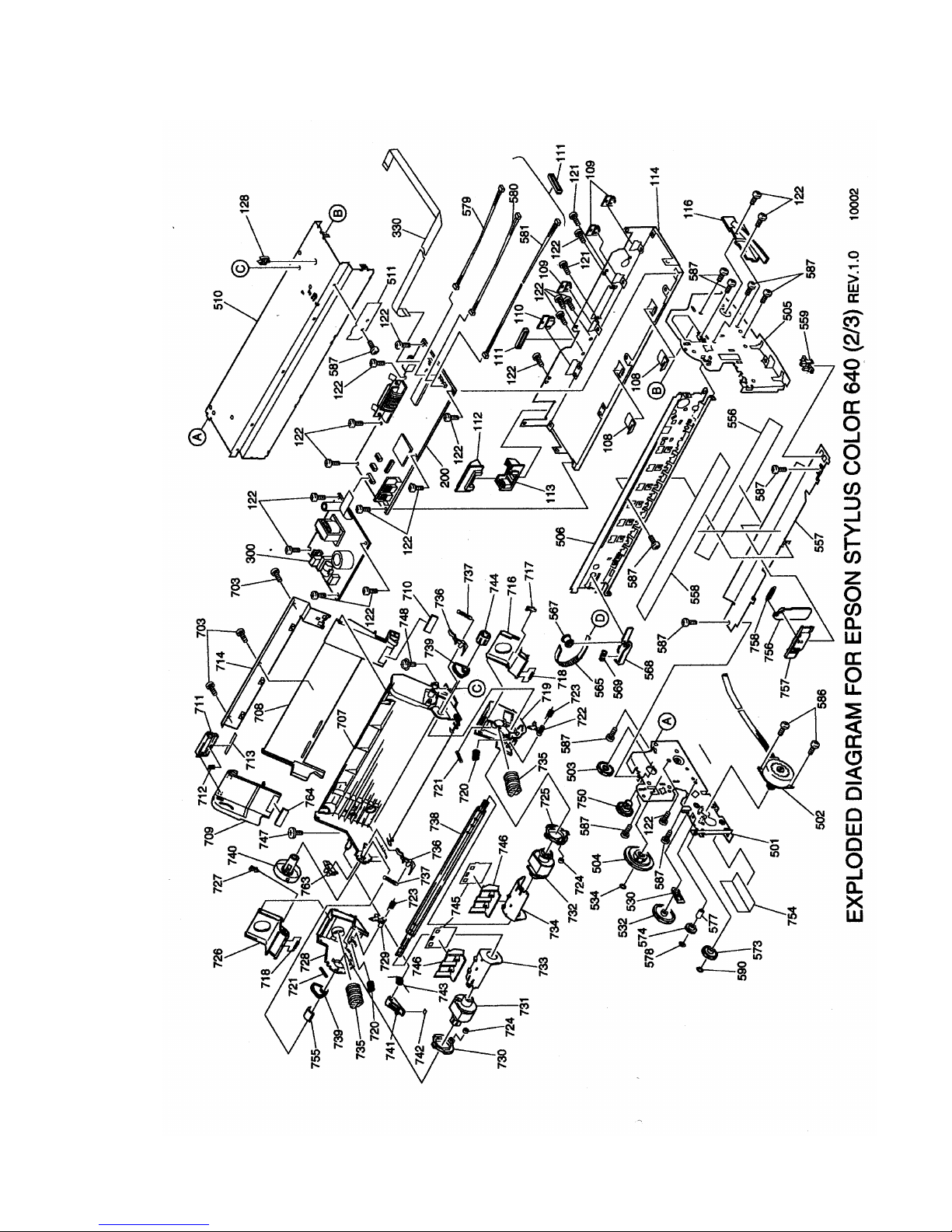

EXPLODED DIAGRAM FOR EPSON STYLUS COLOR 640 (2/3) REV. 03 10002

577

122

567

766 without 747,748

with 581

Table des matières

Autres manuels Epson Imprimante

Epson

Epson Stylus COLOR 3000 Dimensions

Epson

Epson WorkForce Pro WP-4592 Manuel utilisateur

Epson

Epson GO ET-15000 SP Manuel utilisateur

Epson

Epson TM-T100M Series Manuel utilisateur

Epson

Epson Stylus Photo 1390 Mode d’emploi

Epson

Epson Stylus Pro 9900 Manuel utilisateur

Epson

Epson TM-U200 Series Manuel utilisateur

Epson

Epson R2880 - Stylus Photo Color Inkjet Printer Manuel utilisateur

Epson

Epson Stylus color 600 Manuel utilisateur

Epson

Epson STYLUS CX3700 SERIES Manuel utilisateur

Epson

Epson Stylus Color 480SXU Manuel utilisateur

Epson

Epson DFX-5000+ Manuel utilisateur

Epson

Epson FX-2175IIN Mode d’emploi

Epson

Epson Stylus Pro 5000 Manuel utilisateur

Epson

Epson TM-S9000II-NW Manuel utilisateur

Epson

Epson Artisan 700 Series Manuel utilisateur

Epson

Epson WF-2810 Series Manuel utilisateur

Epson

Epson Stylus Pro 10600 - UltraChrome Ink - Stylus Pro 10600 Print... Manuel utilisateur

Epson

Epson ActionPrinter 5500 - ActionPrinter-5500 Impact... Dimensions

Epson

Epson EP-4004 Mode d'emploi

Epson

Epson Stylus Color 660 Manuel utilisateur

Epson

Epson XP-600 Instructions de montage

Epson

Epson Workforce Pro WF-C8610 Series Manuel utilisateur

Epson

Epson U675 - TM Color Dot-matrix Printer Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur
