Epson 4000 - Stylus Pro Color Inkjet Printer Manuel utilisateur

Loading Roll Paper

1Slide the black paper stop off the end of

the spindle.

Note: To use paper with a 2-inch core, remove the

gray adapters from the paper stops at each end.

See your Printer Guide for details.

2Position the roll as shown, then slide it onto

the spindle.

3Slide the black paper stop back onto the spindle

and insert it firmly into the end of the roll.

7Release the paper lever.

8Hold both sides of the paper and feed it into

the slot.

9Make sure the paper is aligned with the OTHER

mark and the vertical line next to the arrow. Then

return the paper lever to the secured position.

4Open the roll paper cover.

5Place the roll paper in the printer as shown. (The

gray end of the spindle goes on the right.)

6Make sure the printer is turned on, then press the

Paper Source button until the or icon

appears.

Caution: To avoid feeding excess paper, make sure

you don’t select when you’re using roll paper..

10 Raise the roll paper support on top of the

paper tray. Then close the roll paper cover.

Caution: To prevent creasing the paper, remove it

from the paper path and roll it up when you’re not

printing.

OTHER mark

Vertical line

5Load the sheets in the portrait orientation, short

edge first, with the printable side face down.

Place the paper all the way back, against the right

side of the tray.

Don’t load paper above the arrow mark inside the

edge guide.

Caution: When you add more paper, always line up

the edges with the paper already in the tray.

Loading Paper in the Tray

Make sure the printer is on and roll paper is not loaded

for printing.

Caution: Heavy media or very glossy media (such

as EPSON Premium Glossy Photo Paper) cannot be

used with the paper tray.

1Pull out the paper tray and cover.

2Lift up the paper tray cover.

6 Adjust the paper tray and edge guide according

to the paper size. For small sheets, raise the

paper guide and move it to the edge of the stack.

7Flip down the paper guide roller, then replace

the paper tray cover and adjust its length.

Note: Make sure the roll paper support is

not raised.

8 Press the Paper Source button until you see

the cut sheet icon.

3Flip up the paper guide roller and slide the edge

guide all the way to the left.

4Thumb through a stack of paper, then gently tap

it on a flat surface to even the pages.

3Open the top cover.

4Insert the sheet face-up.

The front manual feed slot provides a straight-through

paper path for fine art paper, posterboard, or other

media 19 to 55 mil (0.5 to 1.5 mm) thick. Make sure

there is enough space behind the printer for feeding

the paper.

Note: Use the top manual feed slot for very

glossy media (such as EPSON Pemium Glossy

Photo Paper).

1Make sure the printer is turned on, then press

the Paper Source button until you see the

cut sheet icon.

2Release the paper lever.

5Push the sheet under the gray feed rollers,

and align the right edge with the vertical mark

on the right side of the tray cover.

6Close the top cover.

7 Return the paper lever to the secured position.

The printer grabs the paper and feeds it into

printing position.

8 Extend the paper tray and cover to support the

sheet as it comes out of the printer. Make sure the

roll paper support is not raised.

Loading Paper Manually

Align paper with

OTHER mark

Checking and Aligning the Print Head

If your prints look grainy or blurry, or you see

misregistration or “ghosting,” you need to align the print

head. First, you need to make sure the nozzles are clean.

Running a Nozzle Check and

Auto Cleaning

You can turn on Auto Cleaning at the same time you

check the print head nozzles. The printer prints the check

pattern, reads it, and automatically runs a cleaning cycle

if necessary. First, make sure paper is loaded in the tray.

1Go to the Utilities in your EPSON printer driver.

In Mac OS X, you’ll find it in the Epson Printer

Utility in the Applications folder.

2Click the Nozzle Check icon.

3Click Auto and follow the instructions on the

screen.

Note: You can also run a cleaning cycle by

pressing the Menu button and holding it for

more than 3 seconds.

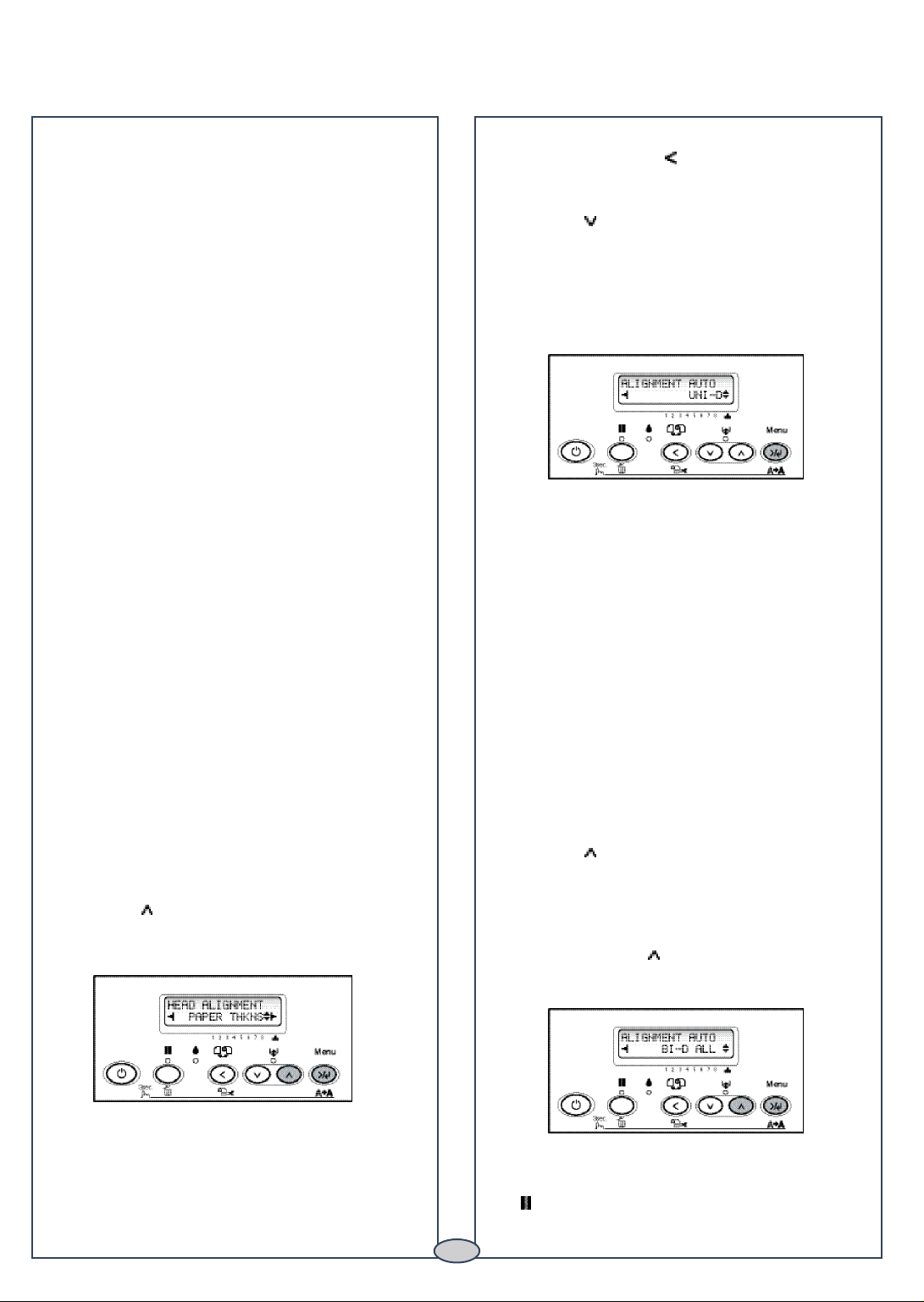

Aligning the Print Head

After you check the print head and clean it if necessary,

follow these steps to align the print head:

1Make sure the printer is turned on. Then load

EPSON Enhanced Matte or Premium Luster

Photo Paper.

2Press the Menu button.

3Press the button to display HEAD

ALIGNMENT. Then press Menu. You see

PAPER THKNS.

4 Press the Menu button again so that *STD

appears on the display. This is the correct

thickness setting for most EPSON papers,

including Enhanced Matte paper.

5Press the Menu button to register the

value, then press the button to display

PAPER THKNS again.

6Press the button to display ALIGNMENT.

7Press the Menu button to display AUTO,

then press Menu again. You see UNI-D

(uni-directional). This is the type of

alignment to start with.

8 Press the Menu button again to start the

alignment process. Head alignment takes about

7 minutes.

Caution: Make sure you don’t open the top cover or

turn off the printer during the alignment process.

9When the uni-directional alignment is finished,

press the button until you see BI-D BLK.

Then press the Menu button again to start the

bi-directional black alignment.

10 When the bi-directional black alignment is

finished, press the button until you see

BI-D ALL. Then press the Menu button again.

11 When the final alignment is finished, press the

Pause button.

Continue

Checking Ink Levels and Replacing Ink Cartridges

Before you begin a large print job, you should check your

ink levels. If one of your cartridges is low, you can replace

it before you start. Or you can wait until the ink runs

out, replace the cartridge, and then continue the job

without any loss of print quality.

Checking Ink Levels

The easiest way to check ink levels is from the

control panel.

Replacing Ink Cartridges

When the ink light flashes, one of the indicators is low,

and INK LOWis displayed on the LCD panel, the

corresponding cartridge is nearly empty. Make sure you

have the correct replacement cartridge.

You can install any combination of 110 ml and 220 ml

cartridges.

EPSON UltraChromeTM ink

110 ml 220 ml

Photo Black T543100 T544100

Cyan T543200 T544200

Magenta T543300 T544300

Yellow T543400 T544400

Light Cyan T543500 T544500

Light Magenta T543600 T544600

Light Black T543700 T544700

Matte Black T543800 T544800

When one of the indicators shows empty and INK OUT

is displayed on the LCD panel, the cartridge is empty. To

replace the cartridge, first make sure the printer is on.

1Press the ink compartment cover to open it.

2Raise the ink lever to the unlocked position.

3Remove the empty ink cartridge from the printer.

Warning: Do not shake the empty cartridge, or ink

may leak. If ink gets on your hands, wash them

thoroughly with soap and water. If ink gets in your

eyes, flush them immediately with water.

4Make sure the replacement cartridge is the correct

color, and remove it from its package.

Gently shake the cartridge before installing it.

3 Magenta 5 Photo Black

(full) (empty)

1 Matte Black

2 Cyan 4 Yellow 6 Light Cyan 7 Light Magenta

8 Light Black

Replacing Printer Parts

Replacing Ink Cartridges (continued)

5Hold the cartridge with the arrow mark pointing

toward the printer. Then insert the cartridge into

the slot. Don’t force it.

Note: If you can’t insert the cartridge smoothly,

you may have the wrong cartridge. Check the

package and product code. If the Ink light remains

on after installing the cartridge, try removing and

then reinserting it.

6Return the ink lever to its locked position.

7If you’re using 110 ml cartridges, close the ink

compartment cover. If you’re using 220 ml

cartridges, you’ll have to leave the cover open.

Replacing the Cutter Blade

If you notice that the paper isn’t cut cleanly, you may need

to replace the cutter blade (part # C12C815291). You can

check its status as described below:

1Press the Menu button on the printer, then press

until you see PRINTER STATUS.

2Press Menu, then press until you see

SERVICE LIFE.

3Press Menu, then press until you see CUTTER.

E*****F indicates a new cutter. If no stars are

displayed, the cutter needs to be replaced.

Caution: Do not use the cutter for the

following media:

• Fine art paper (such as EPSON UltraSmooth,

Textured, or Velvet)

• Canvas

• Backlight film

• Vinyl

Follow these steps to replace the cutter:

1 Press the Menu button on the printer, then

press until you see MAINTENANCE.

2 Press the Menu button. You see

CUTTER REPL.

3 Press Menu to display EXEC, then press Menu

again. The print head moves to the cutter

replacement position.

4 Open the top cover.

Continue

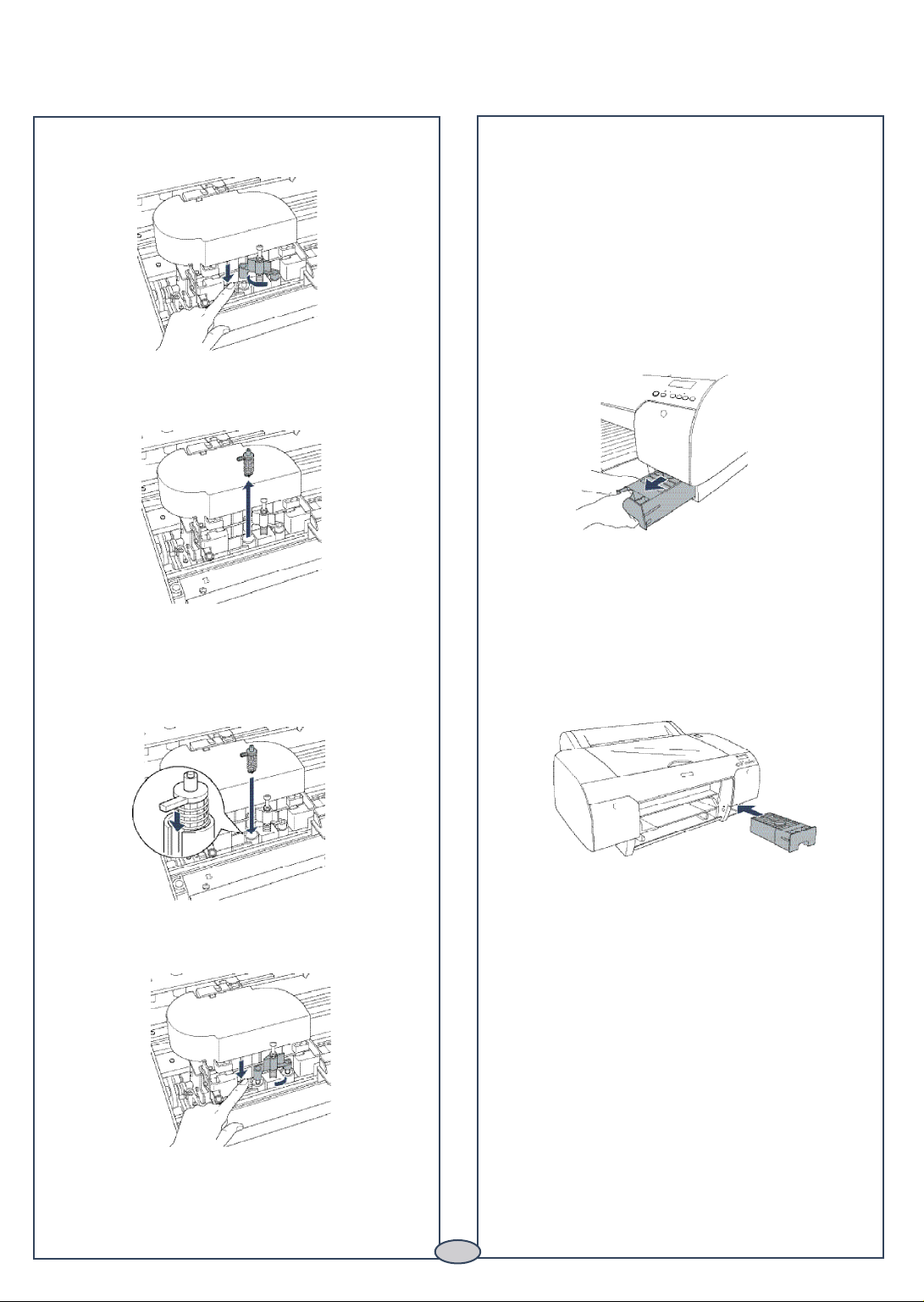

Replacing Printer Parts (continued)

5Hold down the side pin, as shown, then turn the

latch to the right.

6Release the side pin and carefully remove the

cutter blade.

Replacing the Maintenance Tank

You need to replace the Maintenance Tank

(part # C12C890071) when you see MNT TNK FULL

or NEAR FULLon the LCD display. The ink light

also turns red.

1If you are using 220 ml ink cartridges, remove the

four cartridges on the right. Close the ink

compartment cover.

2Pull out the maintenance tank as shown.

Caution: Do not tip the tank, or ink may spill out.

3Place the used tank in the plastic bag included with

the new tank.

7Insert the new cutter blade.

8Hold down its side pin and secure it with

the latch.

9Close the top cover. The carriage returns to the

home position and the cutter replacement is

complete.

4Insert the new tank.

5Replace any ink cartridges you removed.

Error messages

For a complete list of error messages, see your Printer Guide.

Control Panel Messages

Message Light Explanation or response

READY Pause light off Printer is ready to print.

PRINTING Pause light flashing Printer is receiving data.

RESET All lights flash briefly Printer is resetting.

PRESS PAUSE BUTTON Pause light on Press the Pause button to continue.

PLEASE WAIT Pause light flashing Printer is initializing or performing maintenance. Wait

until READY appears.

PAUSE Pause light on Printer is paused. To resume printing, press the

Pause button.

CUTTING Printer is cutting the paper.

CHARGING INK Printer is charging the ink delivery system. Wait until

until READY appears.

Status messages

These messages indicate normal phases of printer operation.

Continue

Response

Replace ink cartridge(s) indicated

on LCD. See page 5.

Replace ink cartridge(s) indicated

on LCD. See page 5.

Make sure the right paper is loaded

and the paper source setting is the

same on the control panel and print

options.

Move the paper lever to the

secured position.

Make sure paper is loaded correctly

and the paper lever is secured. If

you’re using cut sheets, make sure

the paper is flat.

Replace the maintenance tank. See

page 7.

Explanation

Ink cartridge(s) are nearly

empty (printing continues).

Ink cartridge(s) are empty

(printing stops).

The paper source setting in

print options is different

from the control panel setting.

The paper lever is in the

released position.

The printer cannot detect

the paper.

The maintenance tank is full.

Light

Ink light flashing

Ink light on

Paper light on

Ink light on

Message

INK LOW

CHANGE PAPER

TYPE

LOAD PAPER

SET PAPER LEVER

RELOAD PAPER

MNT TNK FULL

Where To Get Help

Control Panel Messages (continued)

Error messages (continued)

EPSON and EPSON Stylus are registered trademarks of SEIKO EPSON CORPORATION. EPSON UltraChrome is a trademark and EPSON Preferred is

a service mark of Epson America, Inc.

Service

Telephone support

World Wide Web

Support for non-EPSON RIP

Access

Call (888) 377-6611. Make sure

you have your Unit ID number.

If you experience any difficulty with the toll-free number or your Unit ID

number, call (562) 276-1305.

Go to http: //support.epson.com to download drivers, access product

documentation and troubleshooting, and get technical advice

through e-mail.

Contact the RIP manufacturer.

Response

Release the paper lever. Remove

the paper tray if you’re printing on

cut sheets. Remove the jammed

paper. If necessary, open the top

cover or remove the rear cover.

Reload paper, making sure the

edges are straight.

Check to make sure the green tab

on the print head is pulled out

until it stops. If so, note the error

number, and turn the printer off

and then on. If the message

remains, contact EPSON.

Explanation

Paper has jammed in the

printer.

Paper was fed at an angle.

The print head is locked or

an error has occurred.

Light

Paper light flashing

All lights flashing

Message

PAPER JAM

PAPER NOT STRAIGHT

SERVICE REQ.

Note your EPSON PreferredSM

Unit ID number here.

EPSON Stylus®Pro 4000

Quick Reference Guide

Printed in USA

CPD-17010R1

Control Panel Lights and Buttons

1 2 3 4 5 6 7 8

3sec.

Menu button

Hold for 3 seconds to

clean the print head.

Up arrow button

Paper li ht

Down arrow button

Left arrow or Paper

Source button

Hold for 3 seconds

to cut roll paper after

printin .

Ink li ht

Pause li ht

and button

Hold for 3 seconds

to cancel a print job

or reset the printer.

Power button

CPD17010R1_Isab_QRG.qx 10/7/04 3:02 PM Page 1

Autres manuels pour 4000 - Stylus Pro Color Inkjet Printer

Table des matières

Autres manuels Epson Imprimante

Epson

Epson OmniLink TM-T70-i Manuel d'utilisation et d'entretien

Epson

Epson EPL N2700 Guide de configuration

Epson

Epson SureColor F6000 Manuel de service

Epson

Epson ET-4760 Manuel utilisateur

Epson

Epson C380045HA - Stylus Color 980 Inkjet Printer Manuel utilisateur

Epson

Epson LQ-300 - Impact Printer Manuel utilisateur

Epson

Epson Stylus Color 200 Manuel utilisateur

Epson

Epson Stylus Pro 4400 Manuel utilisateur

Epson

Epson SecurColor TM-C3400 Manuel utilisateur

Epson

Epson WorkForce WF-7110 Mode d’emploi

Epson

Epson WF-8090 Manuel utilisateur

Epson

Epson SC-P9000 Series Manuel utilisateur

Epson

Epson EMP-TW 1000 Manuel utilisateur

Epson

Epson WorkForce WF-7010 Manuel utilisateur

Epson

Epson EcoTank ET-2811 Manuel utilisateur

Epson

Epson Stylus color 600 Manuel utilisateur

Epson

Epson WF-110 Manuel utilisateur

Epson

Epson 1400 CFS Manuel utilisateur

Epson

Epson U925 - TM B/W Dot-matrix Printer Manuel utilisateur

Epson

Epson SC-P800 Series Mode d’emploi

Epson

Epson GP-C831 Manuel de l'opérateur

Epson

Epson SC-p400 series Mode d’emploi

Epson

Epson SC-T3000 Manuel utilisateur

Epson

Epson DS-360W Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur
