User Manual

HTP201

Humidity and Temperature Probe

with Analogue Outputs

E+E Elektronik Ges.m.b.H. doesn‘t accept warranty and liability claims neither upon this publication nor in case of

improper treatment of the described products.

The document may contain technical inaccuracies and typographical errors. The content will be revised on a

regular basis. These changes will be implemented in later versions. The described products can be improved and

changed at any time without prior notice.

EMC note USA (FCC):

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

EMC note Canada (ICES-003):

CAN ICES-3 (A) / NMB-3 (A)

CONTENT

1 General .................................................................................................................................................4

1.1 Explanation of Symbols.................................................................................................................................4

1.2 Safety Instructions.........................................................................................................................................4

1.2.1 General Safety Instructions..................................................................................................................................4

1.2.2 Intended Use........................................................................................................................................................4

1.2.3 Mounting, Start-up and Operation........................................................................................................................5

1.3 Environmental Aspects..................................................................................................................................5

2 Scope of Supply ..................................................................................................................................5

3 Product Description ............................................................................................................................5

3.1 General..........................................................................................................................................................5

3.2 Dimensions....................................................................................................................................................6

3.3 Electrical Connection.....................................................................................................................................7

3.3.1 M1 Models (RH + T).............................................................................................................................................7

3.3.2 M6 Models (RH + T passive)................................................................................................................................8

4 Installation ...........................................................................................................................................8

4.1 Wall and Ceiling Mount..................................................................................................................................8

4.2 Duct Mount ....................................................................................................................................................8

4.3 Recommendations for accurate Humidity and Temperature

Measurement ................................................................................................................................................8

5 Maintenance and Service ...................................................................................................................9

5.1 Cleaning ........................................................................................................................................................9

5.2 Filter Cap Replacement.................................................................................................................................9

5.3 Protection during Site Cleaning Operations ................................................................................................10

5.4 Repairs ........................................................................................................................................................10

5.5 Spare Parts .................................................................................................................................................10

6 Accessories .......................................................................................................................................10

7 Technical Data ................................................................................................................................... 11

4User Manual HTP201 Humidity and Temperature Probe with Analogue Outputs

1 General

This user manual serves for ensuring proper handling and optimal functioning of the device. The user

manual shall be read before commissioning the equipment and it shall be provided to all staff involved

in transport, installation, operation, maintenance and repair. The user manual may not be used for the

purposes of competition without the written consent of E+E Elektronik® and may not be forwarded to

third parties. Copies may be made for internal purposes. All information, technical data and diagrams

included in these instructions are based on the information available at the time of writing.

Please find this document and further product information on our website at

www.epluse.com/htp201.

1.1 Explanation of Symbols

This symbol indicates safety information.

It is essential that all safety information is strictly observed. Failure to comply with this information can

lead to personal injuries or damage to property. E+E Elektronik® assumes no liability if this happens.

This symbol indicates instructions.

The instructions shall be observed in order to reach optimal performance of the device.

1.2 Safety Instructions

1.2.1 General Safety Instructions

■ Avoid any unnecessary mechanical stress and inappropriate use.

■ When replacing the filter cap make sure not to touch the sensing elements.

■ The device must be operated with the filter cap on at all times.

■ Installation, electrical connection, maintenance and commissioning shall be performed by qualified

personnel only.

■ Use the HTP201 only as intended and observe all technical specifications.

■ Do not use HTP201 in explosive atmosphere or for measurement of aggressive gases.

1.2.2 Intended Use

The HTP201 is intended for highly accurate and cost effective humidity (RH) and temperature (T)

measurement in demanding process applications. The RH and T measured data is available on two

analogue outputs for voltage (0 - 1 V, 0 - 5 V or 0 - 10 V) or current (4 - 20 mA, 2-wire). In addition, the

HTP201 has a passive T output (4-wire), a wide temperature and supply voltage range, making it a

universally applicable probe.

The use of the HTP201 in any other way than described in this manual bears a safety risk for people

and the entire measurement installation and is therefore not allowed.

The manufacturer cannot be hold responsible for damages as a result of incorrect handling, installation,

and maintenance of the equipment.

In order to avoid damage to the instrument or health hazards, the measuring equipment must never be

manipulated with tools that are not specifically described in this manual.

The sensor may only be utilized in accordance with the conditions defined in the technical data.

Otherwise, measurement inaccuracies will occur and equipment failures cannot be ruled out.

The steps recommended by the manufacturer for installation, inspections and maintenance work must

be observed and carried out for the safety of the user and for the functionality of the equipment.

Unauthorized product modification leads to loss of all warranty claims. This may be accomplished only

with an explicit permission of E+E Elektronik®!

User Manual HTP201 Humidity and Temperature Probe with Analogue Outputs

1.2.3 Mounting, Start-up and Operation

The HTP201 humidity and temperature probe has been produced under state of the art manufacturing

conditions, has been thoroughly tested and has left the factory fulfilling all safety criteria. The

manufacturer has taken all precautions to ensure safe operation of the device. The user must ensure

that the device is set up and installed in a manner that does not have a negative effect on its safe use.

The user is responsible for observing all applicable safety guidelines, local and international, with

respect to safe installation and operation on the device. This user manual contains information and

warnings that must be observed by the user in order to ensure safe operation.

■ Mounting, start-up, operation and maintenance of the device may be performed by qualified staff

only. Such staff must be authorized by the plant operator to carry out the mentioned activities.

■ The qualified staff must have read and understood this user manual and must follow the

instructions contained within.

■ All process and electrical connections shall be thoroughly checked by authorized staff before putting

the device into operation.

■ Do not install or start-up a device supposed to be faulty. Make sure that such devices are not

accidentally used by marking them clearly as faulty.

■ A faulty device may only be investigated and possibly repaired by qualified, trained and authorized

staff. If the fault cannot be fixed, the device shall be removed from the process.

■ Service operations other than described in this user manual may only be performed by the

manufacturer.

Disclaimer of Liability

The manufacturer or their delegated representative is only liable in case of intent or gross negligence.

The accountability is limited to the value of the order issued at the time to the manufacturer. The

manufacturer is not liable for damages, originated from disregarding the safety instructions or violating

the instructions of the manual or operating conditions. Consequential damages are excluded from any

liability.

1.3 Environmental Aspects

Products from E+E Elektronik® are developed and manufactured observing of all relevant requirements

with respect to environment protection. Please observe local regulations for the device disposal.

For disposal, the individual components of the device must be separated according to local recycling

regulations. The electronics shall be disposed of correctly as electronics waste.

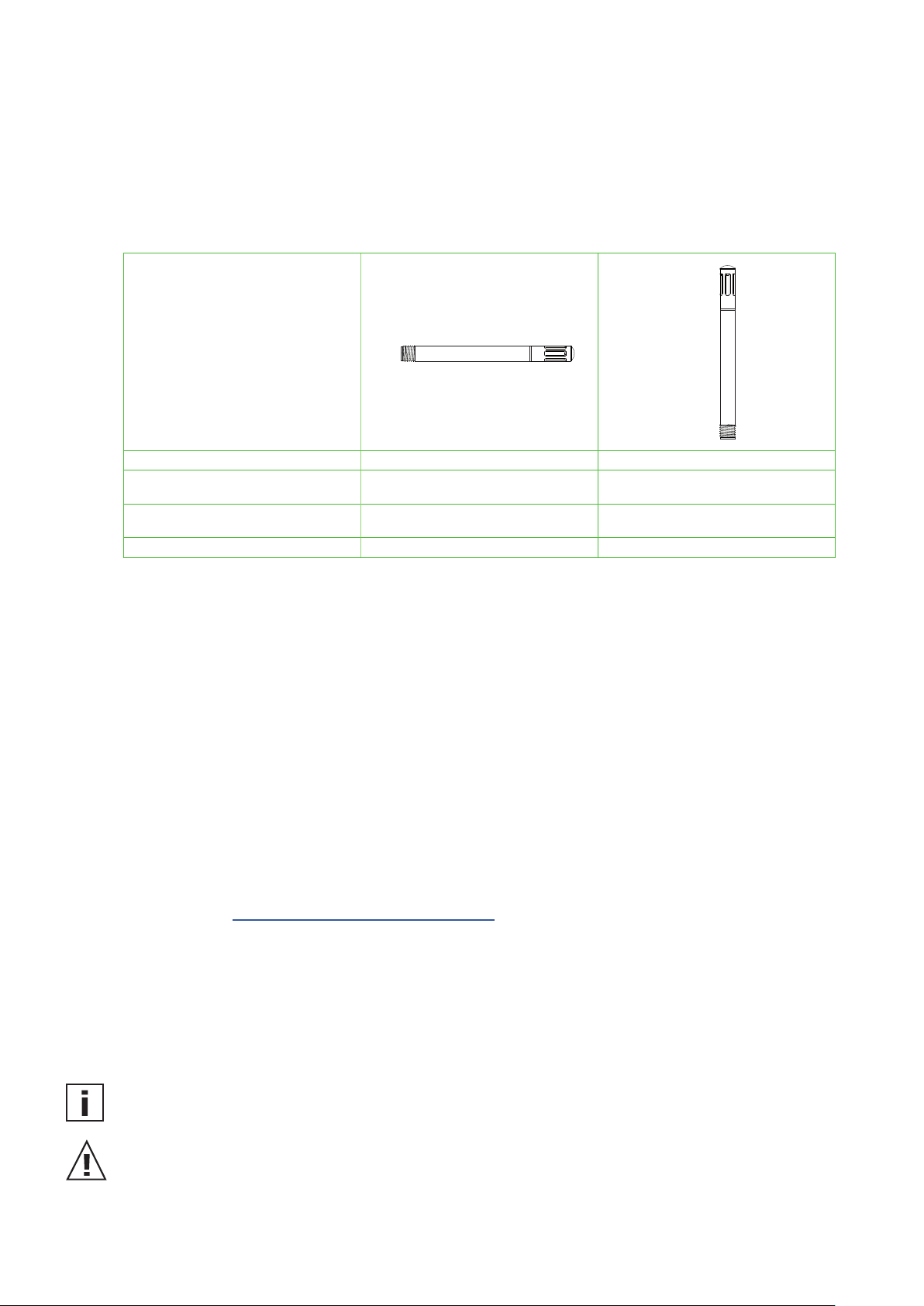

2 Scope of Supply

■ HTP201 – Humidity and Temperature Probe with Analogue Outputs according to ordering code

3 Product Description

3.1 General

The HTP201 is a robust probe for relative humidity and temperature measurement. Its IP65 rating,

the E+E proprietary protective sensor coating and encapsulated electronics make it ideal for

highest requirements. The HTP201 is typically implemented in demanding process and climate

control applications like in agriculture, life stock, food, pharma or clean rooms. Its stainless steel or

polycarbonate enclosure and integrated cable or a threaded connector together with the wide choice of

filter caps make it a versatile probe tackling even challenging applications. Installation is simplified by

various mounting options which are supported by E+E accessories.

6User Manual HTP201 Humidity and Temperature Probe with Analogue Outputs

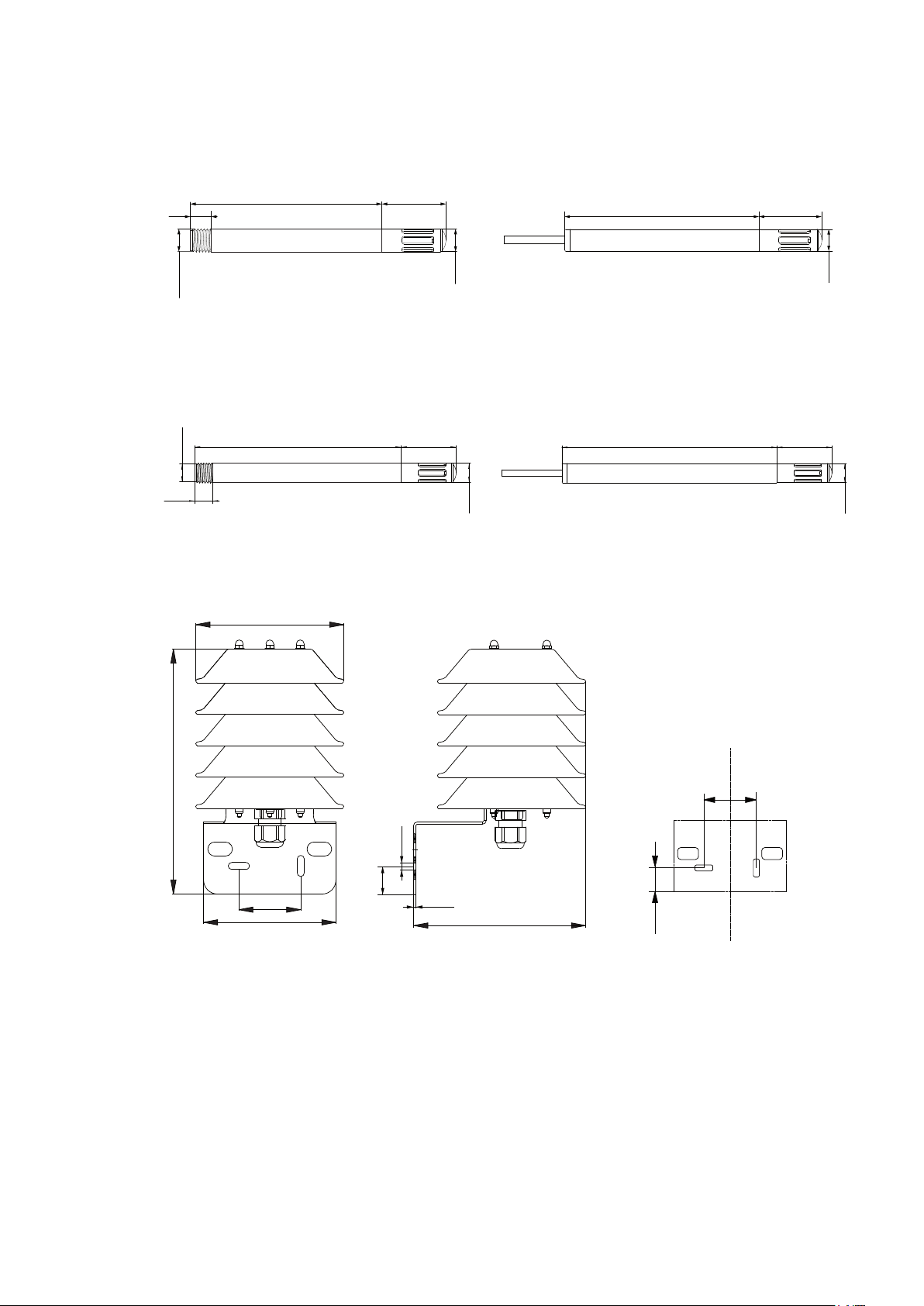

3.2 Dimensions

Voltage versions

With connector (Type E9) With cable (Type E8)

34 (1.3)101.5 (4)

M12x1

(0.43)

∅12

(0.5)

106 (4.2)

∅12

(0.5)

34 (1.3)

Current versions

With connector (Type E9) With cable (Type E8)

131 (5.2)

∅12

(0.5)

34 (1.3)

∅12

(0.5)

34 (1.3)127 (5)

M12x1

(0.43)

Fig. 1 Dimensions of HTP201 in mm (inch)

44 (1.73)

Ø5 (Ø0.2)

20 (0.79)

1.5 (0.06)

122 (4.8)

44 (1.73)

Ø105 (Ø4.13)

174 (6.85)

94 (3.7)

Fig. 2 Dimensions of optional radiation shield (ordering code HA010502) in mm (inch)

User Manual HTP201 Humidity and Temperature Probe with Analogue Outputs

3.2 Dimensions

Voltage versions

With connector (Type E9) With cable (Type E8)

34 (1.3)101.5 (4)

M12x1

(0.43)

∅12

(0.5)

106 (4.2)

∅12

(0.5)

34 (1.3)

Current versions

With connector (Type E9) With cable (Type E8)

131 (5.2)

∅12

(0.5)

34 (1.3)

∅12

(0.5)

34 (1.3)127 (5)

M12x1

(0.43)

Fig. 1 Dimensions of HTP201 in mm (inch)

44 (1.73)

Ø5 (Ø0.2)

20 (0.79)

1.5 (0.06)

122 (4.8)

44 (1.73)

Ø105 (Ø4.13)

174 (6.85)

94 (3.7)

Fig. 2 Dimensions of optional radiation shield (ordering code HA010502) in mm (inch)

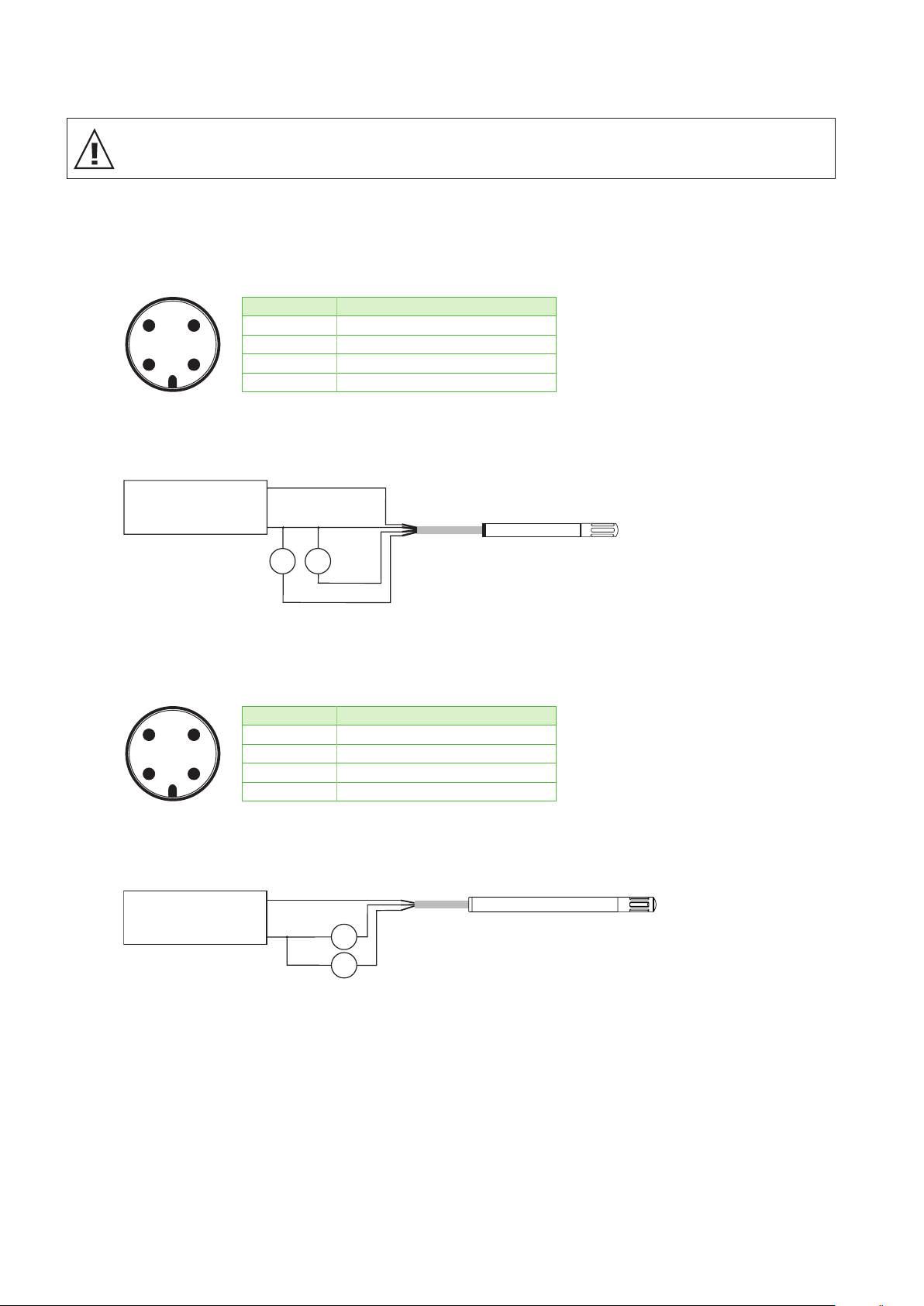

3.3 Electrical Connection

Important note:

The manufacturer cannot be held responsible for personal injuries or damage to property as a result of

incorrect handling, installation, wiring, power supply and maintenance of the device.

3.3.1 M1 Models (RH + T)

Voltage versions (A1/A2/A3)

With connector (HTP201-M1xE9x)

Pin number Function

1Supply voltage V+

2RH

3GND

M12 device plug

front view

1 2

With cable (HTP201-M1xE8x)

Supply voltage:

according to technical data

V+ (white)

GND (brown)

RH (green)

T (yellow)

V V

Current version (A6)

With connector (HTP201-M1A6xE9)

Pin number Function

1Supply voltage V+

2RH

3not connected

M12 device plug

front view

1 2

With cable (HTP201-M1A6xE8x)

Supply voltage:

9 - 28 V DC

V+ (white)

(green)

(yellow)

8User Manual HTP201 Humidity and Temperature Probe with Analogue Outputs

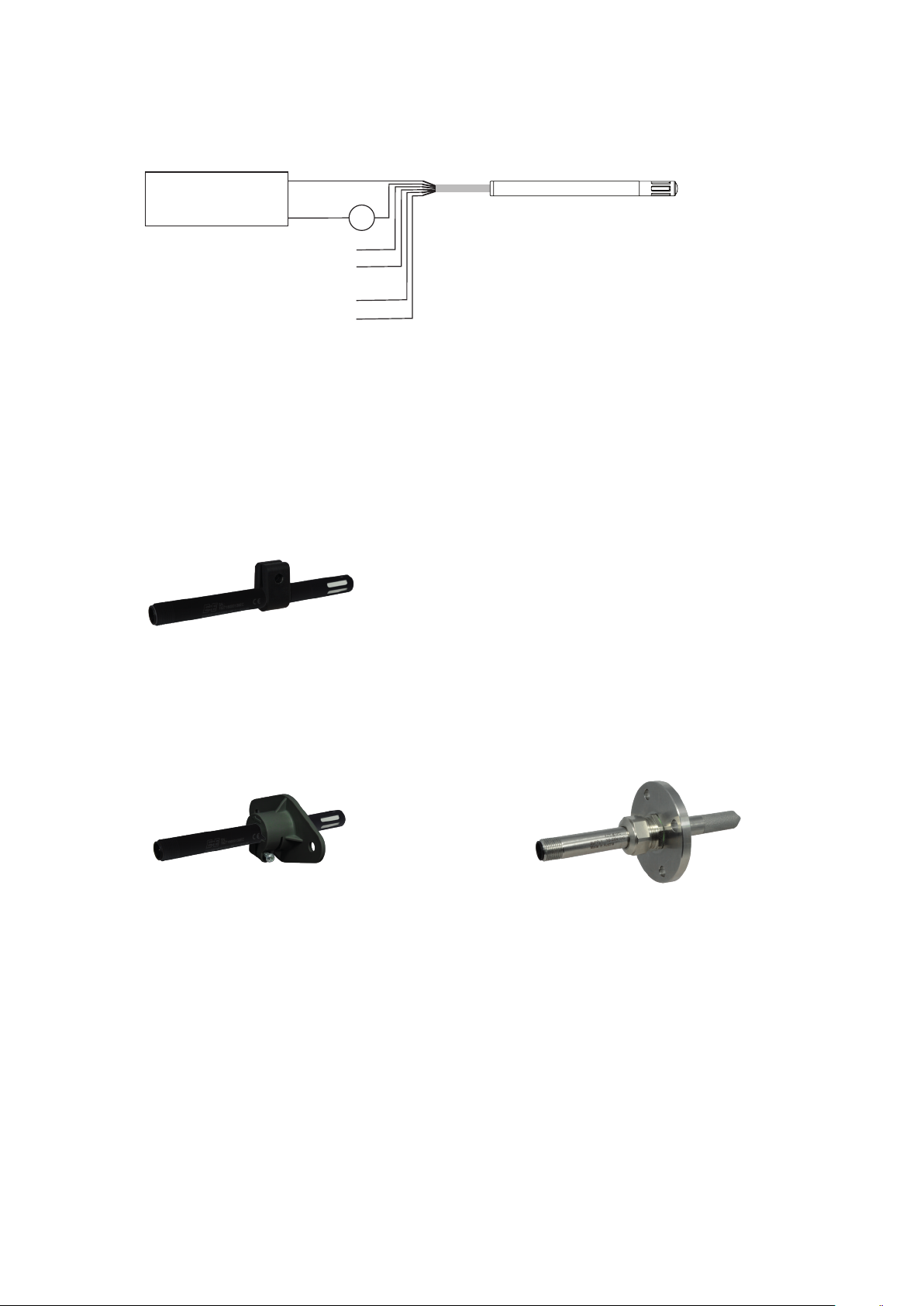

3.3.2 M6 Models (RH + T passive)

Current version (A6)

With connector (HTP201-M6A6xE8x)

Supply voltage:

9V+ RL* 20 mA<V+< 28 V DC

V+ (white)

(brown)

T passive 1 (pink)

T passive 4 (grey)

T passive 3 (blue)

T passive 2 (red)

4 Installation

4.1 Wall and Ceiling Mount

Best measurement performance is achieved when the entire probe is located inside the environment to

be monitored.

In such a case, the HTP201 may be for instance fixed onto a wall with the mounting clip HA010211

(for polycarbonate) or HA010225 (for stainless steel, both not included in the scope of supply, see data

sheet “Accessories”), or freely hang from the ceiling on the connection cable.

Fig. 3 Optional wall and ceiling mount (ordering code HA010211)

4.2 Duct Mount

The probe also can be installed into a duct using the plastic flange HA010214 or the stainless steel

flange HA010201 (not included in the scope of supply, see data sheet “Accessories”).

Fig. 4 Optional plastic flange

(ordering code HA010214)

Fig. 5 Optional stainless steel flange

(ordering code HA010201)

4.3 Recommendations for accurate Humidity and Temperature

Measurement

■ In case the HTP201 probe is not entirely located in the environment to be monitored, large

temperature differences along the probe will lead to temperature gradients. These will have an

influence on the accuracy. Therefore, it is of paramount importance to minimize the temperature

gradients. The biggest part of the probe shall be located in the target environment and the rest shall

be thermally well insulated.

User Manual HTP201 Humidity and Temperature Probe with Analogue Outputs

■ For outdoor applications the HTP201 shall be equipped with a radiation shield (HA010502) which

provides protection from rain, snow and ice. This also causes a natural ventilation which largely

prevents overheating of the probe in the sun and thus a distortion of the measured values.

■ Best accuracy is achieved with a velocity of min. 0.2 m/s of the air surrounding the probe. Depending

on the installation position, flow direction and flow velocity, the accuracy may decline. The following

table gives a concise overview. Please note that the vertical positioning with the sensing element

upside is the most sensitive one concerning accuracy. Because of possible self heating due to the

sensor electronics, it is crucial to have the indicated air flow velocity.

Flow direction of medium

> 0.2 m/s > 0.2 m/s

This type of mounting

is not recommended > 0.2 m/s

> 0.2 m/s This type of mounting

is not recommended

> 0.2 m/s > 0.2 m/s

Tab. 1 Mounting position, air velocity and accuracy

5 Maintenance and Service

HTP201 does not require any special maintenance, nevertheless for high accurate measurements

especially over wide RH and T ranges it is recommended to calibrate the probe every 12 months. If

needed, the enclosure or the sensing element may be cleaned as described below.

5.1 Cleaning

Use a damp soft cloth to remove deposits of dust or dirt from the exterior of the probe. Do not use any

solvents or abrasive cleaning agents.

In case of dusty, oily and polluted environment:

■ Use a damp soft cloth to remove deposits of dust or dirt from the exterior of the probe. Do not use

any solvents or abrasive cleaning agents.

■ The filter cap shall be replaced once in a while with an E+E original one (see below).

■ If needed, the sensing element of the humidity probe can be cleaned by the user (see cleaning

instructions - www.epluse.com/cleaning-instructions).

5.2 Filter Cap Replacement

In a dusty or polluted environment it might be necessary to replace the filter cap once in a while. In most

of the cases, a clogged filter shows visible contamination or dirt. Longer response time of the humidity

measurement also indicates a clogged filter cap. In such cases, replace the filter by a new, original one,

see chapter 5.5 Spare Parts.

Procedure

■ Turn the filter cap counter-clockwise for removing it.

■ Install the new filter cap finger tight by turning it clockwise.

While replacing the filter cap take very good care to not touch or rub the sensing element.

10 User Manual HTP201 Humidity and Temperature Probe with Analogue Outputs

5.3 Protection during Site Cleaning Operations

During site cleaning or sterilization process, if the HTP201 remains on the measuring site the sensing

head can be protected with the optional protection cap for 12 mm (0.47") probe (HA010783, see

datasheet “Accessories”).

In case the probe is removed from the site, it is recommended to apply the protection cap for the M12

cable socket (HA010781) and the one for the HTP201 M12 plug of (HA010782).

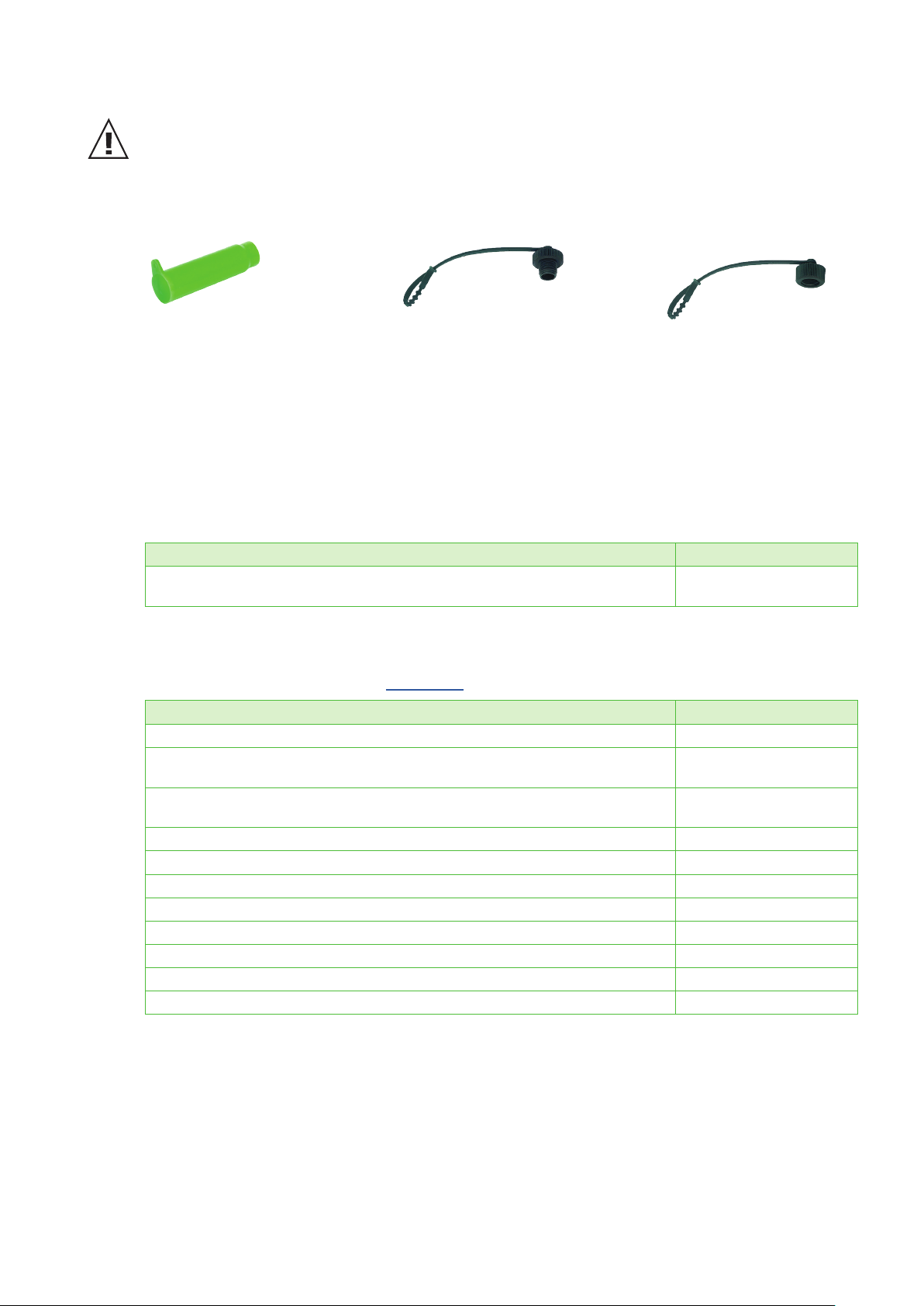

Fig. 6 Protection cap for

Ø12 mm (0.47") probe

(ordering code

HA010783)

Fig. 7 Protection cap for

M12 socket (ordering

code HA010781)

Fig. 8 Protection cap for

M12 plug (ordering

code HA010782)

5.4 Repairs

Repairs may be carried out by the manufacturer only. The attempt of unauthorized repair excludes any

warranty claims.

5.5 Spare Parts

Description Order code

Filter caps for probes with Ø12 mm Please refer to the

datasheet “Accessories“

6 Accessories

For further information see datasheet Accessories.

General Order code

M12x1 connector, 4 pole socket, for self assembly HA010707

Connectioncable,5pole,M12x1plug / socket,shielded,

2 m (6.6 ft) / 5 m (16.4 ft) /10 m (32.8 ft)

HA010816/HA010817/

HA010818

Connectioncable,5pole,M12x1socket / freeends,shielded,

1.5 m (4.9 ft) / 5 m (16.4 ft) / 10 m (32.8 ft)

HA010819/HA010820/

HA010821

Plastic mounting flange Ø12 mm (0.47") black HA010214

Stainless steel flange Ø12 mm HA010201

Plastic wall mounting clip Ø12 mm (0.47") HA010211

Stainless steel wall mounting clip Ø12 mm (0.47") HA010225

Protection cap for Ø12 mm (0.47") probe HA010783

Protection cap for M12 socket HA010781

Protection cap for M12 plug HA010782

Radiation shield with fixed clamping ring (M20x1.5) HA010502

Table des matières

Autres manuels E+E Elektronik Instrument de mesure

E+E Elektronik

E+E Elektronik EE772 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE776 Series Manuel utilisateur

E+E Elektronik

E+E Elektronik THERMOPORT 20 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE671 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE771 Series Manuel utilisateur

E+E Elektronik

E+E Elektronik OMNIPORT 30 Manuel utilisateur

E+E Elektronik

E+E Elektronik HUMIPORT 05 Manuel utilisateur

E+E Elektronik

E+E Elektronik HUMIPORT 10 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE871 Manuel utilisateur

E+E Elektronik

E+E Elektronik Modbus MOP301 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE600 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE074 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE772 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE872 Series Manuel utilisateur

E+E Elektronik

E+E Elektronik OMNIPORT 30 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE45 Series Manuel utilisateur

E+E Elektronik

E+E Elektronik EE212 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE08 Manuel utilisateur

E+E Elektronik

E+E Elektronik OMNIPORT 20 Manuel utilisateur

E+E Elektronik

E+E Elektronik EE872 Series Manuel utilisateur

E+E Elektronik

E+E Elektronik EE360 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
