Envizen EF3D08 Manuel utilisateur

0



DigitalPhotoFrame

With3‐DEffect

(EF3D08)

UserManual

1



TableofContent



SafetyPrecautions2



Whatisinthebox2



Introduction3



FrameOverview&RemoteControlKeyAssignment4



OperationGuide5



Install&Play5



UseRemoteControl6



ChangeSettings7

TopMenu7

Clock&Calendar8

Slideshow9



FirmwareUpdate10



TechnicalSpecification10



TroubleShooting11



2



ImportantSafetyPrecautions



Alwaysfollowthesebasicsafetyprecautionswhenusingthisdigitalphotoframetoreducethe

riskoffire,electricshockandinjury.



Donotexposethisproducttorainormoisture.

Donotremovecover.Therearenoself‐serviceablepartsinside.Referall

servicingtoqualifiedpersonnel.

Indooruseonly.

Unplugthisframebeforemaintenance.

Donotblocktheventilationholesonthebackofthisframe.

Keepthisframeoutofdirectsunshineand/oranyheatsources.

UseonlytheAC/DCadapterincludedwiththisframe.



CleaningtheLCDscreen



Treatthescreengently.Tocleanfingerprintordust,useasoft,non‐abrasiveandlintfreecloth

tocleanthescreen.



WhenusingacommercialLCDcleaningkit,donotapplythecleaningliquiddirectlytothe

screen.Cleanthescreenwithacleaningclothmoistenedwiththefluid.



Whatisinthebox(PackageContent):



DigitalPhotoFrame  AC/DCpoweradapter  RemoteControl





 



UserManual    QuickStartGuide







3



Introduction



CongratulationandthankyouforchoosingtheDigitalPhotoFramewithmulti3‐Dtransition

effects.Nowyoucanenjoyyourdigitalphotoswithbackgroundmusicdirectlyfromyour

memorycardsand/orUSBdriveswithoutacomputer.Youwillbesurprisedtotherealistic3‐D

transitioneffects.



ThisDigitalPhotoFrameincludesthesekeyfeatures:



Displaydigitalphotos(.jpg)withoutacomputer.

Simplyinsertacompatiblememorycardand/orUSBdrivesintotheframetoshow

photosandplaybackgroundmusic.

8”DigitalLCDPanel

HighResolution(800x600)

SupportSD/MMC/MS/xDcardsandCFcard.

Multi3‐DeffecttransitionSlideshowwithMp3backgroundmusic.

Thumbnaildisplay/searching.

ControlbuttonsontheframeandfullfunctionRemoteControl.

BrighthighresolutionLCDscreen.

Earphonejack

USB2.0highspeedconnection.

FirmwareUpdatable



TolearnmoreaboutyournewDigitalPhotoFrame’sfeatures,pleasetakeafewminutesto

readthisUserManual.Keepthismanualforyourfuturereferences.

4



FrameOverview







RemoteControlKeyAssignment



5



OperationGuide



Install&Play 



1. TakeouttheDigitalPhotoFrameandsetituponaflatsurface.Connectthepower

cordoftheAC/DCpoweradaptertoawalloutlet.Thenconnecttheotherendtothe

Frame.

2. InsertaMemoryCardoraUSBdrive(consistingofatleastonephotofile.jpgand

onemusicfilemp3)intotheproperportontheframe.(Don’tforceitin.Flipover

theCardorUSBdriveifitdoesnotfit.)

3. Poweronbypressingthepowerbuttonontheframeorontheremote.

4. Afterabriefhomepagelogoandloadingpage,aphotoslideshowwillstart

automatically.

5. Backgroundmusicwillalsostartplayingoneafteranotherautomatically.



(Note:1.Ifyoudon’thaveastoragedevice,skipstep2andthetopmenuasfollowwillappear.



2.ButwhenyouhaveacardoraUSBdriveandinsertit,theslideshowwillstart

automatically.)







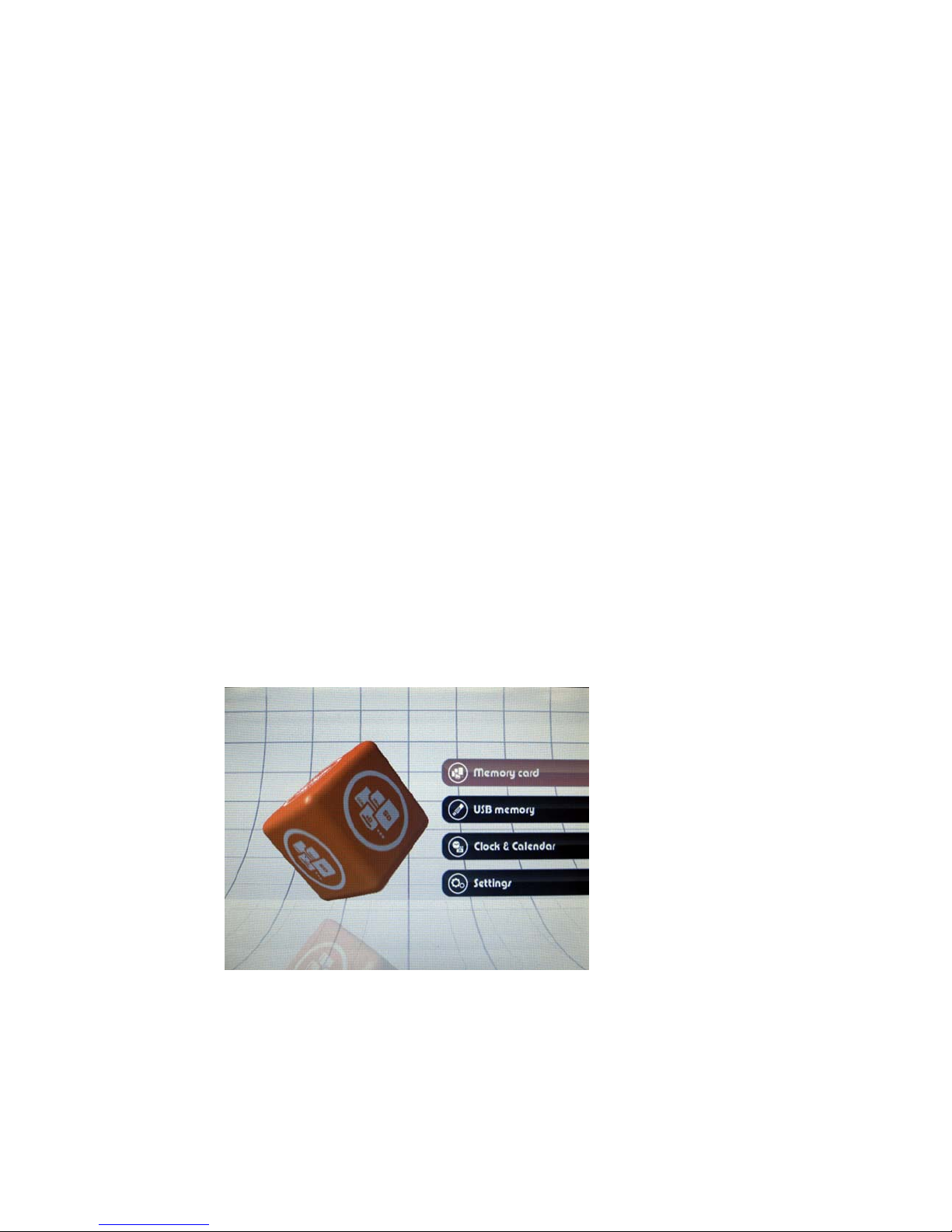

(TopMenu)



6



UseRemoteControl



Power:On/Off



Mute:SpeakervolumeOn/Off



Photo:Gotophotoslideshow



Top:GotoTopMenuscreen



Clock:GotoClock&Calendar



Mode:SwitchTransitionmodeorClockdisplaymode



Menu:BringupPop‐upMenu



Up/Downarrows:Movecursorup/downorselectmusicfile



Left/Rightarrows:Movecursorleft/rightorchooseprevious/nextphototodisplay



Enter:Selectorswitchbetweenplay/pause



Setup:GotoTopMenuSettingscreen



Exit:ReturntoTopMenu



Thumb:Displayallphotosinthumbnaildisplaymodeforyourquicksearching



7



VOL+/VOL‐:VolumeUp/Down

ChangeSettings



TopMenu:TochangesettingsunderTopMenu,press“SETUP”ontheremotecontrolor

useUp/DownkeysandEnterkeyeitherontheFrameortheRemotetoenterintotheSettings

ontheTopMenuasfollows:



Exit:ExittoTopMenu

CurrentDate:Setup/AdjustDate

CurrentTime:Setup/AdjustTime

SwitchHourMode:Choose12H/24H

DateOrder:Threeorderstochoosefrom

ONTimer:Set“AutomaticOn”time

OFFTimer:Set“AutomaticOff”time

Brightness:Setbrightnesslevel1‐10

Volume:Setbackgroundmusicvolumelevel1‐10

Language:Choosefromthreelanguages

Orientation:ChooseLandscapeorPortrait

TrimmingMode:Switchphotodisplayformat,“Fit”or“Crop”

UpdateFirmware:Displayyourcurrentfirmwareversionandcheckifthereisupdated

firmwareavailableonyourmemorycard

ResetSettings:Resetyourdigitalphotoframetomanufacturerdefaultsettings



Note:UseCursorkeystomovearoundandmakechangesanduseEnterkeytoselectandsave.

8



Clock&Calendar:



PressClockonremotecontroloruseUp/DownkeysandEnterkeyeitherontheFrame

ortheRemotetodisplayClock/Calendarscreenasfollows:



PressMenukeytobringupapop‐upmenu:



Clock:ChooseDigitalorAnalogclocktodisplay



Foreground:ChooseCalendarorClocktobethemaindisplay



Background:ChooseBright,DarkorPhotobackground



Brightness:Changebrightnessonthescaleof1to10



Close:Closepop‐upmenu



Note:UseCursorkeystomovearoundandmakechangesanduseEnterkeytoselectandsave.



9



Slideshow:UseMENUkeyontheFrameorRemoteControltobringupthePop‐up

menuasfollowswhileplayingslideshow.



Slideshow:PlayorPause



Transition:Switchamongmultiple2‐Dand3‐Dtransitioneffectsorsettorandom



BGM:BackgroundmusicOnorOff



Interval:Chooseslideshowintervals‐5sec.10sec.15sec.30sec.or1min.



Rotation:Rotatethecurrentphotodisplayed



Brightness:Changebrightness



Volume:Changespeakervolume



Date/Time:Turnon‐screen‐displayDate/Timeonoroff



Close:Closepop‐upmenu



Note:UseCursorkeystomovearoundandmakechangesanduseEnterkeytoselectandsave.


