Envirolite EV7063-305 Manuel utilisateur
Questions, problems, missing parts? Before returning to the store,
call Envirolite Customer Service
8 a.m. –6 p.m., EST, Monday –Friday
1-855-573-6156
EV7063-305
EXTERIOR WALL LANTERN
SAFETY INFORMATION
Before starting installation of this
fixture or removal of a previous
fixture, disconnect the power by
turning off the circuit breaker or by
removing the fuse at the fuse box.
Consult a qualified electrician if you have any electrical questions or need to
replace the driver.
If you have any non-electrical questions about this fixture, please contact our
Customer Service Team at 1-855-573-6156.
WARNING: Disconnect the
power prior to removing or
installing a light fixture.
PLANNING THE INSTALLATION
NOTE: Keep your receipt and
these instructions for Proof of
Purchase.
Read all instructions before assembly and installation. Before starting installation
of the fixture or removal of a previous fixture, disconnect the power by turning off
the circuit breaker or by removing the fuse at the fuse box. To avoid damaging
this product, assemble it on a soft, non-abrasive surface such as carpet or
cardboard.
TOOLS REQUIRED
2
Phillips
Screwdriver
Wire
Cutter
Wire
Stripper
Flathead
Screwdriver
Ladder Safety
Goggles
Electrical
Tape
Silicone Rubber
Sealant for
exterior use

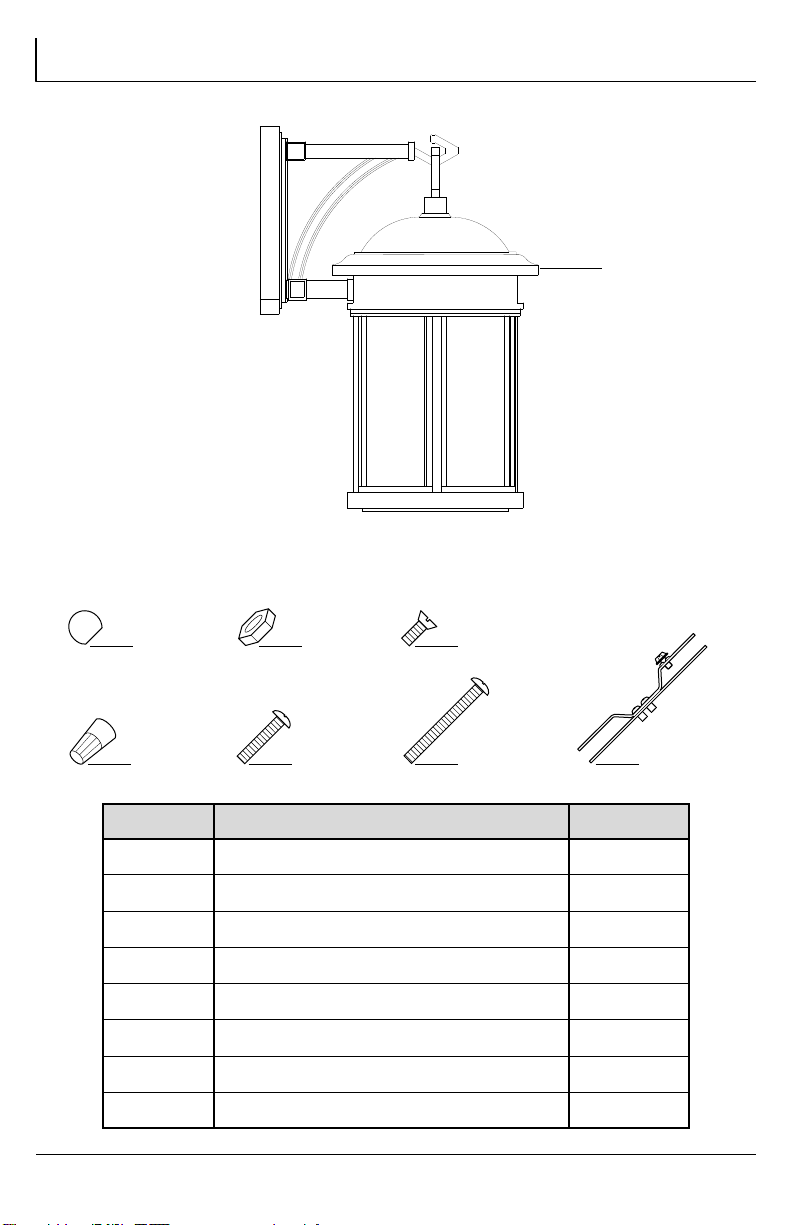

PACKAGE CONTENTS
3
Part
Description
Quantity
A
Fixture Body
1
AA
Lock Nut
2
BB
Hex Nut
2
CC
Hood Screw
2
DD
Wire Nut
3
EE
Bracket Mounting Screw
2
FF
Fixture Mounting Screw
2
GG
Mounting Bracket
1
EEDD FF GG
AA BB CC
A
INSTALLATION
2
4
NOTE: If you have electrical
questions consult your local
electrical code for approved
grounding methods.
Thread the fixture mounting screws
(FF) into the provided holes of the
mounting bracket (GG).
Thread the hex nuts (BB) onto the
fixture mounting screws (FF). Do not
tighten the hex nuts (BB) at this time.
Pull the supply wires out from the
outlet box and mount the mounting
bracket (GG) to the outlet box using
the bracket mounting screws (EE).
Connect the black supply wire to
the black fixture wire using a wire
nut (DD).
Connect the white supply wire to
the white fixture wire using a wire
nut (DD).
Connect the fixture ground wire
to the supply ground wire using a
wire nut (DD).
Wrap all wire connections with
electrical tape for a more secure
connection.
EE GG
FF
BB
Place the back plate of the fixture body (A) over the outlet box and onto the
fixture mounting screws (FF).
Adjust the fixture mounting screws (FF) until they protrude out from the back
plate 1/4 in.
Remove the fixture body (A) and secure the position of the fixture mounting
screws (FF) by tightening the hex nuts (BB)
1
DD
GG
A
INSTALLATION (continued)
3
5
Place the back plate of the fixture
body (A) onto the fixture mounting
screws (FF) and secure it into
place by using the lock nuts (AA)
provided.
Caulk the upper 2/3rds of the back
plate on the fixture body (A).
Leave the bottom 1/3rd un-caulked
for drainage of any water that may
leak into the enclosure.
Turn on power at the circuit breaker or fuse box.
Turn the light switch on to activate the fixture.
OPERATION
NOTE: Do not use any cleaners
with chemicals, solvents, or harsh
abrasives. Use only a dry soft
cloth to dust or wipe carefully.
EXTERIOR MAINTENANCE
Use a dry or slightly dampened
clean cloth and wipe the surface
of the fixture.
INTERIOR MAINTENANCE
Disconnect power to the fixture by turning off the circuit breaker or by
removing the fuse at the fuse box.
Use a dry or slightly dampened clean cloth to wipe the interior surface of the
fixture.
CARE & CLEANING
A
AA
FF
DRIVER REPLACEMENT
This product is ENERGY STAR ® listed. The driver can be replaced without
having to cut wires. Please contact a qualified electrician if driver
replacement is needed.
FCC NOTICE
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However, there is no
guarantee that interference can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interface by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Problem
Solution
The light will not turn on.
Make sure the power supply is on.
Test or replace the switch.
Check the wiring.
Replace the driver.
The fuse blows or circuit breaker
trips when light is turned on.
Check the wire connections.
TROUBLESHOOTING
6
WARRANTY
7
WHAT IS COVERED
The manufacturer warrants this lighting fixture to be free from defects in materials
and workmanship for a period of three (3) years from date of purchase. This
warranty applies only to the original consumer purchaser and only to products
used in normal use and service. If this product is found to be defective, the
manufacturer’s only obligation, and your exclusive remedy, is the repair or
replacement of the product at the manufacturer’s discretion, provided that the
product has not been damaged through misuse, abuse, accident, modifications,
alterations, neglect or mishandling.
WHAT IS NOT COVERED
This warranty shall not apply to any product that is found to have been improperly
installed, set-up, or used in any way not in accordance with the instructions
supplied with the product. This warranty shall not apply to a failure of the product
as a result of an accident, misuse, abuse, negligence, alteration, or faulty
installation, or any other failure not relating to faulty material or workmanship.
This warranty shall not apply to the finish on any portion of the product, such as
surface and/or weathering, as this is considered normal wear and tear.
The manufacturer does not warrant and specially disclaims any warranty, whether
expressed or implied, of fitness for a particular purpose, other than the warranty
contained herein. The manufacturer specifically disclaims any liability and shall
not be liable for any consequential or incidental loss or damage, including but not
limited to any labor/expense costs involved in the replacement or repair of said
product.
Preguntas, problemas, o piezas faltantes? Antes de regresar a la tienda,
llama al Servicio al Cliente de Envirolite
8 a.m. –6 p.m., Hora del Este, Lunes –Viernes
1-855-573-6156
EV7063-305
FAROL DE PARED LED PARA EXTERIORES
INFORMACIÓN DE SEGURIDAD
Antes de iniciar la instalación de
este aparato o la eliminación de
un accesorio anterior, desconecte
la alimentación apagando el
disyuntor o quitando el fusible en
la caja de fusibles.
Consulte a un electricista calificado si tiene alguna pregunta eléctrica o la
necesidad de reemplazar el controlador.
Si usted tiene alguna pregunta que no sea eléctrica sobre este accesorio,
póngase en contacto con nuestro equipo de Servicio al Cliente al
1-855-573-6156.
WARNING: Disconnect the
power prior to removing or
installing a light fixture.
PLANIFICACIÓN DE LA INSTALACIÓN
NOTA: Guarde su recibo y
estas instrucciones para
comprobante de compra.
Lea todas las instrucciones antes del montaje e instalación. Antes de comenzar
la instalación de la luminaria o el retiro de un artefacto anterior, desconecte la
alimentación apagando el disyuntor o quitando el fusible en la caja de fusibles.
Para evitar daños a este producto, montarlo en una superficie suave y no
abrasiva, como una alfombra o cartón.
HERRAMIENTA NECESARIAS
9
Desarmador
de Cruz
Cortador de
Alambre
Desarmador de
Punta Plana Pelacables
Sellador de Goma
Sillicona para uso
en exteriores Escalera Gafas de
Seguridad
Cinta
Aislante
CONTENIDO DEL PAQUETE
10
Parte
Descripción
Cantidad
A
Cuerpo Principal
1
AA
Tuerca de Seguridad
2
BB
Tuerca Hexagonal
2
CC
Tornillo de la Cubierta
2
DD
Tureca para Cables
3
EE
Tornillo de la Ménsula
2
FF
Tornillo del Luminario
2
GG
Ménsula de Montaje
1
EEDD FF GG
AA BB CC
A
