Enviro ETS-DSU-G02A02 Manuel utilisateur

E R E

Enviro Technologies

S-12,Top class Enclave, Nr. Bhoidapada bus stop, Sativali Road, Vasai (E), Thane -

401208,

Tel: +91 9222243764 Web: www.enviroworld.in

Manual

Data Storage Unit

Ver. 1.5

Model: ETS-DSU-G02A02(0202PPCS02)

E R E

ETS-DSU- G02A02(0202PPCS02) [ver. 1.5] Page i

History

Sr.

Manual

Version

Date

Author

Approved By

Remarks

1.0

31/08/10

Yogesh

Prashant

1.1

02/11/10

Yogesh /

Sanjay

Prashant

1. Set stabilization menu parameter added for

setting stabilization period for

acknowledgement of all alarm for

mentioned period of time.

2. Fast key response auto increment and

decrement

3. Alarm acknowledgement sub menu item

added as Major Stabilization and Minor

stabilization.

1.2

20/12/10

Yogesh/

sanjay

Prashant

1. Changes in Print control submenu

sequence.

2. Print remark for “PRINT CURRENT

DATA”.

3. Installation note along with Do’s & Don’t

1.3

31/01/11

Sanjay

Prashant

1. Updated unit information.

1.4

13/04/11

Sanjay

Prashant

1. Set decimal point menu parameter added.

1.5

29-10-18

Akshada

Sanjay

1. Added PID selection menu.

E R E


ETS-DSU- G02A02(0202PPCS02) [ver. 1.5] Page ii

 TABLE OF CONTENT
History ...................................................................................................................................................i
Product Selection (Model No.):........................................................................................................... 1
Introduction.......................................................................................................................................... 1
LED Indications ............................................................................................................................................1
Operation Keys..............................................................................................................................................2
Display Massage............................................................................................................................................2
Product Specification and Features.................................................................................................... 3
Keypad Functions ................................................................................................................................ 4
1. ADMIN LOGIN ................................................................................................................................................4
2. DISPLAY MODE..............................................................................................................................................5
3. CONTROLLER NO:.........................................................................................................................................5
4. PRINT CONTROL............................................................................................................................................5
4.1 Set Header Page For Print Start.............................................................................................................................6
4.2 Cancel Old Printing...............................................................................................................................................6
4.3 Print Current Reading............................................................................................................................................6
4.4 Reset Page No .......................................................................................................................................................7
4.5 Reset Print.............................................................................................................................................................7
4.6 Reset All Memory.................................................................................................................................................7
5. PRINT LAST PAGES.......................................................................................................................................8
6. PRINT DATA DATE WISE .............................................................................................................................8
7. PRINT INTERVAL...........................................................................................................................................9
8. PAGE LENGTH................................................................................................................................................9
9. SET DECIMAL POINT ....................................................................................................................................9
10. MEMORY USED STATUS............................................................................................................................10
11. ETS-DSU NUMBER.......................................................................................................................................10
12. SETTING DATE TIME ..................................................................................................................................11
13. CONTRAST CONTROL ................................................................................................................................11
14. MEM ALARM PROG.....................................................................................................................................11
15. SET STABILIZATION...................................................................................................................................12
16. ALARM ACKNOWLED. (Optional Factory setting).....................................................................................12
17. PID SELECTION............................................................................................................................................13
Printer Remarks................................................................................................................................. 14
Printer Connection Details................................................................................................................ 17
System Connection Details ................................................................................................................ 18
Installation Note................................................................................................................................. 19
Troubleshooting Chart....................................................................................................................... 20

E R E

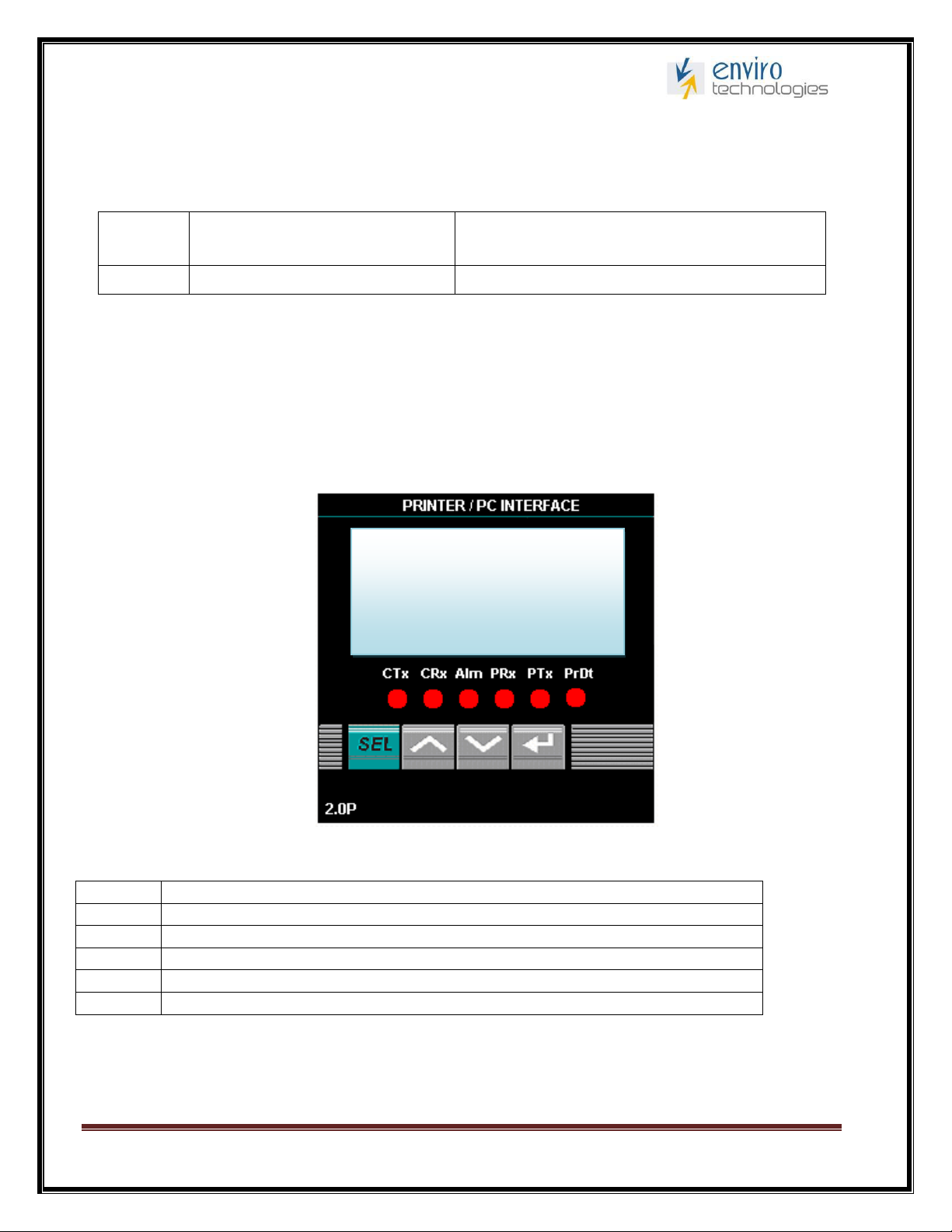

ETS-DSU- G02A02(0202PPCS02) [ver. 1.5] Page 1

Product Selection (Model No.):

SR.NO

Model No

Description

ETS-DSU G02A02(0202PPCS02)

Graphical/Stability/PID/2Channels

Introduction

ETS-DSU-G02A02(0202PPCS02)(DSU + Display) unit is a new version of ETS-DSU 2.1

Hardware PC & Parallel Printer interface, where display is interfaced with ETS-DSU-

G02A02(0202PPCS02)on RS 485 internally. Display consists of 128X64 GLCD display and 4

programming keys, which are used for programming of different display parameters, ETS-DSU-

G02A02(0202PPCS02)parameters and also to display the controller parameters. This display is

connected internally on same RS485 cable on which controllers are connected.

LED Indications

CTx

Controller data transmit signal

CRx

Controller data receive signal

ALm

Key press buzzer indication and Memory full indication

PRx

Printer data transmit signal

PTx

Printer data receive signal

PrDt

Printer connection and Page detection signal

ENVIRO TECHNOLOGY 01

CH PV SV

T1 23.5 25.0 °C

R1 64.1 65.0 %

M 14/09/10 12:00

E R E

ETS-DSU- G02A02(0202PPCS02) [ver. 1.5] Page 2

Operation Keys

SEL

•Select function or Entering Menu.

•Press this key second times then exist the menu.

•This key used for exit to the parameter setting.

INC

•Scroll the menu parameter

•Increments numerical data for parameter setting.

•To fast increment press key for 3 sec it will increment automatically by one, further pressing of key

will increment count by 10.

DEC

•Scroll the menu parameter

•Decrements numerical data for parameter setting.

•To fast decrement press key for 3 sec it will decrement automatically by one, further pressing of key

will decrement count by 10.

ENT

•Entering Menu parameter.

•Enter or Set the data for parameter.

Display Massage

Channel No

Process Value

PC OR PRINTER MEMORY INDICATION

Also display on Same location at Date time in Scrolling Percentage of

Printer and PC Memory indication with Date time.

Time & Date

This display on bottom of the display.

Here display in scrolling mode if event is occurs it shows following data

1) Alarm Indication

2) Memory Alarm massage

3) Stabilization mode(Major enable, Minor enable and stabilization period)

Display Header

At the TOP Display header (settable.)

This is ETS-DSU-G02A02(0202PPCS02)UNIT ID number.

°C

This is temperature unit.

This is humidity in percentage unit.

This symbol indicates for connection of Printer.

ENVIRO TECHNOLOGY 01

CH PV SV

T1 23.4 25.1 °C

R1 63.2 65.0 %

M 14/09/10 12:00

E R E

ETS-DSU- G02A02(0202PPCS02) [ver. 1.5] Page 3

Product Specification and Features

Features and Specifications of ETS-DSU- G02A02(0202PPCS02)

Sr.

Specifications

Description

Type

Microcontroller based Electronic device with Printer and 2PID controller

Interface.

Display

128 X 64 Alphanumeric Graphical display

Keypad

Total 4 Keys

Function keys =>SEL, INC, DEC, ENT.

Transaction capacity

Up to max transaction for PID controller.

1. 4500 for 1 PID controller

2. 3000 for 2 PID Controller

Power supply

12VDC @ 1A

12 watts

Communication Port

▪RS 485 (PID Communication)

▪RS 485 (PC Communication)

▪Parallel Printer interface

Printers supported

EPSON LX-300+ (Dot Matrix)

Size

96x96mm

Weight

~ 270gm

Keypad functions

Admin Login

To Access the parameters of display unit

Display Mode

To set display unique #

Controller No.

To set no. of PID Data to be display.

Print Control

Different Print Controls settings.

Print Last Pages

To Print old PROCESS data from ETS-DSU-

G02A02(0202PPCS02)page wise.

Print form Date

To Print old PROCESS data from ETS-DSU-

G02A02(0202PPCS02)date wise.

Print Interval

To set polling time in minutes on ETS-DSU- G02A02(0202PPCS02)

Page Length

To Set Page Length on ETS-DSU- G02A02(0202PPCS02)

Set Decimal Point

To Remove/Set Decimal point

Memory Used Status

Display Memory Used Status.

Set DSU Number

Set ETS-DSU-G02A02(0202PPCS02)UNIT ID

Set Date Time

Set Time and Date for unit.

Contrast Control

Set contrast

System Info.

Information for the DSU unit

Mem. Alarm Prog

Programmable Memory Alarm for PC & Printer memory.

Set Stabiliz

Setting of stabilization period mode (Major stabilization and Minor

stabilization (optional factory setting)).

Alarm Acknowledged

Acknowledged different alarms and stabilization(Optional Factory setting)

PID SELECTION

Selects PID from given PIDs (PXF4, PXR4 and OMRON)

Back To Main

This function used to exit the Menu with logoff.

E R E

ETS-DSU- G02A02(0202PPCS02) [ver. 1.5] Page 4

Keypad Functions

1. ADMIN LOGIN

This is used to Access the various parameters of ETS-DSU- G02A02(0202PPCS02). To Log

In go to Admin Login menu using “SEL” Key and enter ID NO 10 and password value as 1.

Now user will have access for setting parameters of ETS-DSU- G02A02(0202PPCS02). To

log out just go to Admin Login menu once again and press “ENT” key. Program

automatically exit from Admin menu after 60 Sec (NOTE: If any key is not press within 60

sec during Program mode then you will exit from Program mode. To enter again program

mode you must Login by using Admin Login Menu)

User must enter the ID No 10 with help of “INC”key and “DEC” Key after then press

“ENT”Key. Then you enter Password “1”using same keys

For any incorrect ID or Password entered, ETS-DSU-G02A02(0202PPCS02)display message

“Admin Login Fail…” .If the ID and Password is correct then ETS-DSU-

G02A02(0202PPCS02)display message “Admin Login OK”

ENVIRO TECHNOLOGY 01

Display Mode

Controller No

14/09/10 12:00

>> Admin Login

ENVIRO TECHNOLOGY 01

Admin User:

ID: 00000

14/09/10 12:00

>> Admin Login

ENVIRO TECHNOLOGY 01

Admin User : 00010

Password: 00000

14/09/10 12:00

>> Admin Login

E R E

ETS-DSU- G02A02(0202PPCS02) [ver. 1.5] Page 5

2. DISPLAY MODE

Display Mode is used to select various display formats to display online data. User can use

increment and decrement key to select the display mode. Once display mode is set user can

press “ENT” key to set display mode in EEPROM. To exist this menu press “SEL” Key.

Type: 00000

If display mode is set to Type 00, the unit will display the data from the PID controller, of

which the ID is mentioned under controller Number.

Type: 00001

If display mode is set to Type 01, the unit will display the data from the number of PID

controllers, mentioned under controller Number.

3. CONTROLLER NO:

Same as mentioned under Display mode.

4. PRINT CONTROL

This Parameter function is used for different printer controlling action. Here users first enter

to parameter then scroll Sub-parameter content with the help of INC and DEC Key. If Printer

is not connected then user will get massage “Check Printer” on display, otherwise user get

display Sub-Parameter function. Select sub parameter with the help of increment key and

press Enter key, Pressing enter key twice will show message as “Select Function”. To exist

parameter mode press SEL Key.

ENVIRO TECHNOLOGY 01

Controller No

Print Control

14/09/10 12:00

>> Display Mode

ENVIRO TECHNOLOGY 01

Check Printer

14/09/10 12:00

>> Print Control

ENVIRO TECHNOLOGY 01

No. : 0001

14/09/10 12:00

>> Display Mode

E R E

ETS-DSU- G02A02(0202PPCS02) [ver. 1.5] Page 6

4.1 Set Header Page For Print Start

This function is used to set the page header for printing. Printer Header is printed as a

beginning of the page.

4.2 Cancel Old Printing

This function is used to stop the previous pages under printing. (Normally shall be used if

Print Previous pages command is executed and needs to be cancelled).

4.3 Print Current Reading

This function is used to print the current values of controllers.

“* Printed Current” message will be displayed after activating the parameter.

To identify the print current data transaction “.” Dot will be printed after date and time of the

transaction.

ENVIRO TECHNOLOGY 01

Set Page Header

14/09/10 12:00

>> Print Control

ENVIRO TECHNOLOGY 01

Cancel Old Print

14/09/10 12:00

>> Print Control

ENVIRO TECHNOLOGY 01

Print Current Data

14/09/10 12:00

>> Print Control

E R E

ETS-DSU- G02A02(0202PPCS02) [ver. 1.5] Page 7

4.4 Reset Page No

This function is used to reset Page No to 01.

4.5 Reset Print

This function is used to reset stored print data.

Warning: Please ensure before executing this function as it may result in losing the print data.

This print data can be available with Print Page Command. (PC data will still be available to

user.) “Print Data Deleted” remark and transaction will be stored in unit.

4.6 Reset All Memory.

Caution: This function will reset the memory and hence all process data stored in memory

will be lost, also the print memory can’t available with print page command.

To have ETS-DSU-G02A02(0202PPCS02)MEMORY Reset from ETS-DSU-

G02A02(0202PPCS02)Display unit GOTO “Print Control” and Reset all memory by

selecting “Reset All Memory” Command and press ENTER. “Data will be lost” message will

follow. This is to warn for USER about confirming deleting of all data. If user presses

ENTER all data will be deleted, else not.

ENVIRO TECHNOLOGY 01

Reset Page No

14/09/10 12:00

>> Print Control

ENVIRO TECHNOLOGY 01

Reset Print

14/09/10 12:00

>> Print Control

ENVIRO TECHNOLOGY 01

Reset All Memory

14/09/10 12:00

>> Print Control

ENVIRO TECHNOLOGY 01

Data will be lost

YES

14/09/10 12:00

>> Print Control

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Enviro Stockage

Enviro

Enviro 0202PPCT02 Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
