Enviro Evolution EF5 Manuel utilisateur

November 2011

Enviro Evolution EF5 Freestanding

Wood Pellet Burning Heater

Enviro Evolution EF5 Freestanding

Wood Pellet Burning Heater

Installation Specications

Safety testing of EF5 Evolution FS CB Pellet Burning Heater to

AS/NZS 2918. ARS 09/1981 & 08/1902

Emissions: 07/1664

Flue Kit Testing to AS/NZS 2918 AppF:05/1185

November 2011

Installation

Dimensions – Evolution EF5 Freestanding

Installation Clearances & Specications

Minimum clearances shown are in millimetres. All Enviro res are tested to AS/NZS2918:2001.

Specications were correct at time of printing but may alter and those detailed below should be used as

a guide only. Refer to the Installation and Operation Manual supplied with every Enviro Pellet Fire or if

in doubt, consult your Switch Retailer. Refer to Safety Test 09/1981 for all clearances to combustibles.

Clearances to Combustibles

22 1/4"

(565 mm)

34 5/16"

(871 mm)

23 7/16"

(595 mm)

5 5/8"

(144 mm)

26 3/8"

(670 mm)

28"

(711 mm)

24 3/8"

(619 mm)

External Flue

Enviro Evolution EF5 Pellet Fire

Clearance to Combustibles

Internal Flue

Location Dimension

(mm)

A 100

B 150

C* 50

D ~210

E N/A

F 75

G* 50

H 100

I* 50

J* 25

Freestanding

Clearances

* from shielded ue

Note: AS/NZS 2918

requires a minimum

of 100mm clearance

for any side requiring

access.

Note: These are

minimum clearances to

combustibles. Actual

installation distances

may be greater.

Note: The above clearance to combustibles on the ue are only applicable within the re envelope. Clearance outside this e.g.at a ceiling / wall thimble reverts to 25mm as per ARS ue

test 05/1185.

November 2011

Location of the Pellet Fire

Installation of the Enviro Evolution Wood Pellet Burning Heater should be undertaken by an

experienced installer. Please read the Evolution Owners/Technical Manual thoroughly before

commencing installation as failure to follow the instruction could cause damage to the pellet

re or property.

Positioning the re:

Generally the Evolution should be installed in a centrally located position within the home.

When deciding where to position the appliance in your room you need to consider the following:

• Location of a power source

• The Evolution has a convection fan which blows air through tubes in the direction that

the re faces, for optimum performance this location should be in a large room centrally

located.

• The Evolution comes with its own hearth pad. This complies with the hearth requirements

and the re can be installed on a combustible surface.

• The Evolution has been Safety Tested to AS/NZS 2918 using the Davins manufactured

ue. Test Report ARS 05/1185. Installation is not exclusive to these nominated kits,

though alternative ue should only be considered following consultation with your local

council.

• Please consult page 2 for the required clearances to combustible material also ensure

the position of structural elements near the proposed ue.

• Because of the positive pressure in the ue, sealing of all 75mm stainless joints is

mandatory – use high temperature sealant. Both inner and outer ue joints must be

riveted.

• Seismic Restraint: Please see page 6 for requirements.

• Warranty: To validate warranty following installation a copy of the completed Warranty/

Producers Statement must be forwarded to: Switch- Fax (03) 341 8057.

November 2011

Internal Standard Flue Kit (50)

Internal Standard Flue Kit

Each 50 Internal Standard Flue Kit contains:-

ytitnauQnoitpircseDoNtraP

1Galvanised outer liner

ø100mm x 900mm long 1

2 Stainless steel inner liner

ø75mm x 900mm long

4a Black p/coat outer liner

ø100mm x 900mm long

5Inner/outer ue liner spacer

6c Ceiling thimble ø107mm hole

7c Ceiling decor plate

ø107mm hole – white

8Rain cap 75mm

9Rain Cap 100mm

10b Elbow 45° – ø75mm stainless

–black (painted)

12H T-adaptor/cleanout – ø75mm

–black (painted)

23 Support angle 950mm long

– 50mm x 50mm sides

This ue kit may be used in new and replacement

applications in rooms with stud height of 2.4m. The

overall height of the ue is 3.6m. The visible u e is

nished in black and the ceiling plate is white. T he

support angles for securing the liner to the ceilin g are

not shown. Kit is supplied in a carton.

Heat-resistant

oor protector

Seismic restraint

(to be tted)

50mm minimum clearance if lined ue

600mm from

roof

penetration

~210 mm

150mm

(minimum)

Note: The Davin 50 Internal Standard Flue

Kit complies with AS/NZS 2918:2001 as per

Applied Research Test Report 05/1185, dated

15 September 2005.

All res must be installed by a qualied

installer as per the manufacturer’s

instructions and AS/NZS2918:2001.

To order : Telephone 0800 765 431. Fax 64 3 341 8057 info@switchenergy.co.nzwww.switchenergy.co.nzDecember 2006

Drawing representative only - not to scale.

This ue kit may be used in new and replacement

applications in rooms with stud height of 2.4m.

The overall height of the ue is 3.6m. The visible

ue is nished in black and the ceiling plate is

white. The support angles for securing the liner to

the ceiling are not shown. Kit is supplied in carton.

November 2011

External Standard Flue Kit (51)

Each 51 External Standard Flue Kit contains:-

ytitnauQnoitpircseDoNtraP

1Galvanised outer liner

ø100mm x 900mm long

2 Stainless steel inner liner

ø75mm x 900mm long

5Inner/outer ue liner spacer

6w Wall thimble – 2 pieces

ø102mm holes

6s Sot thimble ø107mm hole

7w Wall decor plate

ø102mm hole – white

8Rain cap 75mm

9Rain Cap 100mm

26 Lined T-adaptor

This ue kit may be used in new and replacement

applications with the ue penetrating the wall behind

the re, running vertically up an outside wall and

penetrating the sot. The overall height of the f lue is

3.6m. All visible ue has a galvanised nish, and can be

powdercoated on request. Kit is supplied in a carton.

Note: The Davin 51 External Standard Flue

Kit complies with AS/NZS 2918:2001 as per

Applied Research Test Report 05/1185, dated

15 September 2005.

All res must be installed by a qualied

installer as per the manufacturer’s

instructions and AS/NZS2918:2001.

Heat-resistant

oor protector

Seismic restraint

(to be tted)

600mm from

roof penetration

100mm

(minimum)

150mm

(minimum)

External Standard Flue Kit51

To order :December 2006 Telephone 0800 765 431. Fax 64 3 341 8057 info@switchenergy.co.nzwww.switchenergy.co.nz

Drawing representative only - not to scale.

This ue kit may be used in new and replacement

applications with the ue penetrating the wall

behind the re, running vertically up an outside

wall and penetrating the soft. The overall

height of the ue is 3.6m. All visible ue has a

galvanised nish, and can be powdercoated on

request. Kit is supplied in a carton.

November 2011

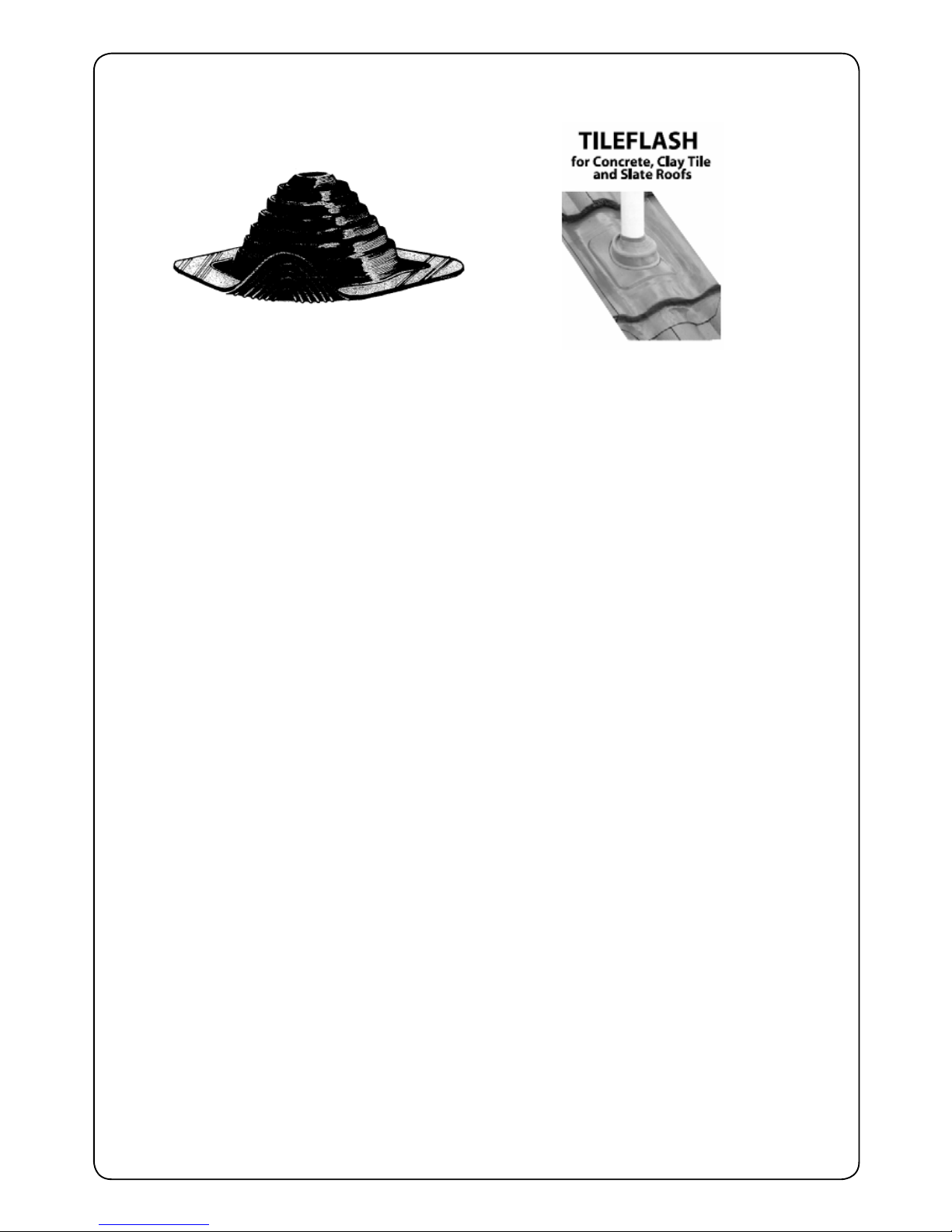

Flashing Options:

Decktite - For all Steel Roof Proles

Please circle the ashing option to be used. When considering an alternative method please consult

your local council.

SEISMIC RESTRAINT:

All installation scenarios for the Enviro Evolution EF5 require the use of hold-down anchors (one on

each side)

Fixing to Concrete Floor:

Minimum M8 expansion anchors (M10 recommended) or min M8 epoxy- set anchors.

Approved Anchors: Expansion Anchors-Ramset Dynabolt and Trubolt, Hilti HAS.

Epoxy-set Anchors – Ramset Epcon, Ramset Chemset and Hilti HVU.

Fixing to Timber Floor Framing:

Minimum 14g x 60 screws (6.3mm diameter) or M10 X 90 coach-screws. These shall be xed a minimum

of 40mm into the centre-line of the existing oor joists. If screws cannot be installed directly into an

existing oor joist, solid blocking between joists (min size 90x45) shall be provided.
