Entrust CE840 Manuel utilisateur

Quick Install Guide

CE840™ Instant Issuance

System

December 2020

527261-002, Rev H

2 527261-002H

CE840 Instant Issuance System

1. Select a Location for the Printer

• Install the printer in a location that is clean and well

ventilated, free of vibration or shock.

• For venting and clearance, choose an area that is

approximately 27 inches (686 mm) wide, 31 inches

(788 mm) deep, and at least 27.4 inches (696 mm) high.

Refer to the printer’s Installation and Administrator’s

Guide for complete site requirements.

• Do not install the printer in direct sunlight.

• Install the system in a secure location.

• Install the system in a location that has access to two

AC outlets and a network port.

Refer to the printer’s Installation and Administrator’s Guide

found on the Owner’s Library CD for detailed installation

instructions.

527261-002H 3

Quick Install Guide

2. Unpack and Secure the System

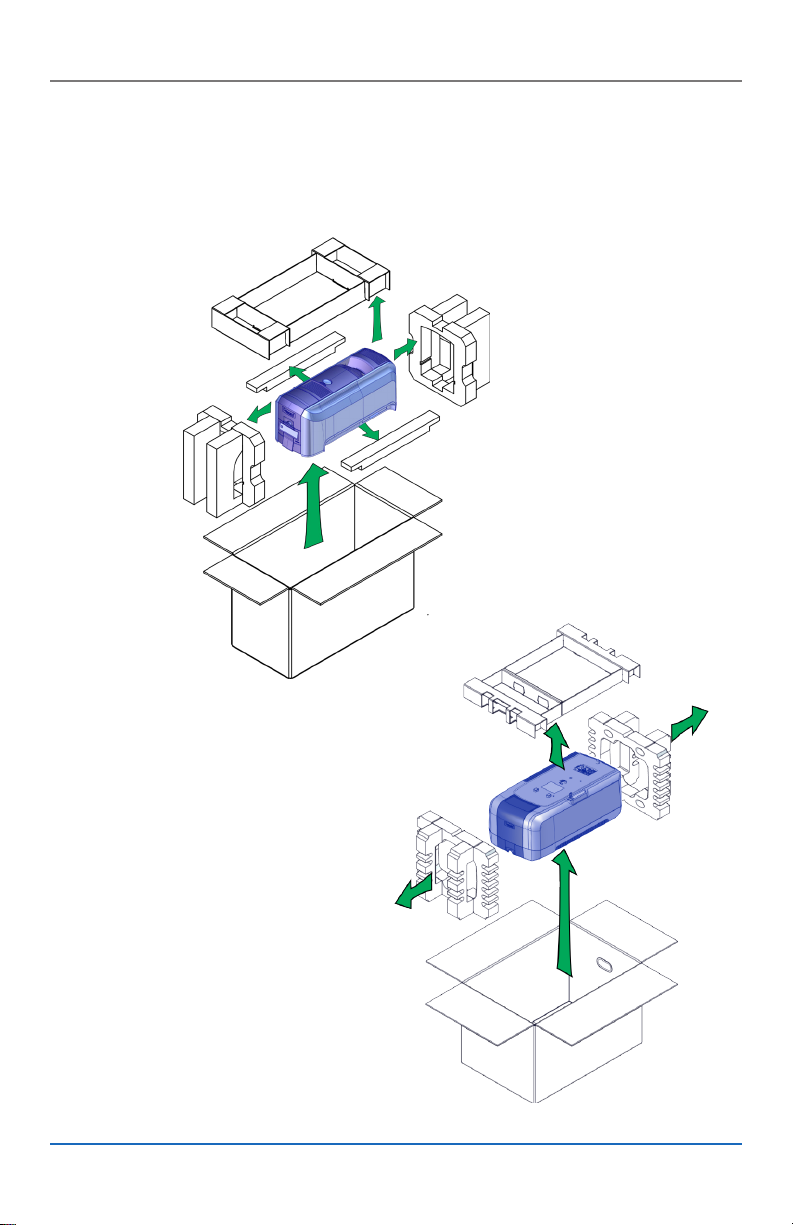

a. Remove the printer and the embosser from their

shipping cartons.

Printer

Embosser

4 527261-002H

CE840 Instant Issuance System

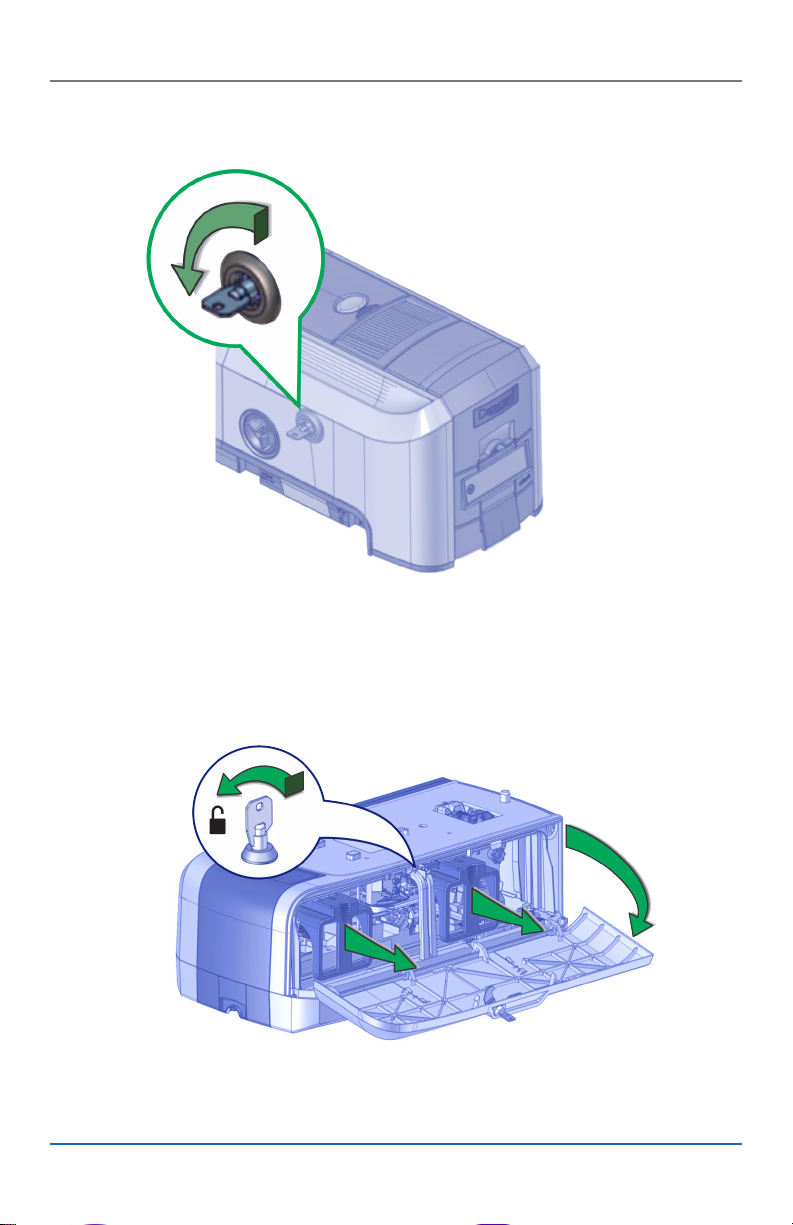

b. Unlock the printer.

c. Unlock the embosser and remove the indent ribbon and

topping foil cartridges.

527261-002H 5

Quick Install Guide

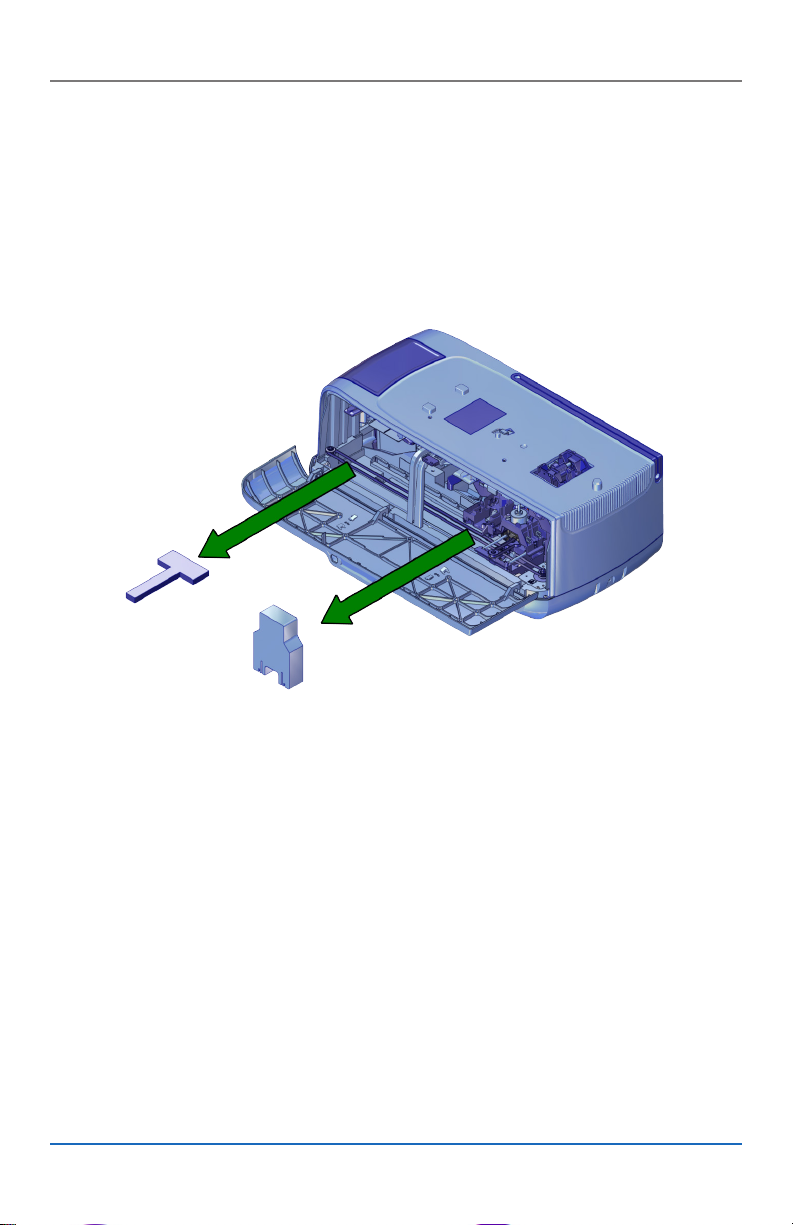

d. Remove the foam “T” and block inserts used to secure

the embosser topping and transport mechanisms during

shipping.

6 527261-002H

CE840 Instant Issuance System

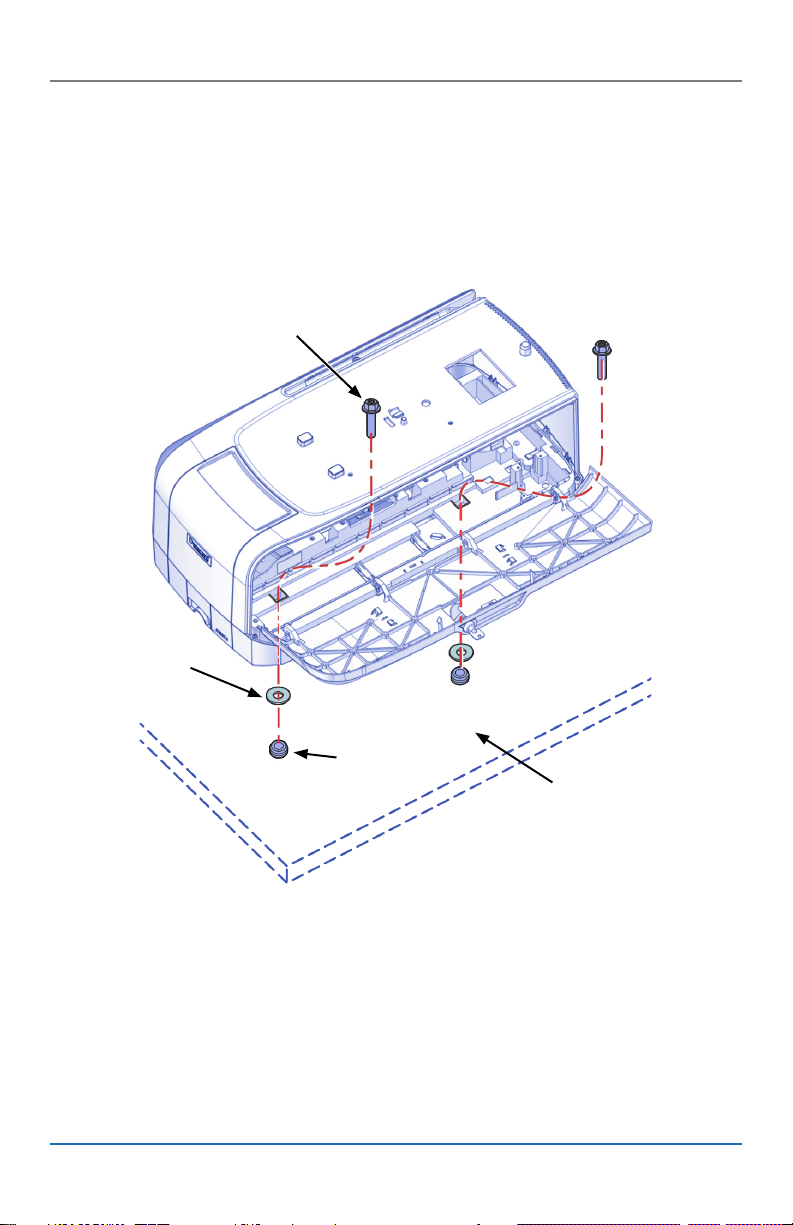

e. Secure the embosser to the work surface (if required).

Refer to the printer’s Installation and Administrator’s

Guide for detailed installation instructions and

measurements.

Bolt

Washer

Work

Surface

Lock Nut

527261-002H 7

Quick Install Guide

3. Assemble the Printer and Embosser

a. Locate the interconnect cable in the cable routing

area of the embosser, and make sure that it remains

accessible.

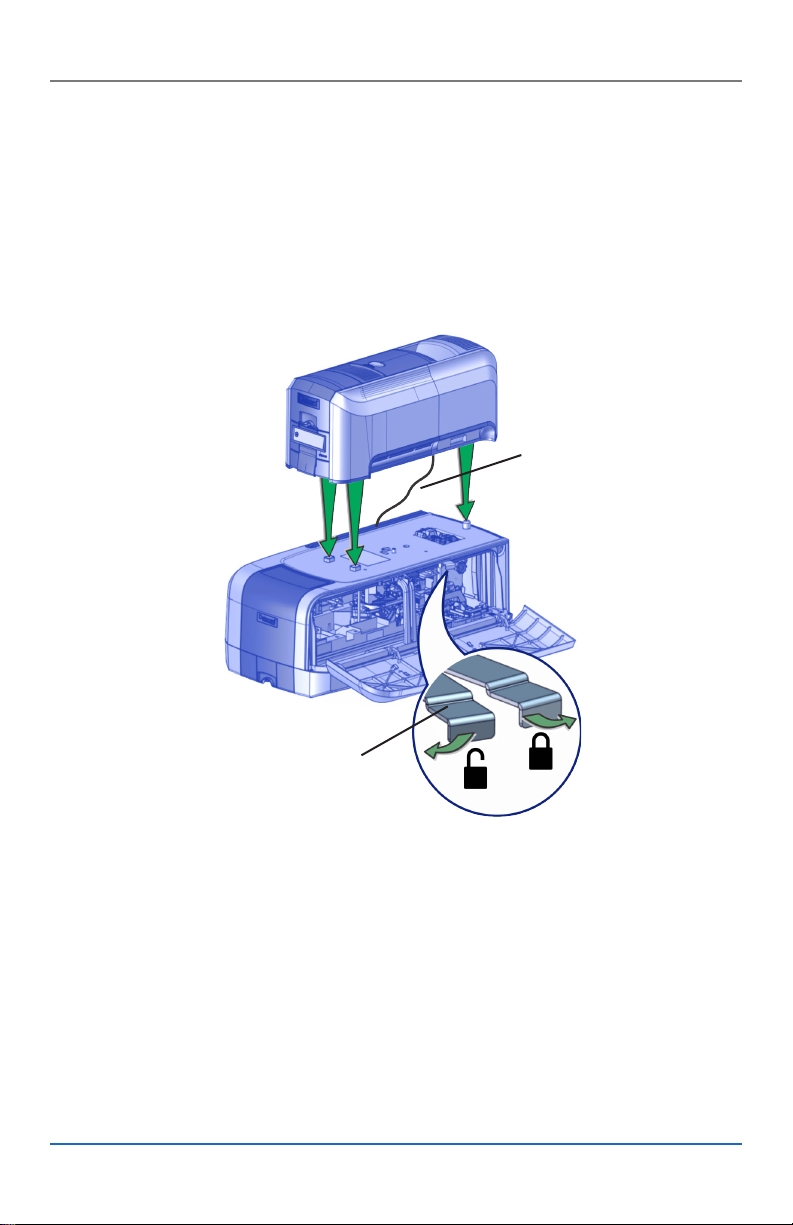

b. Slide the printer locking lever inside the embosser to the

left to move the mounting lock to the unlocked position.

c. Lift the printer over the embosser and align the pins on

the embosser with the holes on the underside of the

printer.

d. Press down carefully, but rmly, on the printer to

position it.

e. Push the printer locking lever to the right to lock the

printer to the embosser. Make sure that the printer is

locked securely to the embosser.

Interconnect

Cable

Printer Locking

Lever

8 527261-002H

CE840 Instant Issuance System

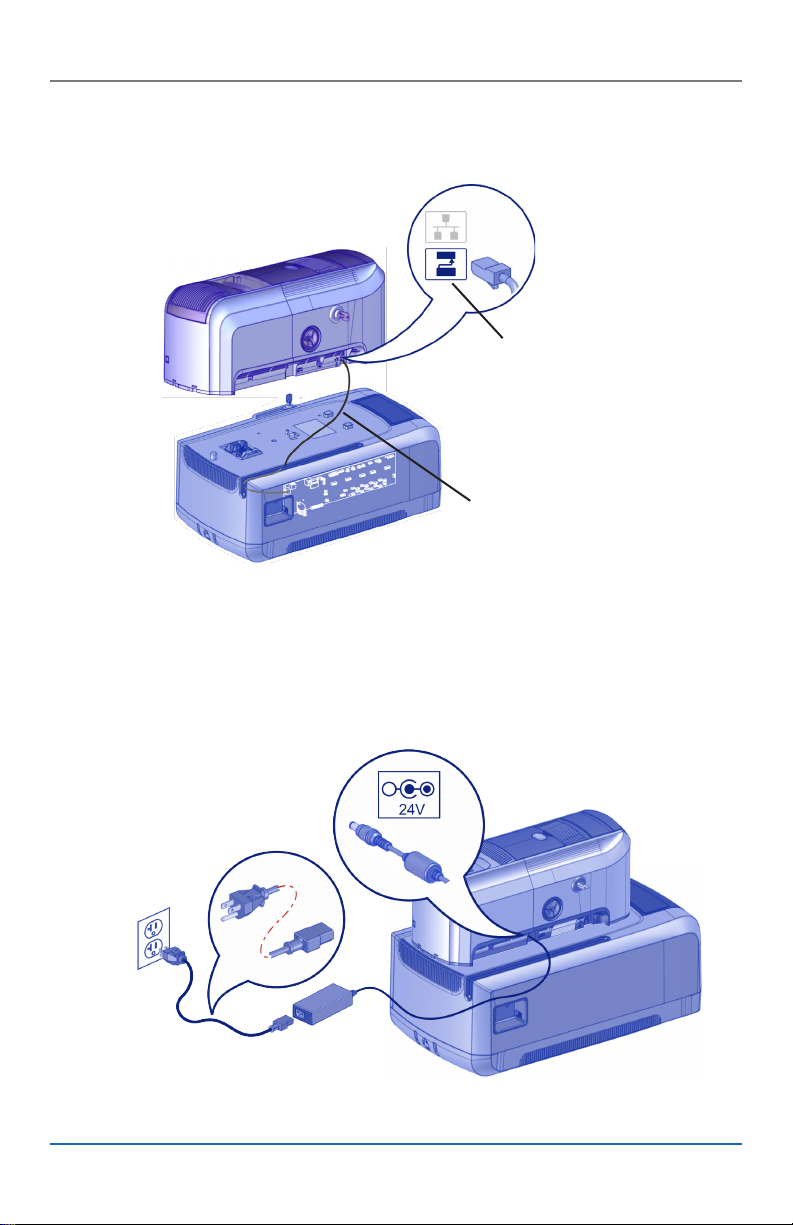

f. Connect the interconnect cable from the embosser to

the lower data port on the printer.

4. Connect the Power Cords

a. Connect the printer power cord into the printer and into

the power supply.

b. Plug the power supply cord into the power outlet.

Interconnect

Cable

Data

Port

527261-002H 9

Quick Install Guide

c. Connect the embosser power cord into the embosser

and into the power supply.

d. Plug the power supply cord into the power outlet.

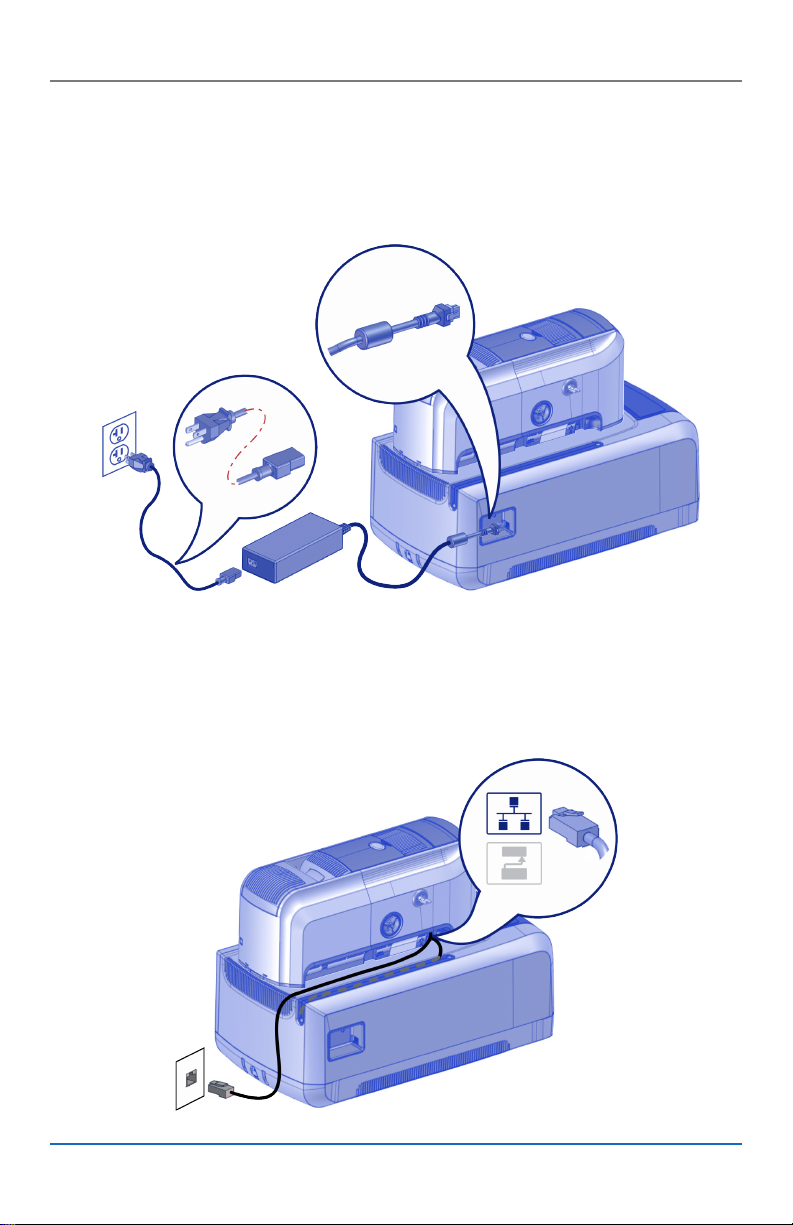

5. Connect the Network Data Cable

The cable is ordered separately.

10 527261-002H

CE840 Instant Issuance System

Do not separate

6. Load Supplies

Supplies are ordered separately.

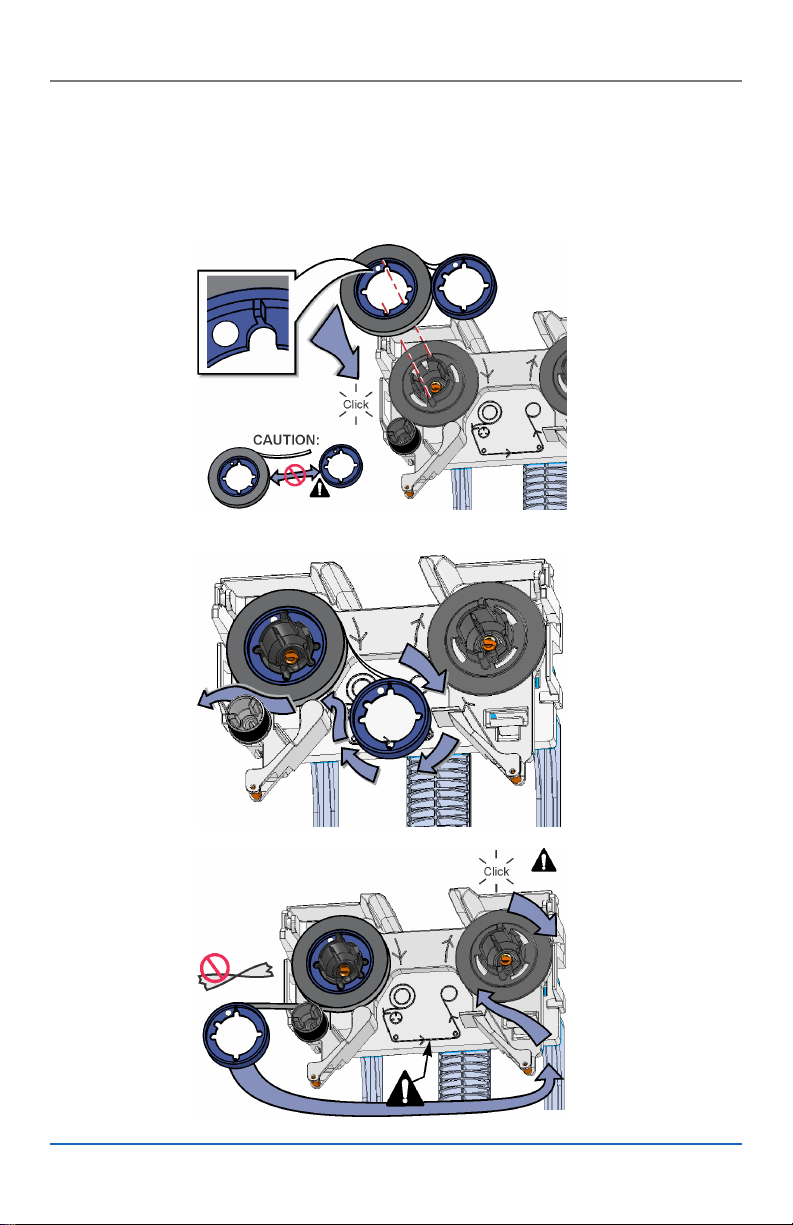

a. Load the indent ribbon onto the cartridge.
