Enterasys FN10 Manuel

status

Displays the status of the FN10, including the

currently running software version, the

number of learned addresses, system up time,

unit temperature, CPU utilization, and the

status of each port or range of ports.

Options:

port number

port number range

Example:

status

sttimer

Displays the current Spanning Tree Address

Table aging time, and allows you to enter a

new aging time.

Example:

sttimer 300

traplog

Displays the traps messages captured by the

FN10.

Example:

traplog

trunk

Displays the current trunking status for all

monitored ports, and allows you to set

trunking for a speciﬁc port or range of ports.

Options:

off

Example:

trunk 7-10, 15 on



1996 by Cabletron Systems

PO Box 5005, Rochester, NH 03866-5005

9031803

March 1996

Fast Network 10 (FN10)

Local Console Manager (LCM)

Commands Reference Card

address display

Displays learned addresses.

Options:

big

any

MAC-ADDRESS

ADDRESS-MASK

Example:

address display any

arp display

Displays the ARP table.

Example:

arp display

baud

Displays the current baud rate of your LCM

console connection, and allows you to change

the baud rate.

Options:

1200

2400

4800

9600

19200

Example:

baud 9600

bridge

Displays the bridging status for all ports, and

allows you to set bridging options for a single

port or a range of ports.

Options:

off

BPDU

Example:

bridge 2-6 on

Enter

new time

Enter

port# range

Enter

new baud rate

port# range

Enter

1803_lcm.frm Page 1 Wednesday, March 13, 1996 11:35 AM

community

Allows you to assign a new community name

or change an existing one.

Example:

community

disable

Allows you to disable a port or range of ports.

Example:

disable 7-9

enable

Allows you to enable a port or range of ports.

Option:

RIP

Example:

enable 7

erase

Allows you to erase all conﬁguration

information on the next system reset.You are

prompted to conﬁrm this action.

Example:

erase

exit (logout)

Allows you to log out of your current LCM

session.

Example:

exit

ﬁlters

Allows you to manage Port ﬁlters.You must

include one of the options listed below.

Options:

add

delete

display

modify

Example:

ﬁlters display

help

Displays the available LCM commands.You

can also type a question mark (

) to display

the available LCM commands.

Example:

help

ident

Displays the FN10’s serial number, the FE up-

link module number (if installed), power-up

test codes, and diagnostic information.

Example:

ident

ipaddr

Displays the IP addresses, address masks,

and MAC addresses for all monitored ports.

This command also allows you to assign an IP

address to a port on the FN10.

Example:

ipaddr 6 192.138.217.40

reboot

Allows you to enter the number of seconds the

FN10 waits before rebooting.

Options:

SECONDS

off

Example:

reboot 60

route display

Displays routing table information.

Options:

IPADDR

Example:

route display IPADDR

Enter

port# range

Enter

port#

Enter

port# IP address

Enter

seconds

Enter

1803_lcm.frm Page 2 Wednesday, March 13, 1996 11:35 AM

Autres manuels Enterasys Changer

Enterasys

Enterasys Vertical Horizon VHIM100-S2MFX 100BASE FX-SC Manuel utilisateur

Enterasys

Enterasys D-Series Mode d’emploi

Enterasys

Enterasys Vertical Horizon VH-2402S Comment utiliser

Enterasys

Enterasys Matrix 2G4072-52 Manuel utilisateur

Enterasys

Enterasys SmartSwitch 6000 Manuel utilisateur

Enterasys

Enterasys 7100G Series Manuel

Enterasys

Enterasys VERTICAL HORIZON VH-8TX1UM Manuel utilisateur

Enterasys

Enterasys I3H252-12TX Manuel utilisateur

Enterasys

Enterasys SecureStack C2 Manuel utilisateur

Enterasys

Enterasys G3G124-24 Manuel utilisateur

Enterasys

Enterasys Vertical Horizon VHIM100-S1SFX 100BASE FX-SC Manuel utilisateur

Enterasys

Enterasys Vertical Horizon VH-2402S2 Manuel

Enterasys

Enterasys Matrix-V V2H124-24P Manuel

Enterasys

Enterasys Vertical Horizon VHIM1000-S1SX 1000Base... Manuel utilisateur

Enterasys

Enterasys N Standalone (NSA) Series Manuel utilisateur

Enterasys

Enterasys SecureStack C2 C2G170-24 Manuel utilisateur

Enterasys

Enterasys SecureStack B2 B2G124-48P Manuel

Enterasys

Enterasys Vertical Horizon VH-2402-L3 Manuel utilisateur

Enterasys

Enterasys Matrix 2G4072-52 Manuel utilisateur

Enterasys

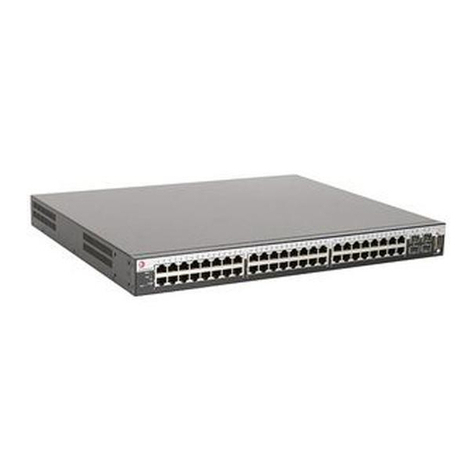

Enterasys SecureStack C3 C3G124-24P Manuel utilisateur
