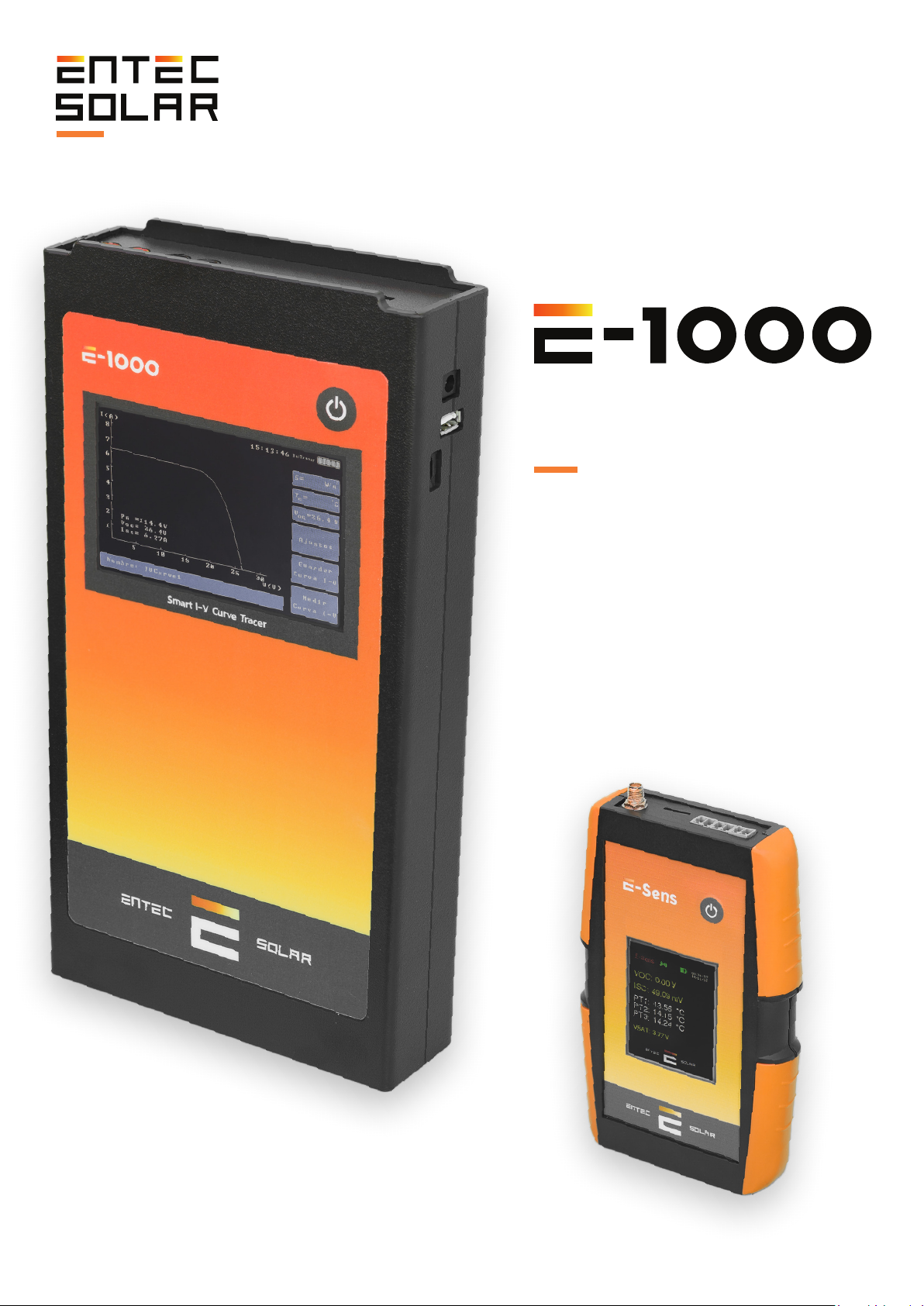

Entec Solar E-1000 Manuel utilisateur

Smart I-V curve tracer

Entec Solar

User Manual for E-1000

and E-Sens

2 “Innovative products for the solar energy industry” www.entecsolar.es

0. Thank you letter................................... 04

1. Warnings............................................... 05

1.1. Symbols..................................................... 06

1.2. Device safety .......................................... 07

2. General description............................ 08

2.1. Device functionality ............................. 09

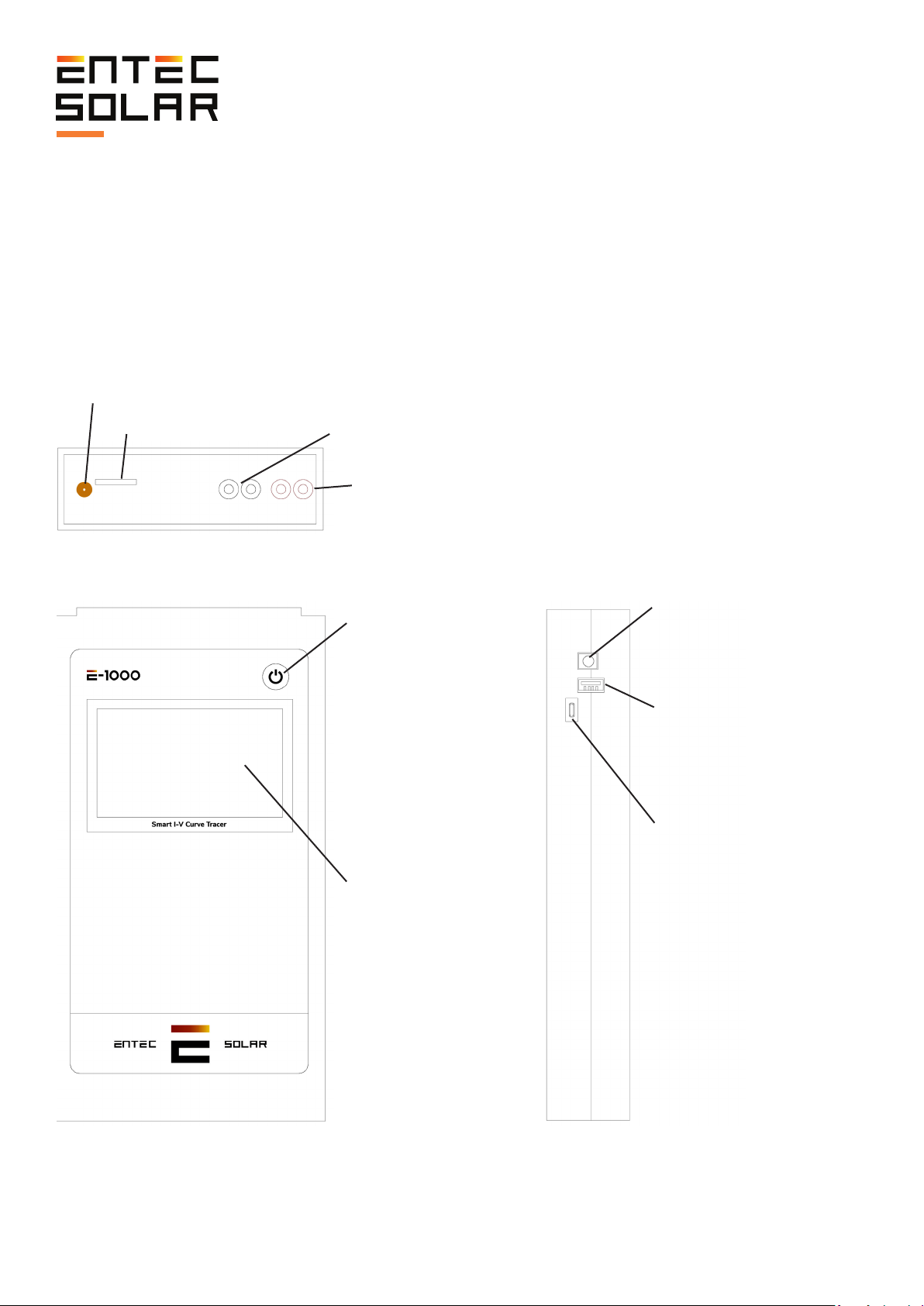

2.2. External connectors and device

anatomy ............................................................. 10

2.2.1. E-1000................................................... 10

2.2.2. E-Sens.................................................... 11

2.3. Scope of supply...................................... 12

3. Operating conditions to obtain

accurate and consistent results ........... 13

4. Measurements preparation ............... 14

4.1. Start-up.................................................... 14

4.2. Battery charging .................................... 14

4.3. Memory card insertion........................ 15

4.4. Initial conguration............................... 15

4.5. Mounting and connecting the irradiance

and temperature sensors to the E-Sens...... 16

4.6. Connecting the module or generator

under test .......................................................... 17

5. Conguration and operation ........... 19

5.1. Start-up..................................................... 19

5.2. Main screen.............................................. 20

5.2.1. Main screen information .................. 20

5.2.2. Main screen control ........................... 21

5.2.2.A. TCsensor selection ....................... 21

5.2.2.B. Settings options menu ................. 21

5.2.2.C. Saving the I-V curve...................... 21

5.2.2.D. Measuring the I-V curve .............. 21

5.2.2.E. Naming the le ................................ 21

5.3. I-V curve measurement....................... 22

5.3.1. General considerations..................... 22

5.3.2. Manual measurement....................... 23

5.3.3. Auto measurement ........................... 23

5.3.4. Continuous measurement............... 25

5.3.5. Bar code registration......................... 26

5.3.6. E-Temp temperature

measurement ................................................... 26

5.3.7. Measurement process and

results ................................................................. 27

5.4. Saving the I-V curve ............................. 28

5.4.1. Manual save ......................................... 28

5.4.2. Auto save.............................................. 28

5.4.3. Saved le format................................. 29

Index

3 “Innovative products for the solar energy industry” www.entecsolar.es

Index

5.5. Settings ..................................................... 30

5.5.1. Visualizing the STC curve ............... 30

5.5.2. APK Connect ....................................... 30

5.5.3. Report generation.............................. 31

5.5.4. Module settings .................................. 32

5.5.5. Generator settings ............................. 33

5.5.6. Sensor settings ................................... 35

5.5.7. Continuous measurement............... 36

5.5.8. Auto save.............................................. 36

5.5.9. Auto measurement ........................... 36

5.2.10. Bar code (optional).......................... 36

5.2.11. Other options .................................... 36

6. Data download..................................... 38

6.1. Data download for PC ......................... 38

6.1.1. Data download via SD card............ 38

6.1.2. Data download via a micro-USB

connection......................................................... 38

6.2. Opening the saved les....................... 39

7. Quick start guide ................................. 40

8. Technical specications ..................... 41

9. Guarantee, calibration, and repair ... 43

10. Common errors and solutions........ 44

11. Conformity declaration.................... 45

4 “Innovative products for the solar energy industry” www.entecsolar.es

With Entec Solar’s goal of creating hardware tools

to facilitate people’s work, the E-1000 curve tracer

has been developed. The E-1000 I-V curve tracer

has been developed in collaboration with QPV

(www.qpv.es), a company specialized in audits and

quality control of large photovoltaic plants, which

has exposed the current needs in the measurement

of I-V curves in the eld. The union of Entec’s

hardware development experience and QPV’s I-V

curve measurement expertise has resulted in the

fastest and most innovative I-V curve tracer on the

market, all with an umatched measurement precision.

This high precision instrument allows the

measurement of up to 200 I-V curves per working

hour, either of photovoltaic modules or strings of

up to 1000V and 20A. It also incorporates several

new elements such as: a barcode reader for the

automatic identication of the module under test

and its position in the installation, an automatic

report generation tool to reduce processing time,

an automatic measurement option for hands-free

panel measurement, a wireless sensor (E-Sens)

with a communication range of up to 2km to

measure irradiance and temperature conditions, an

application for a mobile phone to control the device

remotely , and many more options that will change

the way you carry out your I-V curve measurements.

In addition, through a WiFi connection, the E-1000

is synchronized with the PVET® servers (www.pvet.

es), facilitating the post-processing of measurement

campaigns, storing all historical measurements, and

allowing intercomparisons and data cross-checking

for optimum fault diagnosis in your plants.

Thank you for purchasing the

E-1000 I-V tracer

5 “Innovative products for the solar energy industry” www.entecsolar.es

1. Warnings

The E-1000 is an I-V curve tracer designed to work

with voltages of up to 1,000 VDC, which can be

hazardous to humans. That is why the E-1000 and its

accessories should only be used with the components

supplied by Entec Solar. Before using the E-1000, read

this manual in its entirety and pay special attention to

the points related to electrical safety and the points

highlighted by the warning and risk of electric shock

symbols (see section 1.2).

The use of unapproved accessories can affect the

safety of this device and can cause considerable

damage to equipment or people. The E-1000 should

be used only by personnel trained in low voltage

electrical installations and preferably with specic

trainingin photovoltaicsolarenergyinstallations.Entec

Solar will not assume any responsibility for damages

caused due to misuse of the device or its associated

components. The E-1000 and its components must

not be manipulated, modied, opened, or repaired by

any personnel other than those of Entec Solar. Any

tempering of the device by third-party personnel

may result in loss of equipment warranty. In case

the E-1000 or any of its associated accessories or

components need repair or re-calibration, please

contact Entec Solar or any of its distributors.

6 “Innovative products for the solar energy industry” www.entecsolar.es

1.1 Symbols

• Continuous or reinforced double insulation

(protection class II)

• Danger warning! Consult documentation! Appears

in front of important instructions to prevent harming

people and equipment.

• Refer to the documentation that comes with the

device.

• Warning, high voltage, high fatality risk.

• The measurement devices should not be disposed

of in the domestic trash bins.

7 “Innovative products for the solar energy industry” www.entecsolar.es

1.2 Device safety

The E-1000 has been designed and manufactured

following the regulation EN61010-1:2011: “Safety

regulations for electrical devices for measurement,

control and laboratory use.” Under these standards,

the E-1000 has been certied by an independent

laboratory and has been approved as insulated

reinforced CAT II 1000V DC device.

To ensure the security with which the device

has been designed, the following rules must be

scrupulously observed:

- Before using the device, read the entire manual

carefully and pay special attention to the points

related to electrical safety.

- Use the device only for measurements in

photovoltaic installations. Other sources of

current or voltage that are not of photovoltaic

origin can damage or destroy the instrument.

- Disconnect the PV circuit under test from any

other circuit to which it is connected to during

normal operation (i.e. inverter, charge controller,

battery, etc.)

- Before carrying out the measurements, make

sure that they do not exceed the operating limits

of the device: 1,000V and 20A. Exceeding these

limits could cause irreparable damage.

- The device must be used only by personnel

trained in low voltage electrical installations and

must have been previously trained for the use of

this specic device.

- During measurements, use the recommended

personal protective equipment (PPE): insulating

gloves, safety boots, face shield, etc.

- Never disconnect the device cables while a

measurement is being made. This could cause an

electric arc and cause damage to the device and

people.

- Avoid contact with the photovoltaic circuit

under test and with any other metallic object in

the vicinity.

- Avoid exposing the device to direct sunlight.

- Do not carry out measurements in humid

environments or in the event of rain and make

sure that no liquid enters the device.

- Do not carry out measurements in environments

with presence of gas or explosive, combustible

materials or in dusty environments.

- Use only the original Entec Solar accessories.

8 “Innovative products for the solar energy industry” www.entecsolar.es

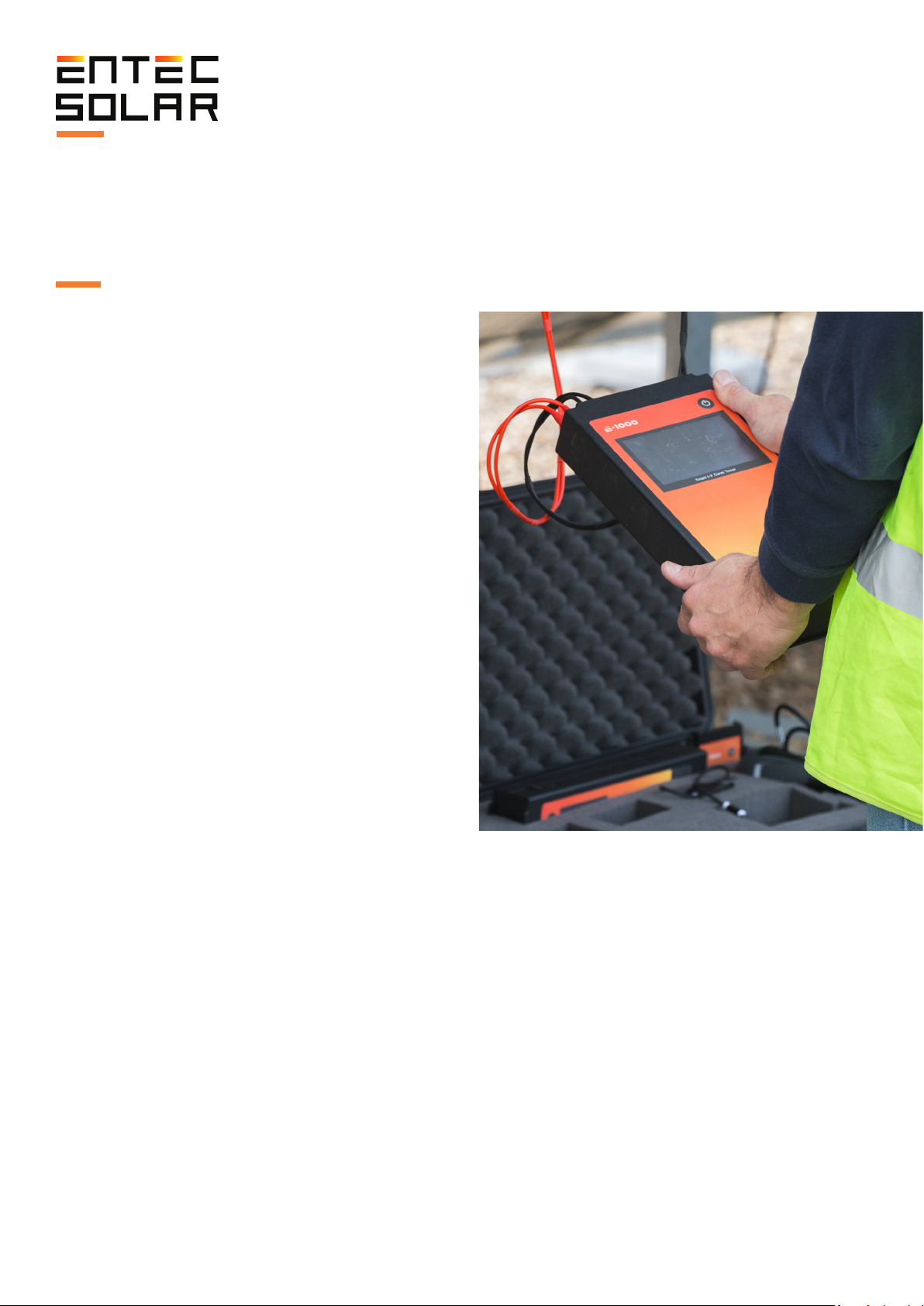

With the goal of creating hardware tools to

facilitate eld work, Entec Solar has developed

the E-1000 I-V curve tracer to provide the best

possible experience when measuring I-V curves of

photovoltaic installations.

The E-1000 has been developed in collaboration

with QPV (www.qpv.es), a company specialized

in audits and quality controls of large photovoltaic

power plants, which has exposed the current needs

in the measurement of I-V curves in the eld. The

combination of Entec’s hardware development

expertise and QPV’s I-V curve measurement

experience has resulted in the fastest and most

innovative I-V curve tracer on the market, all with

an unmatched measurement precision.

This high precision instrument allows the

measurement of up to 200 I-V curves per hour of

work, either of photovoltaic modules or strings of

up to 1000V and 20A. It also incorporates several

new elements such as: a barcode reader for an

automatic identication of the module under test

and its position in the installation, an automatic

report generation tool to reduce processing time,

an automatic measurement option for hands-free

operation during connection and disconnection of

the tested panels, a wireless sensor (E-Sens) with

a communication range of up to 2km to measure

irradiance and temperature conditions, a mobile

phone application to control the device remotely,

and many more options that will change the

way you carry out your I-V curve measurement

campaigns. In addition, through a WiFi connection,

the E-1000 is synchronized with the PVET® servers

(www.pvet.es), facilitating the post-processing of

themeasurementcampaigns,storingallthehistorical

measurements, and allowing intercomparisons and

data crossing for rapid and precise diagnosis of

possible faults in your plants.

2. General description

9 “Innovative products for the solar energy industry” www.entecsolar.es

2.1 Device functionality

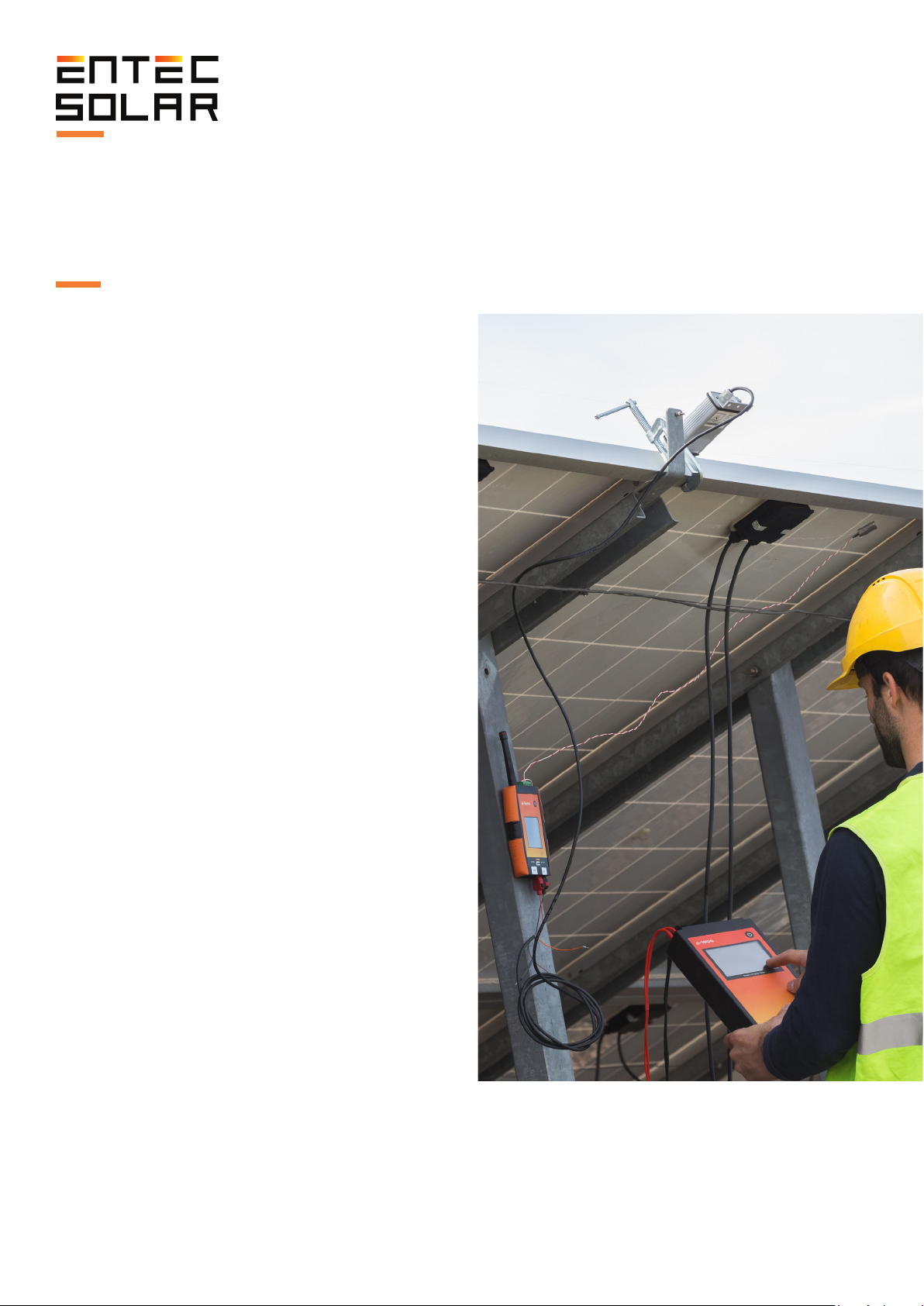

The E-1000 can be used alone or in conjunction with

other accessories, such as the E-Sens, the E-Temp

or the barcode reader. The use of the E-1000 with

all its accessories provides the greatest comfort and

precision when measuring I-V curves.

All the functionalities provided by the E-1000 and

its accessories are listed below.

- Open circuit voltage, VOC measurement.

(E-1000)

- Short circuit current, ISC measurement.

(E-1000)

- 4-Point I-V curve measurement of up to 1000V

and 20A. (E-1000)

- Irradiance measurement through a reference cell

or module. (E-Sens)

- Measurement of up to three temperature points

using PT-1000. (E-Sens)

- Temperature measurement of a reference

module. (E-Sens)

- Temperature measurement by infrared sensor.

(E-Temp)

- Wireless transmission of irradiance and

temperature data. (E-1000, E-Temp)

- Extrapolation to STC using IEC-60891. (E-1000)

- Selection of the temperature sensor for

extrapolation. (E-1000)

- Reading the barcode of the module under test.

(E-1000)

- Automatic generation of daily reports. (E-1000)

- Automatic measurement mode. (E-1000)

- Automatic measurement saving mode. (E-1000)

- Continuous measurement mode through a

selectable period. (E-1000)

- Micro-USB interface for data download to a PC.

(E-1000)

- Data storage on removable SD card. (E-1000)

- Data storage on removable uSD card. (E-Sens)

- Data transmission via a WiFi connection

(E-1000)

- Visualization and control with a phone app

(E-1000)

10 “Innovative products for the solar energy industry” www.entecsolar.es

Figure 2.3. Lateral inputs and their descriptions.

1. Jack connection for the

battery charger

2. USB input for the bar code

reader

3. Micro USB input for SD

card access

Figure 2.1. Top inputs and their description.

1. SMA connector for an external antenna

2. SD card slot 3. Negative pole inputs for I-V curve

measurement

4. Positive pole inputs for I-V curve

measurement

Figure 2.2. Frontal inputs and their description.

1. Power button

2. 5 inch color touch

screen with a 800x480

resolution

2.2 External connectors and device anatomy

2.2.1 E-1000

Ce manuel convient aux modèles suivants

Table des matières

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
