Installation and Operation Manual

EnvironTM Smart Thermostat

2 Copyright Enphase Energy Inc. 2010 141-00010 Rev 01

3 Copyright Enphase Energy Inc. 2010 141-00010 Rev 01

Contact Information

Enphase Energy Inc.

201 1St Street

Petaluma, CA 94952

Phone: 707-763-4784 TOLL FREE: 877-797-4743

Fax: 707-763-0784

www.enphaseenergy.com

[email protected]

FCC Compliance

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

xReorient or relocate the receiving antenna.

xIncrease the separation between the equipment and the receiver.

xConnect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

xConsult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for

compliance may void the user’s authority to operate the equipment.

4 Copyright Enphase Energy Inc. 2010 141-00010 Rev 01

Table of Contents

1Important Safety Information ......................................................................... 5

Read this First .....................................................................................................................................................5

Safety Instructions ............................................................................................................................................5

2The Enphase Environ Smart Thermostat .......................................................... 6

Other Elements in the Enphase System....................................................................................................6

How the Environ Smart Thermostat Works with the Enphase System .........................................7

3Environ Installation ......................................................................................... 8

Location..................................................................................................................................................................8

Remove the Old Unit.........................................................................................................................................9

What wires do you have?..............................................................................................................................1 0 

Prepare Wires ....................................................................................................................................................10

Connect Wires ...................................................................................................................................................11

Mount the Environ to Wall ............................................................................................................................12

HVAC Set-up on Screen Menu.....................................................................................................................12

Set-up for Normal Heating Systems (not heat pump).......................................................................12

Set-up for Normal A/C Cooling Systems:...............................................................................................13

Set-Up for Heat Pump Systems:................................................................................................................13

Check HVAC System .......................................................................................................................................14

4Configuring the Environ................................................................................. 16

5Environ Interface to Envoy ............................................................................ 18

Install the Envoy ..............................................................................................................................................18

Install Environ ...................................................................................................................................................18

Connect Envoy to ZigBee Network............................................................................................................18

Verify that the Envoy and Environs have Mated..................................................................................19

Troubleshooting ................................................................................................................................................19

6Operating the Environ through Enlighten ...................................................... 20

Enlighten Monitoring System.......................................................................................................................20

Environ Summary on My System page....................................................................................................20

Configuration and Programs ........................................................................................................................22

Environ Configuration.....................................................................................................................................23

Smartphone Access.........................................................................................................................................25

7Environ Local Interface ................................................................................. 26

Control Screens.................................................................................................................................................26

Home Screen .....................................................................................................................................................27

Manual Screen ..............................................................................................................................................27

Menu Screen..................................................................................................................................................28

Menu Functions .................................................................................................................................................29

Save Energy Button ........................................................................................................................................37

Fan control..........................................................................................................................................................37

Power Button and Mode selection..............................................................................................................37

HVAC Status.......................................................................................................................................................38

Reset Button ......................................................................................................................................................38

Zoned Systems Wire Reference Chart .....................................................................................................40

8Appendix ....................................................................................................... 41

Limited Warranty..............................................................................................................................................41

5 Copyright Enphase Energy Inc. 2010 141-00010 Rev 01

1Important Safety Information

Read this First

This manual contains important instructions to follow during installation

and maintenance of the Enphase Environ Smart Thermostat.

To reduce the risk of electrical shock, and to ensure the safe installation and

operation of the Environ, the following safety symbols appear throughout

this document to indicate hazardous conditions and important safety

instructions.

WARNING: This indicates a situation where failure to follow

instructions may cause a serious hardware failure. Use extreme

caution when performing this task.

NOTE: This indicates information particularly important for optimal

system operation. Follow these instructions closely.

Safety Instructions

Perform all electrical installations in accordance with all local electrical codes

and the National Electrical Code (NEC), ANSI/NFPA 70.

Be aware that only qualified personnel shall install or replace the Enphase

Environ Smart Thermostat.

Do not attempt to repair the Enphase Environ. It contains no user-

serviceable parts. If the Enphase Environ fails, please return the unit to

your distributor for maintenance. Tampering with or opening the Environ

will void the warranty.

Before installing or using the Enphase Environ, please read all instructions

and cautionary markings in the technical description and on the Enphase

Environ

NOTE: For Enphase Environ Warranty Terms and Conditions see the

Appendix on page 41 of this manual.

6 Copyright Enphase Energy Inc. 2010 141-00010 Rev 01

2The Enphase Environ Smart Thermostat

The Enphase Environ™ is the world’s first solar-integrated, web-enabled,

smart thermostat. Using plug-and-play wireless technology, the Environ

connects to the Envoy Communications Gateway, and is integrated with the

Enlighten™ website. This allows you to monitor and control your heating and

cooling at the wall, on the web or from your smart phone.

The Environ Smart Thermostat is compatible with all popular residential

HVAC systems:

x24VAC single, two, three stage conventional heating systems

(gas/oil/electric)

xheat pumps (single and two stage compression)

xsingle or two stage auxiliary heat (electric or fossil)

xzoned forced air and zoned hot water (2 or 3 wire) (Enphase Energy

recommends professional HVAC installation for zoned forced-air

systems due to additional equipment for baffles, etc.)

xmillivolt systems (with 24VAC adapter)

xone or two stage cooling

xhybrid systems.

The Enphase Environ™ will control temperature to an accuracy of ± 1° F and

is designed to work with ambient temperatures from 35° F to 95° F

Heating or cooling temperatures can easily be set on the large touchscreen

with the +/- buttons. A minimum 4 minute off time protects heating and

cooling compressors from damage. This thermostat uses a new technique

called sequential staging for more comfort with faster reaction to requested

temperature changes.

This thermostat must be run on the HVAC system’s 24VAC (C wire) or

external 24VAC transformer connected to the C and RH terminals. The 24VAC

C wire is located on the other side of the 24VAC heating transformer, and

can be found where the other thermostat wires connect at the wall or at the

furnace.

Other Elements in the Enphase System

The Enphase Enlighten web-based monitoring and analysis system

analyzes the per-module data collected by each microinverter. Enlighten

automatically detects any shortfall in energy production, identifies possible

causes, and suggests solutions to correct the problem. The Enphase

Enlighten website is constantly monitoring every module on every

installation.

The Enphase Envoy communications gateway and the Enlighten Energy

Monitoring capability have been expanded to support additional smart energy

7 Copyright Enphase Energy Inc. 2010 141-00010 Rev 01

devices and services such as the Environ Smart Thermostat. This capability

enables Enphase Systems to not only generate clean energy, but also to

monitor and control energy usage.

Through Enlighten, you can manage your Environ Smart Thermostat from

anywhere through the Enphase Enlighten web-based portal. Enlighten

enables you to view and edit your programs and settings. It provides:

xease of use of setting configurations and setting up 7-day programs

through a large web browser window rather than on the wall-mounted

unit.

xthe ability to access these settings online from any browser, as well as

smartphones.

xvisibility to solar production information and HVAC controls side-by-side

on the same portal.

The Enphase Envoy is an integral component of the Enphase Energy

Microinverter system. It operates between the Enphase Environ,

microinverters, and the Enphase Enlighten web-based monitoring and

analysis system. The Envoy functions as a gateway and monitors the

microinverters that are connected to the photovoltaic modules.

The Enphase Microinverter is a fully integrated device that converts the DC

output of a single solar module into grid-compliant AC power. In addition to

performing the DC to AC conversion, it maximizes the modules' energy

production by using a sophisticated Maximum Power Point Tracking (MPPT)

algorithm.

How the Environ Smart Thermostat Works with the Enphase System

The Environ programmable communicating thermostat interfaces to the

Enphase Envoy communications gateway using a ZigBee wireless interface.

This interface is designed to be plug and play.

Once mated, the Environ can be reached and programmed through the

Enlighten website from virtually any location.

8 Copyright Enphase Energy Inc. 2010 141-00010 Rev 01

3Environ Installation

Your thermostat is a precise instrument; please handle it

with care.

Turn off electricity to the HVAC system before installing or

servicing the thermostat or any part of the system. Power

can be disconnected at the circuit breaker or at the HVAC

system.

Do not turn electricity back on until work is completed.

Do not short (jumper) across electric terminals at the

control on the furnace or air conditioner to test the

system. This may damage the thermostat.

All wiring must conform to local codes and ordinances.

This thermostat is designed for use with 24VAC and millivolt systems with a

separate 24VAC power adapter.

The thermostat relay load should be limited to 1.0 amp.

Higher amperage may cause damage to the thermostat.

You will need a small Phillips screwdriver and a drill with

3/16-in. (4.8mm) bit for wall mounts.

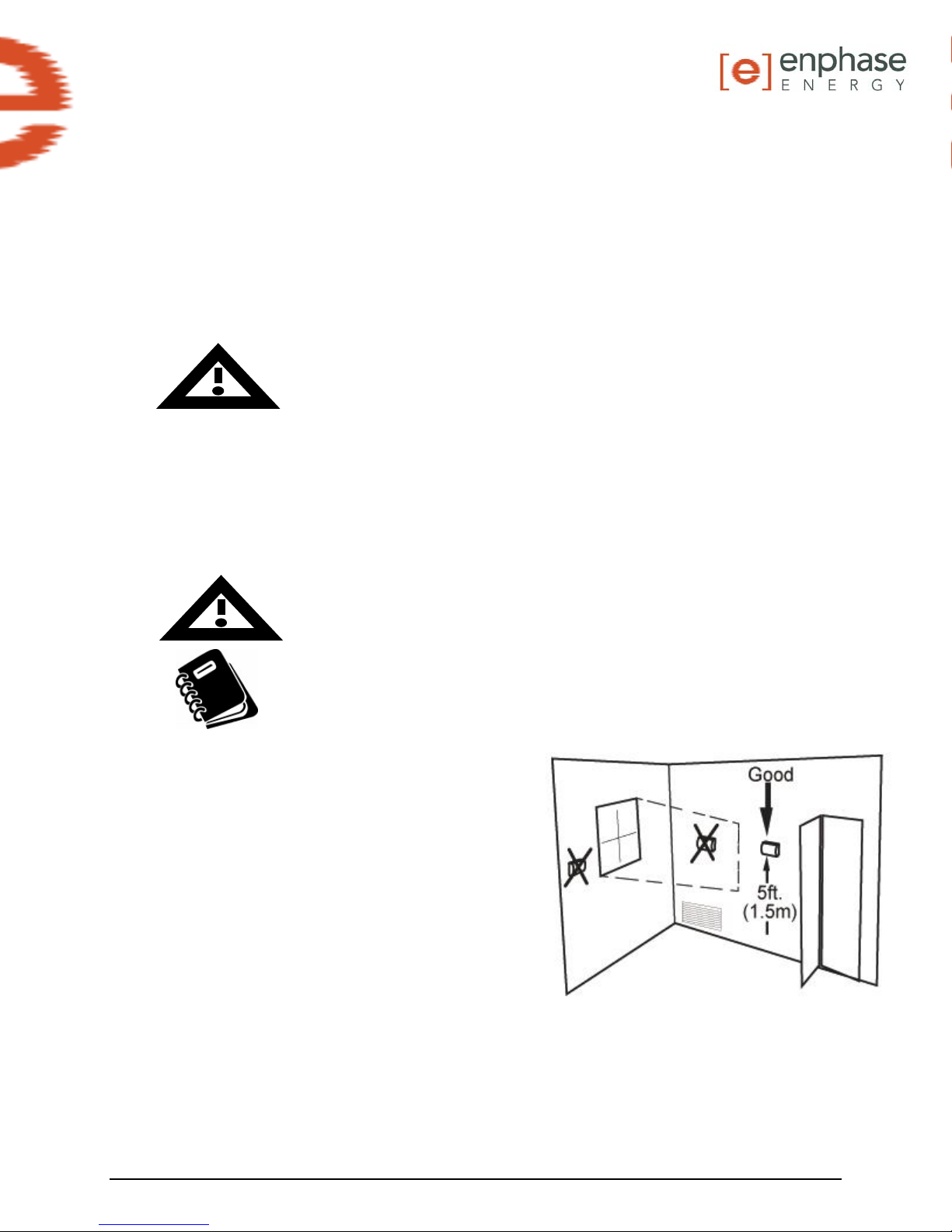

Location

Replacement installations: mount the

Environ in place of the thermostat. You

must have a C wire or other 24VAC

power available at the Environ location. A

new location will require moving your

wiring.

For new installations and for re-locating

the Environ, follow these guidelines:

xLocate the thermostat on an inside

wall, about 5 ft. (1.5m) above the

floor, and in a room that is frequently used.

xDo not install it where there are unusual heating conditions, such as:

in direct sunlight; near a lamp, radio, television, radiator register,

fireplace; near hot water pipes in a wall; or near a stove on the other

side of a wall.

9 Copyright Enphase Energy Inc. 2010 141-00010 Rev 01

xDo not locate in unusual cooling conditions, such as: on a wall

separating an unheated room; or in a draft from a stairwell, door, or

window.

xDo not locate in a damp area. This can lead to corrosion that will

shorten thermostat life.

xDo not locate where air circulation is poor, such as: in a corner, an

alcove; behind an open door.

xDo not install the Environ until all construction and painting has been

completed.

Note: The thermostat does not require leveling.

Remove the Old Unit

Read the instructions carefully before removing any

wiring from the existing thermostat. Wires must be

labeled before they are removed. THERE IS NO

STANDARD COLOR CODE. When removing wires from

their terminals, ignore the color of the wires and LABEL

THEM by the terminal where they were screwed.

Switch OFF electricity to the furnace and air conditioner,

then follow these steps.

1. Remove the cover from old thermostat. Most are snap-on types and

simply pull off. Some have locking screws on the side or front. These

must be loosened. DO NOT remove wires. Note the letters printed near

the terminals. Attach labels (enclosed) to each wire for identification.

2. Label the wires one at a time. You must label all the wires before you

proceed. With all wires labeled,

remove them from the old unit.

3. Make sure the wires do not fall back

inside the wall. You can wind them

around a pencil to keep them from

falling.

4. Loosen all screws on the old

thermostat and remove it from the

wall.

10 Copyright Enphase Energy Inc. 2010 141-00010 Rev 01

What wires do you have?

Make sure your wires are labeled. This may require you to find the other end

connection for each wire on your heating or air conditioning equipment and

read the label there. Refer to the Wire Reference on page 39 for better

understanding of wire labels from different HVAC system makers.

IMPORTANT: C wire or 24VAC power is required for the

Environ to operate. If you do not have a C wire, you can

run a new wire from the HVAC to the Environ or provide

24VAC power to operate the Environ using a standard

24VAC wall transformer.

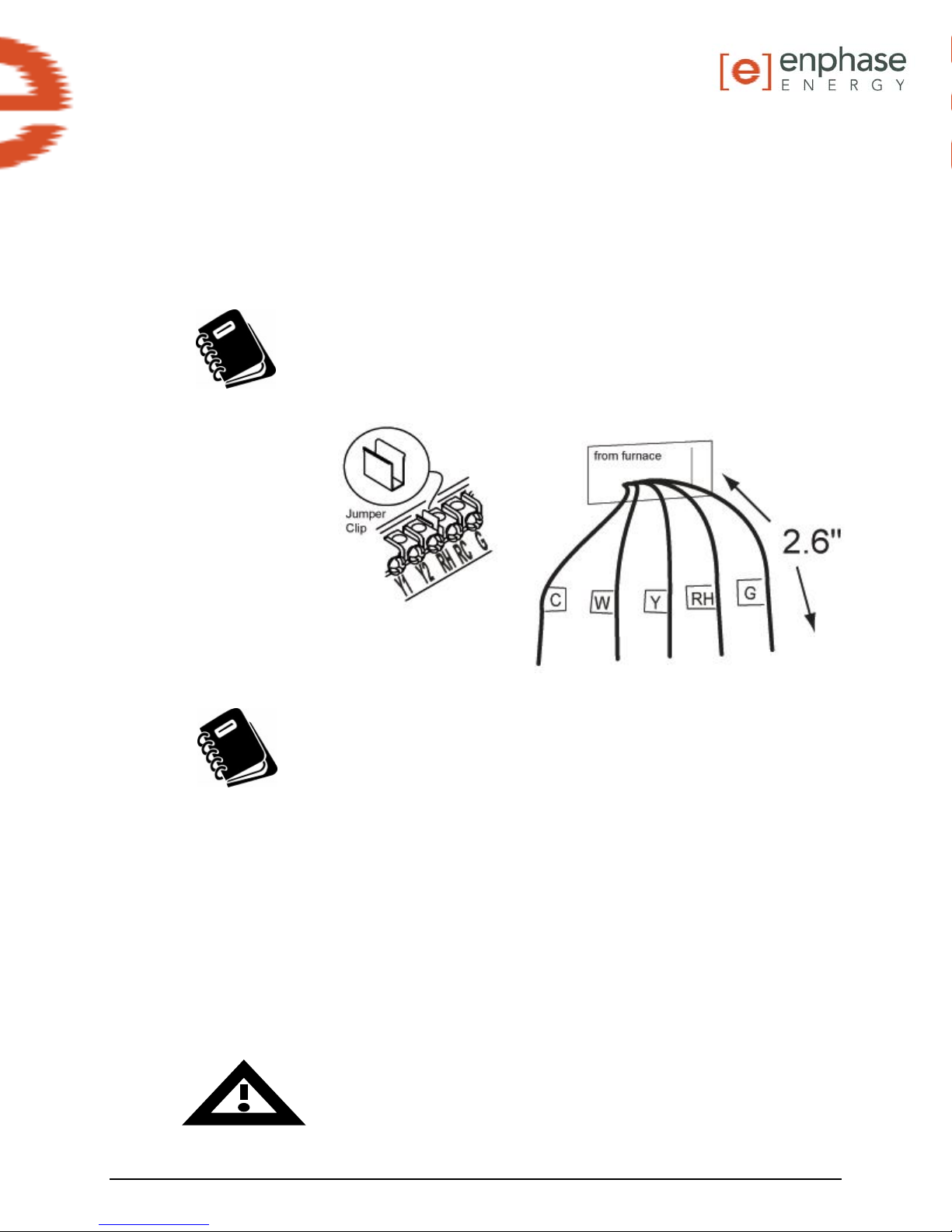

IMPORTANT: If you have both RH and RC, remove the

metal jumper-clip between these 2 terminals.

IMPORTANT:If you have both O and B, refer to page

39 for wiring information.

Prepare Wires

Please follow these guidelines for safe and secure wire connections:

xYou will need at least 2.6” (66 mm) of wire for each of your

connections to the Environ.

xIf you do not have enough wire, splice additional wire to allow enough

slack.

xFan out wires below the hole as shown.

xRemove insulation 1/8” (3 mm) from the tip of each wire.

xTake care not to damage the labels for each wire in handling.

Do not allow wires to touch each other or parts

on the thermostat.

Autres manuels pour Environ

Table des matières

Autres manuels enphase Thermostat

enphase

enphase Thermostat Manuel utilisateur

enphase

enphase Environ Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
