Enhance Mobility MOJO Auto-Fold Manuel utilisateur

Auto-Fold Scooter

User Manual

April 2023

Thank you for choosing the MOJO Folding Scooter. Please read this manual carefully before operating the

MOJO. If you have any questions or need further assistance, please contact your MOJO Dealer or Enhance

Mobility directly at 800-296-4151option 2 or service@enhancemobility.com.

This manual covers the MOJO’s characteristics, components, functions, safety guidelines, battery,

and maintenance.

The following symbol is used in this manual to indicate warning. It is extremely important

you fully understand the content. Failure to note the warnings may cause personal injury and/or

damage the scooter.

Please note all information and photos in this manual are for reference only and are subject to

factory changes and modifications.

Before using your MOJO Scooter please be sure that the delivery is complete. Your MOJO

package should include the owner manual, 2 batteries, key, remote control (automatic folding

version only), basket, battery charger, removable arm rests, 2 thumb screws and 2 allen wrenches.

If you did not receive a complete delivery, contact your authorized MOJOdealer.

If damage has occurred to the packaging or contents during transport, contact the delivery

company immediately.

Contents

MOJO Feature Guide

Product Specifications

Key Components

MOJO Operating Instructions

Folding and Unfolding the MOJO

Safety Requirements

Battery Maintenance & Battery Charging

Scooter Maintenance

Basic Trouble Shooting

10.

Warranty Information

Children should not operate the MOJO Electric Scooter.

People with health concerns should consult a physician before use.

MOJO Feature Guide

The MOJO is composed of the following parts: front and rear frame, handlebar controls, rear

wheels, front wheels, front shroud, headlight, tiller, height adjustment lock lever, tiller tilt

adjuster, foldable seat, seat supporting frame, deck, battery, charger port, armrests and remote

bi-pass switch.

Handlebar Control

Panel

Steering Handle

Forward/Reverse

Directional Controls

Telescoping Tiller

Height Adjustment

Lock Lever

Front Shroud

Battery

Front Wheels

Deck

10.

Rear Wheel

11.

Anti-Tip Wheel

12.

Rear Axle Group

13.

Arm Screws

14.

Armrests

15.

Backrest

16.

Seat Cushion

17.

Tiller Tilt Adjuster

18.

Free Wheel Lever

19.

Remote Bi-Pass

Switch

20.

Charger Port

21.

Headlight

MOJO Specifications

Model

MOJO Auto-Fold (MJ101)

Overall Length

39 ¾”

Overall Width

18””

Tires

Honeycomb 6” Solid Front Tire

Honeycomb 7” Solid Rear Tires

Maximum Speed

Up to 3.75 mph

Range

Up to 13 miles

Turning Radius

55”

Weight (without battery pack)

50 lbs

Color

Red, Blue, Aqua, Lemony-Lime

Brake

Electromagnetic

Drive system

Rear Wheel Drive

Handlebar

PU Foam

Maximum weight capacity

Up to 300 lbs

Seat Width

13.75”

Seat Height (from the ground)

23”

Battery

Dual (2) 24V 7.5AH

Motor

24V 120W

Battery Charger

29V 2AH

Folded Length

20 ½”

Folded Height

29”

Heaviest Piece

Front Frame 30.5lbs

Ground Clearance

1”

Key Components

Handlebar Controls

LCD Display

Forward/Reverse

Directional Controls

Keyed Ignition

Speed Control

Knob

Steering Handle

Automati

c Folding

Switch

Horn

Battery Indicator

Headlight Control

Charging port

The Handlebar Control consists of the steering handle, LCD display with battery indicator, keyed

ignition, directional controls, automatic folding switch, horn and speed control.

Always protect the MOJO Handlebar Controls from humidity and water. If the handlebar

controls have been affected by moisture, be sure to dry before operation.

Always slow down when turning or operating in reverse.

Press slowly to

move backwards

Press slowly to move

forward

Operating Instructions

Turning on the Power

Put key in ignition and turn clockwise to turn on. The LCD display will turn on when the scooter is on.

Turn the key counterclockwise to power off. The LCD display will turn off when the scooter is off.

Please note – If the Free Wheel Lever is engaged the scooter will make a beeping noise when the scooter is

turned on. Disengage the Free Wheel Lever to operate the scooter.

Free Wheel Lever

The free wheel lever is located on the rear of the scooter on the left-hand side. Pushing the lever down will allow

the wheels to move freely. The lever must be pulled up to drive the scooter.

Please note – when Free Wheel is engaged the scooter will slow down if being pushed/pulled too fast.

Forward/Reverse Directional Control Lever

The Forward/Reverse Directional Control Lever is used to control forward and reverse motion. To move

forward - slowly push the right-side fingertip control paddle towards the handlebar. The further you push, the

faster the scooter will go.

To reverse – slowly push the left side of the fingertip control paddle towards the handlebar.

Stop the scooter by releasing the directional control lever.

LCD Display

The LCD Display shows the battery level, battery voltage, speed you are traveling at and distance.

The battery level indicator will show the battery level when the scooter is on. When 5 bars are visible, the battery

is fully charged. The bars disappear as the battery loses charge. The battery is ½ charged when 3 bars are left.

When there is only bar left, the battery needs to be charged.

Free Wheel Lever

See section 7 for

more information

about battery

charging

Push down to

engage free wheel

Pull up to

disengage Free

Wheel

Automatic Folding

Switch

Automatic Folding Switch

The Automatic Folding switch is located on the control pod. The switch can be used instead of the remote

control to open and close the scooter. To close the scooter, press the Automatic Folding Switch toward the “II”

and hold the button, the scooter will fold, release the button when the scooter is fully closed. To open the

scooter, press the Automatic Folding Switch toward the 1 and hold the button down, the scooter will open, release

the button when the scooter is fully opened.

Speed Control Knob

The speed control knob is used for controlling the scooter’s speed. Adjust the knob to the left for slower speeds;

adjust the knob to the right to increase the speed.

Brakes

The MOJO Scooter is equipped with electromagnetic brakes. Releasing the directional control lever will stop the

scooter.

Horn

The horn is located on the front side of the control unit. When you press the button, the horn will sound.

Armrests

Armrests come standard with the MOJO. The scooter can be used with or without the armrests. To install the

MOJO armrests, slide the right armrest into the right armrest bracket and insert the thumb screw at desired height

(pic 1). Repeat on the left side.

The angle of the armrest can be adjusted by adjusting the height of the screw in the armrest. The higher the

screw, the higher the pitch of the armrest (pic 2).

Horn

Armrest adjustment

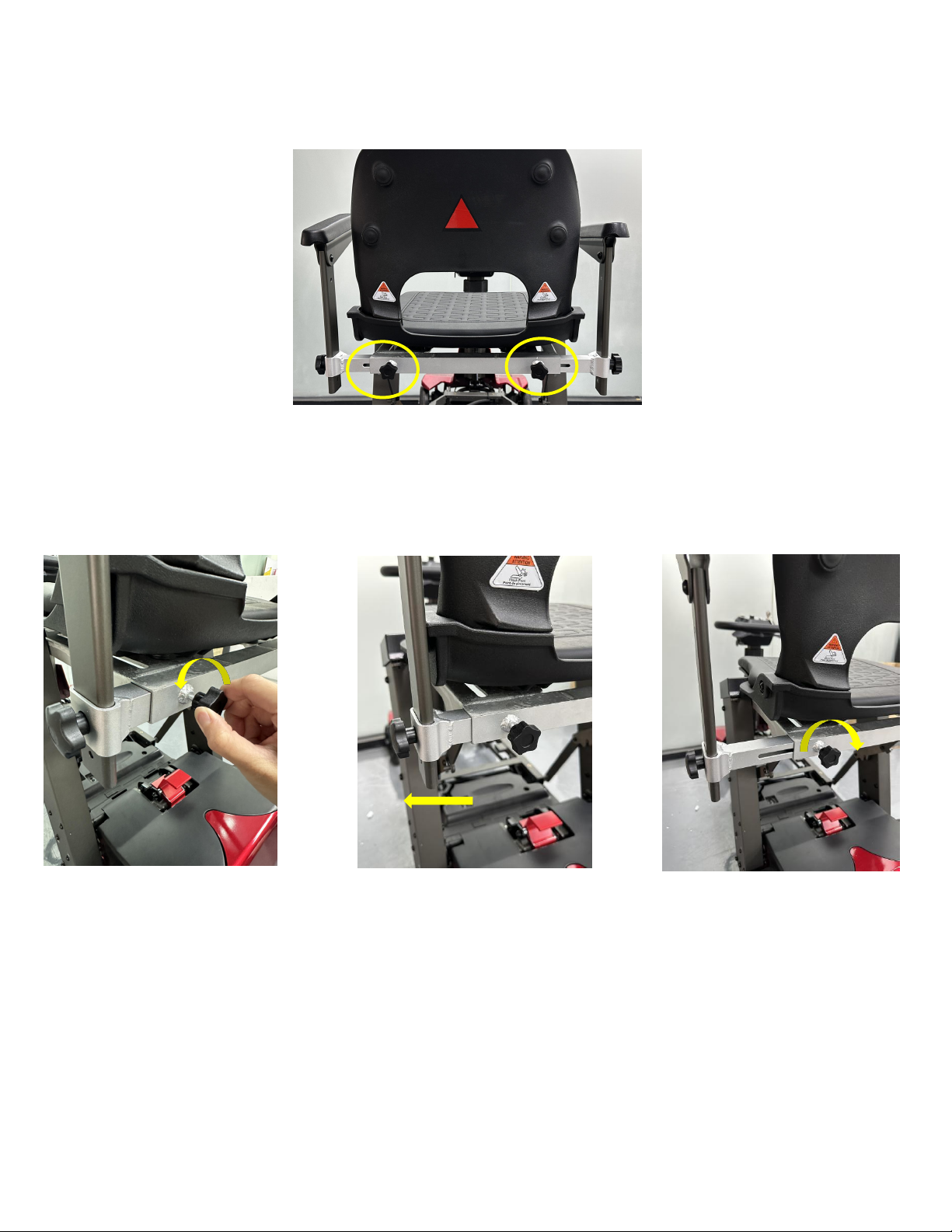

Adjustable armrest width

Turn counterclockwise to

loosen the screw.

Pull the armrest to adjust the

desired width and tighten the

screws clockwise.

Height

Adjustment

Lever

Tiller Tilt

Adjuster

Lever

Telescoping Tiller

The tiller height can be adjusted. Push and hold the height adjustment lever while pulling up or down on the tiller.

When the tiller is adjusted to your liking, let go of the height adjustment lever to lock the tiller into place.

Adjusting the Tiller

The MOJO’s tiller can adjust for rider’s comfort. To adjust – squeeze and hold the tiller tilt adjuster lever

towards the tiller then move the tiller towards the seat to a reach comfortable position. To put the tiller to the

original position, squeeze the tiller tilt adjuster lever and the tiller will move to the original position.

Attaching the Basket

The basket attaches to the bracket on the front of the tiller. Simply slide the basket into place. The basket can be

easily removed and folded for transport and storage.

Folding and Unfolding the MOJO

Automatic Remote-Control Operation (Key Fob)

Theremotecontrolworkswhilethescooterpowerisonoroff. Extracare shouldbetaken

to besurebuttons arenot pressedwhen the scooter isstored in a car orplace where the scooter

would be restricted from fully opening/closing.

Clot

cove

Remote

Relay

Box

To unfold (open) the MOJO Scooter, press and hold the open button on the key fob until the scooter is fully

open.

To Fold (close) the MOJO Scooter – press and hold the fold button on the key fob until the scooter is fully

closed.

The Telescoping Tiller can be raised or lowered before or after folding or unfolding the scooter.

Press the Power Button to turn on and off the scooter.

Press the Headlight Button to turn on and off the headlights.

The remote indicator light comes on when a button is pressed on the remote control. If you press a button and it

flickers or does not come on, the battery in the remote control should be replaced. The remote control uses a

CR3032 battery. If the remote indicator light doesn’t turn off, it indicates one of the buttons is stuck on the

remote control and needs adjustment.

Syncing the Remote Control (Key Fob)

Find the Remote Relay Box by lifting the cloth along the bottom of the scooter, located directly below the seat.

Press the button on the remote relay box one time. The blue light will flash three times and you will hear three

beeps. Then press the close button once with the remote control. The blue light will flash three times and there

will be two beeps indicating the remote has been successfully synced.

To clear the remote-control memory, press and hold the button on the remote relay box for five seconds. There

will be one beep to indicate the memory has been cleared.
