EnGenius ECB350 Manuel utilisateur

Quick Installation Guide

EnGenius Europe | Veldzigt 28, 3454 PW De Meern,

Netherlands | 0900-WIFIABC | www.wiabc.com Disclaimer: Information may be subject to changes without prior notication. Follow us

https://www.linkedin.com/company/engeniuseurope

https://plus.google.com/+EngeniusEuropeBVDeMeern

https://www.youtube.com/user/engeniuseuropebv

https://twitter.com/engeniuseu

ECB350

Package content

Unpack the box and verify the content:

- ECB350

- RJ-45 Ethernet-cable

- 12V/1A 100V~240V Power adaptor

- Quick Installation Guide

- CD with instruction manual

Setting up the ECB350

After verifying the contents of the box, continue on to setting up the ECB350.

Hardware installation

1. Ensure that the computer in use has an Ethernet card (RJ-45 Ethernet port).

For more information, verify with the user manual.

2. Connect one end of the Cat5e Ethernet cable into RJ-45 port of the ECB350

and the other end to the RJ-45 port in the computer that will use the ECB350.

Ensure that the cable is securely connected to both the ECB350 and the

computer.

3. Connect the power adaptor DC inlet to the DC-IN port of the ECB350 and

the power adapter in the electrical outlet.

Computer setup

1. After ensuring the EnGenius device is powered on and plugged in, ensure

that your computer is on.

2. For the next steps, refer to your ‘operating system’-user manual.

3. Once your computer is on, ensure that your TCP/IP is set to ON or

ENABLED. In the control panel, double click network connections and then

double click on the connection of your Network Interface Card (NIC). Select

Internet Protocol (TCP/IP) and then click on the properties button.

4. If your PC is already on a computer network, ensure that you have set it to

a Static IP adress on the interface (or Ethernet card that will use the ECB350).

Set it as 192.168.1.21 and the subnet mask address as 255.255.255.0.

Select ‘Use the following IP address’-radio button. Once the computer has been

prepared, proceed to setting up the ECB350.

EAP350 setup

1. To configure the ECB350, open a web browser (example: Microsoft Internet

Explorer, Mozilla Firefox, Google Chrome, etc.)

2. In the adress bar of the web browser, enter: 192.168.1.1 (the default IP

address of the ECB350)and hit ENTER.

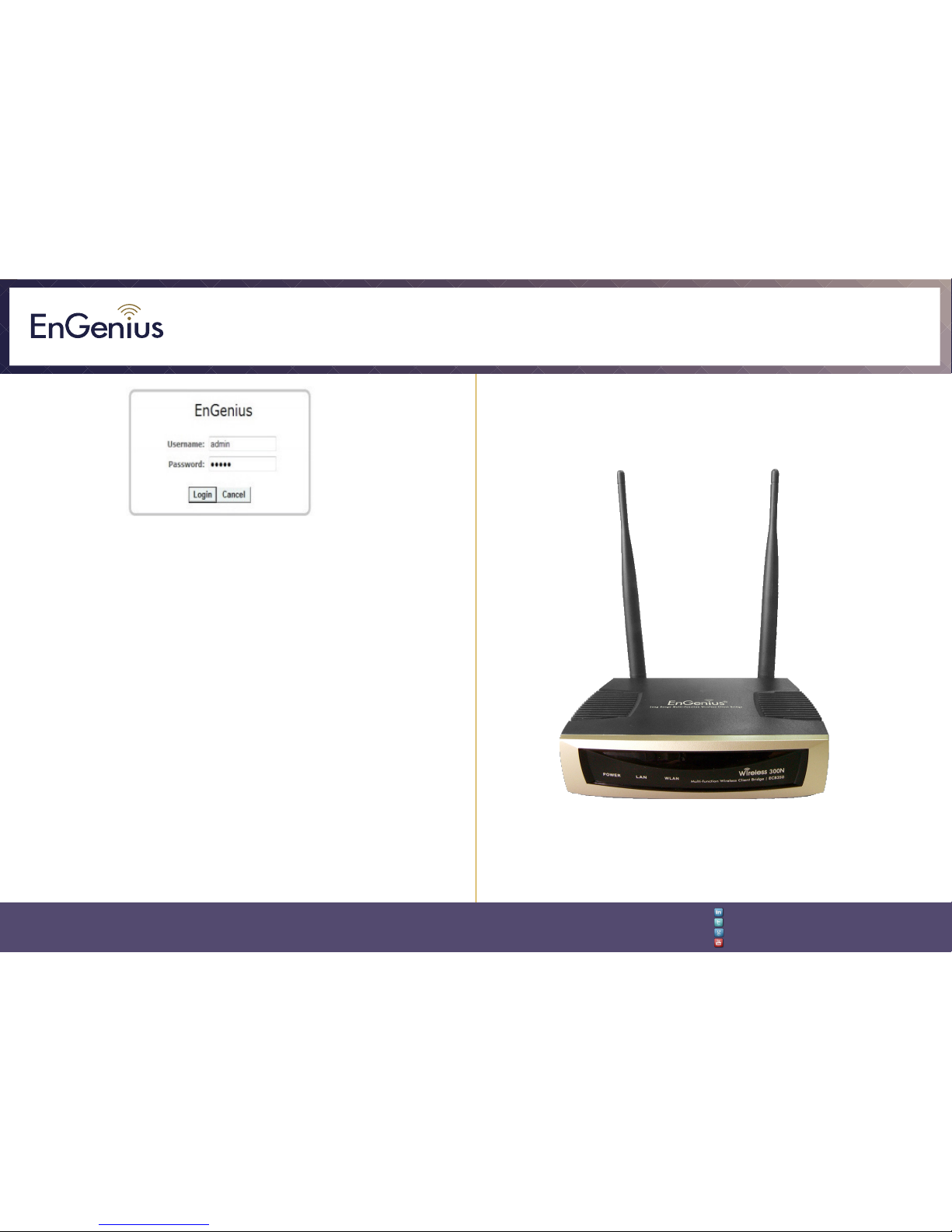

3. A login screen will appear. By default, the username of the ECB350 is

admin and the password is admin. Enter the current username and password

of the ECB350 and then click ‘Login’. Refer to the ECB350 user manual on

how to change the username and password.

4. After clicking ‘Login’ with the correct username an password, the ECB350

main menu will appear. If you are successful, proceed to setting up the wireless

connection.

PC Ethernet Access Point

AC/DC cable

Power Outlet

Quick Installation Guide

EnGenius Europe | Veldzigt 28, 3454 PW De Meern,

Netherlands | 0900-WIFIABC | www.wiabc.com Disclaimer: Information may be subject to changes without prior notication. Follow us

https://www.linkedin.com/company/engeniuseurope

https://plus.google.com/+EngeniusEuropeBVDeMeern

https://www.youtube.com/user/engeniuseuropebv

https://twitter.com/engeniuseu

ECB350

Switching between operating modes

This device can operate in the following modes: Access point, WDS, Client

Bridge, Repeater and AP router.

A. Click on the operation mode link under the ‘system navigation’ drop-down

menu.

B. Operating mode: Select an operating mode from the list (Access point, WDS,

Client Bridge or Repeater) and then click on the ‘Apply’-button.

C. All basic setup is completed. Note: The wireless connection is not secure. To

setup security on the ECB350, refer to the ECB350 user manual.
