EnGenius Neutron Series Manuel utilisateur
TRAINING
Contents
1. Key Selling Points
2. Key features
3. Wireless Management feature list
4. Planning and designing
5. Deployment Methods
6. Maintenance Methods
7. Q& A
8. Questionnaire
EnGenius Wireless Management Switch Series
Model Max
APs MCU RJ45 SFP PoE
Support
PoE
Ports
Max
802.3
af
Max
802.3
at
PoE
Budget
Power
Type Housing
EWS5912FP 20 RTL8380M 10 2af/at 8 8 4 130w Internal 1U 13” 230mm,
Metal
EWS7928P 50 RTL8382M 24 4 af/at 24 12 6185w Internal 1U 19” 260mm,
Metal
EWS7928FP 50 RTL8382M 24 4 af/at 24 24 12/24 370w
/740w
Int./Redunda
nt
1U 19” 310mm,
Metal
EWS7952FP 50 RTL8393M 48 4 af/at 48 48 24 740w Internal 1U 19” 410mm,
Metal
Supported Wireless Access Points
EnGenius EWS Wireless
Management Switch supports a wide
portfolio of standard EnGenius Dual-
Band access points allowing customers
to choose the most suitable access
points for their needs, whether indoors
or outdoors, and even mixing models to
provide the best wireless coverage, as
well as an upgrade path for future
models as technology advances.
Product No.
Wireless Standard
Product Description
EWS210AP
802.11b/g/n
2.4GHz Wireless N300 Managed Indoor Access
Point
EWS310AP
802.11a/b/g/n
Dual Band Wireless N600 Managed Indoor Access Point
EWS320AP
802.11a/b/g/n
Dual Band Wireless N900 Managed Indoor Access Point
EWS360AP
802.11a/b/g/n/ac
Dual Band Wireless
AC1750 Managed Indoor Access Point
EWS660AP
802.11a/b/g/n/ac
Dual Band Wireless
AC1750
Managed IP55 Outdoor Access Point
EWS860AP
802.11a/b/g/n/ac
Dual Band Wireless
AC1750
Managed IP68 Outdoor Access Point
Key Features
Low total cost of ownership
Integrated AP Controller and L2 PoE Switch functions in one powerful
platform. Reduce overall operational expenses by simplifying network
deployment, operations, and management of wireless network. No
additional license needed.
Simple to use, simple to manage
Centralized management, quick setup, easy to configure user friendly
GUI, no need for an IT expert to install.
Scalable centralized wired/wireless network architecture
Manages up to 50 Wireless APs per switch, EWS also takes the role of
a full featured L2 PoE Switch.
Robust wired/wireless security
•802.1X Authentication
•Access Control Lists
•SSL Certificate Management
One click troubleshooting and management
•Intelligent diagnostic for APs
•Bulk firmware upgrading
Neutron Wireless Management Feature List
Wireless Network Management
- Manage up to 20 Access Points
- AP Auto Discovery and Provisioning
- AP Auto IP-Assignment
- AP Cluster Management
Wireless Configuration
- Remote AP Rebooting
- AP Device Name Editing
- AP Radio Settings
- Band Steering
- Traffic Shaping
- AP Client Limiting
- Fast Handover
- Fast Roaming
- Guest Network
- Mesh Network (Phase 2)
- Wireless Security (WEP, WPA / WPA2 Enterprise,
WPA-PSK /
WPA2- PSK)
- VLANs for Access Point - Multiple SSID
Neutron Wireless Management Feature List
Wireless Network Monitoring
- AP Status Monitoring
- Wireless Client Monitoring
- Wireless Traffic and Usage Statistics
- Visual Topology View
- Floor Plan View
- Map View
Wireless Network Security
- Secure Control Messaging
- SSL Certificate
Management
- Local MAC Address Database
- Remote MAC Address Database (RADIUS)
- Unified Configuration Import/Export
- Intelligent Diagnostic
- Bulk Firmware Upgrade
APPLICATION SCENARIOS

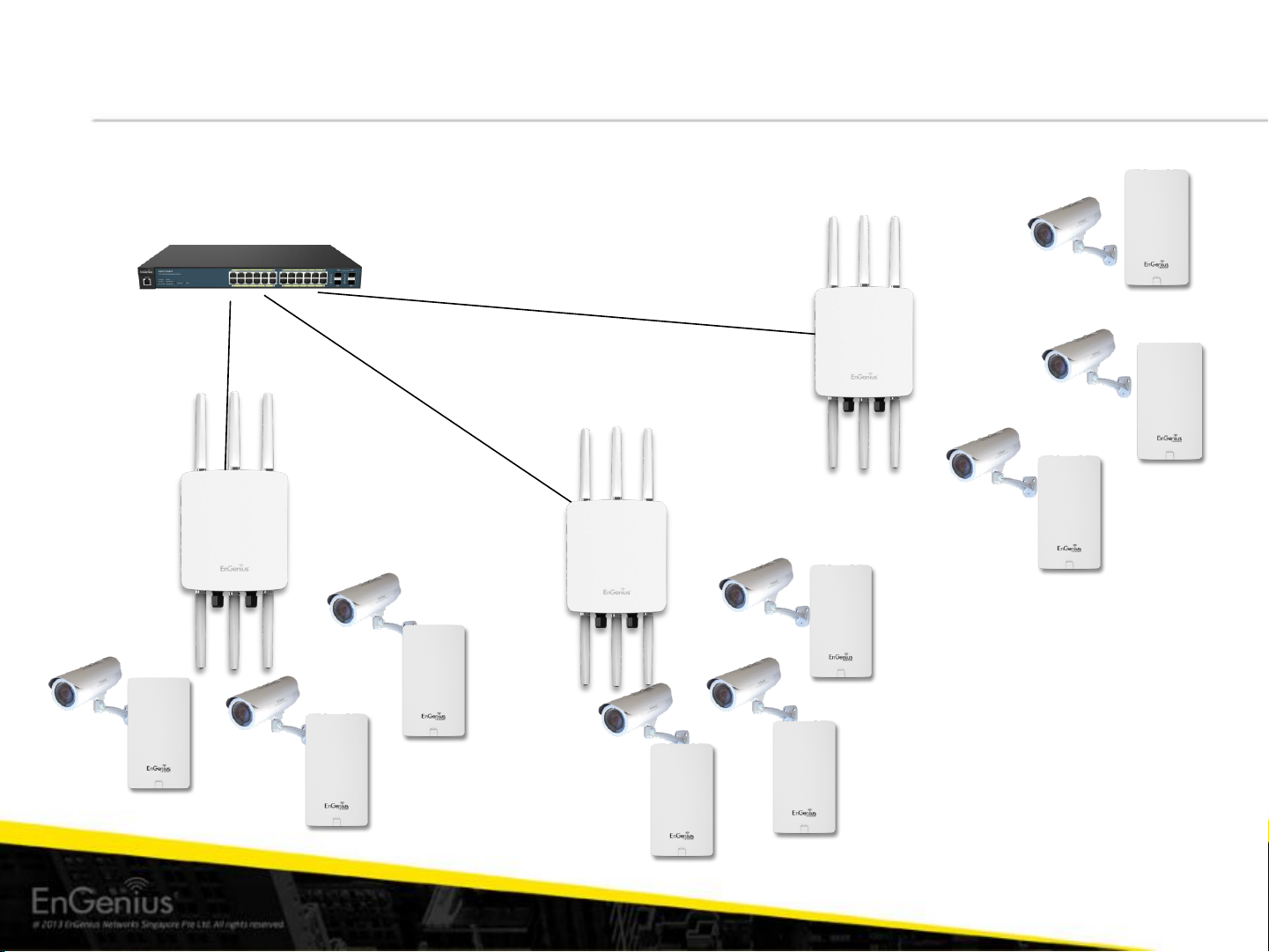

Application Scenario –Outdoor Surveillance
EWS7928P / EWS5912FP / EWS7952FP
PoE+ L2 Wireless Management Switch
EWS7928P / EWS5912FP / EWS7952FP
PoE+ L2 Wireless Management Switch
EWS310AP
EWS310AP
EWS310AP
EWS310APEWS310AP
EWS310APEWS310AP
EWS310APEWS310AP
Multi floor building
with rooms aligned side
by side
Application Scenario –Hospitality WiFi
