ENERGY SISTEM FS1 Manuel utilisateur
1/8 energysistem.com
ENGLISH
Care and maintenance 3 ...................................................................................................................................................
Technical specifications 3 .................................................................................................................................................
AUDIO 4 ..........................................................................................................................................................................
WIRELESS CONNECTION 4 ..............................................................................................................................................
TWS TECHNOLOGY COMPATIBLE WITH 4 ........................................................................................................................
AUDIO INPUT 4 ...............................................................................................................................................................
MicroSD and USB PLAYBACK 4 ........................................................................................................................................
BATTERY 4 ......................................................................................................................................................................
Product content 4 ...............................................................................................................................................................
General overview 4 ............................................................................................................................................................
Main functions 5 .................................................................................................................................................................
Switching on and off the device 5 ..................................................................................................................................
Playback control 5 ..........................................................................................................................................................
Charging the battery 5 ...................................................................................................................................................
Bluetooth connection 6 .....................................................................................................................................................
Call control (Hands-free function) 6 ................................................................................................................................
TWS (True Wireless Stereo) 6 ..........................................................................................................................................
Auxiliary audio input 7 ......................................................................................................................................................
MicroSD/USB player 7 ........................................................................................................................................................
Battery life 7 .......................................................................................................................................................................
Reset 8 .................................................................................................................................................................................
Warranty 8 ...........................................................................................................................................................................
Declaration of conformity 8 ............................................................................................................................................
2/8 energysistem.com
3/8 energysistem.com
Thank you for trusting our company and buying the new Speaker FS1. We hope you enjoy the product.
Before you start using your Speaker FS1 we strongly recommend reading this manual to get used to it.
Care and maintenance
Do not expose the device to humidity or high temperatures.
Do not use neither corrosive nor abrasive cleaning products.
Do not disassemble the device. All repair works should be carried out exclusively by qualified staff of Energy
Sistem Technology, S.A.
Turn off the device when you are not using it. Do not let it completely discharged for a long time.
Technical specifications
4/8 energysistem.com
AUDIO
System: 2.0
Power: 10 W
Speakers: 2 full range speakers of 40 mm
Passive radiator: two membranes
Frequency response: 100 Hz ~ 18 KHz
S/N ratio: > 60 dB
WIRELESS CONNECTION
Bluetooth 5.0, class II. Up to 20 m distance range
Supported Bluetooh protocols: HSP / HFP / A2DP / AVRCP
Frequency band: 2.4 GHz (2.402 - 2.480 GHz)
Maximum output power: < 20 dBm
Hands-free function. Microphone sensitivity: -42 dB
TWS technology (True Wireless Stereo)
TWS TECHNOLOGY COMPATIBLE WITH
Urban box 2
Speaker FS1
AUDIO INPUT
3.5 mm mini jack stereo audio-in (AUX)
MicroSD and USB PLAYBACK
USB and microSD decoder: reads MP3 files stored on external units (up to 64 GB) with FAT/ FAT32 file system.
BATTERY
Capacity: 1200 mAh
Type: Li-Po
Battery life: 12 hours*
Charging port: microUSB
Charging time: 3 hours
*The battery life depends on the selected volume level and the type of music you play.
Product content
Speaker FS1
USB cable
Quick guide
Strap

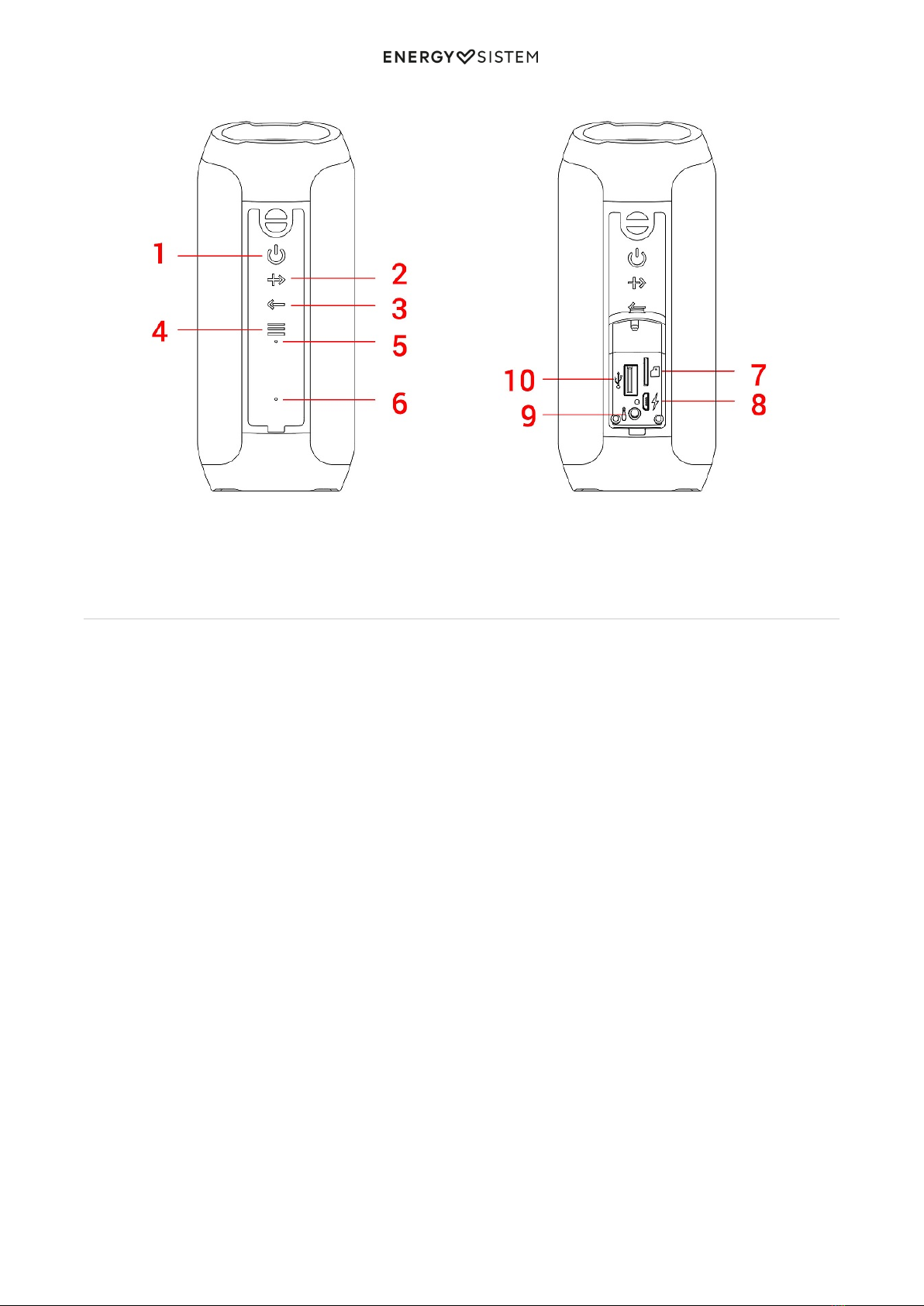

General overview
1. On/ Off/ Play/ Pause/ Call control
2. Volume +/ Next
3. Volume -/ Back
4. Change function/ TWS
5. Hands-free microphone
6. Function and charge indicator
7. MicroSD slot
8. Charging port
9. Auxiliary audio input
10. USB port
5/8 energysistem.com
Main functions
Switching on and off the device
Press and hold On/ Off (1) for 2 seconds to switch on and off the device. You will hear a confirmation sound when
switching on the device. The Function indicator (6) will keep flashing blue while the device is on.
Press and hold On/ Off (1) once again to switch off your device. You will hear a confirmation sound. At this point, the
Function indicator (6) switches off.
Important:* Press the hidden reset button located inside the Auxiliary audio input (9)* to force the device to shut
down.
Playback control
You can manage playback from the speaker itself. Press repeatedly Volume +/ Next (2) or Volume -/ Back (3) to adjust
the volume. Press and hold the very same buttons to switch to the next/ previous track. You will hear a warning sound
when reaching the maximum and minimum volume levels.
Press Play/ Pause (1) to pause or resume playback.
Important: Bear in mind that you can only manage playback from the connected music player while using the Auxiliary
audio input (9) .
Important: Find all information about playback control while TWS mode is enabled in the TWS section.
Charging the battery
When the battery level is below 10%, you will hear a sound to remind you to charge it. Plug the mini USB end of the
provided USB cable into the Charging port (8) and the other USB end to any device with a 5 V USB charging port (PC,
USB wall charger, car charger, etc.) to charge the battery. The Charge indicator (6) lights up red and switches off once
the charging process has been completed. The charging time is approximately 3 hours.
6/8 energysistem.com
Important:
Use a 5 V 2 A AC/DC power adapter.
Do not leave your Speaker FS1 completely discharged for a long time.
Bluetooth connection
Press Change function (4) until you find Bluetooth mode while your Speaker FS1 is on. At this point, you will be able to
pair the speaker with your smartphone or tablet.
Once your Speaker FS1 appears on your smartphone or tablet screen, press "connect". The devices will be connected
immediately and without codes. You will hear a sound that confirms both devices have been paired correctly.
At this point, you will be able to start playback on your smartphone or tablet. The Bluetooth wireless connection range is
up to 10 metres.
Your Speaker FS1 connects to the last paired device automatically when you switch it on once again, provided that the
Bluetooth connection on your smartphone or tablet is enabled.
Important: Your Speaker FS1 turns off automatically after 5 minutes with Bluetooth® mode enabled, if not paired with
any device.
Call control (Hands-free function)
You can manage your calls from the speaker itself. To do so, pair the Speaker FS1 with your smartphone.
When receiving a call, the song you are listening to stops and the ringing tone sounds instead. Press Call control (1) to
answer an incoming call. Press it once again to hang up.
Important: If you receive an incoming call while TWS mode is enabled, you will only hear the voice of the person who
calls through the speaker connected to your smartphone (left channel).*
TWS (True Wireless Stereo)
This option makes it possible to wirelessly pair another Speaker FS1 to get twice as much power and create a stereo
sound system made up of two different channels: left and right.
To use this function for the first time, turn on your two Speaker FS1 and press and hold Change Function/ TWS (4) on
both speakers for 2 seconds. A few seconds later you will hear a sound to confirm that both devices have been
successfully synchronized. Enable then Bluetooth on your source device and connect your Speaker FS1.
From that moment on, you will be able to play music via Bluetooth. You will hear the music through both speakers at
the same time. One speaker will be assigned the left channel (L) and the other one the right channel (R).
The next time you turn on both speakers, they will pair with one another automatically.
If you want to disable this function, press and hold Change function/ TWS (4) on any of them. Both speakers will be
disconnected. Press the very same button if you want to reconnect them.
Switch to the next/ previous track and adjust the volume pressing the corresponding buttons on any of the speakers
while TWS mode is enabled. If you turn up the volume on any of the speakers, you will be turning up the volume on both
of them at the same time.
Important: This is only possible if Bluetooth mode is enabled. In all other playback modes (USB, microSD, or line-in) a
TWS connection is not possible.
7/8 energysistem.com
Auxiliary audio input
Your Speaker FS1 also features an Auxiliary audio input (9) to connect your external devices using an audio cable.
Important: It is not possible to manage music playback from the speaker while using this mode. You will have to use
the music player instead.
MicroSD/USB player
The device plays .mp3 and .wav files from microSD cards (up to 64 GB). The contents play automatically a few seconds
after inserting the microSD card or USB stick.
If you turn off the speaker or remove the storage unit, the internal memory will save the moment where you paused
playback. If you connect the same removable storage unit once again, music playback will resume and the last song
you listened to will be then played.
Press and hold Volume +/ Next (2) or Volume -/ Back (3) to move to the next or previous song.
Press and hold Change function (4) to enable shuffle mode. You will hear a sound to confirm this mode has been
enabled. Shuffle mode will be disabled automatically when switching off the speaker.
The root folders and files of your external cards or sticks will be read in chronological order and the songs included in
your folders in alphabetical order.
Here you have a diagram of the reading order:
Battery life
The battery life of your Speaker FS1 depends on the selected volume level and the type of music. Please take a look at
this comparative table to find out more about the approximate battery life of your device:
- MODE - - MEDIUM VOLUME LEVEL - MAXIMUM VOLUME LEVEL -
BLUETOOTH 12 hours 6 hours
USB / SD 14 hours 7 hours
FM RADIO 4 hours 2 hours
AUXILIARY 16 hours 8 hours
8/8 energysistem.com
Reset
Press the hidden reset button located inside the Auxiliary audio input (9) to force the device to shut down.
Note: Avoid using metallic objects when performing the reset.
Warranty
You can check the warranty terms here:
https://www.energysistem.com/terms-warranty
Declaration of conformity
Issuer's name: Energy Sistem Technology, S.A. CIF: A53107488
Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain)
Tel: +34 966 830 324
We declare under our sole and exclusive responsibility that the product:
Description: Portable wireless speaker
Brand: Energy Sistem
Model: Speaker FS1
Manufacturer: Energy Sistem Technology, S.A.
Manufacturing country: China
referred to in this declaration complies with the essential norms and standards
EN 62368-1:2014+A11:2017
EN 62479:2010
ETSI EN 301 489-1 V2.2.3 (2019-11)
ETSI EN 301 489-17 V3.2.3 (2020-07)
ETSI EN 301 489-52 V1.1.0 (2016-11)
ETSI EN 300 328 V2.2.2 (2019-07)
ETSI EN 303 345 V1.1.7 (2017-03)
in conformity with the provisions of the Directive 2014/53/EU of the European Parliament and of the Council of 16th
April 2014.
Finestrat, 1st November 2020
Miguel Ángel Aragüez García
Innovation and Technology Director
