ENERCORP HS155IR Heatstat Manuel utilisateur

OPERATING INSTRUCTIONS AND OWNER’S MANUAL

READ INSTRUCTIONS CARE FULLY: Read

and follow all instructions. Place instructions in

a safe place for future reference. Do not allow

anyone who has not read these instructions to

assemble, light, adjust or operate the heater.

MODEL

HS155IR

07/11 50014ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 800-251-0001

DIRECT FIRED INFRARED

PORTABLE HEATER

HEATSTAR

BY ENERCO

If the information in this manual is not followed exactly, a re or explosion

may result causing property damage, personal injury or loss of life.

WARNING :

—Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any

other appliance.

—Service must be performed by a qualied service agency.

This is an unvented portable heater. It uses air (oxygen) from the area in which it is used. Adequate

combustion and ventilation air must be provided. Refer to page 5.

ENERCO GROUP, INC. |Direct Fired Portable Heater Operating Instructions and Owner’s Manual

WARNING:

FIRE, BURN, INHALATION, AND EXPLOSION HAZARD.

KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MA-

TERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE

AWAY FROM THE HEATER AS RECOMMENDED BY THE

INSTRUCTIONS NEVER USE THE HEATER IN SPACES

WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE

COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,

SOLVENTS, PAINT THINNER, DUST PARTICLES OR UN-

KNOWN CHEMICALS.

WARNING:

COMBUSTION BY-PRODUCTS PRODUCED WHEN US-

ING THIS PRODUCT CONTAIN CARBON MONOXIDE,

A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA

TO CAUSE CANCER AND BIRTH DEFECTS (OR OTHER

REPRODUCTIVE HARM).

GENERAL HAZARD WARNING:

FAILURE TO COMPLY WITH THE PRECAUTIONS AND

INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN

RESULT IN DEATH, SERIOUS BODILY INJURY AND

PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE,

EXPLOSION, BURN, ASPHYXIATION, CARBON MONOX-

IDE POISONING, AND/OR ELECTRICAL SHOCK.

ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW

THE INSTRUCTIONS SHOULD USE OR SERVICE THIS

HEATER.

IF YOU NEED ASSISTANCE OR HEATER INFORMATION

SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC.

CONTACT THE MANUFACTURER.

WARNING:

NOT FOR HOME OR RECREATIONAL VEHICLE USE

WARNING:

YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS,

SO PLEASE READ THESE INSTRUCTIONS BEFORE YOU

OPERATE THIS HEATER.

The State of California requires the following warning:

CONTENTS

WARNINGS.................................................................................. 2

SPECIFICATIONS........................................................................... 3

OPERATION ................................................................................. 4

SAFETY DEVICES.......................................................................... 4

MAINTENANCE............................................................................ 5

TROUBLESHOOTING .................................................................... 6

WIRING DIAGRAMS..................................................................... 7

PARTS LIST................................................................................... 8

WARNING:

READ THE INSTRUCTIONS GIVEN IN THIS

MANUAL BEFORE USING THE APPLIANCE.

• DO NOT USE GASOLINE, NAPHTHA OR VOLATILE

FUELS.

• THE ELECTRICAL SYSTEM TO WHICH THE APPLIANCE

IS CONNECTED MUST COMPLY WITH ALL SAFETY

REGULATIONS IN FORCE. A RESIDUAL CURRENT

CIRCUIT BREAKER MUST BE PROVIDED ON THE MAIN

DISTRIBUTION BOARD.

• UNPLUG THE HEATER BEFORE ATTEMPTING ANY

SERVICE OR MAINTENANCE.

• ALWAYS CHECK THE POWER SUPPLY CABLE BEFORE

USE. IT MUST NOT BE BENT, CRUSHED, OR ANYWAY

DAMAGED.

• THE POWER SUPPLY CABLE MUST BE REPLACED ONLY

BY QUALIFIED PERSONNEL.

• ONLY USE AN ORIGINAL H07RN-F POWER CABLE

WITH WATERPROOF PLUG.

• DO NOT TOUCH THE EXHAUST GAS OUTLET. DANGER

OF BURNS!

3Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

TECHNICAL SPECIFICATIONS FIRE 155

Max heating output [BTU/h] 154.237

Fuel consumption [gal/h] 1,11

Phase 1

Voltage [V] 120

Power supply

Frequency [Hz] 60

Power consumption [W] 440

Nozzle [USgal/h] Delavan 0,85 - 80° W

Pump pressure PSI 174

Adjustment of combustion air flap [N°] 2

Tank capacity [USgal] 17.17

Noise level at 1 m [dBA] 72

Dimensions, L x W x H [in] 55.5 x 28.03 x 41.5

Weight [lb] 161

IMPORTANT

Before using the heater, read and understand all

instructions and follow them carefully. The manufacturer

is not responsible for damages to goods or persons due

to improper use of units.

GENERAL RECOMMENDATIONS

The heater described in this manual is a portable oil-fueled

infrared heat generator running on heating oil.

Its easy handling and large fuel tank allow it to be used locally and

temporarily with complete stand-alone operation. The area to be

heated is therefore hit by an even and uniform flow of heat, as can be

seen by the shape of the irradiation cone (18), without air movement.

The unit is a direct combustion hot generator that works by

sending both hot air and combustion products in the room you wish

to heat: all the necessary precautions must therefore be taken to

guarantee a sufficient exchange of air.

Always follow local ordinances and codes when using this heater:

•Read and follow this owner’s manual before using the heater;

•THE INSTALLATION OF THE UNIT SHALL BE IN

ACCORDANCE WITH THE REGULATIONS OF THE

AUTHORITIES HAVING JURISDICTION. Also, as a

recommended installation practice reference should be made to

the current issue of CSA B139, Installation Code for Oil Burning

Equipment in Canada and NFPA 31 Standard for the Installation

of Oil-Burning Equipment In the USA;

•Use only in places free of flammable vapours or high dust

content;

•Never use heater in immediate proximity of flammable materials

(the minimum distance must be 10 feet);

•Make sure fire fighting equipment is readily available;

•Make sure sufficient fresh outside air is provided according to

the heater requirements. Direct combustion heaters should only

be used in well vented areas in order to avoid carbon monoxide

poisoning;

•A rough estimate of opening required for each gallon (US) of

capacity is three square foot at heater level, for direct-fired

heaters;

•The heater is installed and connected to an electrical

switchboard;

•Ensure that the machine resting surface or ground is not made

of flammable material;

•Minimum clearances from combustible material must be:

30” from side and rear (air inlet) of heater

80” from ceiling

40” on air outlet of heater.

•Never block air inlet (rear) or air outlet (front);

•In case of very low temperatures add kerosene to the heating

oil;

•Connect the power cord to the mains and wait 15 min at least

be fore starting heater, to allow pre-heated filter warming

heating oil inside the filter;

•Make sure heater is always under surveillance and keep

children and animals away from it;

•Before starting the heater always check free rotation of

ventilator;

•Heater is not ductable.

•Unplug heater when not in use.

ENERCO GROUP, INC. |Direct Fired Portable Heater Operating Instructions and Owner’s Manual

1 4

O N

3 2

1 RESET BUTTON WITH CONTROL LAMP

2 CONTROL LAMP

3 MAIN SWITCH

4 ROOM THERMOSTAT PLUG

5 POWER CORD

Before any attempt of starting the heater is made, check that

your electrical supply conforms to the data on the model plate.

Control Board

SAFETY DEVICES

The unit is fitted with an electronic flame control box. In case of

malfunction this box will cut in and stop the heater, at the same time

the pilot lamp in the control box reset button (13) will light up.

The reset push-button emits a different colour light,

depending on the state of the machine:

• green, when the machine is running regularly;

•red, when the machine is in safety lock-out mode: to

restart it , the reset button (13) must be pressed.

Heaters are also equipped with an overheat thermostat safety cut

out which will stop the heater in case of overheating. This thermostat

will reset automatically but you will have to depress button (13) on

control box before being able to restart the heater.

OPERATION

Before any attempt of starting the heater is made, check that your

electrical supply conforms to the data on the model plate.

Mains must be fitted with a thermo-magnetic

differential switch.

Unit plug must be linked to a socket with a mains

switch.

The hot generator must be placed on a flat, stable and level

surface to avoid machine tipping and/or gas oil leakage from the tank

fuel cap.

The flow of heat can be directed upward with an approximately 10°

angle: loosen the two locking knobs (A) and tilt the combustion unit

by pressing on the handle until the desired angle is reached, then

lock the knobs (A) by tightening.

Before start-up, always ensure the guard (B) has been

completely pulled out, so as to guarantee maximum

protection of the machine resting surface.

Gap of Electrodes

•

the room where the heater is operated.

•The air inlet and outlet must never be blocked for any

reason.

Clearances

The following minimum safety clearances from materials or objects

in the surroundings of the heater must be ensured:

Sides 30 in. Air Inlet 30 in.

Top 80 in. Air outlet

•

40 in.

WARNING

5Operating Instructions and Owner’s Manual

The hot air generators with wheels must be wheeled. The

suspended version which has no wheels must be transported with

adequate machinery.

MAINTENANCE

Preventive and regular maintenance will ensure a long trouble free

life to your heater.

WARNING

•Never service heater while it is plugged in, operating or hot.

Severe burns or electrical shock can occur.

Every 50 hours of operation: disassemble lter and wash with

clean oil, remove upper body parts and clean inside and ventilator

with compressed air, check correct attachment of H.V. connectors

to the electrodes and check H.V. cables, remove burner assembly,

clean and check electrode settings, adjust according to scheme

“GAP OF ELECTRODES”.

When unit is started for the rst time or is started after the oil

tank has been totally emptied, the ow of oil to the burner may

be impaired by air in the circuit. In this case the control box will

cut out the heater and it might be necessary to renew the starting

procedure once or twice by depressing the reset button (1).

Should the heater not start, check that oil tank

is full and depress reset button (1).

Should the heater still not work, please refer to chapter

“OBSERVED FAULTS, CAUSES AND REMEDIES”.

STOPPING THE HEATER

Set main switch (3) on “0” position or turn thermostat or other

control device on lowest setting.

The ame goes out and the fan continues to work for approx.

90sec. cooling the combustion chamber.

SAFETY DEVICES

The unit is tted with an electronic ame control box. In case of

malfunction this box will cut in and stop the heater, at the same

time the pilot lamp in the control box reset button (1) will light up.

Heaters are also equipped with an overheat thermostat safety

cutout which will stop the heater in case of overheating. This

thermostat will reset automatically but you will have to depress

button (1) on control box before being able to restart the heater.

TRANSPORT

WARNING

•-

nate reason of overheating.

Before heater is moved it must be stopped and unplugged. Before

moving the heater wait till it has totally cooled o and make sure

oil tank cap is securely xed.

The generator can only work automatically when a control device,

such as for example a thermostat or a timer, is connected to the

generator. Connection to the generator is made by removing the

socket cover(4) and inserting the thermostat plug.

To start the machine you must:

•If connected to the thermostat, turn the switch to (ON + );

•If not connected to the thermostat, turn the switch to (ON).

WARNING

•DO NOT USE GASOLINE, NAPHTHA OR VOLATILE FUELS.

•STOP HEATER BEFORE ADDING FUELS.

•ALWAYS FILL OUTDOORS AWAY FROM OPEN FLAME

•DO NOT USE EXTERNAL FUEL SOURCE.

•DO NOT OPERATE HEATER WHERE FLAMMABLE LIQUIDS

OR VAPORS MAY BE PRESENT.

•DO NOT START HEATER WHEN CHAMBER IS HOT

•DO NOT START HEATER WHEN EXCESS FUEL HAS ACCUMU -

LATED IN THE CHAMBER.

•DO NOT PLACE COOKING UTENSILS ON TOP OF THE

HEATER.

•PLUG ELECTRICAL CORD INTO A PROPERLY GROUNDED

THREE-PRONG RECEPTACLE.

5Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

ENERCO GROUP, INC. |Direct Fired Portable Heater Operating Instructions and Owner’s Manual

TROUBLESHOO TING

YDEMERESUACTLUAFDEVRESBO

•Check mains

•Check proper positioning and functioning of

switch

• No electrical current

• Check fuse

•Wrong setting of room thermostat or other control

(thermostat and clock)

•Check correct setting of heater control. If

thermostat, make sure selected temperature is

higher than room temperature

•Thermostat or other control defective • Replace control device

•Electrical motor defective • Replace electrical motor

•Electrical motor bearings defective • Replace electrical motor

•Motor does not start, no

ignition

•Burned out condenser • Replace condenser

•Check connection of H.T. Ieads to electrodes and

transformer

• Check electrodes setting (see scheme Fig. 2)

• Check electrodes for cleanliness

•Electric ignitor defective

• Replace H.T. transformer

• Flame control box defective • Replace control box

•Photocell defective • Clean or replace photocell

• Check state of motor-pump plastic coupling

•Check fuel line system including fuel filter for

possible leaks

• Not enough or no fuel at all at burner

• Clean or replace oil nozzle

• Check electrical connection

•Motor starts, no ignition or

cuts out

•Solenoid defective • Clean or replace solenoid

•Make sure air inlet and outlet are free

• Check setting of combustion air flap

• Not enough combustion air

• Clean burner disc

•Too much combustion air • Check setting of combustion air flap

• Drain fuel in tank and replace with clean fuel

• Fuel contaminated or contains water • Clean or replace oil filter

•Air leaks in fuel circuit • Check fuel line and filter for possible leaks

• Check pump pressure

• Not enough fuel at burner • Clean or replace fuel nozzle

• Check pump pressure

•Motor starts, heater emits

smoke

•Too much fuel at burner • Replace nozzle

• Heater does not stop •Solenoid defective • Replace solenoid coil or complete solenoid

If heater is still not working properly, please revert to nearest authorized dealer.

7Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

WIRING DIAGRAM

AP CONTROL BOX

TA ROOM THERMOSTAT PLUG

ST PILOT LAMP

LI1 OVERHEAT THERMOSTAT

EV1 SOLENOID VALVE

FO PHOTOCELL

CO CAPACITOR

MV FAN MOTOR

FUAFUSE

LF ANTI-JAMMING FILTER

RV MAIN SWITCH

RF HEATED FILTER >>>OPTIONAL

8Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

08 14

11 12

03 38

54 55 56

57 32

HS155IR

PL 01/08

70 69

78 79

80 81

83 87 88

100

HS 155IR

PL 01/08

C A

Optional

9Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

10 Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

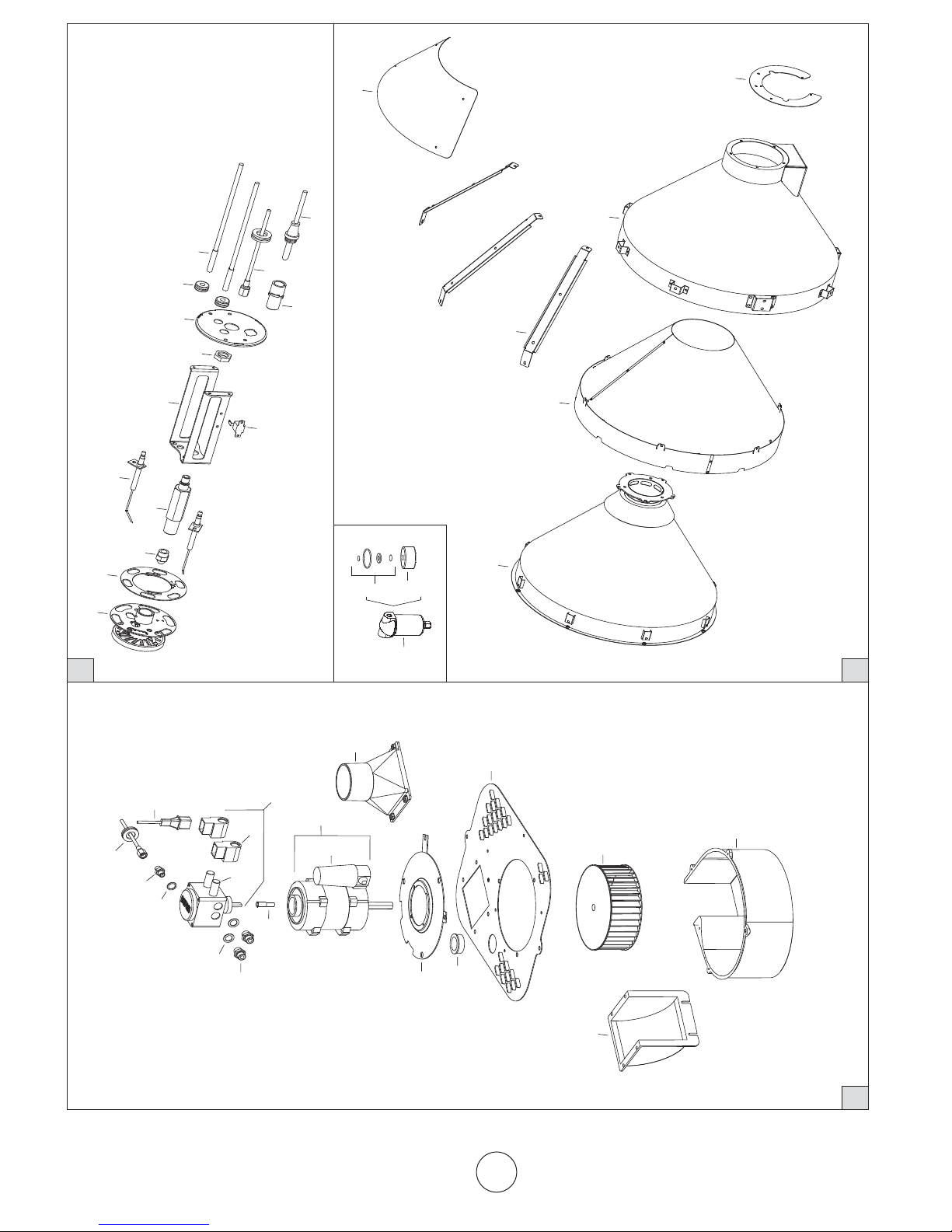

NO. HS# BM2 # DESCRIPTION NO. HS# BM2 # DESCRIPTION

01 50201 G11001 Front bumper protection 54 50013 E10102-P Switch 0-1

02 50202 G11029-N500 Lower protection plate 55 50570 E20640 Thermostat plug 3P+T

03 50203 G11028-N500 Lower protection 56 50011 E20665 Drain plug

04 50204 G11030-N500 Upper protection 57 50342 E10112-P Switch 0-1

05 50205 G11005 Radiant front disc 58 50009 E30443 Electrial wire w/plug and cable fastener

06 50206 G11031-9010 Upper body 59 50008 E11030 Lamp 120V

07 50055 I40329 Tube BP 1/4"FF L. 260mm 60 50232 I40339 Micropipe L=450mm

08 50052 I20104 Nipple FE 1/4" MM 61 50132 I20115 Nipple FE 1/8"MM

09 50054 G06104-9005 Filter support 62 50234 M20128 Washer 1/8"x1.5

10 50024 T20201 Filter w/cartridge 63 50433 T20442 Solenoid valve cable

11 50025 T20234 O-ring kit oil filter 64 50235 T20450 Pump BFP21 R3 Danfoss

12 50030 T20206 Filter cartridge 65 50140 T20118 Solenoid spool Danfoss

13 50251 T20212 Filter housing 66 50141 T20117 Solenoid valve Danfoss

14 50207 I40340 Tube BP 1/4"FF L.580mm 67 50236 M20123 Washer 1/4"x1.5

15 50208 G11007-9010 Right side cover plate 68 50237 E10698 Coupling

16 resnednoc/wW002rotoM011-77601E8110596tekcarB5009-23011G90205

17 50210 G11009-9005 Frame 70 50472 E11233 Condenser 20µF

18 50212 G06322 Knurled wheel M8x25 71 50238 C10328 Air snorkel

19 40477 C30355 Plug ø25mm 72 50239 G06200-9005 Support fan and motor

20 mm53ønoitcetorpelbaC27303C1140537eldnaH5009-78102

P31205

21 rotomdnanaftroppuS5009-52011G0420547gulP16303C41205

22 50215 G11010-9010 Rear panel 75 50279 T10262 Fan AP 160x55 F12.7

23 noitcennocwoble°0992301C8640567gulpniarD38303C61205

24 50217 G11011-9005 Electrical drawer support 77 50241 C10326 Spiral fan

25 50218 G00298 Electrical components drawer 78 50242 G11018 Turbo disc

26 97tooF5009-68102P91205 50243 G11019 Air regulation disc

27 50220 P50139 Fuel tank 65L 80 50244 T20363 Nozzle 0.85 GPM 80°W

28 40532 I25020 Drain plug M16x1.5mm 81 50245 I33008 Nozzle support

29 50221 M20313 Washer 3/8" 82 50134 E10215 Electrodes

30 50224 G11012-9005 Wheel axle 83 50247 G11020 Electrodes stirrup

31 40533 M20111 Washer ø26xø44øx4 84 50414 E50109 Fan thermostat

32 50225 C10555 Wheel ø300-ø025 85 50131 I31034 Nut M14

33 50226 M20204 Wheel holder ø25 86 50248 G11021 Burner flange ø 102mm

34 78revoCN-31501C81305 50522 C30368 Cable protection ø12mm

35 50063 I30737 Nipple OT 1/4"M-M12x1.75M 88 50135 G02076 H.T. cable connection L=1000mm

36 50061 I30696 Dip tube L 220mm 89 50323 E50328 Photo cell BRAHMA FC 13

37 50227 G11033-9010 Front panel 90 50336 E50327 Holder for photo cell

38 50228 G11014-9010 Left cover plate 91 50249 G11035 Internal cone

39 enocetaidemretnI32011G0520529tekcarB5009-43011G9

2205

40 enoclanretxE42011G7720539ebuttsalB61011G03205

41 50413 E20671 Terminal board 94 50053 T20239 Oil pre-heaters filter 1/4"

42 50231 I40805 Air duct L=350mm 95 50144 T20241 O-ring kit oil filter

43 50246 G06153 Electrial components drawer 96 50145 T20242 Fuel filter cartridge

50 50319 E10930 Transformer H.T. BRAHMA 97 50277 I39107 Seal 1.1/4"

51 50320 E40124 Control box BRAHMA TGRD 91 98 50278 G11036-N500 Support

52 50420 G06184 Plate for electrical components 99 50281 G11037-N500 Isolation sheet

53 50325 E20418 Stop button protection 100 50282 G11038-N500 Wrapper

HS155IR

7/20/2011

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ENERCORP Chauffage

ENERCORP

ENERCORP HEATSTAR HSU 45 Manuel utilisateur

ENERCORP

ENERCORP MR. HEATER MH125FAV Instructions de montage

ENERCORP

ENERCORP HeatStar HS180ID Instructions de montage

ENERCORP

ENERCORP MR. HEATER MH40NG Instructions de montage

ENERCORP

ENERCORP Heatstar HS50K Instructions de montage

ENERCORP

ENERCORP HEATSTAR HS1000ID Manuel utilisateur

ENERCORP

ENERCORP HEATSTAR HS4000 NG Instructions de montage

ENERCORP

ENERCORP MH125 Instructions de montage

ENERCORP

ENERCORP MR. HEATER MH170FAVT Instructions de montage

ENERCORP

ENERCORP Heatstar HS2000ID Manuel utilisateur

ENERCORP

ENERCORP Heatstar HS50K Manuel utilisateur

ENERCORP

ENERCORP MH400FAVT Instructions de montage

ENERCORP

ENERCORP MR. HEATER 3500DF Instructions de montage

ENERCORP

ENERCORP MR. HEATER MH35FA Instructions de montage

ENERCORP

ENERCORP HeatStar HS170FAVT Guide de démarrage rapide

ENERCORP

ENERCORP HeatStart HS80CV Instructions de montage

ENERCORP

ENERCORP MR. HEATER MH35FA Manuel utilisateur

ENERCORP

ENERCORP HEATSTAR HST 45 Instructions de montage

ENERCORP

ENERCORP FIRE 155 Instructions de montage

ENERCORP

ENERCORP HeatStar HS35FA Instructions de montage

ENERCORP

ENERCORP HeatStar HS170FAVT Manuel utilisateur

ENERCORP

ENERCORP HEATSTAR HS4000 NG/LP Instructions de montage

ENERCORP

ENERCORP Mr. Heater 1000ID Instructions de montage

ENERCORP

ENERCORP HEATSTAR HS22LP Instructions de montage

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
