ENERCORP MR. HEATER 3500DF Instructions de montage

OPERATING INSTRUCTIONS AND OWNER’S MANUAL

READ INSTRUCTIONS CAREFULLY: Read

and follow all instructions. Place instructions in

a safe place for future reference. Do not allow

anyone who has not read these instructions to

assemble, light, adjust or operate the heater.

MODEL

3500DF 6000DF 3500DF 6000DF

07/11 Rev A 50125ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 800-251-0001

DIRECT FIRED

PORTABLE HEATER

HEATSTAR

BY ENERCO

MR. HEATER

If the information in this manual is not followed exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

WARNING:

— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any

other appliance.

— Service must be performed by a qualified service agency.

This is an unvented portable heater. It uses air (oxygen) from the area in which it is used. Adequate

combustion and ventilation air must be provided. Refer to page 5.

ENERCO GROUP, INC. |Direct Fired Portable Heater Operating Instructions and Owner’s Manual

WARNING:

FIRE, BURN, INHALATION, AND EXPLOSION HAZARD.

KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MA-

TERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE

AWAY FROM THE HEATER AS RECOMMENDED BY THE

INSTRUCTIONS NEVER USE THE HEATER IN SPACES

WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE

COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,

SOLVENTS, PAINT THINNER, DUST PARTICLES OR UN-

KNOWN CHEMICALS.

WARNING:

COMBUSTION BY-PRODUCTS PRODUCED WHEN US-

ING THIS PRODUCT CONTAIN CARBON MONOXIDE,

A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA

TO CAUSE CANCER AND BIRTH DEFECTS (OR OTHER

REPRODUCTIVE HARM).

GENERAL HAZARD WARNING:

FAILURE TO COMPLY WITH THE PRECAUTIONS AND

INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN

RESULT IN DEATH, SERIOUS BODILY INJURY AND

PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE,

EXPLOSION, BURN, ASPHYXIATION, CARBON MONOX-

IDE POISONING, AND/OR ELECTRICAL SHOCK.

ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW

THE INSTRUCTIONS SHOULD USE OR SERVICE THIS

HEATER.

IF YOU NEED ASSISTANCE OR HEATER INFORMATION

SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC.

CONTACT THE MANUFACTURER.

WARNING:

NOT FOR HOME OR RECREATIONAL VEHICLE USE

WARNING:

YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS,

SO PLEASE READ THESE INSTRUCTIONS BEFORE YOU

OPERATE THIS HEATER.

The State of California requires the following warning:

CONTENTS

WARNINGS.................................................................................. 2

SPECIFICATIONS........................................................................... 3

OPERATION ................................................................................. 4

SAFETY DEVICES.......................................................................... 4

MAINTENANCE............................................................................ 5

TROUBLESHOOTING .................................................................... 6

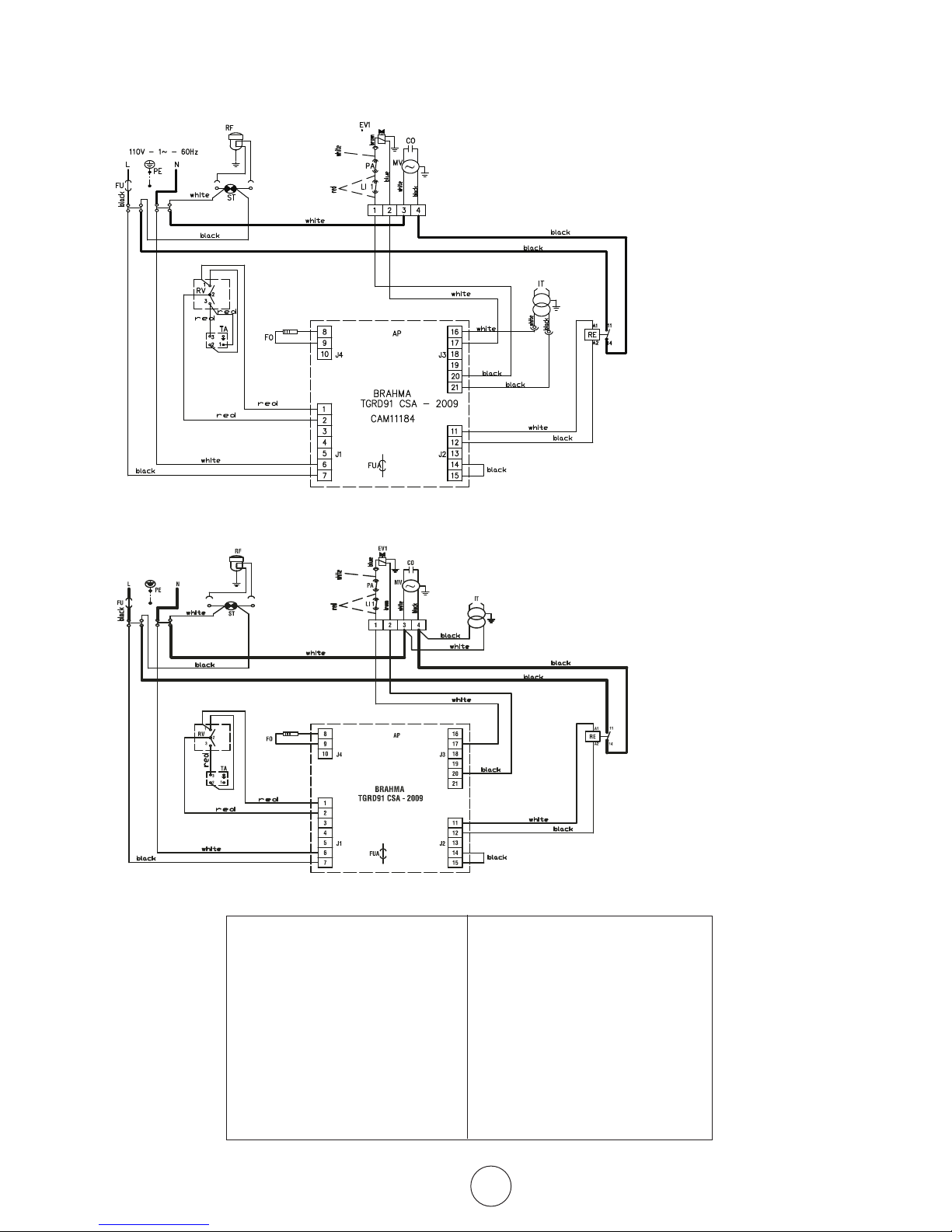

WIRING DIAGRAMS..................................................................... 7

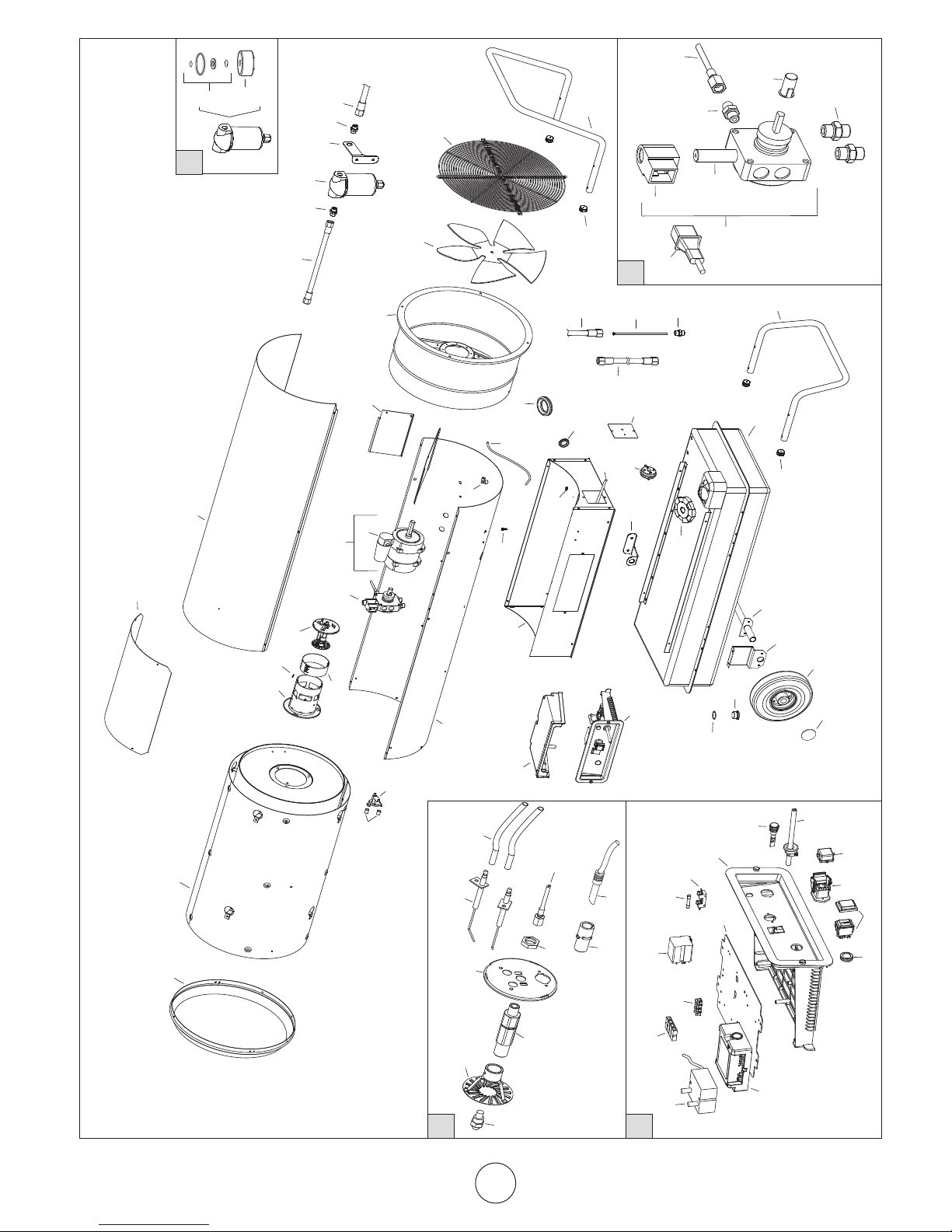

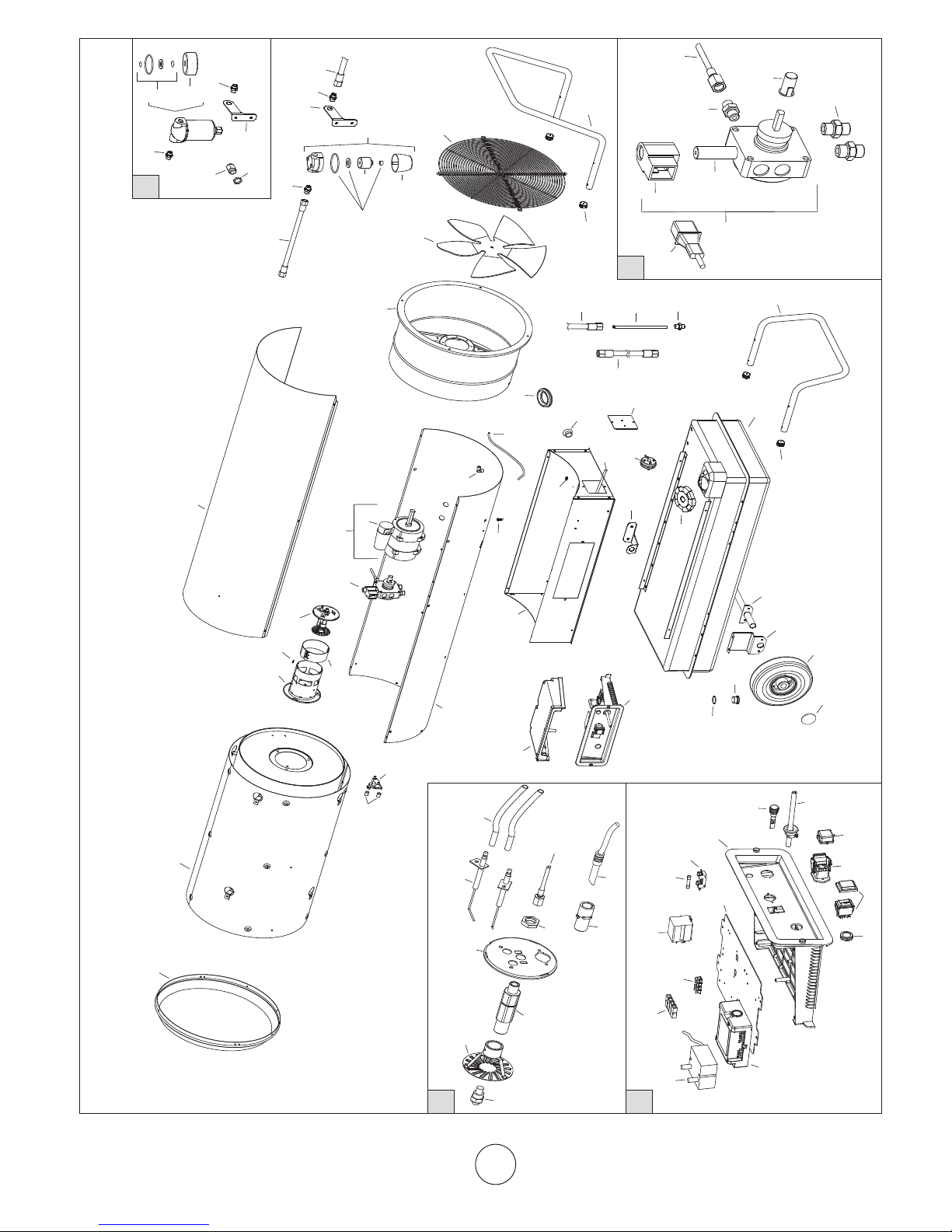

PARTS LIST................................................................................... 8

WARNING:

READ THE INSTRUCTIONS GIVEN IN THIS

MANUAL BEFORE USING THE APPLIANCE.

• DO NOT USE GASOLINE, NAPHTHA OR VOLATILE

FUELS.

• THE ELECTRICAL SYSTEM TO WHICH THE APPLIANCE

IS CONNECTED MUST COMPLY WITH ALL SAFETY

REGULATIONS IN FORCE. A RESIDUAL CURRENT

CIRCUIT BREAKER MUST BE PROVIDED ON THE MAIN

DISTRIBUTION BOARD.

• UNPLUG THE HEATER BEFORE ATTEMPTING ANY

SERVICE OR MAINTENANCE.

• ALWAYS CHECK THE POWER SUPPLY CABLE BEFORE

USE. IT MUST NOT BE BENT, CRUSHED, OR ANYWAY

DAMAGED.

• THE POWER SUPPLY CABLE MUST BE REPLACED ONLY

BY QUALIFIED PERSONNEL.

• ONLY USE AN ORIGINAL H07RN-F POWER CABLE

WITH WATERPROOF PLUG.

• DO NOT TOUCH THE EXHAUST GAS OUTLET. DANGER

OF BURNS!

3Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

TECHNICAL SPECIFICATIONS MH3500 DF

HS 3500DF

MH 6000DF

HS 6000DF

Heat input [kBTU/h] 360 600

Air Flow [cfm] 1795 2.800

Fuel Type Diesel/Kerosene/#1-2 Fuel Oil

Heat output [kBTU/h] - -

Fuel consumption [gal/h] 2..6 4.32

[lb/h] 18.56 30.84

Power supply

Phase 1 1

Voltage [V] 120 120

Frequency [Hz] 60 60

Electric consumption [W] 632 1,240

[A] 6.00 11.10

Nozzle [USgal/h] 2.00-80° S 3.00-80°S

Pump pressure [psi] 174 203

Max static pressure [in WC] - -

Recommended max. temp. in the air

duct [°F] - -

Adjustment of combustion air Flap [in] a=0.394 a=0.866

N° - -

Flue diameter [in] - -

Compulsory Flue draft [in WC] - -

Tank capacity [gal] 35.6 35.6

Dimensions, L x W x H [in] 56.4x26.38x38.3 68.5x28.8x44

Net Weight [lb] 153 243

IMPORTANT

Before using the heater, read and understand all instructions and

follow them carefully. The manufacturer is not responsible for

damages to goods or persons due to improper use of units.

GENERAL RECOMMENDATIONS

heater exhausts hot air and the combustion products into

the room, while those with indirect combustion are fitted

with a flue to take the fumes away through the chimney.

Always follow local ordinances and codes when using this

heater:

•Read and follow this owner’s manual before using the

heater.

•

content.

•

materials (the minimum distance must be 6 ft.).

•

to the heater requirements. Direct combustion heaters

should only be used in well vented areas in order to avoid

carbon monoxide poisoning.

•Never block air inlet (rear) or air outlet (front).

•In case of very low temperatures add kerosene to the

heating oil.

•Make sure heater is always under surveillance and keep

children and animals away from it;

•Before starting the heater always check free rotation of

ventilator fan.

•Unplug heater when not in use.

ENERCO GROUP, INC. |Direct Fired Portable Heater Operating Instructions and Owner’s Manual

Models X Y Z

3500 DF 0.157 in 0.098 in 0.157 in

6000 DF 0.157 in 0.098 in 0.157 in

•

the room where the heater is operated.

•The air inlet and outlet must never be blocked for any

reason.

•

WARNING

•DO NOT USE GASOLINE, NAPHTHA OR VOLATILE FUELS.

•STOP HEATER BEFORE ADDING FUELS.

•ALWAYS FILL OUTDOORS AWAY FROM OPEN FLAME

•DO NOT USE EXTERNAL FUEL SOURCE.

•DO NOT OPERATE HEATER WHERE FLAMMABLE LIQUIDS

OR VAPORS MAY BE PRESENT.

•DO NOT START HEATER WHEN CHAMBER IS HOT

•DO NOT START HEATER WHEN EXCESS FUEL HAS ACCUMU-

LATED IN THE CHAMBER.

•DO NOT PLACE COOKING UTENSILS ON TOP OF THE

HEATER.

•PLUG ELECTRICAL CORD INTO A PROPERLY GROUNDED

THREE-PRONG RECEPTACLE.

The generator can only work automatically when a control device,

such as for example a thermostat or a timer, is connected to the

generator. Connection to the generator is made by removing the

socket cover(4) and inserting the thermostat plug.

To start the machine you must:

•If connected to the thermostat, turn the switch to (ON + );

•If not connected to the thermostat, turn the switch to (ON).

When unit is started for the first time or is started after the oil

tank has been totally emptied, the flow of oil to the burner may

be impaired by air in the circuit. In this case the control box will

cut out the heater and it might be necessary to renew the starting

procedure once or twice by depressing the reset button (1).

Should the heater not start, check that oil tank

is full and depress reset button (1).

Should the heater still not work, please refer to chapter

“OBSERVED FAULTS, CAUSES AND REMEDIES”.

STOPPING THE HEATER

Set main switch (3) on “0” position or turn thermostat or other

control device on lowest setting.

The flame goes out and the fan continues to work for approx.

90sec. cooling the combustion chamber.

SAFETY DEVICES

The unit is fitted with an electronic flame control box. In case of

malfunction this box will cut in and stop the heater, at the same

time the pilot lamp in the control box reset button (1) will light up.

Heaters are also equipped with an overheat thermostat safety

cutout which will stop the heater in case of overheating. This

thermostat will reset automatically but you will have to depress

button (1) on control box before being able to restart the heater.

TRANSPORT

WARNING

•-

nate reason of overheating.

Before heater is moved it must be stopped and unplugged. Before

moving the heater wait till it has totally cooled off and make sure

oil tank cap is securely fixed.

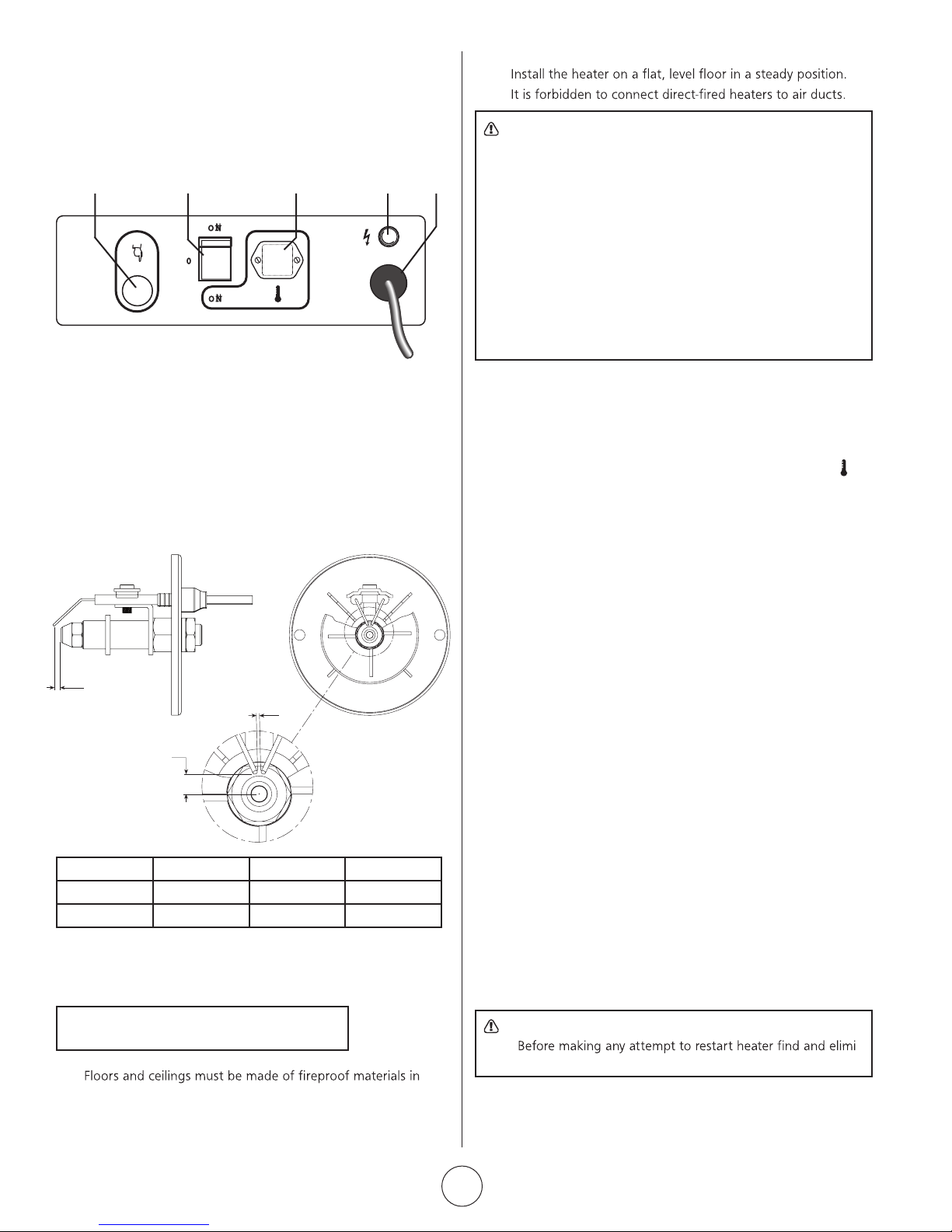

1 4

O N

3 2 5

1 RESET BUTTON WITH CONTROL LAMP

2 CONTROL LAMP

3 MAIN SWITCH

4 ROOM THERMOSTAT PLUG

5 POWER CORD

OPERATION

Before any attempt of starting the heater is made, check that

your electrical supply conforms to the data on the model plate.

Control Board

Gap of Electrodes

Clearances

The following minimum safety clearances from materials or objects

in the surroundings of the heater must be ensured:

Sides 2.5 ft. Air Inlet 2.5 ft.

Top 6 ft. Air outlet 12 ft.

5Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

The hot air generators with wheels must be wheeled. The

suspended version which has no wheels must be transported with

adequate machinery.

MAINTENANCE

Preventive and regular maintenance will ensure a long trouble free

life to your heater.

WARNING

• Never service heater while it is plugged in, operating or hot.

Severe burns or electrical shock can occur.

Every 50 hours of operation: disassemble ﬁlter and wash with

clean oil, remove upper body parts and clean inside and ventilator

with compressed air, check correct attachment of H.V. connectors

to the electrodes and check H.V. cables, remove burner assembly,

clean and check electrode settings, adjust according to scheme

“GAP OF ELECTRODES”.

COLUMN INTENTIONALLY LEFT BLANK

ENERCO GROUP, INC. |Direct Fired Portable Heater Operating Instructions and Owner’s Manual

TROUBLESHOOTING

TROUBLE CAUSE SOLUTION

Motor does not start, no ignition No electrical current Check mains (should be 120 V – 1~ – 60 Hz)

Check proper positioning and functioning of switch

Check fuse

Wrong setting of room ther-

mostat or other control

Check correct setting of heater control. If thermostat, make

sure selected temperature is higher than room temperature

Thermostat or other control

defective

Replace control device

Electrical motor defective Replace electrical motor

Electrical motor bearings

defective

Replace electrical motor bearings

Burned out condenser Replace condenser

Motor starts, no ignition or cuts out Electric ignitor defective Check connection of H.V. Ieads to electrodes and transformer

Check electrodes setting (see scheme “GAP OF ELECTRODES”)

Check electrodes for cleanliness

Replace H.V. transformer

Flame control box defective Replace control box

Photocell defective Clean or replace photocell

Not enough or no fuel at all

at burner

Check state of motor-pump plastic coupling

Check fuel line system including fuel ﬁlter for possible leaks

Clean or replace oil nozzle

Solenoid defective Check electrical connection

Check thermostat LI

Clean or replace solenoid

Motor starts, heater emits smoke Not enough combustion air Make sure air inlet and outlet are free

Check setting of combustion air ﬂap

Clean burner disc

Too much combustion air Check setting of combustion air ﬂap

Fuel contaminated or con-

tains water

Drain fuel in tank with clean fuel

Clean oil ﬁlter

Air leaks in fuel circuit Check the seals on the ducts and the diesel ﬁlter

Not enough fuel at burner Check pump pressure

Clean or replace fuel nozzle

Too much fuel at burner Check pump pressure

Replace nozzle

Heater does not stop Solenoid Replace solenoid coil or complete solenoid

If heater still not working properly, please revert to nearest authorized dealer.

7Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

WIRING DIAGRAM

3500 SERIES MODELS

FU Fuse 20A

IT Transformer H.V.

LI1 Overheat Thermostat

EV1 Solenoid Valve 1°

FO Photocell

CO Condenser

MV Fan Motor

ST Electric pilot

RV Control

TA Room Thermostat

RE Relays

AP Control Box

PA Air pressure control

RF Heater Filter

FUA Fan thermostat

PE Ground

DRAWING LEGEND

6000 SERIES MODELS

120V - 1~ - 60Hz

PL 10/07

36 44

82 84

66 67

71 73

3500DF

100

98 99

101

102

103

16 14 17

108

107

106

104 105

Optional

8Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

HS-MH3500DF Heater Parts List BM2

NO. HS# BM2 # DESCRIPTION NO. HS# BM2 # DESCRIPTION

01 40493 G06408-9010 Outlet Cone 59 50319 E10930 Transformer HT BRHAMA

03 50446 G06230 Combustion Chamber 63 50320 E40124 Control Box BRAHMA

05 50447 G06233-9010 Upper Body 64 50014 G06073 Plate for Elect. Components

06 40494 G06409-9010 Lower Body 65 50013 E10102-P Switch On-Off

08 50160 E10678-110 Motor 450W with Condenser 66 50570 E20640 Thermostat Plug 3P+T

09 50161 E11230 Condenser 40µF 67 50011 E20665 Thermostat Cap

10 50163 G06125-9010 Motor Flange 68 50009 E30443 Elect. Wire w/Plug and Fastener

11 50165 T10260 Fan Blade ø350 18° 69 50008 E11030 Lamp 120V

12 50167 P30169 Inlet Grill 70 50321 T20357 Nozzle 2.00 GPH 80° W

13 50051 I40330 Tube BP 1/4"FF L.420mm 71 50126 G01077 Turbo Disc

14 50052 I20104 Nipple FE 1/4"mm 72 50440 I33005 Nozzle Support

15 50410 02AC513 Oil Filter Pre-Heater 1/4" 73 50425 G06228 Burner Flange ø 102mm

16 50054 G06104-9005 Filter Support 74 50131 I31034 Nut M14

17 50055 I40329 Tube BP 1/4"FF L.260mm 76 50133 I40192 Micropipe

18 50056 P20176-9005 Handle 77 50134 E10215 Electrode

19 40477 C30355 Plug ø25 78 50322 G02078 H.T. Cables 90° BRAHMA

20 50058 P20177-9005 Foot 79 50323 E50328 Photo Cell

21 50060 I40331 Tube BP 1/4"F L. 580mm 82 50442 T20410-1 Pump Danfoss BFP 21-R3

22 50061 I30696 Pick-upTube L. 220mm 83 50140 T20118 Solenoid Spool Danfoss

23 50063 I30737 Nipple 1/4"m-m12x1.75m 84 50141 T20117 Solenoid Valve Danfoss

24 50064 G06068-9005 Power Lead Hook 85 50195 E10513 Coupling K1

25 50170 G06127-9005 Fuel Tank 105 liters 86 50144 T20241 O-Ring Kit Oil Filter

26 50070 C30367 Fuel Cap 87 50145 T20242 Filter Cartridge

27 50067 G06129-9005 Wheel Axle 90 50325 E20418 Stop Button Protection

28 50068 G06106-9005 Wheel Axle Support 91 50336 E50327 Photo Cell Holder

29 50071 C10546 Wheel 260-25 92 40492 G06406-9010 Photo Cell Mounting Plate

30 50072 M20202 Spring Washer 93 50337 E50441 Pressure Switch 100Pa

31 50073 I25020 Drain Plug 94 50431 I40335 Silicone Pipe ø4x8

32 40479 C30375 O-Ring ø16 x 2.62 95 50429 I31131 Connection Straight ø6

33 50434 G00248 Electrical Components Dwr 96 50433 T20442 Solenoid Valve Cable

35 50077 P50127 Control Box Cover 98 50450 G06266 Blast Tube

36 40495 G06410-9010 Base 99 50413 E20671 Terminal Board

42 50057 C30319 Rubber Tap 100 50419 G06183 Air Regulation Flap

44 50411 C30372 Cable Protection ø35 101 50081 I20325 Connection 1/8"

45 50085 E50102 Limit Thermostat 102 50079 I31130 Connection Straight ø6 1/8"

46 50086 G06072 Sleeve ø8 x ø6 x 9.5 103 50024 T20201 Oil Filter 1/4"

51 50246 G06153 Electrial Components Dwr. 104 50025 T20234 O-Ring Kit Oil Filter

52 50093 E20508 Fuse Holder 105 50130 T20206 Filter Cartridge

53 50092 E10313 Fuse (6x30) 20A 106 50251 T20212 Filter Housing

56 50096 E20319 Terminal Board 107 50082 E20953 Cable Holder PG11

57 50097 E11125 Relay Finder 65.31 AC 108 50083 E20954 Ring Nut PG11

58 50098 E20305 Terminal Board

7/13/2011

9Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

PL 10/07

16 14 17

36 44

82 84

66 67

71 73

6000DF

100

98 99

101

102

10 Operating Instructions and Owner’s ManualENERCO GROUP, INC. |Direct Fired Portable Heater

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ENERCORP Chauffage

ENERCORP

ENERCORP HEATSTAR HS200CV Instructions de montage

ENERCORP

ENERCORP INDIRECT FIRED SPACE HEATER 4000ID Instructions de montage

ENERCORP

ENERCORP MH125 Instructions de montage

ENERCORP

ENERCORP HEATSTAR HSU 45 Manuel utilisateur

ENERCORP

ENERCORP Mr.Heater 1000IDCT Guide de dépannage

ENERCORP

ENERCORP HeatStart HS80CV Instructions de montage

ENERCORP

ENERCORP Heatstar HS2000ID Manuel utilisateur

ENERCORP

ENERCORP HeatStar HS170FAVT Guide de démarrage rapide

ENERCORP

ENERCORP HEATSTAR HS1000ID Manuel utilisateur

ENERCORP

ENERCORP Journey Series Instructions de montage

ENERCORP

ENERCORP Mr. Heater 1000ID Instructions de montage

ENERCORP

ENERCORP MR. HEATER MH40NG Instructions de montage

ENERCORP

ENERCORP HEATSTAR HS4000 NG/LP Instructions de montage

ENERCORP

ENERCORP HEATSTAR HS22LP Instructions de montage

ENERCORP

ENERCORP MHBF30LPT Guide de démarrage rapide

ENERCORP

ENERCORP HeatStar HS35FA Instructions de montage

ENERCORP

ENERCORP Heatstar HS50K Instructions de montage

ENERCORP

ENERCORP FIRE 155 Instructions de montage

ENERCORP

ENERCORP MR. HEATER MH35FA Instructions de montage

ENERCORP

ENERCORP HeatStar HS180ID Instructions de montage

ENERCORP

ENERCORP MR. HEATER MH35FA Manuel utilisateur

ENERCORP

ENERCORP MR. HEATER MH125FAV Instructions de montage

ENERCORP

ENERCORP HEATSTAR HS4000 NG Instructions de montage

ENERCORP

ENERCORP MH400FAVT Instructions de montage

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
