Eneo TVB-2080Z10IR Manuel utilisateur

User Manual

1/3” HD-TVI Camera, Day&Night,

1920x1080, WDR, 10x AF Zoom,

Infrarot, 12/24V

TVB-2080Z10IR

Safety Precaution

FULL-HD AF-ZOOM CAMERA

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Safety Precaution

FULL-HD AF ZOOM CAMERA

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

Contents

FULL-HD AF ZOOM CAMERA

Safety Precaution

p.03~04

Contents

p.05

Features

p.06~07

Composition

p.07

Dimensions

p.08

Part Names

p.08

Installation Instructions

p.09~11

Operating Instructions

p.12~27

Specifications

p.28

Features

Key Features

FULL-HD AF ZOOM CAMERA

• Full HD, 2Mega Pixel HD-TVI CAMERA, 1920x1080(30p/25p)

• TVI Video Transmission Distance over Coax.; 500M (RG59, 75Ω)

• Automatically removable IR Cut filter by Dual filter switcher

• Built-in f=5.1~51mm, F1.6~F1.8 Day & Night zoom lens

(Optical 10x Auto focus zoom / Digital 32x zoom)

• True WDR(Wide Dynamic Range)

• Improved Noise figure with the enhanced 2D+3DNR

• Preset Zoom

• Home Position setting

• Intelligent Motion Detection, Privacy Mask

• Lens Refresh, E.Zoom, Flickerless, BLC, HLC, H/V/HV Mirror,

Defog, Freeze, Defect Detection, DSS(Sens-up), ACE(D-WDR),

Sharpness, HD Format

• ID / TITLE / INITIAL MESSAGE / ZOOM RATIO DISPLAY

• Enhanced Sensitivity by DSS technology

• Improved DIS(Digital Image Stabilization) function

• Selectable Digital output 1080p or 720p

• OSD menu & Video sub-out for easy installation & maintenance.

• Circuit protection against faulty connection in power polarity

• Isolated power supply against ground loop problem

• Remote control via RS-485 (Pelco-C/Hikvision)

• UTC Control through HD-TVI DVR

• Built-in 4pcs High-power LED

• Dual Window

• One-touch 3-Axis locking bracket, Easy Installation Pad

• IP67 Protection

• AC24/DC12V Dual power

General Description

• With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accepts the infrared light

• With 24VAC/12VDC dual power design,

- Offers the flexibility of installation

- Ensures the reliability

This camera realizes the natural and crisp image as you see the scene in front

of you by adopting Auto Focus Full HD(1920x1080p) camera module.

Highly detailed pictures can be achieved and color reproducibility deserves

attention.

Features

FULL-HD AF ZOOM CAMERA

Composition

Mounting Template

Operating

Instruction

Camera

Torque Wrench:

3mm (1pc)

Video Sub-out

Cable (1pc)

Assembly Screw:

4 x 15mm (4pcs)

Mounting Screw:

4 x 30mm (4pcs)

Plastic Anchor:

6 x 30mm (4pcs)

Easy

Bracket

Cable Signal

Sticker

Wiring Connector:

(1pc)

Dimensions

FULL-HD AF ZOOM CAMERA

(unit : mm)

Part Names

267

108

87.30

100

86.40

75.90

190

POWER

CABLE

DUAL WINDOW

SUNSHIELD BOLT

SUNSHIELD

FRONT CASE

EASY

BRACKET

OSD Setup

CONTROL COVER

LOCK/UNLOCK

SCREW

BRACKET

REAR CASE

Installation Instructions

FULL-HD AF ZOOM CAMERA

• Extreme care should be taken NOT to scratch the window in front of lens.

• Care should be taken the cable is NOT to be damaged, kinked or exposed

in the hazardous area.

• Do not expose the camera directly to a strong light source such as the sun

or spot light.

Torque Wrench

Assembly Screw

: 4x15mm

Mounting Screw

: 4x30mm

1. Locate the mounting template at the installation position and drill the ceiling or

wall if needed. ( *The easy bracket can not be installed on the ceiling)

2. Place the easy bracket on pre-drilled position and fix it through using mounting

screws(4x30mm). Skip this step when an easy bracket is not installed.

3. Route the power cable to the connecting place.

Hook up the camera bracket with the easy bracket as illustrated below.

4. Fix the camera bracket through using assembly screws (4x15mm).

5. Set the camera’s viewing angle.

6. Put the sunshield to the camera unit and tighten the sunshield-bolts.

CAUTION

REAR VIEW

Cable exit

Installation Instructions

FULL-HD AF ZOOM CAMERA

• Unlock the screw on the camera bracket through using the torque wrench supplied

• Set the camera’s viewing angle then lock the screw on the bracket.

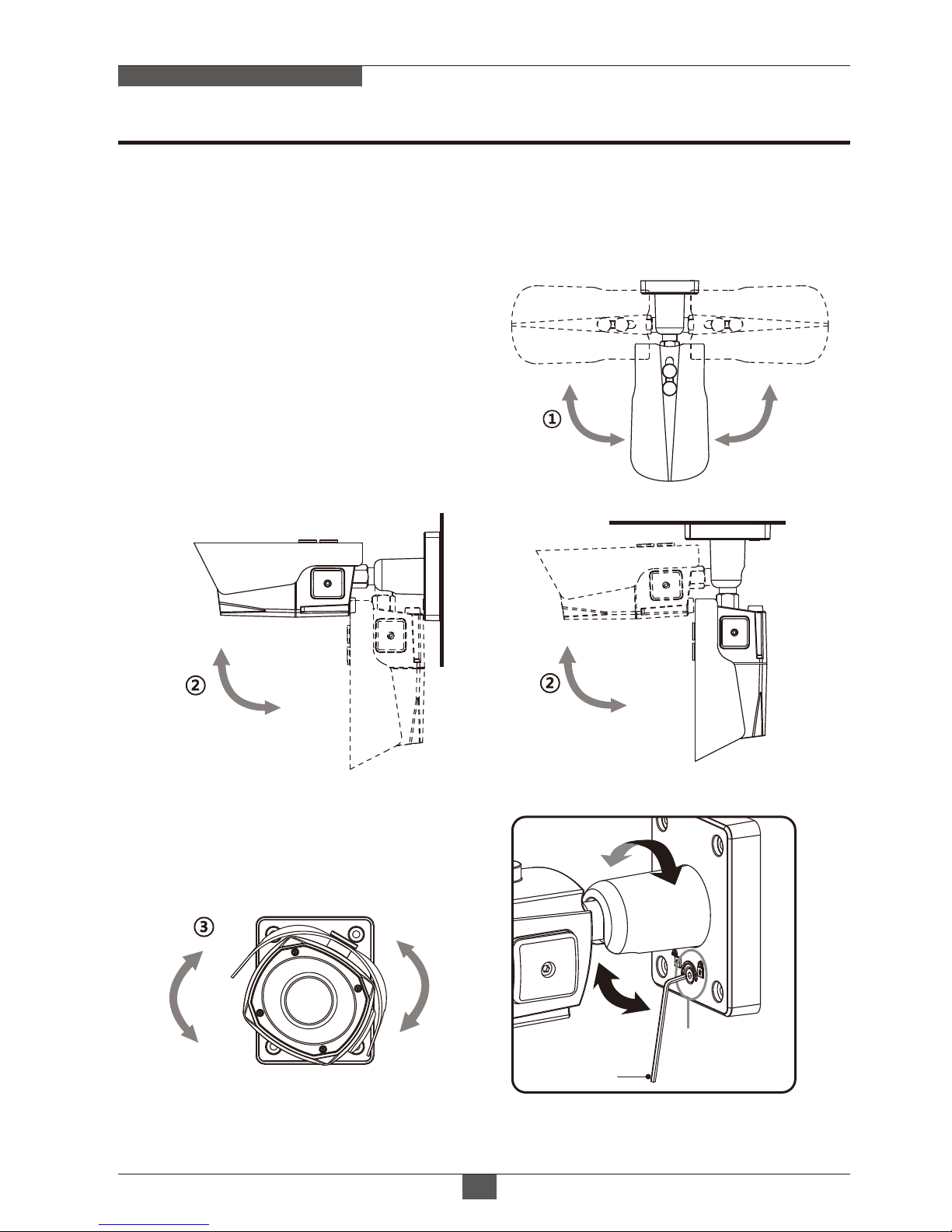

Pan & Tilt adjustments

1) Pan limit:

Pan is limited to +/- 90°.

3) Inclination limit

(Horizontal image alignment):

Inclination limited to +/-90° max.

2) Tilt limit:

Tilt is limited to 0°(2°) min ~ 90° max.

for wall(ceiling) installation respectively

with reference to the wall(ceiling) when

the inclination of camera module is 0°,

that is, the image is aligned horizontally.

90° 90°

88°

90°

±90°

• on the wall • on the ceiling

■Adjustment of viewing angle with a bracket

Torque

wrench

Lock/Unlock

Screw
