Eneo NXD-1502M Manuel utilisateur
Please read this manual thoroughly before use and keep it handy for future reference.
NXD-1502M
Full HD NETWORK CAMERA
GB
NXD-1502M, Quick Installation Guide
1. Description
This manual applies to the NXD-1502M network camera.
The Network Camera supports the network service for a sensor ima e with pro ressive scan, which
can be monitored on a real-time screen re ardless of distances and locations. By usin its dedicated
pro ram, many users are able to have an access to the Network Camera at once or a sin le user can
monitor various network cameras at the same time. It also enables users to play, store and retrieve a
monitorin ima e by usin a PC. All the settin s and real-time monitorin screens are also provided
throu h an access to the web.
The Network Camera is fully featured for security surveillance and remote monitorin needs. It is
based on the DSP compression chip, and makes it available on the network as real-time, full frame
rate Motion JPEG and H.264 (or MPEG-4) video streams.
The alarm input and alarm output can be used to connect various third party devices, such as, door
sensors and alarm bells.
• Installation Steps
Follow these steps to install the Network Transmitter on your local network (LAN):
1. Check the packa e contents a ainst the list below.
2. Connect the Network Camera. See pa e 3.
3. Set an IP address. See pa e 4.
4. Set the password. See pa e 6.
• ackage Component
The system comes with the followin components:
Network Camera unit Installation CD Installation Guide
Template Sheet Accessory Kit
• Contents in the installation CD
1. The Network Camera User’s Manual
2. The NautilusClient16 User’s Manual
3. The Nautilus Server User’s Manual
4. The NautilusClient16 Installation software
5. The Nautilus Server Installation software
Note: Check your packa e to make sure that you received the complete system, includin all
components shown above.
NXD-1502M, Quick Installation Guide
2
2. Installation
For the operation of the Network Camera, it is necessary to connect a network cable for data
transmission, power connection from supplied power adapter. Dependin on operation methods, it is
possible to connect an alarm cable additionally. For its fixation on different locations, please consult
with an installer.
2.1 Over View
•
Top View
NO
Name Description
1
Lens
Allows wide area to be
monitored
2
Extension
Cable
26pin camera extension
cable
•
Extension Cable
NO
Wire Color Description
1
Red: AC24V/DC12V
White: AC24V/GND Main Power, 2pin terminal, DC12V/AC24V 330mA(4.0W)
2
Green: AC24V/DC12V
Black: AC24V/GND
Heater Power, 2pin terminal, max. 10Watt @ DC12V,
max. 20Watt @ AC24V
3
Pink: Alarm In
Yellowish Green: GND
Yellow: AD Key
Brown: GND
Li ht Blue: Alarm Out
Gray: GND
Alarm Input, AD Key Input, Alarm Output:
6pin terminal.
4
Black
Ethernet,
RJ-45 port compatible with 10/100Mbps PoE.
Modular Jack
5
Black
Video Composite Output, BNC Jack
6 Gray Audio line output, Stereo Jack
7
Black Audio line input, Stereo Jack
NXD-1502M, Quick Installation Guide
3
2.2 Connection
• Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally a
cross-over cable is used for directly connection to PC, while a direct cable is used for connection
to a hub.
• Connecting Alarms
AI(Alarm In) :
You can use external devices to si nal the network camera to react on events. Mechanical or
electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors.
G(Ground) :
Connect the round side of the alarm input and/or alarm output to the G (Ground) connector.
Alarm Out :
The network camera can activate external devices such as buzzers or li hts. Connect the device
to the AO (Alarm Out) and G (Ground) connectors.
• Connecting Video Output
Video Output is used for an easy zoom and focus
control when installin lens. Set Video Switch (SW2 on
the board) to On position to output the video si nal.
Video Output is restricted to VGA(640x480) resolution.
Caution: After lens installation, you must set Video Switch to Off position to provide the best
performance of the Network Camera.
• Connecting the ower
Connect the power of DC12V or AC24V 330mA for the network camera. Connect the positive(+)
pole to the ‘+’ position and the ne ative(-) pole to the ‘-‘ position for the DC power.
2.3 Network Connection and I assignment
The Network Camera supports the operation throu h the network. When a camera is first connected
to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the
“Smart Mana er” utility on the CD.

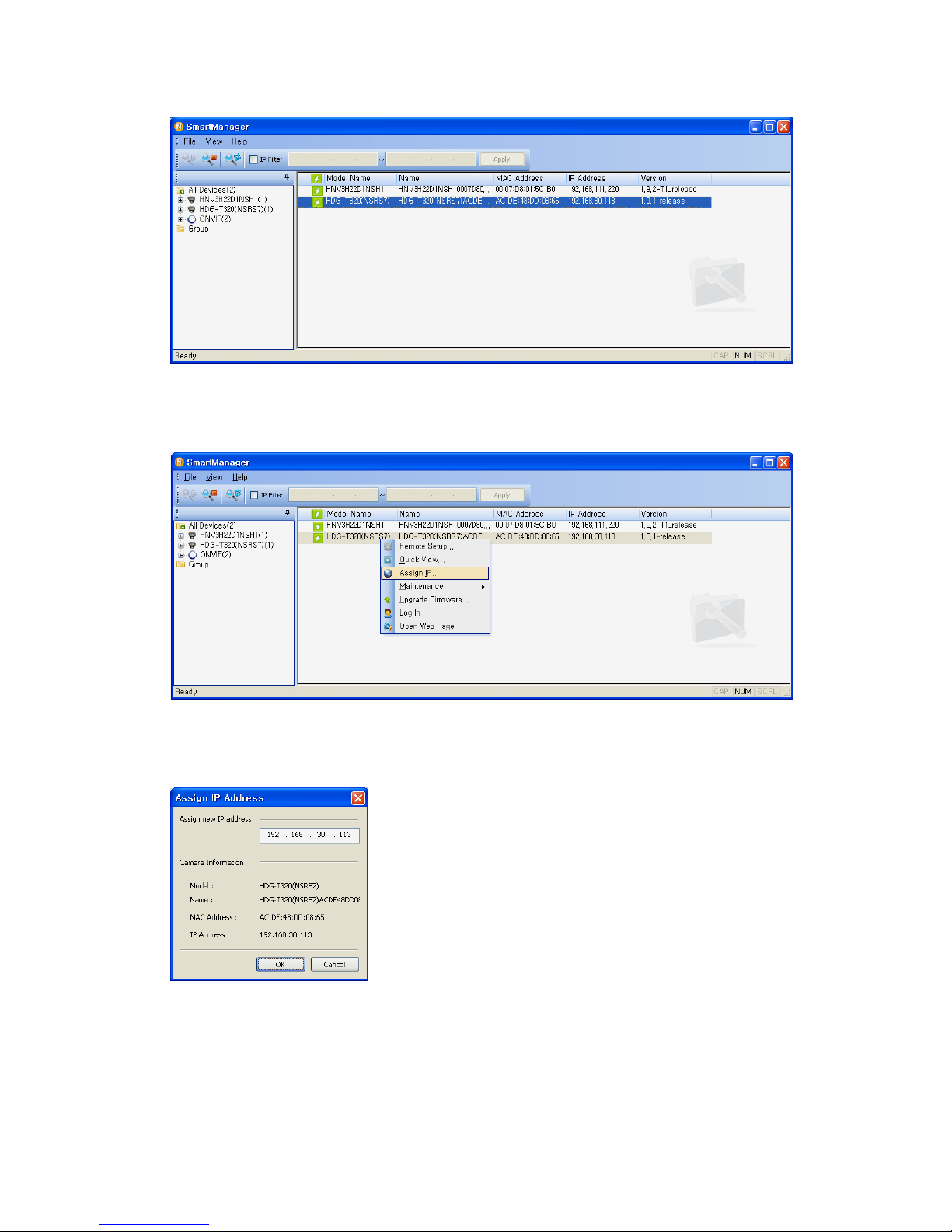

1. Connect the Network Camera / device to the network and power up.
2. Start SmartMana er utility ( All pro rams > NautilusClient16 > SmartMana er), the main window
will be displayed, after a short while any network devices connected to the network will be
displayed in the list.
NXD-1502M, Quick Installation Guide
4
3. Select the camera on the list and click ri ht button of the mouse. You can see the pop-up menu
as below.
4. Select Assi n IP. You cam see a Assi n IP window.
Enter the required IP address.
Note: For more information, refer to the Smart Man er User’s
Manual.
NXD-1502M, Quick Installation Guide
5
3. Operation
The Network Camera can be used with Windows operatin system and browsers. The recommended
browsers are Internet Explorer, Safari, Firefox, Opera and Goo le Chrome with Windows.
3.1 Access from a browser
1. Start a browser (Internet Explorer).
2. Enter the IP address or host name of the Network Camera in the Location/Address field of your
browser.
3. You can see a startin pa e. Click Live View or Setup to enter web pa e.
4. The encoder’s Live View pa e appears in your browser.
3.2. Access from the internet
Access from the internet once connected, the Network Camera is accessible on your local network
(LAN). To access the video encoder from the Internet you must confi ure your broadband router to
allow incomin data traffic to the video encoder. To do this, enable the NAT-traversal feature, which
will attempt to automatically confi ure the router to allow access to the video encoder. This is enabled
from Setup > System > Network > NAT.
For more information, please see “3.5.5 System>Network>NAT” of User’s Manual.
NXD-1502M, Quick Installation Guide
6
3.3 Setting the admin password over a secure connection
To ain access to the product, the password for
the default administrator user must be set. This
is done in the “Admin Password” dialo , which is
displayed
when the network
camera
is accessed
for the setup at the first time.
Enter your admin
name and password, set by the administrator.
Note: The default administrator username and
password is “admin”. If the password is lost, the
Network Camera must be reset to the factory
default setti
n s. See “3.6 Resettin to the Factory
Default Settin s
”.
3.4 Live View age
The live view pa e comes in ei ht
screen modes like
1920x1080,
1280x1024, 1280x720, 720x480(576),
640x480, 352x240(288),
and
320x240
. Users are allowed to select
the mos
t suitable one out of those
modes. Please, adjust the mode in
accordance with your PC
specifications and monitorin
purposes.
1) General controls
Live View Pa e Search & Playback Pa e Setup Pa e Help Pa e
The video drop-down list allows you to select a customized or pre-pro rammed
video stream on the live view pa e. Stream profiles are confi ured under Setup > Basic
Confi uration > Video & Ima e. . For more information, please see “3.5.1 Basic Confi uration >
Video & Ima e” of User’s Manual.
The resolution drop-down list allows you to select the most suitable one
out of video resolutions to be displayed on live view pa e.
The protocol drop-down list allows you to select which combination of
protocols and methods to use depends on your viewin requirements, and on the properties of
your network.
NXD-1502M, Quick Installation Guide
7
2) Control toolbar
The live viewer toolbar is available in the web browser pa e only. It displays the followin
buttons:
The Stop button stops the video stream bein played. Pressin the key a ain to les the
start and stop. The Start button connects to the network camera or start playin a
video stream.
The Pause button pause the video stream bein played.
The Snapshot button takes a snapshot of the current ima e. The location where the
ima e is saved can be specified.
The di ital zoom activates a zoom-in or zoom-out function for video ima e on the live
screen.
The Full Screen button causes the video ima e to fill the entire screen area. No other
windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full
screen view.
The Manual Tri er button activates a pop-up window to manually start or stop the event.
Use this scale to control the volume of the speakers.
Use this scale to control the volume of the microphone.
Use this scale to control the volume of the speakers and microphones.
3) Video and Audio Streams
The video encoder provides several ima es and video stream formats. Your requirements and the
properties of your network will determine the type you use.
The Live View pa e in the video encoder provides access to H.264, MPEG-4 and Motion JPEG
video streams, and to the list of available video streams. Other applications and clients can also
access these video streams/ima es directly, without oin via the Live View pa e.
NXD-1502M, Quick Installation Guide
8
3.5 Network Camera Setup
This section describes how to confi ure the network camera, and is intended for product
Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access
to the settin s for Basic, Live View, Video & Ima e, Audio, Event, and System Confi uration.
You can confi ure the network camera by clickin Setup in the top ri ht-hand corner of the Live View
pa e. Click on this pa e to access the online help that explains the setup tools
When accessin the Network Camera for the first time,
the “Admin Password” dialo appears. Enter your admin
name and password, set by the administrator.
Note: If the password is lost, the Network Camera must
be reset to the factory default settin s.
See “3.6 Resettin to the Factory Default Settin s”.
3.6 Resetting to the factory default settings
To reset the Network Camera to the ori inal factory settin s, o to the Setup>System >Maintenance
web pa e (described in “3.5.5 System>Maintenance” of the User’s Manual) or use the control button
on the network camera, as described below:
Follow the instructions below to reset the Network Camera to the factory default settin s usin the
Reset Button.
1. Switch off the Network Camera by disconnectin the power adapter.
2. Press and hold the Control Button with a strai htened paperclip while reconnectin the power.
3. Keep the Control button pressed until the Status and Power indicator blink.
4. Release the Control Button.
5. When the Power Indicator chan es to Green (may take up to 1 minute), the process is complete
and the network video transmitter has been reset.
6. The transmitter resets to factory defaults and restarts after completin the factory reset.
CAUTION: When performin a Factory Reset, you will lose any settin s you have saved.
3.7 More Information
For more information, please see the Network Camera User’s Manual, which is available on the CD
included in this packa e.
