Eneo NXD-1602M Manuel utilisateur
Please read this manual thoroughly before use and keep it handy for future reference.
NXD-1602M
Full HD NETWORK CAMERA
GB
2
DESCRIPTION
---------------------------------------------------------------------------------------------------------------------------
The NXD-1602M vandal resistant dome is an internet protocol based megapixel network
camera with a b ilt-in web based viewer accessible by m ltiple browsers. The camera has a
connection feat re for third-party applications. It is s pplied with Zelaris Elements utility
software to search, config re, manage, live view, record and playback.
The camera s pports d al compression formats and m ltiple streaming sim ltaneo sly. The
two standard compression formats incl de H.264 and MJPEG. The m ltiple streams can be
config red to a variety of resol tions, bit rates and frame rates.
The camera ses 1/2.8 inch CMOS sensor and Focal length 3~9mm lens and also s pports
PoE (Power over Ethernet), DC12V, and AC24V.
Model
NXD-1602M F ll HD, Day and Night, WDR, Vandal resistant dome
Componen s
Q antity Description
2 Camera
2 Installation CD
1 Accessory kit for installing Dome Camera
1 Template sheet
1 Extension connector kit
NOTE
Adapter for DC12V / AC24V are not s pplied.
3
Camera Layou
Top View
Lens: 3-9mm vary-focal megapixel lens
Connec ion Cable: 26pin camera extension cable
Connec ion Cable
Main POWER connec ion
- RED;
DC12V or AC24V
- WHITE; GND or AC24V
Hea er POWER connec ion (Op ional)
- ORANGE
; DC12V or AC24V
- BLACK; GND or AC24V
4
ALARM connec ion
- PINK; Alarm Inp t 1
- GREEN; GND
- YELLOW; Alarm Inp t 2
- BROWN; GND
- Ligh BLUE
; Alarm O t
- GRAY; GND
RJ-45 connec ion: Connect Ethernet cable or s pplies power to the camera if PoE is
available.
BNC connec ion: Connect BNC cable for composite video o tp t.
SPEAKER connec ion (GRAY): Connect external speaker for a dio o tp t.
MIC connec ion (BLACK): S pplies external microphone as an a dio inp t so rce.
5
INSTALLATION
---------------------------------------------------------------------------------------------------------------------------
Before Ins alla ion
Before installing the camera, thoro ghly familiarize yo rself with the information in this
section of the man al.
To ens re sec re access to the IP camera, place the camera behind a firewall when it is
connected to a network.
S ar ing Ins alla ion

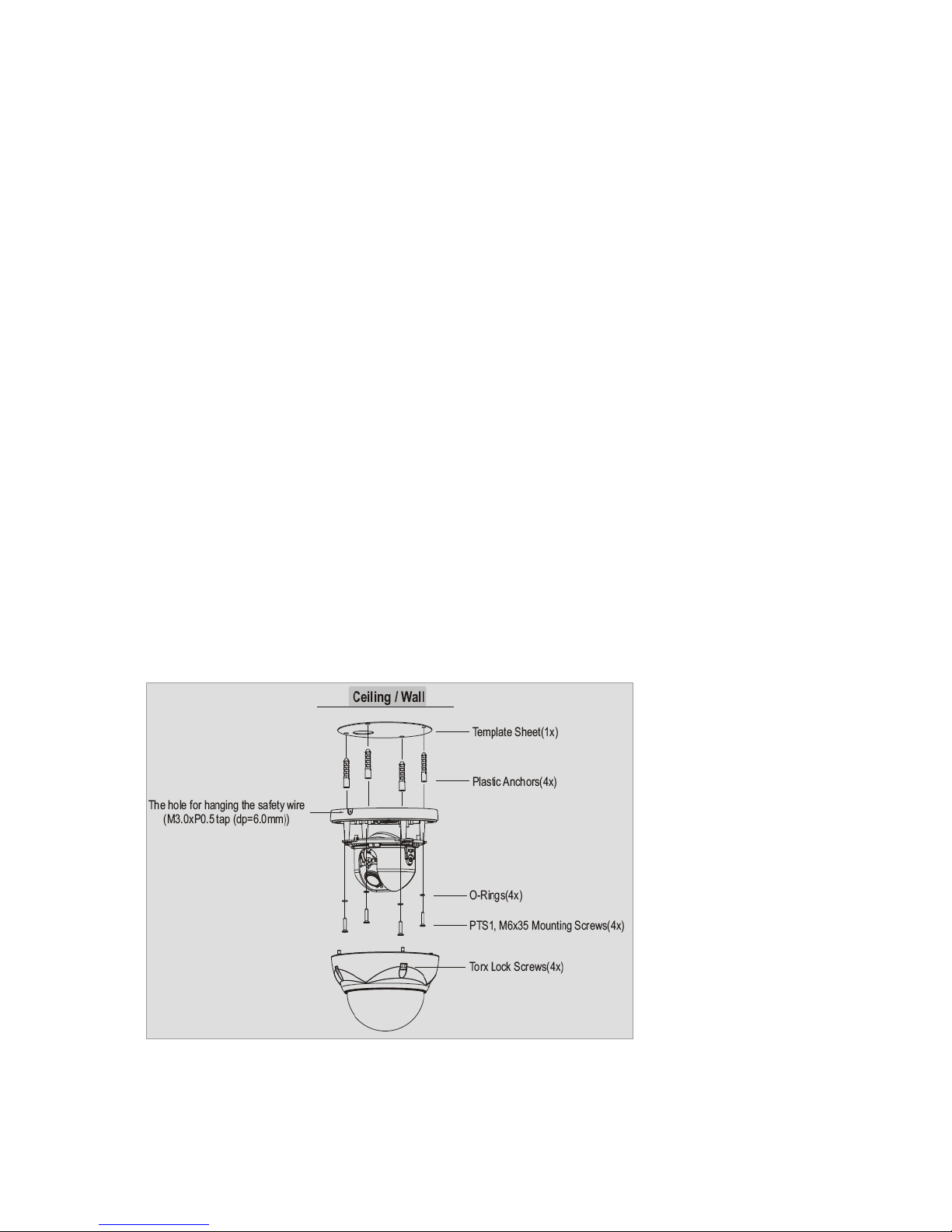

Base Ins alla ion
1. Position the s pplied template in the mo nting location, se this template to drill
the req ired mo nting holes and cable access holes
NOTE
The total mass of the main nit is approx 1.3kg. Check whether the ceiling to which
the Dome Camera is installed is strong eno gh to hold the nit mass. If not, either
mo nt ifn a different position or strengthen the ceiling.
[Lock Screw]
2. Attach safety wire for sec ring the dome camera to ceiling or str ct re.
6
3. Insert each cable thro gh the cable hole, connect BNC cable and comm nication lines.
4. Unlock (4x) torx screws on the dome cover and fix the dome case firmly with s pplied
mo nting screws (4x), plastic anchors (4x), O-Rings (4x).
5. Adj st desired foc s and scene by t rning and moving the hemisphere by hand.
6. Replace the ho sing cover and sec re with the torx screws (4x).
Hea er Ki Ins alla ion (Op ional)
1. Place the heater element is slot “A”. Please ens re that the cables are facing pwards and
the heater is pointing towards the Dome.
2. Place the PCB in slot “B”. Please ens re that the PCB is facing inward with the connection
blocks at the top.
3. Place the pl g in the Socket “C” (J3) which is fo nd on the controller board.
[Heater Kit Installation]
NOTE
- Heater power cons mption
Power S pply AC24V DC12V
Power Cons mption 20Watt 10Watt
Heater On at 41°F (5°C)
Heater Off at 59°F (15°C)
[Heater Power Cons mption]
- Power
Use Certified/Listed Class 2 power so rce only.
Connec ion o an IP ne work
IP Assignmen
See Page 7.
7
OPERATION
---------------------------------------------------------------------------------------------------------------------------
Before starting the camera, installation m st be complete. The camera completes a
config ration seq ence taking approximately 40 seconds from powering p. Once completed
the amber LED will flash once a second.
NOTE
- If the DHCP is enabled b t the camera is not connected to a DHCP server, the camera will
be set defa lt IP 192.168.30.220 and try to get IP from DHCP server abo t every two
seconds.
- Network and processor bandwidth limitations might ca se the video stream to pa se or
appear pixelated when an increased n mber of Web-interface sers connect to the camera.
Decrease the images per second, resol tion, compression, or bit rate settings of the Web-
interface video streams to compensate for network or processor limitations.
Minimum condi ions for using web browser
The minim m system req irements to se a Web browser with this IP camera are as
follows:
- CPU: Penti m® 4 microprocessor, 2.0GHz
- Operational System: Windows XP® or Windows Vista® or Windows7®
- System Memory: RAM 512 Mbyte
- Ethernet: 100 Mbit
- Video Resol tion: 1024(Horizontal) x 768(Vertical) pixels or higher
- Internet Explorer® 7 or later
- ActiveX® 1.0.0.13 or later
Accessing he IP camera
1. Open Web browser
2. Type IP address: - The defa lt IP address is
192.168.30.220
NOTE
- If yo do not know the camera’s IP address, install the Zelaris Elements tility software
available on the CD s pplied with the prod ct. The tility software will locate the assigned
Model name, Host name, MAC address, IP address, Version and others.
- Refer to the Zelaris Elements tility software man al for more detail.
3. Log On to the camera
Defaul User = admin, defaul password = admin
- Click the Live View icon for defa lt live image view or the Set p icon to change the
config ration val es.
8
Main Menu
[Main Men ]
The dialog box will be appears.
- Type User ID and Password in the dialog box. The defa lt User ID and Password are
admin
.
NOTE
For sec rity p rposes, be s re to change the password after yo log on for the first time.
9
LIVE VIEW
-------------------------------------------------------------------------------------------------------------------------
The Live View page provides yo to select the properties of video so rce. Yo can view the
live image from this page and also access the Set p men and operate the main f nctions.
[Main Live View Page]
Live Video Page Icons
Hide Main Icons: Hides main icons in the live view page.
Show Main Icons: Shows main icons in the live view page.
Live view: Displays live video stream.
Playback View: Enters playback men . Req ired Micro SD card (not s pplied)
10
Set p: Enters set p men .
Help: Shows helpf l information.
So rce: Specify the viewable video stream so rce to display in live view page.
View Size: Specify the viewable video size to display in live view page.
Stream Type: Specify the internet protocol to display in live view page.
ROI View: Specify the specially selected area to transfer sing different stream feat re
in the primary video image. ROI is an abbreviation for “Region of Interest”.
Preset: Specify the Preset. This icon is inactivated if the PTZ settings are not set.
Pa se: Pa se the live video stream.
Snapshot: Take a pict re of the video image c rrently on display. S pports the origin
image size view, Print, and Save feat re.
Digital Zoom: S pports a digital zoom in live video image.
F ll Screen: Expands video image to the entire screen area.
Man al Trigger: Activates the Alarm O t signalling man ally.
Speaker: Adj sts the vol me of Speaker and switch the so nd on / off.
Microphone: Adj sts the vol me of Microphone and switch the so nd on / off.
