Eneo IPD-72A2712M5A Manuel utilisateur

User Manual

1/2.8" Network Dome, Fixed,

1920x1080, Day&Night, DOL-

WDR, 2.7-12mm, Infrared, IP67

IPD-72A2712M5A

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Safety Precaution

MEGA-PIXEL NETWORK CAMERA

Safety Precaution

NOTICE

• The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

• Avoid installing areas where has shock or vibration which results in the problems.

•Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

• Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

• Maintenance and repair have to be carried out only by authorized service centers.

• Use only a mild detergent to clean the housing body.

• The camera should never be operated beyond the technical specifications.

This can lead to destruction.

• The camera should never be operated in water.

MEGA-PIXEL NETWORK CAMERA

Contents

MEGA-PIXEL NETWORK CAMERA

Safety Precaution . . . . . . . . . . . . . . . . . . . . 03~04p

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05p

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06p

Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08p

Installation Instructions . . . . . . . . . . . . . . . . 09~12p

Operating Instructions . . . . . . . . . . . . . . . . . 15~18p

. . . . . . . . . . . . . . . . . . . . . . . . . 13~14p

Specifications

Full Menu Setup . . . . . . . . . . . . . . . . . . . . . 19~68p

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 69~70p

3-1. Information

3-2. Video & Image

3-3. Audio

3-4. Record

3-5. Event

3-6. System

1. LIVE VIEW

2. PLAYBACK

3. SETUP

........................................................ 19p

........................................................ 21p

............................................... 22p

......................................... 22p

.............................................................. 22p

4. 4 EYES PRINCIPLE ......................................... 68p

......................................................... 38p

...................................................... 39p

......................................................... 42p

...................................................... 67p

Features

MEGA-PIXEL NETWORK CAMERA

• Full-HD 2.16Mega Pixel, NETWORK CAMERA, 1920x1080(30/25p)

• The best low light performance with SONY’s STARVIS sensor

• ONVIF Conformance

• ONVIF Event Mapping

• Zero configuration

• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)

• Adaptive web resizing depending on layout & resolution of

display device by RESPONSIVE WEB

• Increased usability for all PC, tablet and mobile

• Simultaneously H.265(+), H.264(+) & MJPEG (Multi Streaming)

• f=2.7~12mm, Motorized vari-focal lens

• Motorized Zoom & Focus Adjustment

• DOL WDR (Digital Overlap Wide Dynamic Range)

• D-WDR (Digital Wide Dynamic Range)

• Improved noise figure with the enhanced 3DNR

• LDC(Lens Distortion Compensation)

• Smart Stream, ROI(Region of Interest)

- Enables to process video data smartly according

to users demand.

- Available to deliver high quality video on interested

region while less quality video on non interested region.

- Lowering overall bandwidth and reduce the storage burden

• Privacy Mask, Motion Detection, Defog, HLC/ BLC,

Digital Zoom(~x10), Mirror/Flip, Contrast, Brightness, Hue,

Saturation, Sharpness, DIS (Digital Image Stabilization)

• Circuit protection against faulty connection in power polarity

• Isolated power supply against ground loop problem

• PoE(IEEE Std. 802.3af) & AC24V/DC12V

• Built-in 2pcs High power SMD LEDs

• Cooling Fan & Optimized Heat sink System

• Flush mount (Option: Various adaptors)

• Anti-Scratch hard coated clear bubble

• IP67 / IK10 Protection

Composition

MEGA-PIXEL NETWORK CAMERA

Dimensions

(unit : mm)

119

PCD Ø120

Ø102

Ø140

3-Ø4.2

Ø140

Ø100

Wiring Connector

(1pc)

Cable Signal

Sticker

Torque Wrench:

3mm (1pc)

Plastic Anchor:

6 x 30mm (3pcs)

Mounting

Template

Mounting Screw:

4 x 30mm (3pcs)

Dome Camera

Connector fixing Screw:

2.5 x 5mm (1pc)

Operating

Instruction

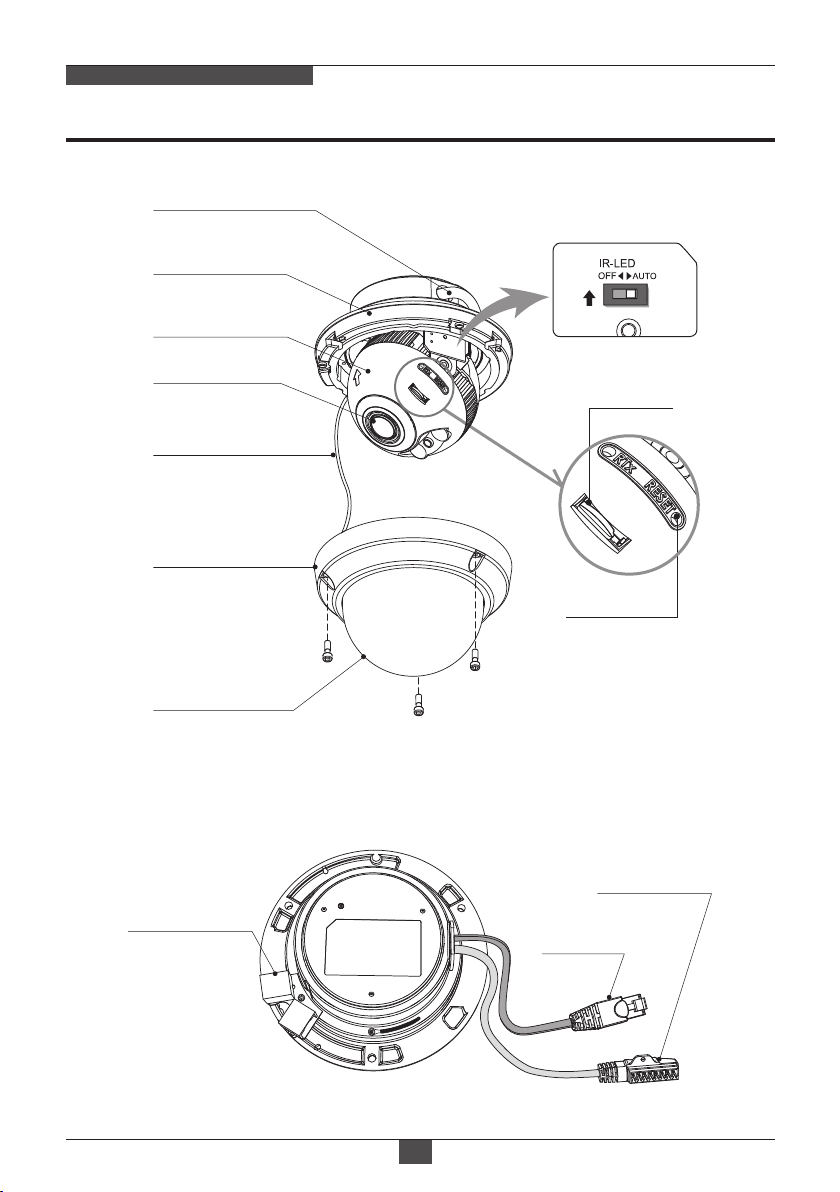

Part Names

MEGA-PIXEL NETWORK CAMERA

LED Control Switch

Power Supply

Connector

Ethernet

Connector

[ BOTTOM VIEW ]

ETHERNET &POWER CABLE

Coupler Board

Micro SD

Card Slot

Reset Button

BUBBLE DOME

3-AXIS GIMBAL

DOME COVER

SAFTY WIRE

FLUSH MOUNT

LENS

POWER CABLE

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

1. Locate the mounting template at the installation position and drill the ceiling

or wall if needed.

2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench

supplied.

3. Set the camera’s viewing angle.

4. Put the dome cover to the dome base unit and tighten the assembly screws.

- Place the dome base unit on pre-drilled position and fix it through using

mounting screws (4x30mm).

- Route the power cable to the connecting place.

• Surface mount

• Pole mount adaptor

• Tilted mount

• Wall mount

(Requires additional

Surface mount)

• Tilted junction mount

■ Optional Mounting Accessories

Mounting Screw

(4x30mm)

Plastic Anchor

(6x30mm)

Torque

Wrench

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

• In the case of installation with Flush/ Surface/ Tilted mount, IP protection

rating is not guaranteed.

• If power, Video, Network connectors are exposed to water or rain, separate

protection shield is essential.

CAUTION

* Refer to the instruction guide for Tilted Junction mount .

* Refer to the signal assignment for wiring connection.

①Cables are unfixed on the Dome base.

②Disassemble coupler board for LAN cabling.

③Connect the ethernet and power cables to their repective connections.

①Cables are unfixed on the Dome base.

②Organize the cables to fix the dome base as illustrated.

Fix the power supply connector with fixing screw.

③Connect the ethernet cable to the coupler board.

④Tie up the cables with the cable holders.

⑤Check the final view for cable exit.

⑥Connect the wiring connector to their repective connections.

Cable holder-1

Coupler Board

■Option 2.

Installation with Surface mount / Tilted mount

■Option 1.

Installation with Flush mount / Tilted Junction mount

Cable holder-2

Connector

fixing screw
