Eneo VMC-19LEDMD Manuel utilisateur
EN
User Manual
Professional Monitor 19”
(48cm) LCD/TFT, 1280x1024,
12V, Protection Glass, HDMI,
Desktop
VMC-19LEDMD
1. SAFETY INSTRUCTION
Follow this safety instruction to use the monitor properly and prevent the damage.
Keep this user’s guide book for later use.
This safety instruction has “Warning” & “Caution” as below
Warning - If the user does not follow this instruction,
it may cause the serious damage to the user.
Caution - If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Warning
Keep away the monitor from the
direct sunlight and a heating appliance.
Never put objects of any kind into
this product as they may result in
a risk of fire or electric shock.
Connect the power cord to the wall
outlet tightly. If the power cord or plug
are defective and the wall outlet is not
tight, please do not use them.
Never remove the back cover and
touch the inside of the monitor.
If you need a service, please
contact the service center.
2
Installation and User's Guide
Warning
Do not install this monitor on the outside
and near water. It may cause damage to
the product, electric shock and fire.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-hands.
When lightning and thundering, unplug the
monitor from the wall outlet and never touch
it.
When smoking and noising from the monitor,
unplug the product from the wall outlet and
contact a service center.
Unplug this product from the wall outlet, when
it does not operate for a long time.
W
WA
AR
RN
NI
IN
NG
G:
:
How to fix
Do not open this product as it contains high voltage inside.
It may create an electric shock.
If the user disassembles and remove the back cover, it does not make sure
to make up for the damage and do a service and exchange the monitor.
Installation and User's Guide
3
Cautions
Install this monitor some distance
from the wall and do not install unless
proper ventilation is provided.
Place this product on a stable place.
If not, it may fall, causing serious
damages to the monitor and people.
The openings must not be blocked by
curtain, rug or other similar surface.
Before carrying the monitor, turn it off and
unplug the signal cables and the power cord
from the wall outlet.
When carrying this monitor, be careful
not to damage the panel and drop it.
It may cause some trouble.
Take the power plug out from the wall
outlet.
Do not pull the cable. It may snap the inner-
wires and cause overheating and fire.
Installation and User's Guide
4
Cautions
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
Do not press the LCD panel with hands or
the sharpened material hardly.
Do not use the chemical liquid for cleaning.
It may cause fading and breakage.
For cleaning, unplug the monitor from the
wall outlet. Do net use the liquid cloth.
Use the soft cloth.
Installation and User's Guide
5
2. FCC RF INTERFERENCE STATEMENT
NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures.
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio, TV technician for help.
● Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void
the users authority to operate such equipment.
DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio
interference regulation of Canadian Department of communications.
6
Installation and User's Guide
7
Installation and User's Guide
2
1. SAFETY INSTRUCTION
1-1 Warning
1-2 Caution
6
2. FCC STATEMENT
3-1 Parts
3-2 How to Install
32
6. TROUBLESHOOTING
8
3. INSTALLATION
4-1 Mode Setting
4-2 Menu Setting (VIDEO, S-VIDEO Mode)
4-3 Menu Setting (VGA Mode)
4-4 Menu Setting (DVI, HDMI Mode)
12
4. OSD MENU SETTING
33
5. FEATURES
TABLE OF CONTENTS
8
Installation and User's Guide
3. INSTALLATION

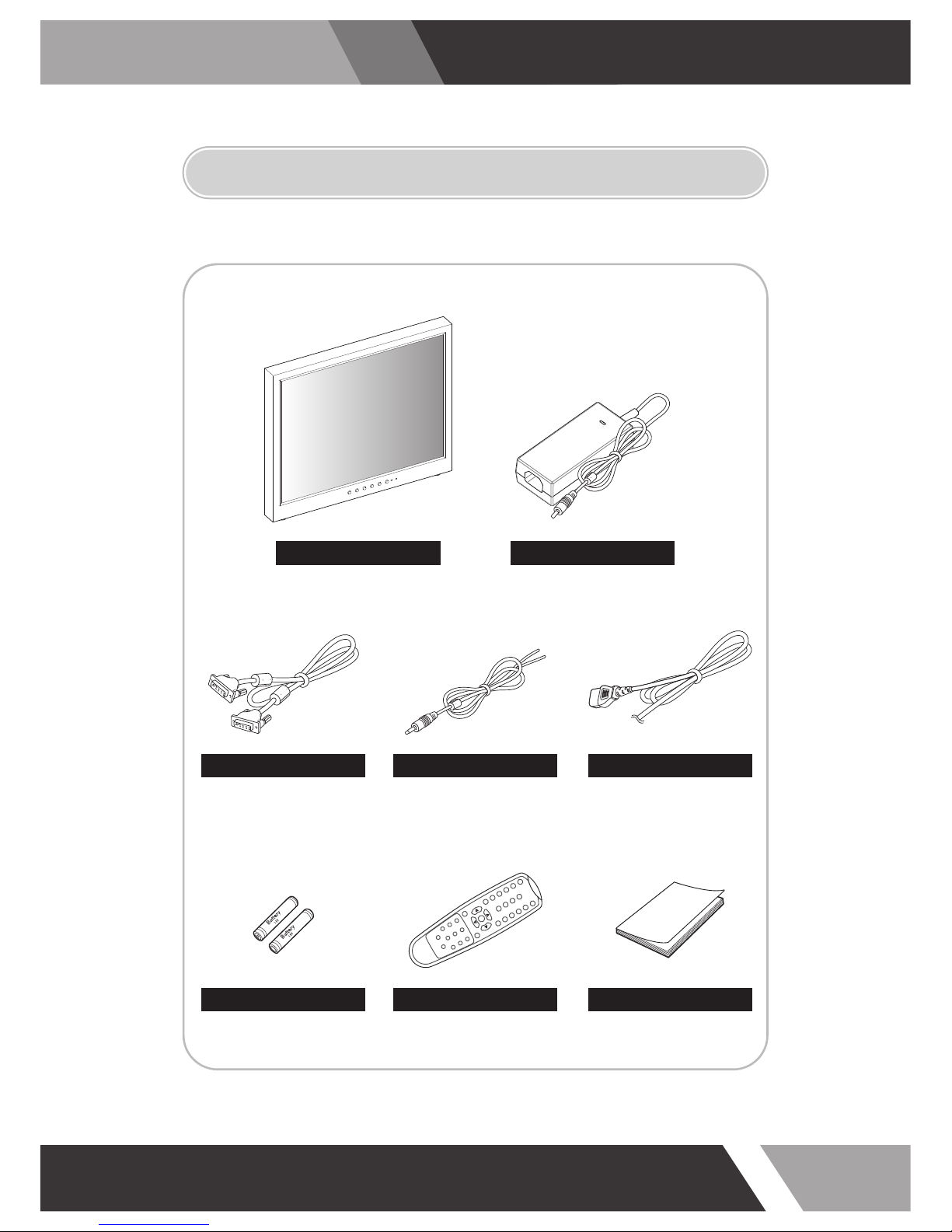

3-1 Parts
LCD Monitor
VGA Cable Trigger Cable Power Cable
Remote Controller
Battery User Manual
Adapter
* Adapter is attached to the back of product
9
Installation and User's Guide
3-2 How to Install

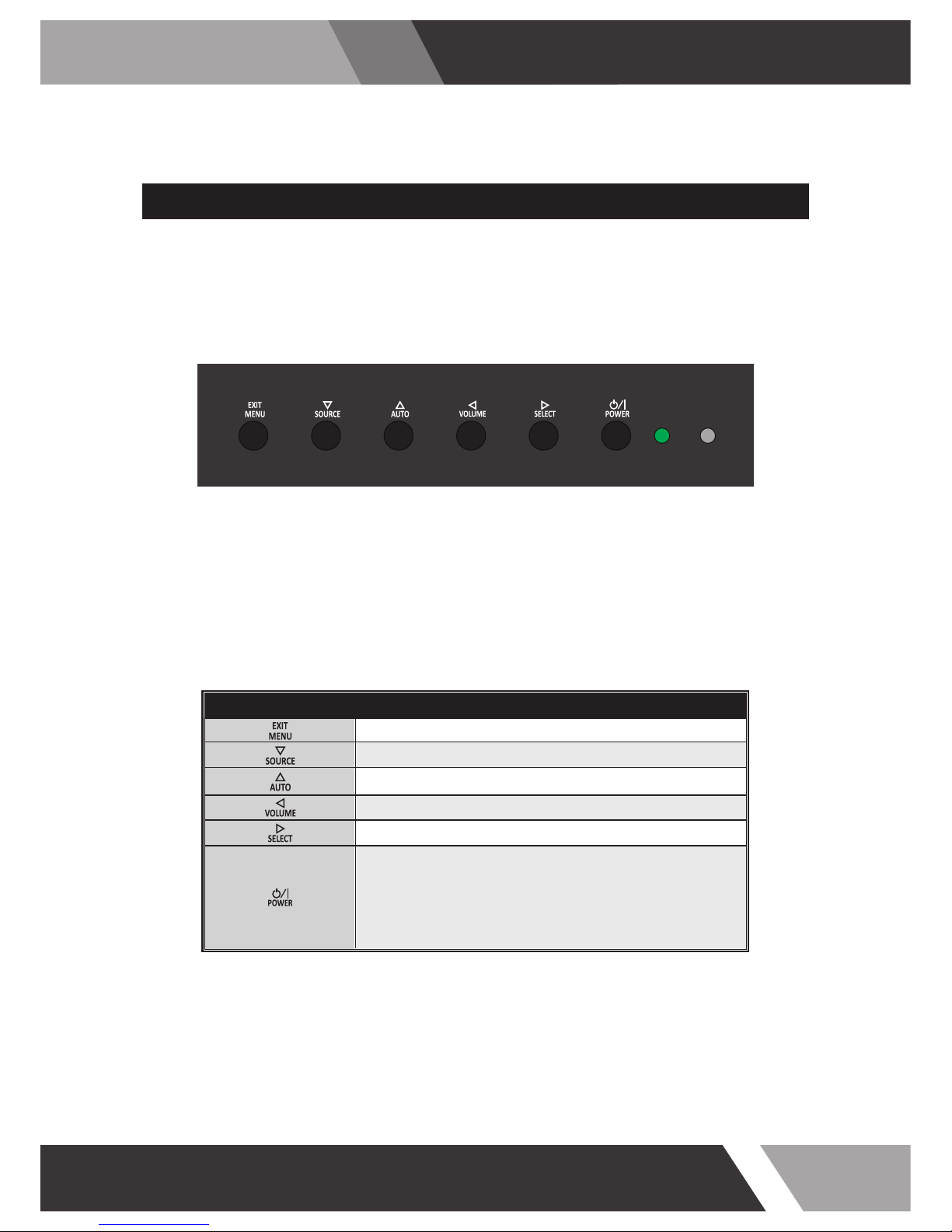

SHORT KEY FUNCTION
KEY BUTTON
OSD Key Function
Activates and exit the OSD
Select input source, and select the OSD menu
Move the OSD menu and auto adjustment of RGB source
Decrease the level of volume and move the previous menu
Increase the level of volume and select rhe OSD menu
Turns the power ON or OFF. There will be a few seconds
delay before the display appears.The power LED (next to the
power switch) lights with green when the power is turned ON.
The power is turned off by pressing the power switch again
and the power LED goes red.
10
Installation and User's Guide
CONNECTION
DC12V
1VIDEO-2 IN / OUT
DC adapter input VIDEO-2 signal input / looping out
6
AUDIO (PC)
2VIDEO-1 IN / OUT
Stereo audio input for VGA VIDEO-1 signal input / looping out
7
3TRIGGER
TRIGGER signal input
8
AUDIO (VIDEO-2)
4HDMI
Stereo audio input for VIDEO-2
HDMI signal 1 / 2 input
9
AUDIO (VIDEO-1 / S-VIDEO)
5DVI
Stereo audio input for VIDEO-1 or S-VIDEO
DVI signal input
10
S-VIDEO IN / OUT
VGA
S-VIDEO signal input / looping out
VGA (PC RGB) signal input
11
9
10
11
1 2 3 4 5 6 7 8
