Brief Operating Instructions

Liquistation CSF33

Automatic sampler for liquid media

These instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Detailed information on the device can be found in the

Operating Instructions and in the other documentation

available at:

• www.endress.com/device-viewer

• Smart phone/tablet: Endress+Hauser Operations App

KA01168C/07/EN/07.20

71473506

2020-03-19

Liquistation CSF33

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

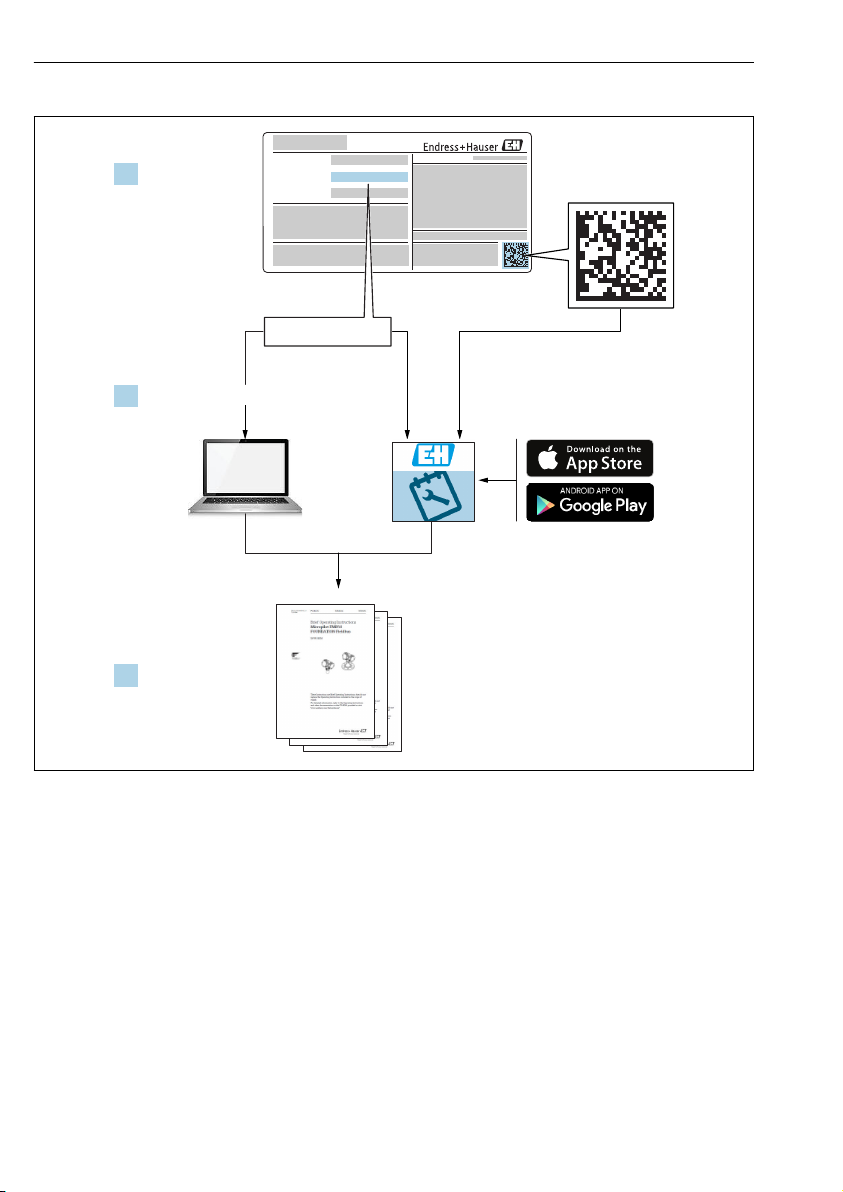

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0040778

Liquistation CSF33 Table of contents

Endress+Hauser 3

Table of contents

1 About this document .............................................................. 4

1.1 Warnings ............................................................................ 4

1.2 Symbols ............................................................................. 4

1.3 Symbols on the device ................................................................... 5

1.4 Documentation ........................................................................ 5

2 Basic safety instructions .......................................................... 6

2.1 Requirements for personnel .............................................................. 6

2.2 Designated use ........................................................................ 6

2.3 Workplace safety ...................................................................... 6

2.4 Operational safety ......................................................................7

2.5 Product safety ......................................................................... 7

3 Incoming acceptance and product identification ................................... 8

3.1 Incoming acceptance ................................................................... 8

3.2 Product identification ................................................................... 8

3.3 Scope of delivery ....................................................................... 9

3.4 Certificates and approvals ................................................................ 9

4 Installation ...................................................................... 10

4.1 Installation conditions .................................................................. 10

4.2 Installation .......................................................................... 16

4.3 Post-installation check ................................................................. 18

5 Electrical connection ............................................................ 19

5.1 Connecting the sampler ................................................................ 19

5.2 Connecting modules and sensors .......................................................... 25

5.3 Terminal assignment for input/output signals ................................................ 29

5.4 Ensuring the degree of protection ......................................................... 30

5.5 Post-connection check ..................................................................31

6 Operation options ............................................................... 32

6.1 Overview ........................................................................... 32

6.2 Access to the operating menu via the local display ............................................. 33

6.3 Configuration options .................................................................. 34

7 Commissioning .................................................................. 38

7.1 Function check ....................................................................... 38

7.2 Setting the operating language ........................................................... 38

7.3 Configuring the measuring device ......................................................... 38

About this document Liquistation CSF33

4 Endress+Hauser

1 About this document

1.1 Warnings

Structure of information Meaning

LDANGER

Causes (/consequences)

If necessary, Consequences of non-

compliance (if applicable)

‣Corrective action

This symbol alerts you to a dangerous situation.

Failure to avoid the dangerous situation will result in a fatal or serious injury.

LWARNING

Causes (/consequences)

If necessary, Consequences of non-

compliance (if applicable)

‣Corrective action

This symbol alerts you to a dangerous situation.

Failure to avoid the dangerous situation can result in a fatal or serious injury.

LCAUTION

Causes (/consequences)

If necessary, Consequences of non-

compliance (if applicable)

‣Corrective action

This symbol alerts you to a dangerous situation.

Failure to avoid this situation can result in minor or more serious injuries.

NOTICE

Cause/situation

If necessary, Consequences of non-

compliance (if applicable)

‣Action/note

This symbol alerts you to situations which may result in damage to property.

1.2 Symbols

Symbol Meaning

Additional information, tips

Permitted or recommended

Not permitted or not recommended

Reference to device documentation

Reference to page

Reference to graphic

 Result of a step

Liquistation CSF33 About this document

Endress+Hauser 5

1.3 Symbols on the device

Symbol Meaning

Reference to device documentation

1.4 Documentation

The following manuals which are available on the product pages on the internet complement

these Operating Instructions:

• Operating Instructions for Liquistation CSF33, BA00479

• Device description

• Commissioning

• Operation

• Software description (excluding sensor menus; these are described in a separate manual -

see below)

• Device-specific diagnostics and troubleshooting

• Maintenance

• Repair and spare parts

• Accessories

• Technical data

• Guidelines for communication via fieldbus and web server

• Special Documentation: Sampler application manual SD01068C

• Documentation on other devices in the Liquiline platform:

• Liquiline CM44xR (DIN rail device)

• Liquiline System CA80 (analyzer)

• Liquiline System CAT8x0 (sample preparation)

• Liquistation CSFxx (sampler)

• Liquiport CSP44 (sampler)

Basic safety instructions Liquistation CSF33

6 Endress+Hauser

2 Basic safety instructions

2.1 Requirements for personnel

• Installation, commissioning, operation and maintenance of the measuring system may be

carried out only by specially trained technical personnel.

• The technical personnel must be authorized by the plant operator to carry out the specified

activities.

• The electrical connection may be performed only by an electrical technician.

• The technical personnel must have read and understood these Operating Instructions and

must follow the instructions contained therein.

• Faults at the measuring point may only be rectified by authorized and specially trained

personnel.

Repairs not described in the Operating Instructions provided must be carried out only

directly at the manufacturer's site or by the service organization.

2.2 Designated use

Liquistation CSF33 is a stationary sampler for liquid media. The samples are taken

discontinuously using a vacuum pump or peristaltic pump and are then distributed into

sampling containers and refrigerated.

The sampler is designed for use in the following applications:

• Communal and industrial wastewater treatment plants

• Laboratories and water management offices

• Monitoring of liquid media in industrial processes

Use of the device for any purpose other than that described, poses a threat to the safety of

people and of the entire measuring system and is therefore not permitted. The manufacturer

is not liable for damage caused by improper or non-designated use.

2.3 Workplace safety

As the user, you are responsible for complying with the following safety conditions:

• Installation guidelines

• Local standards and regulations

Electromagnetic compatibility

• The product has been tested for electromagnetic compatibility in accordance with the

applicable international standards for industrial applications.

• The electromagnetic compatibility indicated applies only to a product that has been

connected in accordance with these Operating Instructions.

Liquistation CSF33 Basic safety instructions

Endress+Hauser 7

2.4 Operational safety

Before commissioning the entire measuring point:

1. Verify that all connections are correct.

2. Ensure that electrical cables and hose connections are undamaged.

3. Do not operate damaged products, and protect them against unintentional operation.

4. Label damaged products as defective.

During operation:

‣If faults cannot be rectified:

products must be taken out of service and protected against unintentional operation.

2.5 Product safety

2.5.1 State of the art

The product is designed to meet state-of-the-art safety requirements, has been tested, and

left the factory in a condition in which it is safe to operate. The relevant regulations and

international standards have been observed.

Devices connected to the sampler must comply with the applicable safety standards.

2.5.2 IT security

We only provide a warranty if the device is installed and used as described in the Operating

Instructions. The device is equipped with security mechanisms to protect it against any

inadvertent changes to the device settings.

IT security measures in line with operators' security standards and designed to provide

additional protection for the device and device data transfer must be implemented by the

operators themselves.

Incoming acceptance and product identification Liquistation CSF33

8 Endress+Hauser

3 Incoming acceptance and product identification

3.1 Incoming acceptance

1. Verify that the packaging is undamaged.

 Notify the supplier of any damage to the packaging.

Keep the damaged packaging until the issue has been resolved.

2. Verify that the contents are undamaged.

 Notify the supplier of any damage to the delivery contents.

Keep the damaged goods until the issue has been resolved.

3. Check that the delivery is complete and nothing is missing.

 Compare the shipping documents with your order.

4. Pack the product for storage and transportation in such a way that it is protected

against impact and moisture.

 The original packaging offers the best protection.

Make sure to comply with the permitted ambient conditions.

If you have any questions, please contact your supplier or your local Sales Center.

NOTICE

Damage to the sampler

If transported incorrectly, the roof may become damaged or tear off.

‣Transport the sampler using a forklift truck. Never lift the sampler by the top. Lift it in the

middle between the upper and lower sections.

3.2 Product identification

Nameplates can be found:

• On the inside of the door

• On the packaging (adhesive label, portrait format)

3.2.1 Nameplate

The nameplate provides you with the following information on your device:

• Manufacturer identification

• Order code

• Extended order code

• Serial number

• Firmware version

• Ambient and process conditions

• Input and output values

• Activation codes

• Safety information and warnings

‣Compare the information on the nameplate with the order.

Liquistation CSF33 Incoming acceptance and product identification

Endress+Hauser 9

3.3 Scope of delivery

The scope of delivery comprises:

• 1 Liquistation CSF33 with:

• The ordered bottle configuration

• Optional hardware

• Accessories kit

•

• Connection nipple for suction line with various angles (straight, 90°), Allen key (for

version with vacuum pump only)

• Suction line:

• Suction line ID 13 mm (1/2"), PVC, reinforced spiral wire, length 10 m (33 ft), suction

head V4A for vacuum version

• Suction line ID 10 mm (1/2"), PVC, reinforced spiral wire, length 10 m (33 ft), suction

head V4A for peristaltic version

• 1 print version of Brief Operating Instructions in the language ordered

• Optional accessories

‣If you have any queries:

Please contact your supplier or local sales center.

3.4 Certificates and approvals

3.4.1  mark

Declaration of Conformity

The product meets the requirements of the harmonized European standards. As such, it

complies with the legal specifications of the EU directives. The manufacturer confirms

successful testing of the product by affixing to it the  mark.

EAC

The product has been certified according to guidelines TP TC 004/2011 and TP TC 020/2011

which apply in the European Economic Area (EEA). The EAC conformity mark is affixed to the

product.

Installation Liquistation CSF33

10 Endress+Hauser

4 Installation

4.1 Installation conditions

4.1.1 Dimensions

355 (14.0)

125 (4.9)

903 (35.6)

1258 (49.5)

625 (24.6)

471 (18.5)

816 (32.1)

753 (29.7)

A0014539

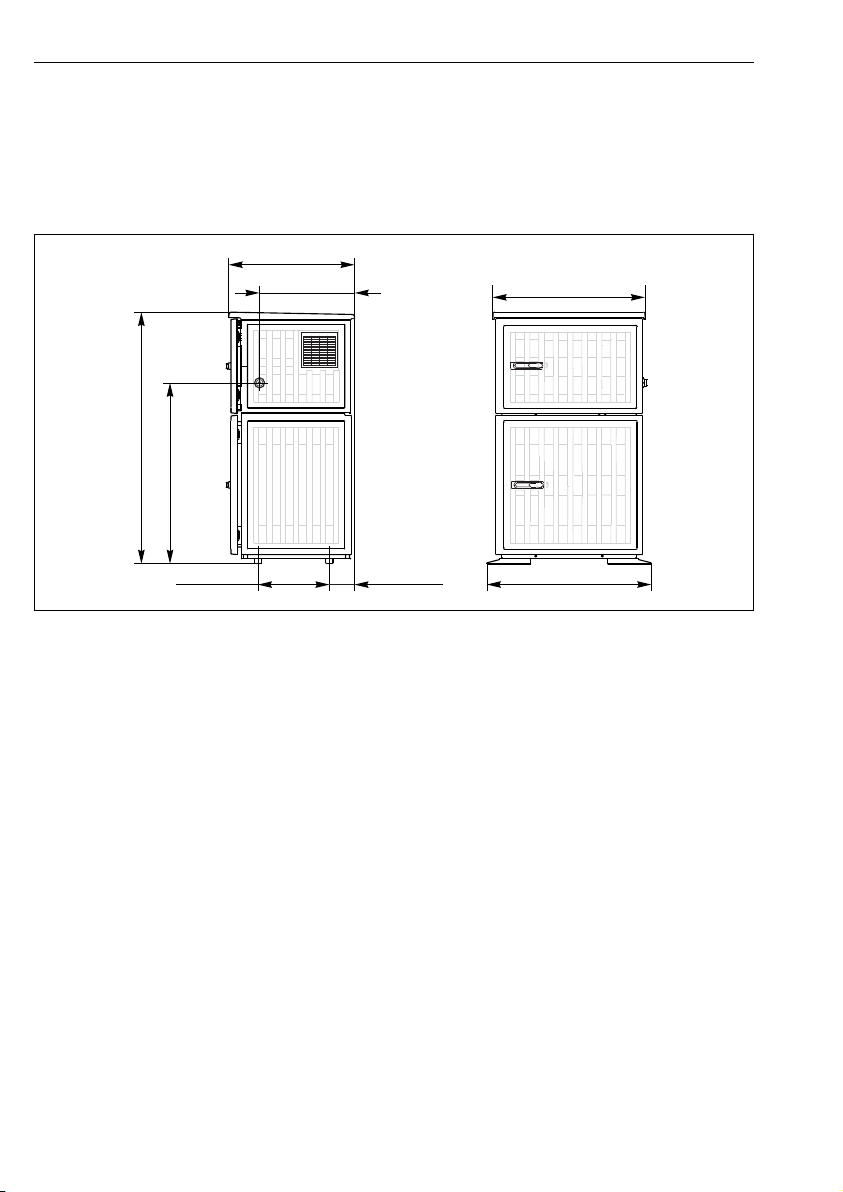

 1 Dimensions of Liquistation CSF33 plastic version, dimensions in mm (in)

A Suction line connection

Autres manuels pour Liquistation CSF33

Table des matières

Autres manuels Endress+Hauser Équipement de laboratoire

Endress+Hauser

Endress+Hauser Liquiline Mobile CML18 Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena PlasmaQuant MS Series Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena PlasmaQuant MS Manuel utilisateur

Endress+Hauser

Endress+Hauser analytikjena Biometra TOne Comment utiliser

Endress+Hauser

Endress+Hauser Analytik Jena CyBio SELMA Manuel utilisateur

Endress+Hauser

Endress+Hauser Levelflex FMP51 Instructions d'installation

Endress+Hauser

Endress+Hauser Analytik Jena APU 28 Series Manuel utilisateur

Endress+Hauser

Endress+Hauser analytikjena CyBio QuadPrint HQ-M Manuel utilisateur

Endress+Hauser

Endress+Hauser analytikjena qTOWER3auto Series Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena Biometra TOne Comment utiliser

Endress+Hauser

Endress+Hauser CAT820 Manuel utilisateur

Endress+Hauser

Endress+Hauser analytikjena qTOWER3 84 auto Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquistation CSF34 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiline Control CDC90 Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena Automatic Boat Drive Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena Biometra TAdvanced Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena CyBio FeliX Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena UVP Transilluminator Manuel utilisateur

Endress+Hauser

Endress+Hauser analytikjena CyBio QuadPrint HQ Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena Biometra TRobot II 96 G Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena InnuPure C16 touch Manuel utilisateur

Endress+Hauser

Endress+Hauser Levelflex M FMP41C Instructions d'installation

Endress+Hauser

Endress+Hauser analytikjena Biometra TAdvanced Comment utiliser

Endress+Hauser

Endress+Hauser Analytik Jena Biometra TOne 96 Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur

Yamato

Yamato BM510 Manuel utilisateur
