Encore ENHWI-SG Guide rapide

Encore Electronics Inc 2005

Wireless Configuration 1

Wireless Configuration

The setup of the Wireless Broadband Router can be performed properly using the following

methods:

•The power outlet should be within 1.82 meters (6 feet) of the Broadband Router.

•Visually inspect the DC power jack and make sure that it is fully secured to the power

adapter.

•Make sure that there is proper heat dissipation from and adequate ventilation around the

Broadband Router. Do not place heavy objects on the Broadband Router.

•Fix the direction of the antennas. Try to place the Wireless Router in a position that can

best cover your wireless network. Normally, the higher you place the antenna, the better

the performance will be. The antenna’s position enhances the receiving sensitivity

Connect the Router on a Wired LAN environment

*Before you begin, insure that your have a stable internet connection

1. Plug in one end of the network cable to the WAN port of the Wireless Internet Broadband

Router.

2. Plug in the other end of the network cable to the Ethernet port of the xDSL or Cable

modem.

3. Use another network cable to connect to the Ethernet card on the computer system; the

other end of the cable connects to the LAN port of the Internet Broadband Router. Since

the Wireless Broadband Router has four ports, you can connect up to four computers

directly to the unit. There you do not have to buy a switch to connect these computers

Encore Electronics Inc 2005

Wireless Configuration 2

since one Internet Broadband Router functions both as a connection-sharing unit and as

a switch

Connect the router on a Wireless LAN environment

*Before you begin, insure that your have a stable internet connection

1. Plug in one end of the RJ45 network cable to the xDSL/Cable Modem.

2. Plug in the other end of the RJ45 network cable to the Wireless Internet Broadband

Router WAN port.

Check the installation

The control LEDs of the Wireless Internet Broadband Router are clearly visible and the status of

the network link can be seen instantly:

1. With the power source on, once the device is connected to the broadband modem, the

Power, CPU, LAN, WLAN and WAN port link LEDs of the Internet Broadband Router will

light up indicating a normal status.

2. While the WAN is link up to the ADSL/Cable modem, the WAN port’s Link/ACT LED will

light up.

3. While the LAN is link up to the computer system, the LAN port’s Link/ACT LED will light

up.

4. If you are having difficulties with the router. You may want to reset the router by pressing

the “reset” button the other back while the power is on. Hold the button for 30 seconds

Encore Electronics Inc 2005

Wireless Configuration 3

and release it. Wait 30 seconds then unplug the power and wait 30 seconds and plug the

power back in.

*Resetting the router will return the router to the default factory settings

Setting up the Network Connection on the computer

*Based on Windows XP. All other Windows based operating systems should follow a similar

process.

*It is highly recommended that you configure the router using a computer connected directly to

the router through the LAN port using an Ethernet cable.

Point the cursor and click the right button on the “My Network Place” icon. Select “Properties”

to enter the TCP/IP setting window.

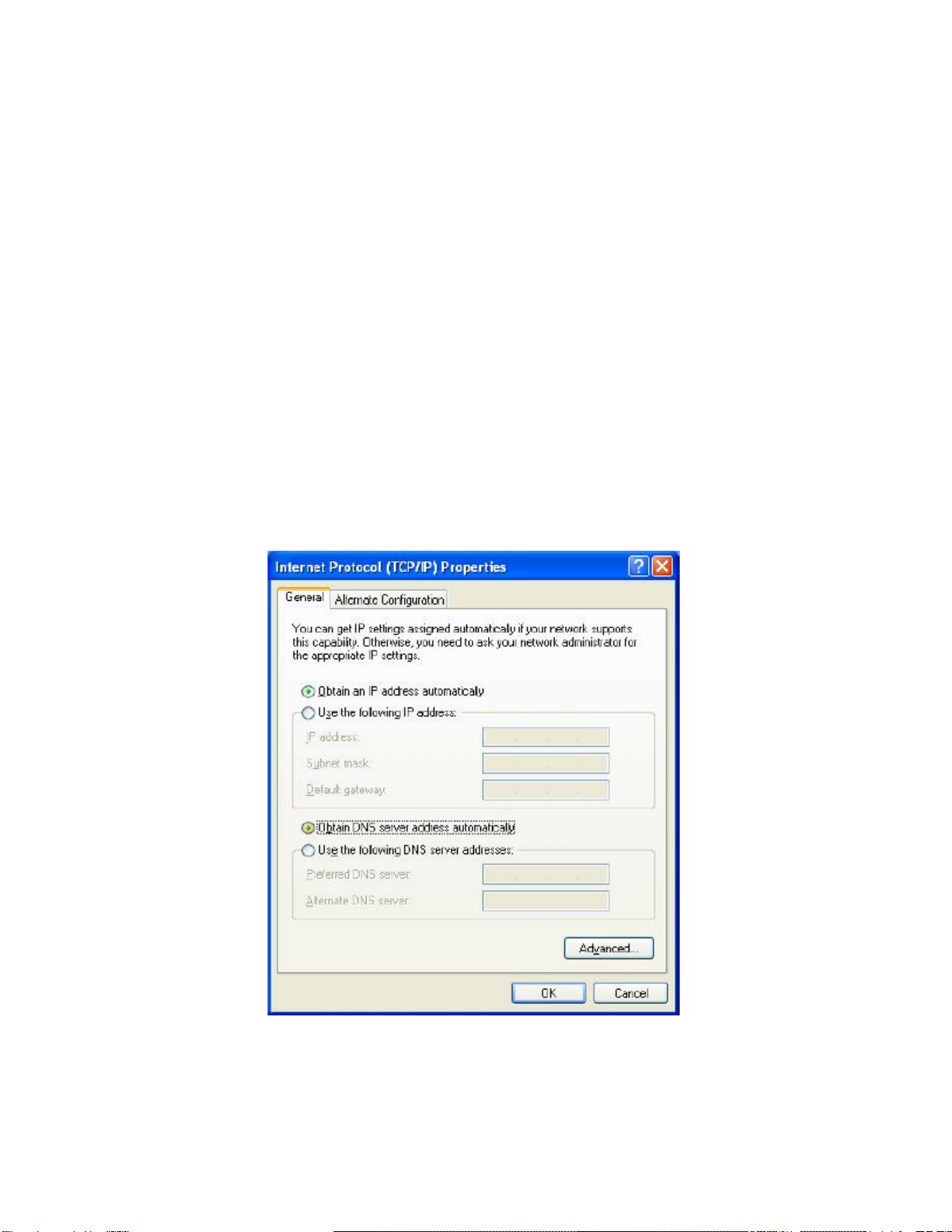

1. Set “IP address” to “Obtain an IP address automatically.”

2. Set “DNS” to “Obtain DNS server address automatically.”

1. Open Internet Explorer (or some type of internet browser)

Encore Electronics Inc 2005

Wireless Configuration 4

2. Enter address http://192.168.1.1 (the factory-default IP address setting) to the URL web

address location.

3. When the following dialog box appears, enter the user name and password to login to the

main configuration window, the default username is “admin” and default password is

“admin”

Quick Setup

Setup wizard is provided as the part of the web configuration utility. User can simply follow the

step-by-step process to get the wireless router configuration ready to run in 6 easy steps by

clicking on the “Wizard” button on the function menu. The following screen will appear. Please

click “Next” to continue

Step 1: Set up new Password

User can change the password and then click “Next” to continue.

Encore Electronics Inc 2005

Wireless Configuration 5

Step 2: Choose time zone

Select the time zone from the drop down list. Please click “Next” to continue.

Step 3: Set LAN connection and DHCP server

Set user’s IP address and mask. The default IP is 192.168.1.1. If user likes to enable DHCP,

please click “Enabled”. DHCP enabled is able to automatically assign IP addresses. Please

assign the range of IP addresses in the fields of “Range start” and “Range end”. Please click

“Next” to continue.

Encore Electronics Inc 2005

Wireless Configuration 6

Step 4: Set Internet connection

Select how the router will set up the Internet connection: Obtained IP automatically; Fixed IP

address; PPPoE to obtain IP automatically; PPPoE with a fixed IP address; PPTP.

Obtain IP automatically (DHCP client): If user has enabled DHCP server, choose "Obtain IP

automatically (DHCP client)" to have the router assign IP addresses automatically

Fixed IP Address

Encore Electronics Inc 2005

Wireless Configuration 7

If the Internet Service Providers assign a fixed IP address, choose this option and enter the

assigned IP address, subnet mask, gateway IP and DNS IP addresses for your Broadband

Router.

PPPoE to obtain IP automatically:

Encore Electronics Inc 2005

Wireless Configuration 8

If connected to the Internet using a PPPoE (Dial-up xDSL) Modem, the ISP will provide a

Password and User Name, and then the ISP uses PPPoE. Choose this option and enter the

required information.

PPTP

If connected to the Internet using a (PPTP) xDSL Modem, enter the your IP Address, Subnet

Mask, Gateway, Server IP, PPTP Account and PPTP Password, Your Subnet Mask required by

your ISP in the appropriate fields. If your ISP has provided you with a Connection ID, enter it in

the Connection ID field, otherwise, leave it zero.

Encore Electronics Inc 2005

Wireless Configuration 9

Step 5: Set Wireless LAN connection

Click “Enable” to enable wireless LAN. If user enables the wireless LAN, type the SSID in the text

box and select a communications channel. The SSID and channel must be the same as wireless

devices attempting communication to the router. The SSID will be broadcasted to other wireless

devices.

Encore Electronics Inc 2005

Wireless Configuration 10

Step 6: Restart

The Setup wizard is now completed. The new settings will be effective after the Wireless router

restarted. Please click “Restart” to reboot the router. If user does not want to make any changes,

please click “Exit” to quit without any changes. User also can go back to modify the setting by

clicking “Back”.

Advance Setup

LAN Settings

The screen enables users to configure the LAN & DHCP Server, set WAN parameters, create

Administrator and User passwords, and set the local time, time zone, and dynamic DNS

LAN & DHCP Server This page leads to set LAN and DHCP properties, such as the host name,

IP address, subnet mask, and domain name. LAN and DHCP profiles are listed in the DHCP

table at the bottom of the screen
